API reference

Public surface of jsjiit 0.0.22. Architecture: Architecture and design. Examples: Quick start guide.

src/index.js is the only public barrel.

Exports#

Name	Kind	Defined in
`WebPortal`	class	`src/wrapper.js`
`WebPortalSession`	class	`src/wrapper.js`
`API`	string	`src/wrapper.js`
`DEFCAPTCHA`	object	`src/wrapper.js`
`AttendanceHeader`	class	`src/attendance.js`
`Semester`	class	`src/attendance.js`
`AttendanceMeta`	class	`src/attendance.js`
`RegisteredSubject`	class	`src/registration.js`
`Registrations`	class	`src/registration.js`
`ExamEvent`	class	`src/exam.js`
`APIError`	class	`src/exceptions.js`
`LoginError`	class	`src/exceptions.js`
`AccountAPIError`	class	`src/exceptions.js`
`NotLoggedIn`	class	`src/exceptions.js`
`SessionError`	class	`src/exceptions.js`
`SessionExpired`	class	`src/exceptions.js`
`generate_local_name`	function	`src/encryption.js`

FeedbackOptions is a default export of src/feedback.js and is not in this list.

This clone has no useProxy or proxyUrl on WebPortal. If a newer CDN build has them, they are not documented here.

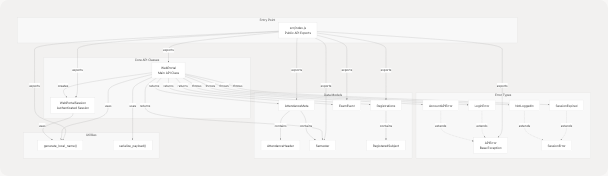

flowchart TB
  idx[src/index.js]
  idx --> WP[WebPortal]
  idx --> WPS[WebPortalSession]
  idx --> models[AttendanceMeta Semester ExamEvent Registrations]
  idx --> errs[APIError LoginError SessionError]
  idx --> consts["API DEFCAPTCHA generate_local_name"]
  WP --> WPS
  WP --> models
  WP --> errs

WebPortal methods#

flowchart TB
  WP[WebPortal]
  WP --> auth[student_login]
  WP --> att[attendance]
  WP --> rec[grades marks sgpa]
  WP --> reg[registration]
  WP --> exam[exams]
  WP --> acct[account fees hostel feedback]

Method	Auth	Returns
`student_login(username, password, captcha)`	no	`Promise<WebPortalSession>`
`get_attendance_meta()`	yes	`Promise<AttendanceMeta>`
`get_attendance(header, semester)`	yes	`Promise<Object>`
`get_subject_daily_attendance(semester, subjectid, individualsubjectcode, subjectcomponentids)`	yes	`Promise<Object>`
`get_registered_semesters()`	yes	`Promise<Semester[]>`
`get_registered_subjects_and_faculties(semester)`	yes	`Promise<Registrations>`
`get_semesters_for_exam_events()`	yes	`Promise<Semester[]>`
`get_exam_events(semester)`	yes	`Promise<ExamEvent[]>`
`get_exam_schedule(exam_event)`	yes	`Promise<Object>`
`get_semesters_for_marks()`	yes	`Promise<Semester[]>`
`download_marks(semester)`	yes	`Promise<void>`
`get_semesters_for_grade_card()`	yes	`Promise<Semester[]>`
`get_grade_card(semester)`	yes	`Promise<Object>`
`get_sgpa_cgpa()`	yes	`Promise<Object>`
`get_personal_info()`	yes	`Promise<Object>`
`get_student_bank_info()`	yes	`Promise<Object>`
`change_password(old_password, new_password)`	yes	`Promise<Object>`
`get_hostel_details()`	yes	`Promise<Object>`
`get_fee_summary()`	yes	`Promise<Object>`
`get_fines_msc_charges()`	yes	`Promise<Object>`
`get_subject_choices(semester)`	yes	`Promise<Object>`
`fill_feedback_form(feedback_option)`	not wrapped	`Promise<void>`

fill_feedback_form is missing from authenticatedMethods. Calling it with session === null still blows up later when it reads this.session.instituteid.

Private helpers used by public methods: __hit, __get_program_id, __get_semester_number. Those two helpers are in authenticatedMethods.

Pages:

WebPortalSession#

Created by student_login. Do not construct it yourself unless you have a login response object.

Property	Type
`raw_response`	object
`regdata`	object
`institute`	string (`institutelist[0].label`)
`instituteid`	string (`institutelist[0].value`)
`memberid`	string
`userid`	string
`token`	JWT string
`expiry`	`Date` from JWT `exp`
`clientid`	string
`membertype`	string
`name`	string
`enrollmentno`	string

get_headers() returns { Authorization: "Bearer " + token, LocalName }. download_marks calls this.session.get_headers(localname) with an extra argument that get_headers ignores.

There is no branch_id assignment in the constructor. get_grade_card still sends branchid: this.session.branch_id.

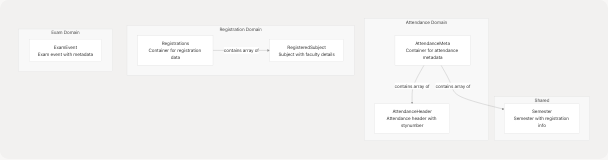

Models#

classDiagram
  class AttendanceMeta {
    headers
    semesters
    latest_header()
    latest_semester()
  }
  class AttendanceHeader {
    branchdesc
    name
    programdesc
    stynumber
  }
  class Semester {
    registration_code
    registration_id
  }
  class Registrations {
    total_credits
    subjects
  }
  class RegisteredSubject {
    employee_name
    credits
    subject_code
    subject_id
  }
  class ExamEvent {
    exam_event_code
    exam_event_id
    registration_id
  }
  AttendanceMeta --> AttendanceHeader
  AttendanceMeta --> Semester
  Registrations --> RegisteredSubject

Data models.

Errors#

classDiagram
  Error <|-- APIError
  APIError <|-- LoginError
  Error <|-- SessionError
  SessionError <|-- SessionExpired
  SessionError <|-- NotLoggedIn
  Error <|-- AccountAPIError

Error handling.

Constants#

javascript

export const API = "https://webportal.jiit.ac.in:6011/StudentPortalAPI";
export const DEFCAPTCHA = { captcha: "phw5n", hidden: "gmBctEffdSg=" };

generate_local_name(date?) returns a base64 AES-CBC blob for the LocalName header. __hit and get_headers already call it.

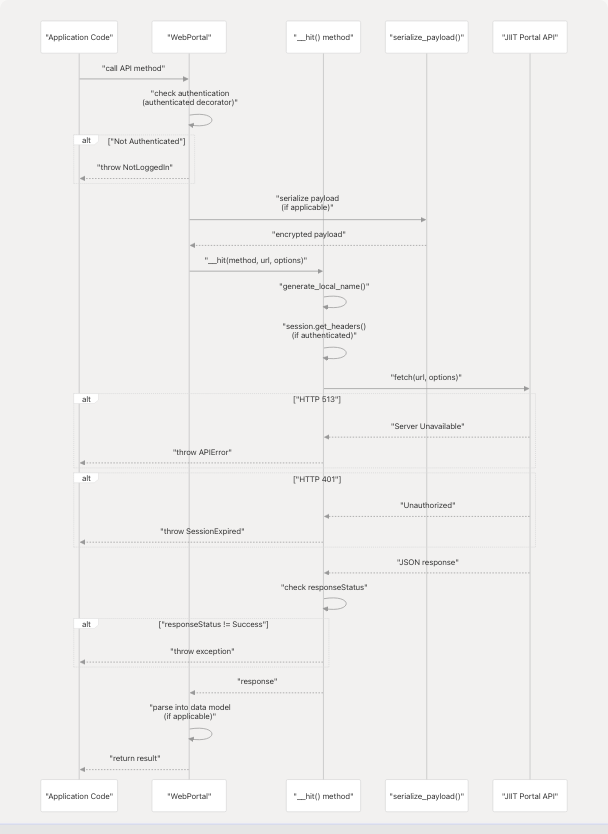

`__hit` path#

sequenceDiagram
  participant M as WebPortal method
  participant H as __hit
  participant S as WebPortalSession
  participant F as fetch
  M->>H: method, url, options
  alt authenticated
    H->>S: get_headers()
  else
    H->>H: generate_local_name()
  end
  H->>F: POST/GET JSON
  F-->>H: status plus JSON
  alt 513
    H-->>M: exception unavailable
  else 401
    H-->>M: SessionExpired
  else status.responseStatus not Success
    H-->>M: exception
  else
    H-->>M: resp
  end

__hit logs options and the fetch call with console.log.

`authenticated` wrapper#

javascript

const authenticatedMethods = [
  "get_personal_info",
  "get_student_bank_info",
  "change_password",
  "get_attendance_meta",
  "get_attendance",
  "get_subject_daily_attendance",
  "get_registered_semesters",
  "get_registered_subjects_and_faculties",
  "get_semesters_for_exam_events",
  "get_exam_events",
  "get_exam_schedule",
  "get_semesters_for_marks",
  "download_marks",
  "get_semesters_for_grade_card",
  "__get_program_id",
  "get_grade_card",
  "__get_semester_number",
  "get_sgpa_cgpa",
  "get_hostel_details",
  "get_fines_msc_charges",
  "get_fee_summary",
  "get_subject_choices",
];

fill_feedback_form is not in this array.

Endpoints#

Base: https://webportal.jiit.ac.in:6011/StudentPortalAPI

Method	Path
`student_login`	`/token/pretoken-check`, `/token/generate-token1`
`get_personal_info`	`/studentpersinfo/getstudent-personalinformation`
`get_student_bank_info`	`/studentbankdetails/getstudentbankinfo`
`change_password`	`/clxuser/changepassword`
`get_attendance_meta`	`/StudentClassAttendance/getstudentInforegistrationforattendence`
`get_attendance`	`/StudentClassAttendance/getstudentattendancedetail`
`get_subject_daily_attendance`	`/StudentClassAttendance/getstudentsubjectpersentage`
`get_registered_semesters`	`/reqsubfaculty/getregistrationList`
`get_registered_subjects_and_faculties`	`/reqsubfaculty/getfaculties`
`get_semesters_for_exam_events`	`/studentcommonsontroller/getsemestercode-withstudentexamevents`
`get_exam_events`	`/studentcommonsontroller/getstudentexamevents`
`get_exam_schedule`	`/studentsttattview/getstudent-examschedule`
`get_semesters_for_marks`	`/studentcommonsontroller/getsemestercode-exammarks`
`download_marks`	`/studentsexamview/printstudent-exammarks/{instituteid}/{registration_id}/{registration_code}`
`get_semesters_for_grade_card`	`/studentgradecard/getregistrationList`
`__get_program_id`	`/studentgradecard/getstudentinfo`
`get_grade_card`	`/studentgradecard/showstudentgradecard`
`__get_semester_number`	`/studentsgpacgpa/checkIfstudentmasterexist`
`get_sgpa_cgpa`	`/studentsgpacgpa/getallsemesterdata`
`get_hostel_details`	`/myhostelallocationdetail/gethostelallocationdetail`
`get_fines_msc_charges`	`/collectionpendingpayments/getpendingpaymentsdata`
`get_fee_summary`	`/studentfeeledger/loadfeesummary`
`get_subject_choices`	`/studentchoiceprint/getsubjectpreference`
`fill_feedback_form`	`/feedbackformcontroller/getFeedbackEvent`, `getGriddataForFeedback`, `getIemQuestion`, `savedatalist`

get_exam_events sends registationid (portal spelling). get_personal_info sends clinetid: "SOAU".

Call order#

javascript

import { WebPortal } from "jsjiit";

const portal = new WebPortal();
await portal.student_login(username, password);
const meta = await portal.get_attendance_meta();

Version in this clone: 0.0.22. CDN:

javascript

import { WebPortal } from "https://cdn.jsdelivr.net/npm/[email protected]/dist/jsjiit.min.esm.js";
