quick start guide

Flow#

flowchart LR
  I[import] --> N["new WebPortal"]
  N --> L[student_login]
  L --> M[data methods]

All data methods return Promises. They throw NotLoggedIn if portal.session is still null.

Import#

javascript

import { WebPortal } from "https://cdn.jsdelivr.net/npm/[email protected]/dist/jsjiit.min.esm.js";

javascript

import { WebPortal } from "./src/index.js";

Source	Path
CDN, this version	`[email protected]/dist/jsjiit.min.esm.js`
CDN, npm latest	`jsjiit/dist/jsjiit.min.esm.js` (may not match this source)
Local clone	`./src/index.js`

sequenceDiagram
  participant App
  participant WP as WebPortal
  participant API as StudentPortalAPI
  App->>WP: student_login(user, pass, DEFCAPTCHA)
  WP->>API: POST /token/pretoken-check
  API-->>WP: response
  WP->>API: POST /token/generate-token1
  API-->>WP: regdata JWT
  WP-->>App: WebPortalSession

javascript

const portal = new WebPortal();
await portal.student_login("your_username", "your_password");

Arg	Required	Default
`username`	yes
`password`	yes
`captcha`	no	`DEFCAPTCHA` `{ captcha: "phw5n", hidden: "gmBctEffdSg=" }`

Session lands on portal.session. Later methods read institute id, member id, JWT from there.

Patterns#

Attendance#

javascript

const meta = await portal.get_attendance_meta();
const sem = meta.latest_semester();
const header = meta.latest_header();
const attendance = await portal.get_attendance(header, sem);

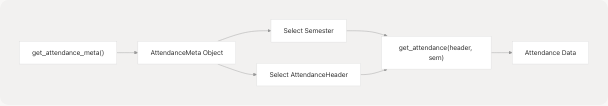

flowchart TD
  A[get_attendance_meta] --> B[AttendanceMeta]
  B --> C[latest_semester]
  B --> D[latest_header]
  C --> E[get_attendance]
  D --> E
  E --> F[studentattendancelist]

Daily subject attendance#

Same list as README / test.html:

javascript

const subjectIndex = 1;
const row = attendance.studentattendancelist[subjectIndex];
const subjectid = row.subjectid;
const individualsubjectcode = row.individualsubjectcode;
const possibleComponentCodes = ["Lsubjectcomponentid", "Psubjectcomponentid", "Tsubjectcomponentid"];
const subjectcomponentids = [];
for (const key of possibleComponentCodes) {
  if (row[key]) subjectcomponentids.push(row[key]);
}
const subjectAttendance = await portal.get_subject_daily_attendance(
  sem,
  subjectid,
  individualsubjectcode,
  subjectcomponentids
);

SGPA / CGPA#

javascript

const sgpaCgpa = await portal.get_sgpa_cgpa();

Internally this calls __get_semester_number then /studentsgpacgpa/getallsemesterdata.

Grade card#

javascript

const gradeCardSems = await portal.get_semesters_for_grade_card();
const grades = await portal.get_grade_card(gradeCardSems[0]);

Marks PDF#

javascript

const marksSems = await portal.get_semesters_for_marks();
await portal.download_marks(marksSems[0]);

download_marks uses fetch + a temporary <a download> in the document. It does not return the PDF bytes.

Registered subjects#

javascript

const registeredSems = await portal.get_registered_semesters();
const registeredSubjects = await portal.get_registered_subjects_and_faculties(registeredSems[0]);

Exams#

javascript

const examSems = await portal.get_semesters_for_exam_events();
const examEvents = await portal.get_exam_events(examSems[0]);
const examSchedule = await portal.get_exam_schedule(examEvents[0]);

Account extras in 0.0.22#

javascript

const personalInfo = await portal.get_personal_info();
const bank = await portal.get_student_bank_info();
const hostel = await portal.get_hostel_details();
const fees = await portal.get_fee_summary();
const fines = await portal.get_fines_msc_charges();
const choices = await portal.get_subject_choices(registeredSems[0]);

get_fines_msc_charges still goes through __hit, so a portal "Failure" with "NO APPROVED REQUEST FOUND" becomes APIError.

Feedback (see test.html):

javascript

await portal.fill_feedback_form("EXCELLENT");

Strings used in src/feedback.js: UNSATISFIED, SATISFIED, GOOD, VERY_GOOD, EXCELLENT. That object is a default export and is not on the src/index.js named export list.

Method map#

Category	Method	Returns
Auth	`student_login()`	`WebPortalSession`
Attendance	`get_attendance_meta()`	`AttendanceMeta`
	`get_attendance(header, semester)`	object
	`get_subject_daily_attendance(...)`	object
Records	`get_sgpa_cgpa()`	object
	`get_semesters_for_grade_card()`	`Semester[]`
	`get_grade_card(semester)`	object
	`get_semesters_for_marks()`	`Semester[]`
	`download_marks(semester)`	void (browser download)
Registration	`get_registered_semesters()`	`Semester[]`
	`get_registered_subjects_and_faculties(semester)`	`Registrations`
	`get_subject_choices(semester)`	object
Exams	`get_semesters_for_exam_events()`	`Semester[]`
	`get_exam_events(semester)`	`ExamEvent[]`
	`get_exam_schedule(exam_event)`	object
Account	`get_personal_info()`	object
	`get_student_bank_info()`	object
	`change_password(old, next)`	object
	`get_hostel_details()`	object
	`get_fee_summary()`	object
	`get_fines_msc_charges()`	object
	`fill_feedback_form(option)`	void

HTML page#

html

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>jsjiit 0.0.22</title>
</head>
<body>
  <script type="module">
    import { WebPortal, LoginError } from "https://cdn.jsdelivr.net/npm/[email protected]/dist/jsjiit.min.esm.js";

    async function main() {
      const portal = new WebPortal();
      try {
        await portal.student_login("username", "password");
      } catch (e) {
        if (e instanceof LoginError) {
          console.error(e.message);
          return;
        }
        throw e;
      }

      const sgpaCgpa = await portal.get_sgpa_cgpa();
      const meta = await portal.get_attendance_meta();
      const attendance = await portal.get_attendance(meta.latest_header(), meta.latest_semester());
      console.log(sgpaCgpa, attendance);
    }

    main().catch(console.error);
  </script>
</body>
</html>

test.html in the repo imports ./src/index.js and currently calls fill_feedback_form("EXCELLENT") after login.

Errors#

javascript

import { WebPortal, LoginError, NotLoggedIn, SessionExpired, APIError } from "./src/index.js";

Class	Typical cause
`LoginError`	pret token / generate-token failure
`NotLoggedIn`	method before `student_login`
`SessionExpired`	HTTP 401
`APIError`	other `__hit` failures, HTTP 513, CORS TypeError
`AccountAPIError`	`change_password`

More: Error handling.

Typed returns#

Class	From	Fields you will use
`WebPortalSession`	`student_login`	`token`, `memberid`, `name`, `enrollmentno`, `expiry`
`AttendanceMeta`	`get_attendance_meta`	`headers`, `semesters`
`Semester`	semester list methods	`registration_id`, `registration_code`
`AttendanceHeader`	`meta.headers`	`stynumber`
`Registrations`	subjects + faculties	`subjects`, `total_credits`
`ExamEvent`	`get_exam_events`	`exam_event_id`, `registration_id`

Models: Data models. Session lifetime: Authentication and session management.
