Academic Records Methods

Purpose and Scope

This document provides comprehensive reference documentation for academic record retrieval methods in the jsjiit library. These methods enable programmatic access to student grades, SGPA/CGPA calculations, semester marks, and grade cards from the JIIT Web Portal.

The academic records methods covered here include:

• Grade card retrieval for specific semesters
• SGPA and CGPA calculation and history
• Marks download as PDF documents
• Semester enumeration for available academic records

For information about other student data such as attendance and registered subjects, see Attendance Methods and Registration and Subject Methods. For session management and authentication requirements, see Authentication and Session Management.

Overview

All academic records methods require an authenticated session and operate on the WebPortal class defined in src/wrapper.js These methods interact with various JIIT Web Portal API endpoints to retrieve historical academic performance data.

Academic Records Method Categories

Sources: src/wrapper.js385-509 README.md43-79

Method Reference

Grade Card Methods

get_semesters_for_grade_card()

Retrieves the list of semesters for which grade cards are available.

Signature:

async get_semesters_for_grade_card(): Promise<Array<Semester>>

Returns: Array of Semester objects representing semesters with available grade cards.

API Endpoint: /studentgradecard/getregistrationList

Implementation Details:

• Sends encrypted payload with instituteid from the session
• Response contains registrations array that is mapped to Semester objects
• Each semester object contains registration_id needed for get_grade_card()

Example:

const gradeCardSems = await portal.get_semesters_for_grade_card();
const latestSem = gradeCardSems[0];

Sources: src/wrapper.js437-444 README.md44-46

get_grade_card(semester)

Retrieves the detailed grade card for a specific semester, including subject-wise grades and performance metrics.

Signature:

async get_grade_card(semester: Semester): Promise<Object>

Parameters:

• semester (Semester): A semester object obtained from get_semesters_for_grade_card()

Returns: Object containing grade card data with subject details, grades, and credits.

API Endpoint: /studentgradecard/showstudentgradecard

Implementation Details:

• Internally calls __get_program_id() to retrieve the required program identifier
• Sends encrypted payload with:
  • branchid from session
  • instituteid from session
  • programid from helper method
  • registrationid from the semester parameter
• Note: session.branch_id is referenced but not set in the constructor; this may cause issues in some implementations

Example:

const gradeCardSems = await portal.get_semesters_for_grade_card();
const grades = await portal.get_grade_card(gradeCardSems[0]);

Sources: src/wrapper.js465-476 README.md44-47

__get_program_id() (Private)

Internal helper method that retrieves the student's program ID required for grade card requests.

Signature:

async __get_program_id(): Promise<string>

Returns: String representing the program ID.

API Endpoint: /studentgradecard/getstudentinfo

Implementation Details:

• Sends encrypted payload with instituteid
• Extracts programid from response
• This method is decorated with the authenticated decorator at module level

Sources: src/wrapper.js451-458 src/wrapper.js707-719

SGPA/CGPA Methods

get_sgpa_cgpa()

Retrieves semester-wise SGPA (Semester Grade Point Average) and cumulative CGPA (Cumulative Grade Point Average) data for the logged-in student.

Signature:

async get_sgpa_cgpa(): Promise<Object>

Returns: Object containing SGPA and CGPA details for all semesters.

API Endpoint: /studentsgpacgpa/getallsemesterdata

Implementation Details:

• Internally calls __get_semester_number() to determine the current semester
• Sends encrypted payload with:
  • instituteid from session
  • studentid from session
  • stynumber from helper method
• Response contains historical semester data with SGPA for each semester and overall CGPA

Example:

const sgpaCgpa = await portal.get_sgpa_cgpa();
console.log(sgpaCgpa);

Sources: src/wrapper.js499-509 README.md71-73

__get_semester_number() (Private)

Internal helper method that retrieves the current semester number for the logged-in student.

Signature:

async __get_semester_number(): Promise<number>

Returns: Number representing the current semester.

API Endpoint: /studentsgpacgpa/checkIfstudentmasterexist

Implementation Details:

• Sends encrypted payload with:
  • instituteid from session
  • studentid from session (memberid)
  • name from session
  • enrollmentno from session
• Extracts currentsemester from studentlov in response
• This method is decorated with the authenticated decorator at module level

Sources: src/wrapper.js483-493 src/wrapper.js707-719

Marks Methods

get_semesters_for_marks()

Retrieves the list of semesters for which examination marks are available for download.

Signature:

async get_semesters_for_marks(): Promise<Array<Semester>>

Returns: Array of Semester objects representing semesters with available marks.

API Endpoint: /studentcommonsontroller/getsemestercode-exammarks

Implementation Details:

• Sends encrypted payload with:
  • instituteid from session
  • studentid from session (memberid)
• Response contains semestercode array that is mapped to Semester objects
• Each semester object contains registration_id and registration_code needed for download_marks()

Example:

const marksSems = await portal.get_semesters_for_marks();
const previousSem = marksSems[1];

Sources: src/wrapper.js385-393 README.md76-78

download_marks(semester)

Downloads the examination marks for a specific semester as a PDF file. This method triggers a browser download.

Signature:

async download_marks(semester: Semester): Promise<void>

Parameters:

• semester (Semester): A semester object obtained from get_semesters_for_marks()

Returns: Promise that resolves when the download has been initiated (void).

API Endpoint: /studentsexamview/printstudent-exammarks/{instituteid}/{registrationid}/{registrationcode}

Implementation Details:

• Constructs a GET endpoint URL with path parameters:
  • instituteid from session
  • registrationid from semester parameter
  • registrationcode from semester parameter
• Makes authenticated GET request
• Receives PDF blob in response
• Creates temporary object URL and programmatically triggers browser download
• Downloaded file is named marks_{registration_code}.pdf
• Cleans up object URL and temporary DOM elements after download

Throws: APIError on download failure.

Example:

const marksSems = await portal.get_semesters_for_marks();
await portal.download_marks(marksSems[0]);

Sources: src/wrapper.js400-431 README.md76-79

Method Dependency Graph

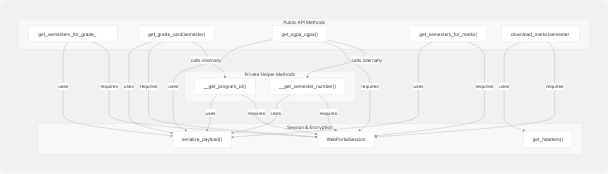

The following diagram illustrates how academic records methods depend on internal helper methods and the authentication layer:

Diagram: Academic Records Method Dependencies

Sources: src/wrapper.js385-509 src/wrapper.js63-69 src/encryption.js

API Endpoint Mapping

This diagram maps each method to its corresponding JIIT Web Portal API endpoint:

Diagram: Academic Records API Endpoint Mapping

Sources: src/wrapper.js385-509

Data Flow Architecture

The following diagram illustrates the complete data flow for academic records retrieval, from method invocation through encryption to API response processing:

Diagram: Academic Records Data Flow

Sources: src/wrapper.js385-509 src/encryption.js src/attendance.js

Payload Structure Reference

Grade Card Request Payloads

SGPA/CGPA Request Payloads

Marks Request Payloads

Sources: src/wrapper.js385-509

Authentication Requirements

All academic records methods are decorated with the authenticated decorator, which enforces that a valid session exists before execution. The decorator is applied at module load time:

const authenticatedMethods = [
  // ... other methods ...
  "get_semesters_for_marks",
  "download_marks",
  "get_semesters_for_grade_card",
  "__get_program_id",
  "get_grade_card",
  "__get_semester_number",
  "get_sgpa_cgpa",
];

authenticatedMethods.forEach((methodName) => {
  WebPortal.prototype[methodName] = authenticated(WebPortal.prototype[methodName]);
});

Throws: NotLoggedIn exception if called before student_login().

Sources: src/wrapper.js692-719 src/wrapper.js679-686

Usage Examples

Retrieving Grade Cards

import { WebPortal } from 'jsjiit';

const portal = new WebPortal();
await portal.student_login('username', 'password');

// Get available semesters
const gradeCardSems = await portal.get_semesters_for_grade_card();

// Get grade card for latest semester
const latestSem = gradeCardSems[0];
const grades = await portal.get_grade_card(latestSem);

console.log(grades);

Checking SGPA and CGPA

// Get all semester SGPA and overall CGPA
const sgpaCgpa = await portal.get_sgpa_cgpa();

console.log('SGPA/CGPA History:', sgpaCgpa);

Downloading Examination Marks

// Get semesters with available marks
const marksSems = await portal.get_semesters_for_marks();

// Download marks for previous semester
const previousSem = marksSems[1];
await portal.download_marks(previousSem);

// Browser download will be triggered automatically
// File will be named: marks_{registration_code}.pdf

Sources: README.md43-79 test.html72-86

Error Handling

Academic records methods can throw the following exceptions:

All academic records methods use the __hit() internal method which provides consistent error handling. For detailed error handling strategies, see Error Handling.

Sources: src/wrapper.js97-158 src/exceptions.js

Implementation Notes

Private Helper Methods

The academic records implementation uses two private helper methods (prefixed with __):

1. __get_program_id() - Required by get_grade_card() to construct the correct request payload
2. __get_semester_number() - Required by get_sgpa_cgpa() to identify the current semester context

These methods are marked as authenticated and should not be called directly by client applications.

Download Mechanism

The download_marks() method uses a browser-specific download mechanism:

1. Fetches PDF as blob from API
2. Creates temporary object URL using window.URL.createObjectURL()
3. Creates temporary <a> element with download attribute
4. Programmatically clicks the element to trigger download
5. Cleans up object URL and DOM element

This approach requires a browser environment and will not work in Node.js or other non-browser JavaScript runtimes.

Semester Object Usage

Most methods return or accept Semester objects, which are defined in src/attendance.js The Semester class provides:

• registration_id - Used in API requests
• registration_code - Used in API requests and file naming
• from_json() static method for deserialization

Sources: src/wrapper.js400-431 src/attendance.js
