Development Guide

Purpose and Scope

This guide is intended for developers who want to contribute to, modify, or extend the jsjiit library. It covers the complete development workflow from initial setup through testing and release.

For information about using the library in your application, see Getting Started. For details about the build system architecture, see Build and Distribution. For documentation generation specifics, see Documentation System.

Prerequisites

Before beginning development, ensure you have the following installed:

The project uses ES modules exclusively, as indicated by "type": "module" in package.json8

Sources: package.json1-62 run_server1-24

Development Workflow Overview

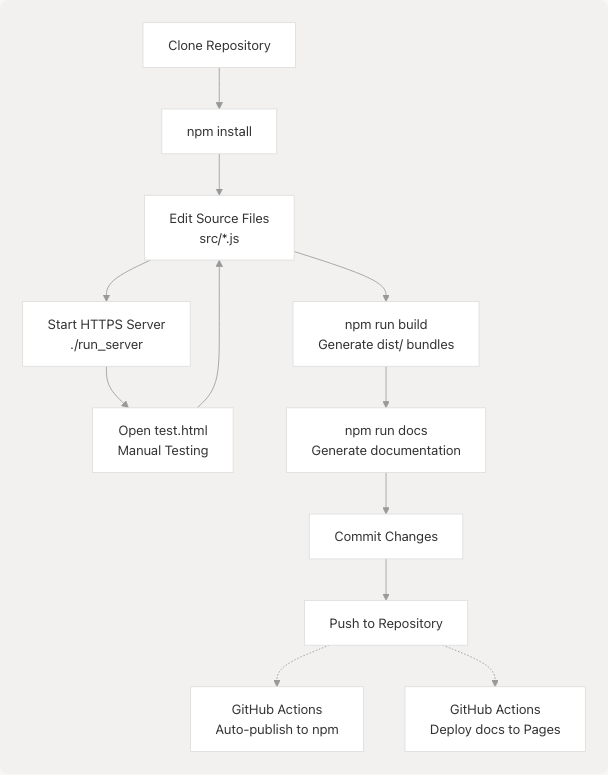

Diagram: Complete development workflow from setup to deployment

This workflow represents the iterative development cycle. The edit-test loop is typically executed multiple times before building and committing changes.

Sources: package.json12-16 test.html1-92 run_server1-24

Local Development Environment Setup

1. Clone the Repository

git clone https://github.com/codeblech/jsjiit.git
cd jsjiit

2. Install Dependencies

npm install

This installs the development dependencies defined in package.json57-60:

• esbuild@0.24.0 - Bundler for creating distribution files
• jsdoc@4.0.4 - Documentation generator

3. Directory Structure

After installation, the repository structure is:

jsjiit/
├── src/               # Source code (committed to git)
│   ├── index.js      # Main entry point and public API
│   ├── wrapper.js    # WebPortal and WebPortalSession classes
│   ├── encryption.js # AES-CBC cryptography layer
│   ├── attendance.js # Attendance domain models
│   ├── registration.js # Registration domain models
│   ├── exam.js       # Exam domain models
│   ├── exceptions.js # Custom error classes
│   ├── utils.js      # Utility functions
│   └── feedback.js   # FeedbackOptions enum
├── dist/             # Generated bundles (gitignored, created by build)
├── docs/             # Generated documentation (gitignored)
├── node_modules/     # Dependencies (gitignored)
├── test.html         # Manual testing interface
├── run_server        # HTTPS server script
├── build.mjs         # Build script
├── jsdoc.conf.json   # JSDoc configuration
└── package.json      # Project metadata and scripts

The dist/ and docs/ directories are generated during the build process and excluded from version control but included in npm packages (dist only).

Sources: package.json9-11 package.json26-29

Running the Local Test Environment

Starting the HTTPS Server

The jsjiit library requires HTTPS to interact with the JIIT WebPortal (due to CORS and secure context requirements). Use the provided test server:

./run_server

This script (run_server1-24):

1. Generates a self-signed SSL certificate using OpenSSL (run_server12)
2. Creates cert.pem and key.pem files in the current directory
3. Starts an HTTPS server on https://localhost:8000 (run_server16)

Output:

Generating Self-Signed Certificates... done
Server running on https://localhost:8000

Using test.html

Open https://localhost:8000/test.html in your browser. You will need to accept the self-signed certificate warning.

The test interface (test.html10-15):

• Provides username and password input fields
• Includes a submit button that triggers the main() function
• Imports the library directly from source: test.html20

import { WebPortal, LoginError } from "./src/index.js"

This direct source import allows testing changes immediately without rebuilding.

Sources: run_server1-24 test.html1-92

Testing Your Changes

Manual Testing Workflow

Diagram: Testing cycle showing immediate feedback without rebuild

Modifying test.html

The test file includes commented examples of all major API methods (test.html36-86):

// Example: Testing attendance retrieval
const meta = await w.get_attendance_meta()
let sem = meta.semesters[1];
let header = meta.latest_header();
let attendance = await w.get_attendance(header, sem);
console.log(attendance);

Uncomment and modify these sections to test specific functionality. Add your own test cases as needed.

Console Output Inspection

All test results are logged to the browser console. Use browser DevTools to:

• Inspect returned data structures
• Verify API call sequences
• Debug error conditions
• Check network requests in the Network tab

Sources: test.html17-89

Working with Source Code

Module Organization

Diagram: Source module dependency graph showing code entities

Adding New Functionality

When adding features:

1. Determine the appropriate module based on the dependency graph above
2. Add JSDoc comments for all public APIs (required for documentation generation)
3. Export from src/index.js if the functionality is public-facing
4. Test using test.html before building

Example: Adding a New Enum

Reference src/feedback.js1-12 for the pattern:

const MyEnum = {
  OPTION_A: "OPTION_A",
  OPTION_B: "OPTION_B",
};

Object.freeze(MyEnum);

export default MyEnum;

Sources: src/feedback.js1-12

Building the Library

Running the Build

npm run build

This executes the build script defined in package.json15 which runs node build.mjs.

Build Output

The build process creates two bundles in the dist/ directory:

Build Configuration

The build.mjs script uses esbuild with these key settings:

• Format: ESM (ES modules)
• Target: ES2020 (modern browsers)
• Platform: Browser
• Entry point: package.json5 (src/index.js)
• Output: Both minified and non-minified versions

npm Prepare Hook

The build automatically runs before publishing due to the prepare script in package.json16:

"prepare": "npm run build"

This ensures the dist/ directory is always up-to-date when publishing to npm.

Sources: package.json12-16

Generating Documentation

Running JSDoc

npm run docs

This executes the docs script (package.json14), which runs:

jsdoc -c jsdoc.conf.json --verbose

Documentation Output

Generated documentation is placed in ./docs/jsjiit/{version}/ where {version} is extracted from package.json3

JSDoc Comments

All public APIs must include JSDoc comments. Example structure:

/**
 * Brief description of the function.
 *
 * @param {string} paramName - Parameter description
 * @returns {Promise<Object>} Return value description
 * @throws {ErrorType} Error condition description
 */
async function myFunction(paramName) {
  // implementation
}

For detailed JSDoc configuration, see JSDoc Configuration.

Sources: package.json14

Release Process

Version Management

Diagram: Release pipeline from version bump to distribution

Step-by-Step Release

1. Update version in package.json3

   # Manual edit or use npm version
   npm version patch  # 0.0.23 -> 0.0.24
   npm version minor  # 0.0.23 -> 0.1.0
   npm version major  # 0.0.23 -> 1.0.0


2. Commit and tag

   git add package.json git commit -m "Bump version to 0.0.24" git tag v0.0.24

3. Push to repository

   git push origin main --tags

4. Publish to npm

   npm publish

   The prepare hook (package.json16) automatically builds the library before publishing.

Automated Processes

Once pushed to GitHub:

• GitHub Actions automatically builds and deploys documentation to GitHub Pages (see Automated Documentation Deployment)
• npm registry makes the package available at https://www.npmjs.com/package/jsjiit
• jsdelivr CDN automatically mirrors the package from npm within minutes

Package Files

Only specific files are published to npm, as defined by the files field in package.json26-29:

• dist/ - Built bundles
• src/ - Source code

Test files, certificates, and other development artifacts are excluded.

Sources: package.json16 package.json26-29

Development Best Practices

Code Style

• Use ES modules syntax (import/export)
• Target ES2020 for modern browser compatibility
• Add JSDoc comments to all exported functions and classes
• Use consistent naming conventions (camelCase for functions, PascalCase for classes)

Testing Checklist

Before committing changes:

• Test authentication with valid credentials
• Test error handling with invalid credentials
• Verify all modified API methods return expected data structures
• Check browser console for errors
• Run npm run build successfully
• Run npm run docs successfully (if JSDoc comments changed)
• Verify no TypeScript/import errors in browser console

Common Pitfalls

Sources: package.json8 test.html20 run_server1-24

Troubleshooting

Server Won't Start

Problem: ./run_server fails with permission error

Solution:

chmod +x run_server
./run_server

Browser Can't Load Modules

Problem: Uncaught SyntaxError: Cannot use import statement outside a module

Solution: Ensure you're accessing via HTTPS server, not file:// protocol. The library uses ES modules which require HTTP(S).

Build Fails

Problem: npm run build produces errors

Solution:

1. Verify Node.js version: node --version (should be ≥18)
2. Reinstall dependencies: rm -rf node_modules && npm install
3. Check for syntax errors in source files

Documentation Not Generating

Problem: npm run docs fails

Solution:

1. Ensure all JSDoc comments are syntactically valid
2. Check jsdoc.conf.json for configuration errors
3. Verify node_modules/jsdoc exists

Sources: run_server1-24 package.json57-60

Quick Reference

Essential Commands

Key Files for Development

Package Configuration Reference

From package.json1-62:

• Entry points: main (Node.js), module/browser (bundlers)
• Exports: Specifies dist/jsjiit.esm.js for both import and require
• Type: "module" - enables ES module syntax throughout
• DevDependencies: esbuild (bundler), jsdoc (docs generator)

Sources: package.json1-62 test.html1-92 run_server1-24
