Pyodide WASM Integration

Purpose and Scope

This document details the client-side Python execution system powered by Pyodide WebAssembly. The system enables timetable generation logic to run entirely in the browser without requiring a backend server. This page covers Pyodide initialization, Python module loading, function invocation, and type conversion between JavaScript and Python.

For information about the Python timetable generation algorithms themselves, see Python Processing Pipeline. For how schedule generation is orchestrated at the application level, see Schedule Generation.

System Overview

The Pyodide integration consists of three main components:

Pyodide Instance Management

The system maintains a single global Pyodide instance to avoid repeated loading overhead. The instance lifecycle is managed through module-level variables in src/utils/pyodide.ts6-10:

let pyodideInstance: PyodideInterface | null = null;
let pyodideLoading = false;
let pyodideLoaded = false;
let pyodideError: Error | null = null;
let listeners: (() => void)[] = [];

Sources: src/utils/pyodide.ts1-82

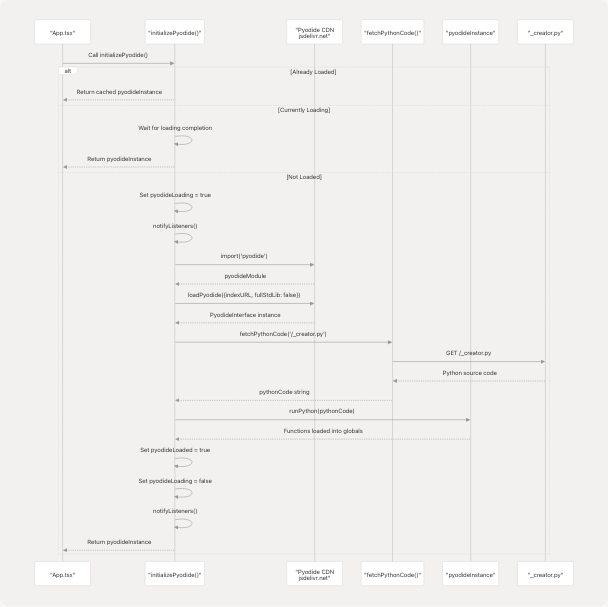

Initialization Flow

Initialization Steps

1. Check Existing State src/utils/pyodide.ts24-35

   • Returns cached pyodideInstance if already loaded
   • Waits for completion if loading is in progress
   • Prevents duplicate initialization

2. Load Pyodide Runtime src/utils/pyodide.ts39-44

   • Dynamic import from 'pyodide' package
   • Loads WASM runtime from https://cdn.jsdelivr.net/pyodide/v0.27.0/full/
   • Uses fullStdLib: false to reduce download size (~10MB vs ~50MB)

3. Fetch Python Module src/utils/pyodide.ts15-21 src/utils/pyodide.ts45

   • Fetches /_creator.py from public directory
   • Module URL defined in src/utils/pyodide.ts13: const pythonModuleURL = '/_creator.py'

4. Execute Python Code src/utils/pyodide.ts46

   • Calls pyodideInstance.runPython(pythonCode)
   • Functions become available in pyodide.globals
   • Includes functions: time_table_creator, time_table_creator_v2, bca_creator, bca_creator_year1, banado128, bando128_year1, compare_timetables

Sources: src/utils/pyodide.ts23-58 src/utils/pyodide.ts15-21

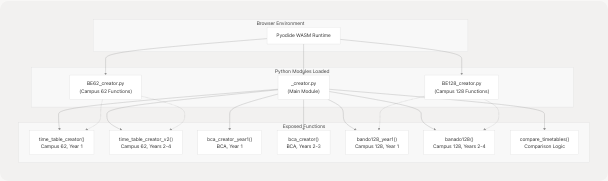

Python Module Architecture

The Python timetable generation logic is organized across multiple modules:

Function Selection Logic

The application dynamically selects which Python function to call based on campus and year parameters in src/App.tsx115-152:

Sources: src/App.tsx115-152 public/_creator.py423-531 public/_creator.py739-883 public/_creator.py949-1153

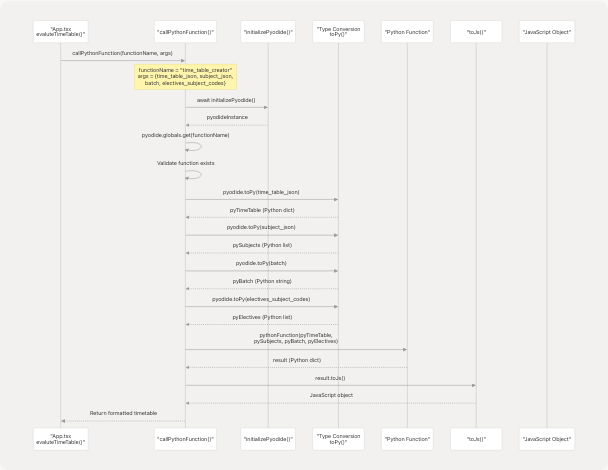

Function Invocation Pipeline

Type Conversion Layer

The callPythonFunction in src/utils/pyodide.ts91-109 handles bidirectional type conversion:

JavaScript to Python src/utils/pyodide.ts99-102:

const pyTimeTable = pyodide.toPy(args.time_table_json);
const pySubjects = pyodide.toPy(args.subject_json);
const pyBatch = pyodide.toPy(args.batch);
const pyElectives = pyodide.toPy(args.electives_subject_codes);

Python to JavaScript src/utils/pyodide.ts104:

return result.toJs();

Function Arguments Interface

The TypeScript interface defines the expected structure in src/utils/pyodide.ts84-89:

interface PythonFunctionArgs {
  time_table_json: YourTietable,
  subject_json: Subject[],
  batch: string,
  electives_subject_codes: string[]
}

Sources: src/utils/pyodide.ts91-109 src/utils/pyodide.ts84-89 src/App.tsx115-152

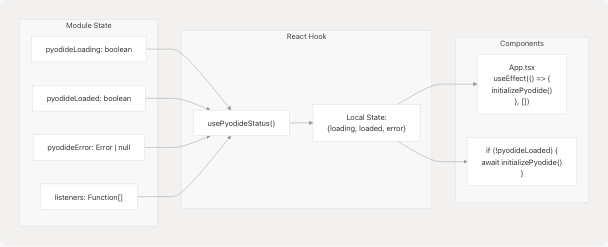

Status Tracking System

The Pyodide integration provides a React hook for tracking initialization status:

Status Hook Implementation

The usePyodideStatus hook in src/utils/pyodide.ts64-82 provides reactive status updates:

export function usePyodideStatus() {
  const [status, setStatus] = useState<{
    loading: boolean;
    loaded: boolean;
    error: Error | null;
  }>({ loading: pyodideLoading, loaded: pyodideLoaded, error: pyodideError });

  useEffect(() => {
    const cb = () => {
      setStatus({ loading: pyodideLoading, loaded: pyodideLoaded, error: pyodideError });
    };
    listeners.push(cb);
    return () => {
      listeners = listeners.filter((l) => l !== cb);
    };
  }, []);

  return status;
}

Usage in Application

Initialization Trigger src/App.tsx111-113:

React.useEffect(() => {
  initializePyodide();
}, []);

Conditional Loading src/App.tsx183-185:

if (!pyodideLoaded) {
  await initializePyodide();
}

Status Check src/App.tsx102:

const { loaded: pyodideLoaded } = usePyodideStatus();

Sources: src/utils/pyodide.ts64-82 src/App.tsx102 src/App.tsx111-113 src/App.tsx183-185

Error Handling

The system implements multiple error handling strategies:

Initialization Errors

Errors during Pyodide loading are captured and stored in src/utils/pyodide.ts52-57:

catch (err) {
  pyodideError = err as Error;
  pyodideLoading = false;
  notifyListeners();
  throw err;
}

Function Invocation Errors

Errors during Python function calls are logged and re-thrown in src/utils/pyodide.ts105-108:

catch (error) {
  console.error('Error calling Python function:', error);
  throw error;
}

Function Validation

The system validates Python function existence before invocation in src/utils/pyodide.ts94-98:

const pythonFunction = pyodide.globals.get(functionName);
if (!pythonFunction || typeof pythonFunction !== 'function') {
  console.error('Available globals:', Object.keys(pyodide.globals.toJs()));
  throw new Error(`Function ${functionName} is not a valid Python function`);
}

Sources: src/utils/pyodide.ts52-57 src/utils/pyodide.ts94-98 src/utils/pyodide.ts105-108

Performance Considerations

Cold Start Performance

Optimization Strategies

1. Reduced Standard Library src/utils/pyodide.ts43

   • Sets fullStdLib: false to minimize download size
   • Only essential packages loaded

2. Global Instance Caching src/utils/pyodide.ts6

   • Single pyodideInstance reused across all function calls
   • Eliminates repeated initialization overhead

3. Listener Pattern src/utils/pyodide.ts60-62

   • Notifies React components of status changes
   • Prevents polling or repeated checks

4. Double Execution Workaround src/App.tsx194-204

   • First execution may be slower; runs twice initially
   • Ensures proper WASM optimization

Sources: src/utils/pyodide.ts6 src/utils/pyodide.ts41-44 src/utils/pyodide.ts60-62 src/App.tsx194-204

Integration Points

Main Application Flow

External Module Loading

The system can be extended to load additional Python modules. Currently, only _creator.py is loaded, but the architecture in src/utils/pyodide.ts15-21 supports fetching multiple modules:

async function fetchPythonCode(url: string): Promise<string> {
  const response = await fetch(url);
  if (!response.ok) {
    throw new Error(`Failed to fetch Python module from ${url}: ${response.statusText}`);
  }
  return response.text();
}

Sources: src/App.tsx154-229 src/App.tsx115-152 src/utils/pyodide.ts91-109 src/utils/pyodide.ts15-21

Summary

The Pyodide WASM integration provides a serverless architecture by executing Python timetable generation logic directly in the browser. Key characteristics:

• Single Global Instance: Cached pyodideInstance eliminates repeated initialization
• Dynamic Function Selection: Routes to appropriate Python function based on campus/year
• Type Safety: TypeScript interfaces define function arguments and ensure type correctness
• Reactive Status: usePyodideStatus hook enables UI to respond to loading states
• Optimized Loading: fullStdLib: false reduces initial payload size

This architecture eliminates the need for a backend server while maintaining full Python compatibility for complex timetable parsing and generation algorithms.

Sources: src/utils/pyodide.ts1-109 src/App.tsx102-229 public/_creator.py
