Schedule Form & User Input

Purpose and Scope

This page documents the ScheduleForm component and the complete user input system that enables users to configure and generate personalized timetables. It covers form structure, campus-specific validation rules, subject selection with fuzzy search, saved configurations, and URL parameter synchronization.

Related pages:

• For Python timetable processing after form submission, see Python Processing Pipeline
• For schedule display and editing functionality, see Schedule Display & Editing
• For URL conflict resolution dialog, see Shareable URLs & Configuration Sharing

Form Component Architecture

The schedule generation form is implemented through two primary components: ScheduleForm (the main form) and SubjectSelector (the subject picker dialog). The form integrates with URL state management via nuqs and persists configurations to localStorage.

Component Hierarchy Diagram

Sources: src/components/schedule-form.tsx1-792 src/App.tsx539-551

Form Fields and Data Flow

The form manages four primary input fields, each synchronized with URL query parameters via nuqs:

State Management

The form uses React hooks with nuqs for URL synchronization:

// URL-synchronized state
const [year, setYear] = useQueryState("year", parseAsString.withDefault(""));
const [batch, setBatch] = useQueryState("batch", parseAsString.withDefault(""));
const [campus, setCampus] = useQueryState("campus", parseAsString.withDefault(""));
const [selectedSubjects, setSelectedSubjects] = useQueryState(
    "selectedSubjects",
    parseAsArrayOf(parseAsString).withDefault([])
);

Sources: src/components/schedule-form.tsx251-263

Data Flow Sequence

Sources: src/components/schedule-form.tsx364-398 src/App.tsx154-229

Campus-Specific Batch Validation

The form implements strict batch validation rules based on the selected campus. Validation occurs in handleSubmit() before calling the parent onSubmit callback.

Validation Rules Table

Validation Implementation

The validation logic at src/components/schedule-form.tsx366-386 checks batch format on form submission:

let error = "";
if (campus === "62") {
    if (batch.match(/^[DFH]|BBA|BCA|BSC|MCA|MBA|^[E]/)) {
        error = "62 campus only allows A, B, C, G, and H batches.";
    }
} else if (campus === "128") {
    if (!batch.match(/^[EFGH]/)) {
        error = "128 campus only allows E, F, G, and H batches.";
    }
} else if (campus === "BCA") {
    if (!batch.match(/^BCA\d*$/)) {
        error = "BCA campus only allows batches like BCA1, BCA2, etc.";
    }
}

When validation fails, a modal dialog displays the error message at src/components/schedule-form.tsx755-789

Sources: src/components/schedule-form.tsx366-386 src/components/schedule-form.tsx755-789

Subject Selection System

The SubjectSelector component provides a searchable dialog for elective selection, featuring both exact string matching and fuzzy search via Fuse.js.

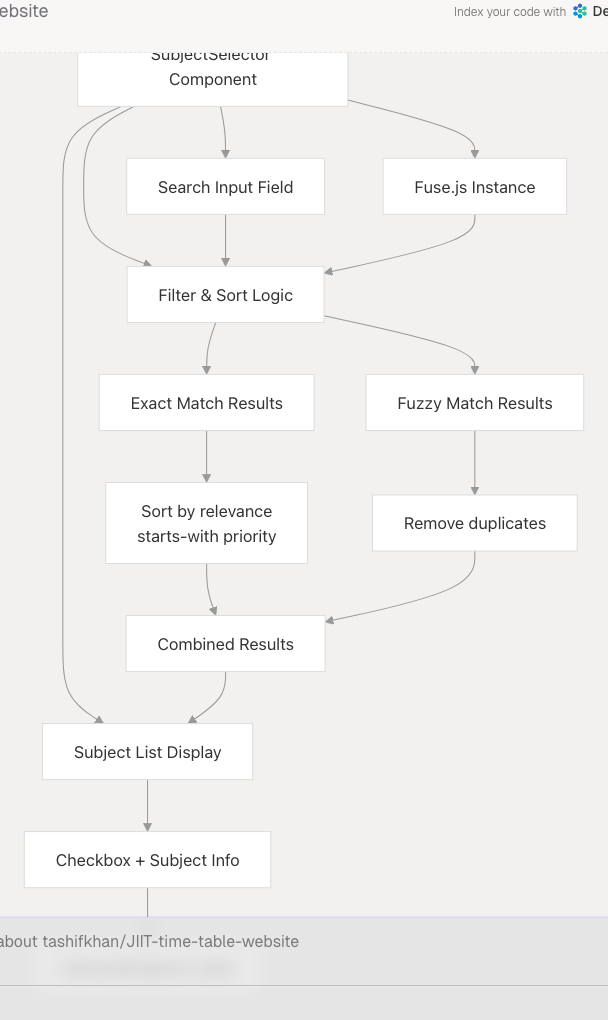

SubjectSelector Architecture

Sources: src/components/schedule-form.tsx38-219

Fuzzy Search Configuration

Fuse.js is initialized with weighted search keys at src/components/schedule-form.tsx47-61:

const fuse = useMemo(() => {
    if (!year || !subjects) return null;
    return new Fuse(subjects, {
        keys: [
            { name: "Subject", weight: 0.7 },    // Primary: subject name
            { name: "Code", weight: 0.3 },       // Secondary: subject code
            { name: "Full Code", weight: 0.2 },  // Tertiary: full code
        ],
        threshold: 0.4,           // Lenient matching
        includeScore: true,
        shouldSort: true,
        findAllMatches: true,
        minMatchCharLength: 2,
    });
}, [year, subjects]);

Configuration parameters:

• threshold: 0.4: Allows moderate typos and variations
• minMatchCharLength: 2: Requires at least 2 characters to trigger fuzzy search
• Weighted keys: Subject name prioritized over codes

Sources: src/components/schedule-form.tsx47-61

Search Algorithm

The search algorithm at src/components/schedule-form.tsx63-105 implements a two-tier approach:

Prioritization logic (from src/components/schedule-form.tsx89-103):

1. Exact matches that start with the search term in subject name
2. Exact matches that start with the search term in code
3. Exact matches that contain the search term (alphabetical)
4. Fuzzy matches (by Fuse.js score)

Sources: src/components/schedule-form.tsx63-105

Subject Interface

Each subject object conforms to the Subject interface:

export interface Subject {
    Code: string;           // e.g., "CSE101"
    "Full Code"?: string;   // e.g., "CSE101L"
    "Subject "?: string;    // Note: some JSON has trailing space
    Subject?: string;       // Subject name
}

Sources: src/components/schedule-form.tsx22-27

Saved Configurations

The form supports saving multiple configurations to localStorage for quick access. This feature is managed in App.tsx with UI in ScheduleForm.

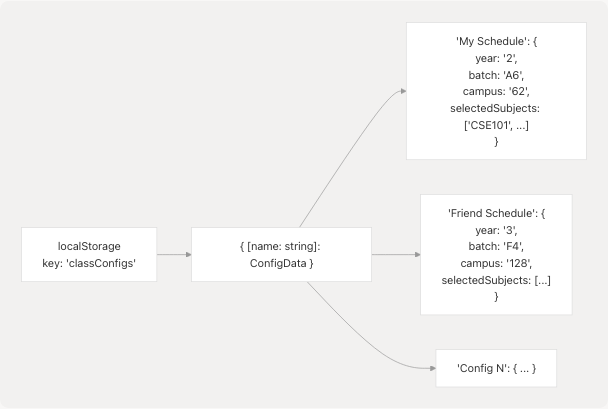

Configuration Storage Structure

Save Configuration Flow

Sources: src/components/schedule-form.tsx402-427 src/App.tsx388-390

Load Configuration Flow

Saved configurations are displayed in a dropdown at the top of the page (App.tsx). When a user selects a saved config:

1. State update at src/App.tsx361-386:

   • Form state is populated with saved values
   • editedSchedule is cleared
   • Form is closed after loading

2. Auto-generation at src/App.tsx379-385:

   • handleFormSubmit is called automatically with saved config data
   • Schedule regenerates without manual form submission

3. URL synchronization: Query parameters update via nuqs hooks

Sources: src/App.tsx361-386 src/components/schedule-form.tsx432-461

Delete Configuration

Configuration deletion is handled in App.tsx at src/App.tsx394-401:

const handleDeleteConfig = (name: string) => {
    setSavedConfigs((prev) => {
        const newConfigs = { ...prev };
        delete newConfigs[name];
        return newConfigs;
    });
    if (selectedConfig === name) setSelectedConfig("");
};

Sources: src/App.tsx394-401

URL Parameter Synchronization

The form uses nuqs for bidirectional URL state synchronization, enabling shareable links and browser history integration.

Query Parameter Mapping

The nuqs library provides typed query state hooks that automatically sync with the URL:

// In ScheduleForm
const [year, setYear] = useQueryState("year", parseAsString.withDefault(""));
const [batch, setBatch] = useQueryState("batch", parseAsString.withDefault(""));
const [campus, setCampus] = useQueryState("campus", parseAsString.withDefault(""));
const [selectedSubjects, setSelectedSubjects] = useQueryState(
    "selectedSubjects",
    parseAsArrayOf(parseAsString).withDefault([])
);

Result: URL updates automatically when form values change:

/?year=2&batch=A6&campus=62&selectedSubjects=CSE101,CSE102

Sources: src/components/schedule-form.tsx251-263

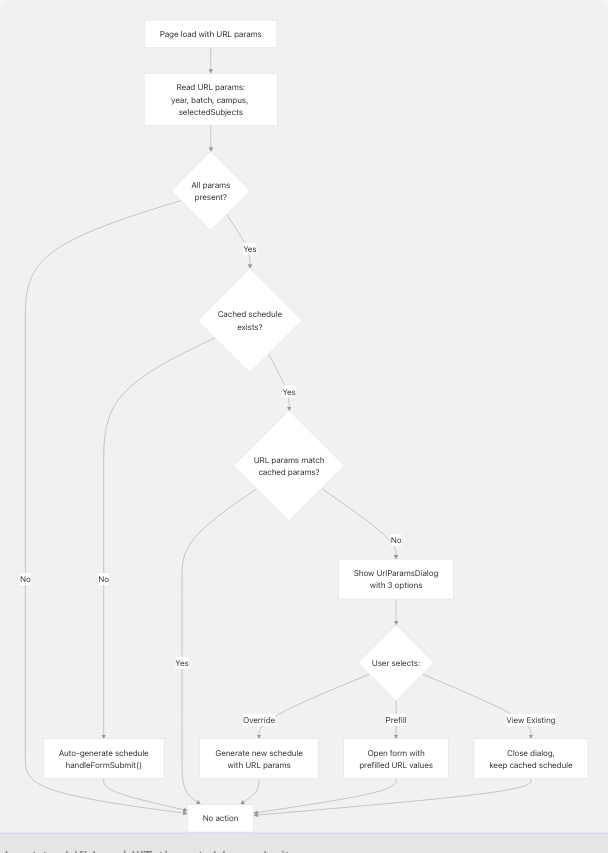

URL Parameter Auto-Generation

When a user loads the app with URL parameters present, the system automatically generates a schedule if no cached schedule exists at src/App.tsx273-327:

Sources: src/App.tsx273-327

Conflict Resolution

When URL parameters conflict with a cached schedule, the UrlParamsDialog component (documented in 9.3) presents three options:

1. Override: Replace cached schedule with new generation
2. Prefill: Open form with URL values but don't generate
3. View Existing: Keep cached schedule, ignore URL

Sources: src/App.tsx330-359 src/App.tsx645-657

Form Submission Handler

The handleFormSubmit function in App.tsx orchestrates the complete schedule generation pipeline after form submission.

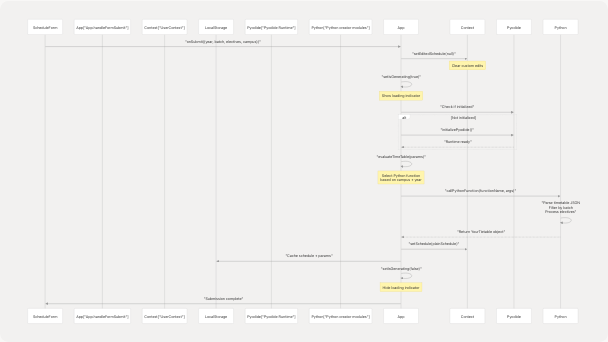

Submission Flow

Sources: src/App.tsx154-229

Function Selection Logic

The evaluateTimeTable function at src/App.tsx115-152 determines which Python function to call based on campus and year:

let functionName;
if (year === "1") {
    functionName =
        campus === "62" ? "time_table_creator"
        : campus === "BCA" ? "bca_creator_year1"
        : "bando128_year1";
} else {
    functionName =
        campus === "62" ? "time_table_creator_v2"
        : campus === "BCA" ? "bca_creator"
        : "banado128";
}

Sources: src/App.tsx123-139

Loading and Error States

The form includes comprehensive loading and error UI states managed through local state and animations via Framer Motion.

Loading State

When generating a schedule, a full-screen modal overlay displays at src/components/schedule-form.tsx471-502:

• Animation: Rotating sparkle icon
• Backdrop: Black overlay with blur effect
• Message: "Generating your schedule... This may take a few seconds"
• Triggered by: isGenerating state set to true in handleSubmit

Sources: src/components/schedule-form.tsx471-502

Error States

Batch validation errors are displayed:

1. Inline: Below batch input field at src/components/schedule-form.tsx583-587
2. Modal: Full dialog on submit attempt at src/components/schedule-form.tsx755-789

Save config errors appear inline in the save modal at src/components/schedule-form.tsx716-720:

• "Please enter a name"
• "A config with this name already exists"

Sources: src/components/schedule-form.tsx583-587 src/components/schedule-form.tsx716-720 src/components/schedule-form.tsx755-789

Props Interface and Component Integration

ScheduleForm Props

interface ScheduleFormProps {
    mapping: {
        [key: string]: {
            timetable: { [day: string]: { [time: string]: string[] } };
            subjects: Subject[];
        };
    };
    onSubmit: (data: {
        year: string;
        batch: string;
        electives: string[];
        campus: string;
    }) => void;
    onSaveConfig?: (name: string, configData: any) => void;
    savedConfigs?: { [key: string]: any };
    autoSubmitKey?: string;
}

Prop descriptions:

• mapping: Timetable and subject JSON data keyed by year
• onSubmit: Callback invoked when form is submitted (handled by App.tsx)
• onSaveConfig: Optional callback for saving configurations
• savedConfigs: Object of saved configuration names and data
• autoSubmitKey: Triggers auto-submission when a saved config is selected

Sources: src/components/schedule-form.tsx221-241

SubjectSelector Props

interface SubjectSelectorProps {
    subjects: Subject[];
    selectedSubjects: string[];
    setSelectedSubjects: (fn: (prev: string[]) => string[]) => void;
    open: boolean;
    setOpen: (open: boolean) => void;
    year: string;
}

Sources: src/components/schedule-form.tsx29-36

Summary

The schedule form system provides a comprehensive input interface with:

1. Campus-aware validation: Batch format rules enforce institutional structure
2. Intelligent subject search: Dual exact/fuzzy matching with weighted prioritization
3. Persistent configurations: localStorage-backed saved configs with share capability
4. URL synchronization: Shareable links via nuqs query state management
5. Loading/error feedback: Animated states for user clarity

The form serves as the entry point to the schedule generation pipeline, passing validated user input to the Pyodide-based Python processing layer documented in 4.2.
