State Management

This page documents the state management architecture used throughout the JIIT Timetable Creator application. The system employs a three-tier approach: React Context API for runtime global state, localStorage for cross-session persistence, and nuqs for URL state synchronization. This design enables offline functionality, shareable links, and seamless state recovery across browser sessions.

For information about data type definitions, see Data Model & Types. For details on how Python processing generates schedule data, see Python Processing Pipeline.

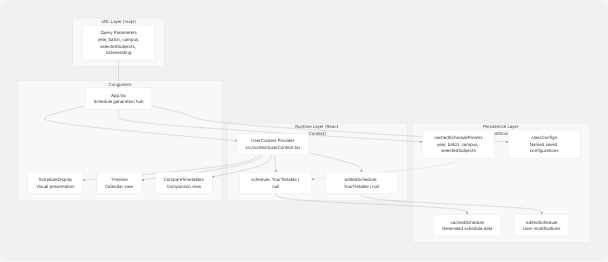

State Management Architecture Overview

The application maintains state across three complementary layers, each serving a distinct purpose in the data lifecycle.

Sources: src/App.tsx1-841 src/context/userContextProvider.tsx1-52 src/context/userContext.tsx

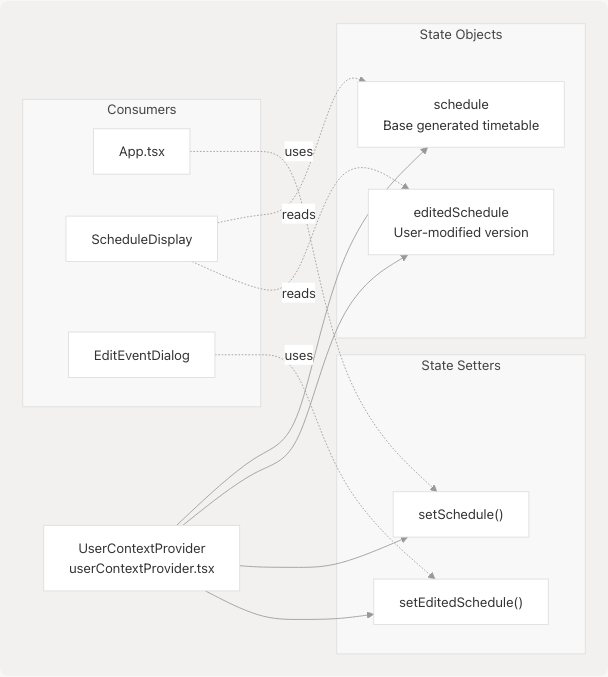

UserContext: React Context Provider

The UserContext provides global state management using React's Context API. It maintains two primary state objects that are consumed by display components throughout the application.

Context Structure

The context is defined in src/context/userContext.tsx and implemented by src/context/userContextProvider.tsx1-52:

Data Types:

Sources: src/context/userContextProvider.tsx5-16 src/context/userContext.tsx

Schedule vs EditedSchedule

The system maintains two separate schedule objects to support non-destructive editing:

• schedule: The original timetable generated by Python processing. This represents the "source of truth" from the timetable JSON data.
• editedSchedule: User modifications overlaid on the base schedule. When non-null, this takes precedence in display components.

Sources: src/App.tsx166-167 src/App.tsx211-212 src/components/schedule-display.tsx17-40 src/components/edit-event-dialog.tsx66-127

Context Initialization and Persistence

The provider automatically loads and persists editedSchedule to localStorage:

Initialization src/context/userContextProvider.tsx18-26:

useEffect(() => {
    const cachedEdited = localStorage.getItem("editedSchedule");
    if (cachedEdited) {
        try {
            setEditedSchedule(JSON.parse(cachedEdited));
        } catch {}
    }
}, []);

Persistence src/context/userContextProvider.tsx29-35:

React.useEffect(() => {
    if (editedSchedule) {
        localStorage.setItem("editedSchedule", JSON.stringify(editedSchedule));
    } else {
        localStorage.removeItem("editedSchedule");
    }
}, [editedSchedule]);

Sources: src/context/userContextProvider.tsx18-35

localStorage Persistence Layer

The application uses browser localStorage to persist state across sessions. Multiple keys store different aspects of the application state.

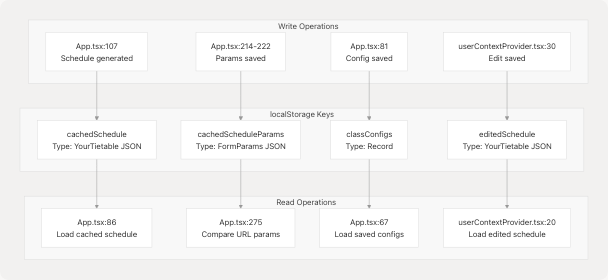

Storage Keys and Data Structures

Storage Schema:

Sources: src/App.tsx64-82 src/App.tsx85-95 src/App.tsx105-109 src/App.tsx214-222 src/context/userContextProvider.tsx18-35

cachedSchedule and cachedScheduleParams

These two keys work together to enable intelligent schedule recovery and conflict detection:

Write Logic src/App.tsx105-109 and src/App.tsx214-222:

// After successful generation
React.useEffect(() => {
    if (schedule && Object.keys(schedule).length > 0) {
        localStorage.setItem("cachedSchedule", JSON.stringify(schedule));
    }
}, [schedule]);

// Inside handleFormSubmit
localStorage.setItem(
    "cachedScheduleParams",
    JSON.stringify({
        year,
        batch,
        campus,
        selectedSubjects: electives,
    })
);

Read and Comparison src/App.tsx274-328:

The application compares URL parameters against cached parameters to detect conflicts:

const urlParams = new URLSearchParams(window.location.search);
const cachedParams = localStorage.getItem("cachedScheduleParams");

// Compare URL params to cached params
let isSame = false;
try {
    const cachedObj = cachedParams ? JSON.parse(cachedParams) : {};
    isSame =
        cachedObj.year === year &&
        cachedObj.batch === batch &&
        cachedObj.campus === campus &&
        Array.isArray(cachedObj.selectedSubjects) &&
        Array.isArray(selectedSubjects) &&
        cachedObj.selectedSubjects.length === selectedSubjects.length &&
        cachedObj.selectedSubjects.every((s: string) =>
            selectedSubjects.includes(s)
        );
} catch {}

if (!isSame) {
    setShowUrlParamsDialog(true); // Show conflict resolution dialog
}

Sources: src/App.tsx105-109 src/App.tsx214-222 src/App.tsx274-328

classConfigs: Saved Configurations

Users can save multiple configuration presets with custom names. These are stored as a single JSON object in localStorage:

Data Structure:

{
    [configName: string]: {
        year: string;
        batch: string;
        campus: string;
        selectedSubjects: string[];
        electiveCount?: number;
    }
}

Initialization src/App.tsx64-69:

const [savedConfigs, setSavedConfigs] = React.useState<{
    [key: string]: any;
}>(() => {
    const configs = localStorage.getItem("classConfigs");
    return configs ? JSON.parse(configs) : {};
});

Persistence src/App.tsx80-82:

React.useEffect(() => {
    localStorage.setItem("classConfigs", JSON.stringify(savedConfigs));
}, [savedConfigs]);

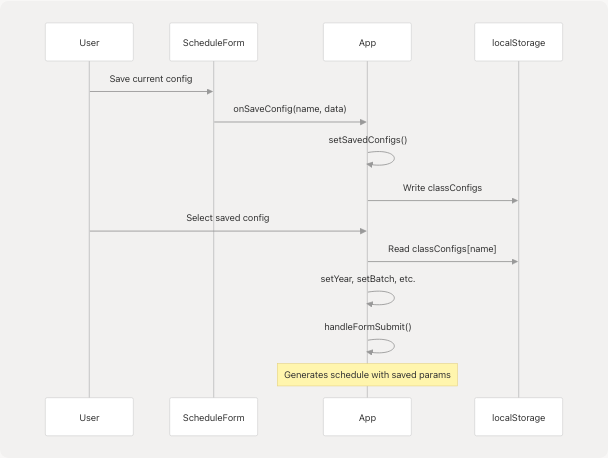

Usage Flow:

Sources: src/App.tsx64-82 src/App.tsx361-386 src/App.tsx388-390

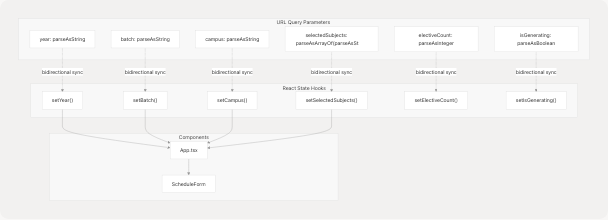

URL State Synchronization with nuqs

The application uses the nuqs library to synchronize form state with URL query parameters. This enables shareable links and browser history integration.

Managed Query Parameters

Parameter Definitions src/App.tsx231-247:

Sources: src/App.tsx231-247 src/App.tsx15-20

URL-Based Auto-Generation

When URL parameters are present and valid, the application automatically generates a schedule:

Detection and Auto-Generate src/App.tsx253-271:

React.useEffect(() => {
    if (
        !autoGeneratedRef.current &&
        _year &&
        _batch &&
        _campus &&
        _selectedSubjects &&
        _selectedSubjects.length > 0
    ) {
        autoGeneratedRef.current = true;
        handleFormSubmit({
            year: _year,
            batch: _batch,
            electives: _selectedSubjects,
            campus: _campus,
        });
    }
}, [_year, _batch, _campus, _selectedSubjects]);

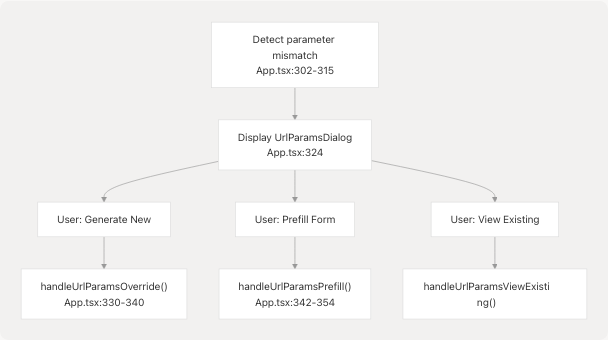

Conflict Resolution:

If URL parameters differ from cached parameters, the UrlParamsDialog presents three options:

1. Override: Generate new schedule from URL parameters
2. Prefill: Load URL parameters into form without generating
3. View Existing: Ignore URL and display cached schedule

Sources: src/App.tsx274-328 src/App.tsx330-359 src/components/url-params-dialog.tsx1-161

State Flow and Lifecycle

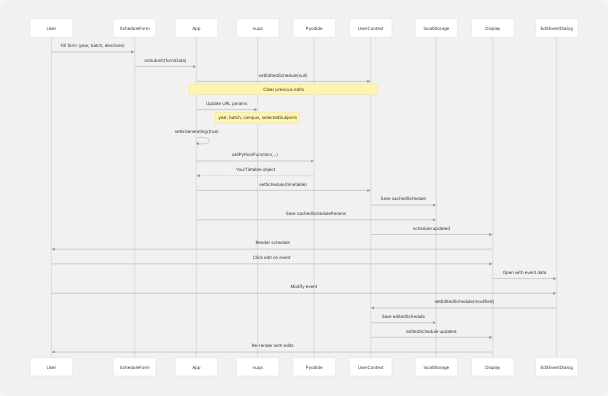

The following diagram illustrates the complete state lifecycle from user interaction to persistence:

Sources: src/App.tsx154-229 src/components/schedule-display.tsx1-151 src/components/edit-event-dialog.tsx66-127

State Priority Hierarchy

When multiple state sources exist, the application follows this priority order:

Implementation src/components/schedule-display.tsx40:

const displaySchedule = editedSchedule || schedule;

Sources: src/components/schedule-display.tsx17-40 src/App.tsx85-95

State Modification Operations

Generating a New Schedule

Entry Point: src/App.tsx154-229

State Changes:

1. Clear editedSchedule → null src/App.tsx167
2. Set isGenerating → true src/App.tsx181
3. Call Python processing via Pyodide
4. Set schedule → generated result src/App.tsx211-212
5. Write cachedSchedule and cachedScheduleParams to localStorage
6. Set isGenerating → false src/App.tsx227

Editing an Event

Entry Point: src/components/edit-event-dialog.tsx66-127

State Changes:

1. If editedSchedule is null, deep copy schedule → editedSchedule
2. Modify specific day/time slot in editedSchedule
3. Trigger setEditedSchedule() which persists to localStorage
4. Display components re-render with priority on editedSchedule

Loading a Saved Configuration

Entry Point: src/App.tsx361-386

State Changes:

1. Clear editedSchedule → null src/App.tsx366
2. Load config from classConfigs in localStorage
3. Update URL parameters via nuqs setters src/App.tsx369-374
4. Call handleFormSubmit() to generate schedule
5. Follow normal generation flow

Deleting an Event

Entry Point: src/components/edit-event-dialog.tsx130-146

State Changes:

1. Create copy of editedSchedule
2. Delete specific time slot from day
3. If day becomes empty, delete day key
4. Call setEditedSchedule() with updated schedule
5. Persist to localStorage automatically

Sources: src/App.tsx154-229 src/App.tsx361-386 src/components/edit-event-dialog.tsx66-146

Data Structure Details

YourTietable Type

The core data structure for both schedule and editedSchedule:

interface YourTietable {
    [day: string]: {
        [timeSlot: string]: {
            subject_name: string;
            type: "L" | "T" | "P" | "C";
            location: string;
            isCustom?: boolean;  // Added by EditEventDialog
        };
    };
}

Example Data:

{
    "Monday": {
        "09:00-10:00": {
            "subject_name": "Data Structures",
            "type": "L",
            "location": "C-101"
        },
        "10:00-11:00": {
            "subject_name": "Lab Session",
            "type": "P",
            "location": "Lab-3"
        }
    },
    "Tuesday": {
        "11:00-12:00": {
            "subject_name": "Team Meeting",
            "type": "C",
            "location": "Online",
            "isCustom": true
        }
    }
}

Sources: src/App.tsx28-36 src/components/edit-event-dialog.tsx25-34

Saved Configuration Object

Structure stored in classConfigs:

{
    "My CS Configuration": {
        year: "2",
        batch: "E1",
        campus: "62",
        selectedSubjects: ["CS501", "CS502", "CS503"],
        electiveCount: 3
    },
    "Fall Semester Setup": {
        year: "3",
        batch: "E2",
        campus: "128",
        selectedSubjects: ["IT601", "IT602"],
        electiveCount: 2
    }
}

Sources: src/App.tsx64-69 src/App.tsx388-390

State Synchronization Patterns

Bidirectional URL Sync

The nuqs library provides automatic bidirectional synchronization between React state and URL parameters:

Benefits:

• Browser back/forward buttons work correctly
• URLs are shareable and bookmarkable
• State survives page refresh via URL

Sources: src/App.tsx231-247 src/App.tsx15-20

Optimistic Updates

Edit operations use optimistic updates - the UI updates immediately while persistence happens asynchronously:

Implementation: src/context/userContextProvider.tsx29-35

Sources: src/components/edit-event-dialog.tsx66-127 src/context/userContextProvider.tsx29-35

Edge Cases and Error Handling

Missing or Corrupted localStorage Data

The application gracefully handles localStorage errors:

Example src/App.tsx85-95:

React.useEffect(() => {
    const cached = localStorage.getItem("cachedSchedule");
    if (cached) {
        try {
            const parsed = JSON.parse(cached);
            if (parsed && typeof parsed === "object") {
                setSchedule(parsed);
            }
        } catch {}  // Silent failure - app continues normally
    }
}, []);

Concurrent Modifications

Since the app runs entirely client-side in a single tab, true concurrency issues don't occur. However, if a user opens multiple tabs:

1. Each tab maintains independent React state
2. localStorage updates from one tab don't automatically sync to others
3. The last tab to write wins for localStorage data

Note: There is no mechanism to sync state between tabs. Users working across multiple tabs may experience inconsistent state.

Sources: src/App.tsx85-95 src/context/userContextProvider.tsx18-35

URL Parameter Conflicts

When URL parameters conflict with cached data, the UrlParamsDialog component provides explicit user choice rather than making assumptions:

Sources: src/App.tsx274-359 src/components/url-params-dialog.tsx1-161

Performance Considerations

localStorage Throttling

The application writes to localStorage on every state change without throttling. For most operations this is acceptable, but rapid consecutive edits could potentially cause performance issues.

Current Implementation: No throttling or debouncing Write Frequency: Every editedSchedule change triggers immediate write

Potential Improvement: Implement debounced writes for edit operations.

Sources: src/context/userContextProvider.tsx29-35

JSON Serialization Overhead

Large timetables with many events require JSON serialization on every persistence operation:

Serialization Points:

• UserContext → localStorage: src/context/userContextProvider.tsx31
• App → localStorage: src/App.tsx107
• Schedule display: Multiple JSON.parse operations

Mitigation: The application uses JSON.parse(JSON.stringify()) to create deep copies, which is performant for the expected data size (typically <50 events per schedule).

Sources: src/App.tsx107-109 src/context/userContextProvider.tsx31
