PWA & Offline Capabilities

This document describes the Progressive Web App (PWA) implementation and offline capabilities of the JIIT Time Table website. It covers the service worker architecture, caching strategies, precaching manifest generation, and how the application achieves full offline functionality.

For information about the Next.js application structure and routing, see Frontend Architecture & Routing. For details on how Python modules are loaded and cached for offline use, see Pyodide WASM Integration.

Purpose and Scope

The JIIT Time Table website is designed as a fully-functional offline-first Progressive Web App. Once installed, users can:

• Generate personalized timetables without internet connectivity
• Access all previously loaded timetable data
• Execute Python timetable processing logic via cached Pyodide WebAssembly runtime
• View the timeline/calendar interface with locally stored schedules

This is achieved through a sophisticated service worker implementation that caches static assets, timetable JSON data, Python modules, and the multi-megabyte Pyodide runtime.

PWA Architecture Overview

The PWA implementation uses @ducanh2912/next-pwa, a Next.js plugin that wraps Workbox strategies to generate an optimized service worker at build time.

Service Worker Configuration

The service worker is configured in next.config.ts using the withPWA wrapper function. The configuration is disabled during development and only active in production builds.

Configuration Options

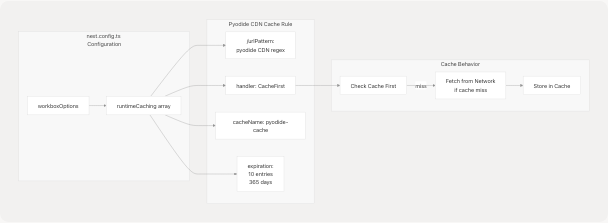

Workbox Runtime Caching Configuration

The Pyodide CDN cache rule at website/next.config.ts21-36 implements an aggressive CacheFirst strategy:

runtimeCaching: [
  {
    urlPattern: /^https:\/\/cdn\.jsdelivr\.net\/pyodide\/v0\.27\.0\/full\/.*/,
    handler: "CacheFirst",
    options: {
      cacheName: "pyodide-cache",
      expiration: {
        maxEntries: 10,
        maxAgeSeconds: 60 * 60 * 24 * 365, // 1 year
      },
      cacheableResponse: {
        statuses: [0, 200],
      },
    },
  },
]

Precache Manifest

At build time, the PWA plugin generates a precache manifest containing all static assets that should be available offline. The generated service worker includes this manifest inline.

Precached Asset Categories

Sample Precache Entries

The precache list in website/public/sw.js1-2 includes entries with revision hashes for cache invalidation:

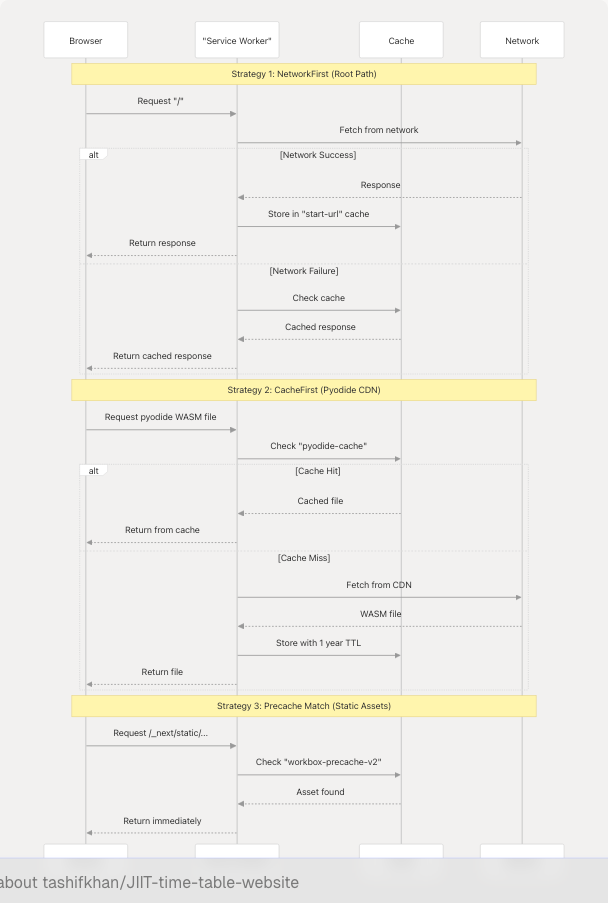

Caching Strategies

The service worker implements three distinct caching strategies optimized for different resource types.

Strategy Breakdown

1. NetworkFirst Strategy

Applied to: Root path (/)

This strategy prioritizes fresh content while maintaining offline fallback capability. Defined in website/public/sw.js1-2:

e.registerRoute("/",new e.NetworkFirst({
  cacheName:"start-url",
  plugins:[{
    cacheWillUpdate:async({response:e})=>
      e&&"opaqueredirect"===e.type?
        new Response(e.body,{status:200,statusText:"OK",headers:e.headers}):
        e
  }]
}),"GET")

Behavior:

1. Always attempt network request first
2. On success: cache response and return it
3. On failure: serve from start-url cache if available
4. Handles opaque redirects by converting to transparent responses

2. CacheFirst Strategy

Applied to: Pyodide CDN resources (https://cdn.jsdelivr.net/pyodide/v0.27.0/full/*)

This aggressive caching strategy is essential for offline Python execution. Configuration at website/next.config.ts23-35:

Behavior:

1. Check pyodide-cache cache first
2. On cache hit: return immediately (no network request)
3. On cache miss: fetch from CDN and cache for 1 year
4. Maximum 10 entries (sufficient for Pyodide runtime files)
5. Caches both CORS (status: 200) and opaque (status: 0) responses

3. Precache Matching

Applied to: All precached assets (Next.js chunks, Python files, fonts, etc.)

Behavior:

1. Assets are cached during service worker installation
2. Requests are intercepted and matched against precache manifest
3. Returns cached asset immediately (fastest strategy)
4. No network request is made
5. Cache is invalidated when revision hash changes

Service Worker Lifecycle

The service worker follows a standard lifecycle with specific handling for updates and cache management.

Service Worker Registration

The service worker is auto-registered by the PWA plugin. The register: true option at website/next.config.ts17 ensures automatic registration on page load.

Skip Waiting Behavior

The skipWaiting: true option at website/next.config.ts18 causes new service workers to activate immediately without waiting for all tabs to close. This is reflected in the generated code:

self.skipWaiting()
e.clientsClaim()

This ensures users get updates as soon as they refresh the page.

Cache Cleanup

The service worker includes automatic cleanup of outdated caches using cleanupOutdatedCaches() from website/public/sw.js1-2 This removes caches from previous versions that no longer match the current precache manifest.

Offline Functionality Matrix

The following table shows which features are available offline after the initial load:

Offline Data Requirements

Note: Timetable and calendar JSON files are NOT precached because they are dynamic and version-specific (e.g., ODD25 vs EVEN25, 2425 vs 2526). They are cached on first access via the browser's HTTP cache or explicit runtime caching.

PWA Manifest Configuration

The PWA manifest defines how the application appears when installed on a device. It is referenced in the application layout at website/app/layout.tsx44

Manifest Metadata

The manifest file at /public/manifest.json contains:

Icon Configuration

Multiple icon declarations ensure proper display across platforms:

icons: {
  icon: [
    { url: "/icon.png", sizes: "512x512", type: "image/png" },
    {
      url: "/icon.png",
      sizes: "512x512",
      type: "image/png",
      media: "(display-mode: standalone)",
    },
  ],
  apple: "/icon.png",
}

iOS-Specific Configuration

Additional metadata for iOS devices at website/app/layout.tsx57-62:

appleWebApp: {
  capable: true,
  statusBarStyle: "black-translucent",
  title: "JIIT Timetable",
  startupImage: ["/icon.png"],
}

Security Headers for WASM

The application requires specific security headers to enable SharedArrayBuffer support for Pyodide WebAssembly execution:

other: {
  "Cross-Origin-Opener-Policy": "same-origin",
  "Cross-Origin-Embedder-Policy": "require-corp",
}

These headers are defined at website/app/layout.tsx63-66 and are critical for:

• Enabling SharedArrayBuffer API required by Pyodide
• Isolating the document in its own browsing context
• Preventing cross-origin resource access vulnerabilities

Note: These headers must be set at the server level during deployment to take effect.

Cache Storage Structure

When the service worker is active, the following caches are created in the browser:

Cache Inspection

Developers can inspect these caches in browser DevTools:

1. Open DevTools → Application tab
2. Navigate to Cache Storage
3. Expand to see workbox-precache-v2, start-url, and pyodide-cache
4. Click each cache to inspect stored entries

Cache Size Considerations

Development vs Production Behavior

The PWA functionality is environment-aware:

Development Mode (npm run dev)

When process.env.NODE_ENV === "development":

disable: process.env.NODE_ENV === "development"

Behavior:

• Service worker is NOT registered
• No caching occurs
• Hot module replacement works normally
• Changes reflect immediately
• Easier debugging without cache interference

Production Mode (npm run build + deployment)

When built for production:

Behavior:

• Service worker is generated at build time
• All precache assets are included with revision hashes
• Service worker registers automatically on first page load
• Caching strategies activate immediately
• Application becomes fully offline-capable after first visit

Testing PWA Locally

To test PWA functionality locally:

1. Build the production version: npm run build
2. Serve the build output (use a static server)
3. Open in browser and install PWA
4. Disconnect network to test offline mode

Build Configuration Details

The complete Next.js configuration showing PWA integration:

const nextConfig: NextConfig = {
  async rewrites() {
    return [
      {
        source: "/ph/:path*",
        destination: "https://eu.posthog.com/:path*",
      },
    ];
  },
  turbopack: {},
};

const withPWA = require("@ducanh2912/next-pwa").default({
  dest: "public",
  register: true,
  skipWaiting: true,
  disable: process.env.NODE_ENV === "development",
  workboxOptions: {
    runtimeCaching: [
      {
        urlPattern: /^https:\/\/cdn\.jsdelivr\.net\/pyodide\/v0\.27\.0\/full\/.*/,
        handler: "CacheFirst",
        options: {
          cacheName: "pyodide-cache",
          expiration: {
            maxEntries: 10,
            maxAgeSeconds: 60 * 60 * 24 * 365, // 1 year
          },
          cacheableResponse: {
            statuses: [0, 200],
          },
        },
      },
    ],
  },
});

export default withPWA(nextConfig);

The withPWA wrapper:

1. Takes the base nextConfig object
2. Adds service worker generation to the build process
3. Injects service worker registration code into the HTML
4. Generates precache manifest from build output
5. Creates workbox configuration files

Troubleshooting Offline Issues

Common issues and solutions:

Manual Service Worker Unregistration

To force a clean state during debugging:

// Run in browser console
navigator.serviceWorker.getRegistrations().then(function(registrations) {
  for(let registration of registrations) {
    registration.unregister();
  }
});

Summary

The PWA implementation provides:

1. Full offline functionality after initial load
2. Intelligent caching with three strategies optimized for different resource types
3. Automatic updates via service worker lifecycle with skipWaiting
4. Minimal cache footprint (~10-15 MB total)
5. One-year Pyodide cache to avoid re-downloading 8-10 MB WASM runtime
6. Installability with proper manifest and icons
7. Development-friendly with automatic disable during local development

The service worker ensures that all critical resources (Python modules, application code, Pyodide runtime) are available offline, enabling the unique browser-based Python execution model to work without network connectivity.
