Google Calendar Integration

Purpose and Scope

This document details the Google Calendar integration functionality in the JIIT Time Table application. The system provides two distinct synchronization features: one for syncing personalized class schedules (timetables) and another for syncing academic calendar events (holidays, exams, etc.). Both use OAuth2 authentication and the Google Calendar API v3 to create recurring events with enhanced color coding.

For information about the schedule generation process that creates the timetable data being synced, see Schedule Generation. For details about the academic calendar data format, see Academic Calendar. For general export functionality including PDF and PNG downloads, see PDF & PNG Export.

System Architecture Overview

The Google Calendar integration consists of two parallel implementations with separate UI components, utility functions, and event creation logic:

Sources: website/components/google-calendar-button.tsx website/app/academic-calendar/calendar-content.tsx1-142 README.md10-49

Component Architecture

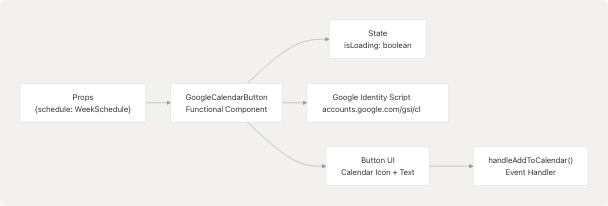

GoogleCalendarButton Component

The GoogleCalendarButton component provides timetable synchronization functionality:

Sources: website/components/google-calendar-button.tsx14-110

Academic Calendar Button

The academic calendar integration is embedded within the CalendarContent component:

Sources: website/app/academic-calendar/calendar-content.tsx14-142

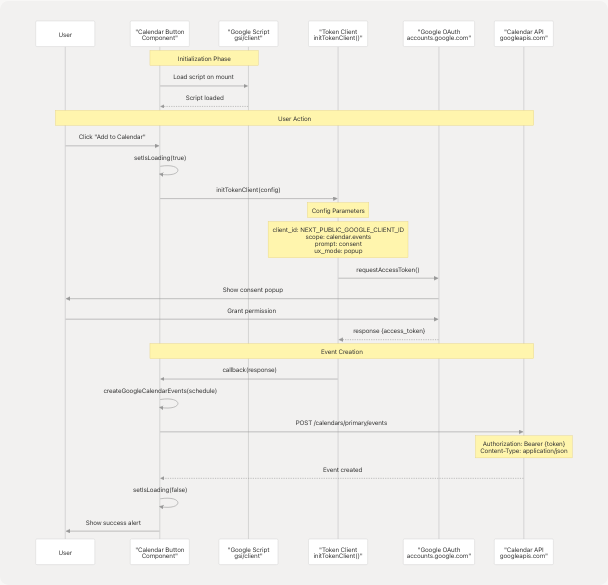

OAuth2 Authentication Flow

Both integrations use the same OAuth2 flow with Google Identity Services:

Sources: website/components/google-calendar-button.tsx35-91 website/app/academic-calendar/calendar-content.tsx120-142

Environment Configuration

The OAuth client ID is configured via environment variable:

const CLIENT_ID = process.env.NEXT_PUBLIC_GOOGLE_CLIENT_ID;

File Reference: website/components/google-calendar-button.tsx14

OAuth Scope and Parameters

Sources: website/components/google-calendar-button.tsx38-44

Timetable Calendar Integration

Event Creation Pipeline

Sources: website/components/google-calendar-button.tsx35-91

WeekSchedule to Calendar Event Transformation

The createGoogleCalendarEvents function (not shown in provided files but referenced) transforms the WeekSchedule data structure into Google Calendar API event objects:

Input Format (WeekSchedule):

{
  "Monday": {
    "09:00-10:00": {
      subject_name: "Data Structures",
      type: "L",
      location: "LT101"
    }
  }
  // ... other days
}

Output Format (Calendar Event): Expected Google Calendar API v3 event structure includes:

• summary - Event title (subject_name)
• description - Additional details (type, location)
• start - Start date/time
• end - End date/time
• recurrence - RRULE for weekly repetition
• colorId - Enhanced color coding based on event type

Sources: website/components/google-calendar-button.tsx52 website/types/schedule.ts (referenced), README.md10-31

Batch Request Processing

Events are submitted using Promise.allSettled() to handle partial failures:

File Reference: website/components/google-calendar-button.tsx53-75

Sources: website/components/google-calendar-button.tsx53-75

Academic Calendar Integration

Event Addition Flow

The academic calendar integration follows a similar pattern but operates on a different data structure:

Sources: website/app/academic-calendar/calendar-content.tsx120-142

Academic Event Data Structure

Academic calendar events are loaded from JSON files:

// Data fetched from /api/academic-calendar/${selectedYear}
calendarData: Array<{
  summary: string,      // Event name (e.g., "Holiday - Diwali", "Mid Term Exam")
  start: {
    date: string        // Date in ISO format
  },
  end: {
    date: string        // Date in ISO format
  }
}>

File Reference: website/app/academic-calendar/calendar-content.tsx60-67

Holiday Detection

Events are categorized based on their summary field:

const isHoliday = event.summary.startsWith("Holiday -");

This classification is used for:

1. UI filtering (holidays-only view)
2. Visual styling with different background colors
3. Enhanced color coding in Google Calendar

File Reference: website/app/academic-calendar/calendar-content.tsx324-409

Sources: website/app/academic-calendar/calendar-content.tsx70-409

API Communication

Google Calendar API Endpoint

Both integrations use the same API endpoint for event creation:

POST https://www.googleapis.com/calendar/v3/calendars/primary/events

Request Headers

File Reference: website/components/google-calendar-button.tsx59-61

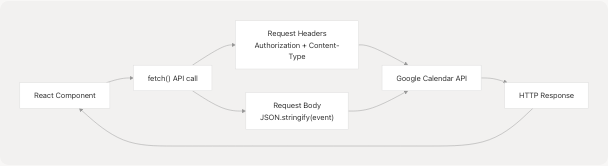

API Request Structure

Sources: website/components/google-calendar-button.tsx55-66

Enhanced Color Coding

The README mentions "enhanced color coding for events synced to Google Calendar" as a key feature. This is implemented through the colorId field in Google Calendar API events:

Event Type Color Mapping

The timetable uses different types that should map to colors:

Holiday vs Event Distinction

For academic calendar:

• Holidays - Events with summary.startsWith("Holiday -") receive special color coding
• Regular Events - Exams, deadlines, etc. receive different colors

Sources: README.md10-31 website/app/academic-calendar/calendar-content.tsx324 website/components/schedule-display.tsx26-31

Error Handling

OAuth Errors

File Reference: website/components/google-calendar-button.tsx46-90

API Request Failures

The system uses Promise.allSettled() to handle partial failures gracefully:

const results = await Promise.allSettled(
  events.map((event) => fetch(/* ... */))
);

const failures = results.filter((r) => r.status === "rejected");
if (failures.length > 0) {
  console.error("Some events failed to add:", failures);
  alert("Some events could not be added to your calendar");
} else {
  alert("Schedule successfully added to Google Calendar!");
}

File Reference: website/components/google-calendar-button.tsx53-75

User Feedback

Both integrations provide user feedback through alerts:

Sources: website/components/google-calendar-button.tsx72-89 website/app/academic-calendar/calendar-content.tsx127-138

Script Loading

Both components dynamically load the Google Identity Services script:

useEffect(() => {
  const script = document.createElement("script");
  script.src = "https://accounts.google.com/gsi/client";
  script.async = true;
  script.defer = true;
  document.body.appendChild(script);

  return () => {
    document.body.removeChild(script);
  };
}, []);

This ensures the window.google.accounts.oauth2 API is available before user interaction.

File Reference: website/components/google-calendar-button.tsx23-33 website/app/academic-calendar/calendar-content.tsx29-33

Sources: website/components/google-calendar-button.tsx23-33 website/app/academic-calendar/calendar-content.tsx27-52

Integration Points

Context Usage

The timetable integration works with edited schedules from the UserContext:

File Reference: website/components/action-buttons.tsx19-26

Component Hierarchy

Sources: website/components/action-buttons.tsx1-151 website/components/google-calendar-button.tsx website/app/academic-calendar/calendar-content.tsx234-266

Non-Recurring Custom Events

The system explicitly notifies users that custom events will not be recurring:

<p className="text-xs text-gray-400 mt-2">
  Note: Custom events will not be recurring in Google Calendar
</p>

This distinction exists because:

1. Regular classes (L, T, P types) follow weekly schedules and use recurrence rules
2. Custom events added by users are one-time occurrences

File Reference: website/components/action-buttons.tsx146-148

Sources: website/components/action-buttons.tsx146-148

Summary Table

Sources: website/components/google-calendar-button.tsx website/app/academic-calendar/calendar-content.tsx120-142 website/components/action-buttons.tsx145
