Compare Timetables

Purpose and Scope

The Compare Timetables feature enables users to generate and compare two different class schedules to identify common free time slots and classes they attend together. This is useful for students coordinating study groups, planning meetups with friends, or identifying overlap in schedules across different batches or programs.

For information about generating a single timetable, see page 4 (Schedule Generation - Core Feature). For viewing schedules in calendar format, see page 5 (Timeline View).

System Architecture

The comparison feature operates as a standalone page that leverages the same schedule generation pipeline used in the main application, but processes two configurations in parallel and applies comparison logic to the results.

Sources: website/components/compare-timetable.tsx README.md

Component Structure

The CompareTimetablePage component manages two independent timetable configurations and coordinates their generation and comparison.

State Management

Sources: website/components/compare-timetable.tsx

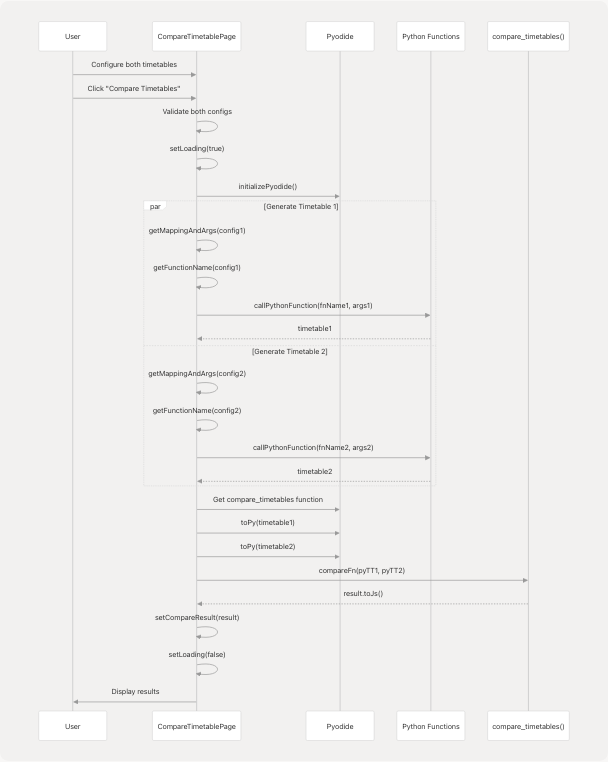

Timetable Generation Pipeline

The component generates both timetables in parallel using the same Python functions as the main application, with dynamic function selection based on campus and year.

Function Selection Logic

The component uses the same dynamic function selection as the main application:

Sources: website/components/compare-timetable.tsx

Comparison Algorithm

The compare_timetables Python function analyzes two timetable objects to identify commonalities.

Python Function Signature

def compare_timetables(timetable1: dict, timetable2: dict) -> dict

Sources: public/_creator.py900-946

Comparison Logic

The algorithm operates on a time-slot-by-time-slot basis:

1. Collect all days from both timetables (union of day keys)
2. For each day, iterate through all possible time slots (8:00-17:00)
3. For each time slot, check:
   • If both timetables have no class → add to common_free_slots
   • If both have a class with identical subject_name, type, and location → add to classes_together

Time Slot Generation

The function generates hourly slots from 8:00 to 17:00 (5 PM):

all_slots = [f"{time}:00-{time+1}:00" for time in range(8, 17)]

This creates a standardized time grid: ['8:00-9:00', '9:00-10:00', ..., '16:00-17:00']

Sources: public/_creator.py900-946 public/_creator.py919

Result Structure

The comparison returns a structured object with two main sections:

TypeScript Interface (Inferred)

interface CompareResult {
  common_free_slots: {
    [day: string]: string[]  // Array of time slots
  };
  classes_together: {
    [day: string]: {
      [timeSlot: string]: {
        subject_name: string;
        type: "L" | "T" | "P" | "C";
        location: string;
      }
    }
  };
}

Example Result

{
  "common_free_slots": {
    "Monday": ["09:00-10:00", "14:00-15:00"],
    "Tuesday": ["11:00-12:00"]
  },
  "classes_together": {
    "Monday": {
      "10:00-11:00": {
        "subject_name": "Data Structures and Algorithms",
        "type": "L",
        "location": "G7"
      }
    }
  }
}

Sources: public/_creator.py907-911 public/_creator.py913-944

User Interface Components

Configuration Forms

The page displays two side-by-side forms for configuring timetables:

Sources: website/components/compare-timetable.tsx

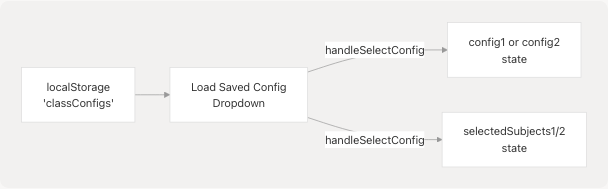

Saved Configuration Integration

Each configuration form includes a dropdown to load saved configs from localStorage:

Configuration saving and loading is documented on page 9.3 (Shareable URLs & Configuration Saving).

Sources: website/components/compare-timetable.tsx

Compare Button

The comparison is triggered by a button with validation:

disabled={
  !isConfigValid(config1) ||
  !isConfigValid(config2) ||
  loading
}

Validation checks:

• Campus, year, and batch are present
• For year > 1: at least one elective selected

Sources: website/components/compare-timetable.tsx

Results Display

Common Free Slots Section

Displays free time slots grouped by day, sorted chronologically:

Sources: website/components/compare-timetable.tsx

Classes Together Section

Displays shared classes with full details:

Each class entry shows:

• Time slot (e.g., "10:00-11:00")
• Subject name
• Class type (Lecture/Tutorial/Practical)
• Location

The display adapts for mobile (stacked layout) vs desktop (horizontal layout).

Sources: website/components/compare-timetable.tsx

Time Sorting Logic

Both sections implement time-based sorting:

const getMinutes = (time: string) => {
  const [hours, minutes] = time.split(":").map(Number);
  return hours * 60 + minutes;
};

sortedSlots.sort((a, b) => {
  const timeA = a.split("-")[0];
  const timeB = b.split("-")[0];
  return getMinutes(timeA) - getMinutes(timeB);
});

This ensures slots appear in chronological order regardless of the order they were added.

Sources: website/components/compare-timetable.tsx

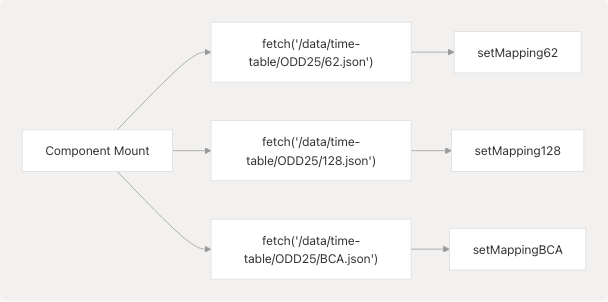

Data Loading

The component fetches timetable data on mount:

The component displays a loading message until all three mappings are loaded.

Sources: website/components/compare-timetable.tsx

Integration with Schedule Form Components

The component reuses the SubjectSelector component from the main schedule form:

import { SubjectSelector, Subject } from "./schedule-form";

This provides:

• Fuzzy search functionality (powered by Fuse.js)
• Subject filtering with exact and fuzzy matching
• Consistent UI/UX with the main form

The SubjectSelector component is documented in detail on page 4.1 (Schedule Form & User Input).

Sources: website/components/compare-timetable.tsx website/components/schedule-form.tsx22-219

Error Handling

The component handles errors at two levels:

1. Generation errors: Caught in try-catch, displayed as error result
2. Validation errors: Button disabled until valid configuration

try {
  // Generation and comparison logic
} catch (e) {
  setCompareResult({ error: "Failed to compare timetables." });
}

Sources: website/components/compare-timetable.tsx

Pyodide Integration

The comparison uses direct Pyodide globals access to call the comparison function:

const pyodide = (await initializePyodide()) as PyodideInterface;
const compareFn = pyodide.globals.get("compare_timetables");
const pyTT1 = pyodide.toPy(tt1);
const pyTT2 = pyodide.toPy(tt2);
const result = compareFn(pyTT1, pyTT2).toJs();

This differs from the standard callPythonFunction approach because the comparison function takes timetable objects (not JSON) as arguments.

Sources: src/components/compare-timetable.tsx159-164
