Export & Sharing

This document covers the mechanisms for exporting schedules to various formats and sharing configurations between users. The system provides three primary sharing/export capabilities: downloadable images (PNG/PDF), Google Calendar synchronization, and URL-based configuration sharing.

For details on individual export mechanisms, see:

• Google Calendar integration: 9.1
• PDF/PNG export: 9.2
• URL parameter sharing: 9.3

Overview of Export & Sharing Architecture

The export and sharing system operates on the current schedule state, with special handling for edited schedules. All export operations use the editedSchedule if available, otherwise falling back to the base schedule.

Export & Sharing Flow

Export Mechanism Entry Point

The ActionButtons component serves as the primary UI for all export operations. It manages loading states, progress notifications, and routing between export types.

Key Components

• Schedule Resolution: Uses editedSchedule || schedule to respect user modifications src/components/action-buttons.tsx24
• Navigation to Download Mode: Triggers navigation to /timeline?download=1 before export src/components/action-buttons.tsx36
• Toast Notifications: Provides progress feedback using the useToast hook src/components/action-buttons.tsx32-57
• Loading State Management: Tracks active export operation with loading state src/components/action-buttons.tsx20

Download Mode & Schedule Capture

The Timeline page implements a special download mode that prepares the schedule for capture. This mode is activated via the download=1 query parameter.

Timeline Download Mode Configuration

Download Mode Behavior

The Timeline component detects download mode and modifies rendering:

const isDownloadMode = React.useMemo(() => {
    const params = new URLSearchParams(location.search);
    return params.get("download") === "1";
}, [location.search]);

When isDownloadMode is true:

• Welcome banner is hidden src/components/timeline.tsx30-33
• Stats and legend section is conditionally hidden src/components/timeline.tsx360-403
• Current time indicator is not rendered src/components/timeline.tsx501-520
• Fixed minimum width is applied for consistent export size src/components/timeline.tsx298-299
• Title is rendered inside the schedule display for inclusion in export src/components/timeline.tsx412-439

Image Export Implementation

The download utilities provide PNG and PDF export by capturing the DOM as an image using the html-to-image library.

PNG Export Flow

Export Configuration

Both PNG and PDF exports use identical capture settings:

await toPng(element, {
    quality: 1,
    backgroundColor: '#131010',
    pixelRatio: window.devicePixelRatio || 2,
    style: {
        transform: 'scale(1)',
        transformOrigin: 'top left',
    },
});

PDF Generation

PDF export captures the schedule as an image, then embeds it in a landscape A4 document:

The PDF dimensions are calculated to fit the schedule within A4 landscape format:

const a4Width = 297;
const a4Height = 210;
const imageWidth = a4Width;
const imageHeight = (element.offsetHeight * a4Width) / element.offsetWidth;

pdf.addImage(
    dataUrl,
    'PNG',
    0,
    0,
    imageWidth,
    Math.min(imageHeight, a4Height)
);

Progress Callbacks

Both export functions support progress callbacks for user feedback:

• onProgress(msg): Called with status messages src/utils/download.ts19 src/utils/download.ts36
• onSuccess(): Called when download completes src/utils/download.ts41
• onError(err): Called on failure src/utils/download.ts44

Google Calendar Integration

The Google Calendar integration creates recurring events from the schedule using OAuth 2.0 authentication and the Google Calendar API.

Calendar Sync Architecture

OAuth 2.0 Flow

The authentication process uses Google's Identity Services (GSI) client:

const client = window.google.accounts.oauth2.initTokenClient({
    client_id: CLIENT_ID,
    scope: "https://www.googleapis.com/auth/calendar.events",
    prompt: "consent",
    ux_mode: "popup",
    hosted_domain: "gmail.com",
    state: window.location.origin,
    callback: async (response) => { /* ... */ }
});

client.requestAccessToken();

Event Generation Process

The createGoogleCalendarEvents function transforms the schedule structure into Google Calendar event objects:

Recurrence Rule Generation

Regular classes (not custom events) receive recurrence rules:

recurrence: isCustom ? [] : [
    `RRULE:FREQ=WEEKLY;UNTIL=${endDate.toISOString()
        .replace(/[-:]/g, '')
        .split('.')[0]}Z`
]

• Custom events (type === 'C') have empty recurrence arrays (one-time events)
• Regular classes recur weekly for 5 months from the start date
• End date is formatted in ISO 8601 format without punctuation

Event Properties

Each calendar event includes:

{
    summary: `${isCustom ? '✨' : ''} ${slot.type} - ${slot.subject_name}`,
    location: slot.location,
    description: getEventDescription(slot),
    recurrence: [...],
    start: {
        timeZone: 'Asia/Kolkata',
        dateTime: getNextDateForDayAndTime(dayMapping[day], startTime).toISOString()
    },
    end: {
        timeZone: 'Asia/Kolkata',
        dateTime: getNextDateForDayAndTime(dayMapping[day], endTime).toISOString()
    },
    colorId: slot.type === 'C' ? '2' : '6'
}

• summary: Event title with emoji prefix for custom events
• colorId: "2" (green) for custom events, "6" (orange) for classes
• timeZone: Always set to 'Asia/Kolkata'
• description: Formatted with class type, room, and subject name

Batch Processing

Events are created using Promise.allSettled to handle partial failures:

const results = await Promise.allSettled(
    events.map((event) =>
        fetch("https://www.googleapis.com/calendar/v3/calendars/primary/events", {
            method: "POST",
            headers: {
                Authorization: `Bearer ${response.access_token}`,
                "Content-Type": "application/json",
            },
            body: JSON.stringify(event),
        })
    )
);

const failures = results.filter((r) => r.status === "rejected");

This ensures that if some events fail to create, others still succeed. Failures are logged and reported to the user.

URL Parameter Sharing

The application supports sharing schedules via URL parameters using the nuqs library for type-safe URL state synchronization. This enables users to share complete schedule configurations via links.

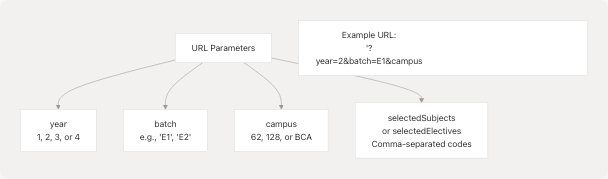

URL Parameter Structure

Conflict Resolution Flow

When URL parameters are detected but a cached schedule already exists, the system presents a conflict resolution dialog:

Dialog Options

The UrlParamsDialog presents three resolution options:

Parameter Display

The dialog displays detected parameters with subject code translation:

const subjectList = mapping[year]?.subjects || [];
const codeToName = (code: string) => {
    const subj = subjectList.find((s: any) => s.Code === code);
    return subj ? subj.Subject || code : code;
};

This resolves subject codes to human-readable names for user clarity. The dialog shows:

• Campus identifier
• Academic year
• Batch designation
• Selected subject codes with translated names

Parameter Deduplication

Subject codes are deduplicated before display:

const allCodes = subjects
    .flatMap((s) => s.split(","))
    .map((s) => s.trim())
    .filter(Boolean);
const uniqueCodes = Array.from(new Set(allCodes));

This handles cases where codes might be concatenated or duplicated in URL parameters.

Export UI Integration

The ActionButtons component renders all export options with consistent styling and feedback:

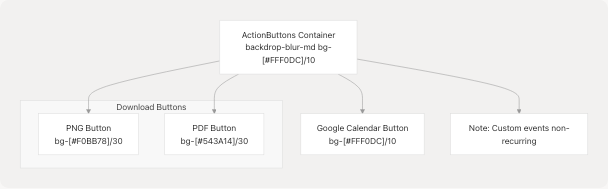

Button Layout

Loading State Handling

The component manages loading states with visual feedback:

• Disabled state: All buttons disabled when any export is in progress src/components/action-buttons.tsx91 src/components/action-buttons.tsx103
• Icon replacement: Download icon replaced with spinning loader during export src/components/action-buttons.tsx94-96 src/components/action-buttons.tsx106-108
• Progress message: Displayed below buttons during export src/components/action-buttons.tsx114-116

Toast Notifications

Export operations trigger toast notifications at key stages:

toast({
    title: `Preparing your ${type.toUpperCase()}...`,
    description: "This may take a moment for large schedules.",
});

Notifications are shown for:

• Export initiation src/components/action-buttons.tsx32-35
• Progress updates src/components/action-buttons.tsx52-56
• Success src/components/action-buttons.tsx58-62
• Errors src/components/action-buttons.tsx65-71

Error Handling

All export mechanisms implement error handling with user feedback:

Download Error Handling

try {
    // Export logic
} catch (err) {
    console.error('Error downloading PNG:', err);
    if (onError) onError(err instanceof Error ? err : new Error('Unknown error'));
}

Errors are:

1. Logged to console for debugging
2. Converted to Error objects if needed
3. Passed to error callbacks
4. Displayed via toast notifications

Calendar Sync Error Handling

The Google Calendar integration handles errors at multiple levels:

Integration Points

The export and sharing system integrates with multiple application components:
