Purpose and Scope

This document provides a high-level introduction to pyjiit, a Python library for programmatic access to the JIIT Webportal system. It covers what pyjiit is, its architectural design, core components, and how data flows through the system. This overview is intended for developers who want to understand the library's structure before using it or contributing to it.

For detailed API reference, see Core API Reference. For installation and usage instructions, see Getting Started. For information about the encryption mechanisms, see Security and Encryption.

Sources: README.rst1-46 pyproject.toml1-28

---

What is pyjiit

pyjiit is a Python wrapper library that provides programmatic access to the JIIT (Jaypee Institute of Information Technology) Webportal's internal APIs. The library enables Python applications to authenticate with the webportal and retrieve student data including attendance records, exam events, and course registration information.

The library reverse-engineers the webportal's proprietary encryption scheme to communicate with the backend APIs at webportal.jiit.ac.in:6011. It abstracts the complexity of payload encryption, session management, and API authentication behind a simple Python interface.

Primary Use Cases

Sources: README.rst1-18 pyproject.toml1-6

---

Core Components

pyjiit is organized into four primary subsystems that work together to provide its functionality:

Component Descriptions

Sources: pyjiit/__init__.py1-2 pyproject.toml9-12 README.rst9-18

---

System Architecture

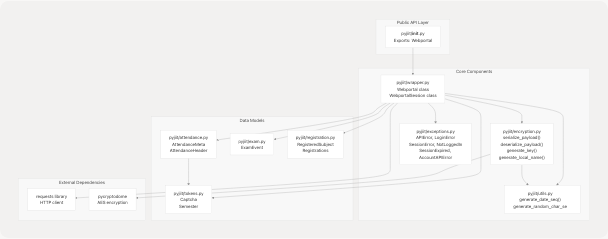

The following diagram shows how the core components interact during a typical API request flow:

Authentication Flow

The authentication process uses a two-phase approach:

1. Pretoken Check (/token/pretoken-check): Validates credentials and establishes initial session parameters
2. Token Generation (/token/generate-token1): Generates the final authentication token

Both phases require encrypted payloads and a LocalName header. The encryption key rotates daily at 00:00 IST.

Data Retrieval Pattern

All data retrieval methods follow a consistent pattern:

1. Application calls a Webportal method (e.g., get_attendance())
2. Webportal encrypts the request payload using the Encryption Module
3. HTTP POST request sent to JIIT API with encrypted payload and LocalName header
4. Response is decrypted by the Encryption Module
5. Raw JSON is parsed into a structured Data Model object
6. Structured object returned to application

Sources: pyjiit/wrapper.py pyjiit/encryption.py README.rst12-16

---

Key Abstractions

Webportal Class

The Webportal class (defined in pyjiit/wrapper.py) is the primary interface for all interactions with the JIIT Webportal. It provides methods for:

• Authentication: student_login(), logout()
• Attendance Queries: get_attendance_meta(), get_attendance()
• Exam Data: get_exam_events()
• Registration: get_registrations()
• Account Management: set_password()

The class maintains an internal WebportalSession object that tracks authentication state and tokens.

WebportalSession Class

The WebportalSession class (defined in pyjiit/wrapper.py) encapsulates session state including:

• Authentication tokens
• Client ID
• User information (username, member type)
• Session metadata (registration ID, curriculum semester)

Sessions can expire (typically after HTTP 401 responses), at which point methods raise SessionExpired exceptions.

Data Models

Data model classes provide structured, type-safe access to API responses:

• AttendanceMeta / AttendanceHeader: Organize attendance data by semester and subject
• ExamEvent: Represents individual exam schedules
• RegisteredSubject / Registrations: Encapsulate course registration information
• Captcha: Represents captcha image data for authentication

All data models provide a from_json() class method for construction from API responses.

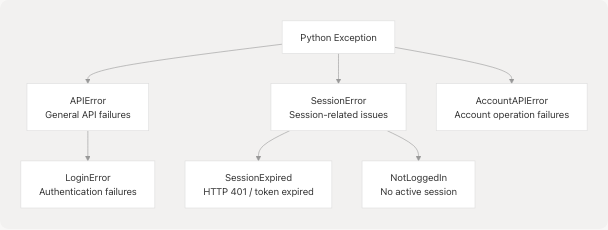

Exception Hierarchy

The exception hierarchy (defined in pyjiit/exceptions.py1-18) provides granular error handling:

Sources: pyjiit/exceptions.py1-18 pyjiit/wrapper.py

---

Encryption and Security

pyjiit implements a proprietary encryption scheme reverse-engineered from the JIIT Webportal. The encryption system uses:

• Algorithm: AES-CBC with a fixed 16-byte IV
• Key Derivation: Daily rotating key based on current date in IST timezone
• Payload Format: JSON → Encrypt → Base64 encode
• Headers: Every request includes an encrypted LocalName header

The encryption key is generated using the pattern: "qa8y" + date_sequence + "ty1pn", where date_sequence is derived from the current date. Keys rotate at 00:00 IST, providing a 24-hour validity window.

For detailed information about the encryption implementation, see Security and Encryption.

Sources: pyjiit/encryption.py README.rst33-34

---

Dependencies

pyjiit has minimal runtime dependencies:

The library requires Python 3.9 or higher. Development dependencies (for documentation) include Sphinx and the Furo theme.

Sources: pyproject.toml8-12 pyproject.toml19-21

---

Distribution and Documentation

pyjiit is distributed through:

• PyPI: Package name pyjiit, installable via pip install pyjiit
• GitHub: Source repository at https://github.com/codelif/pyjiit
• Documentation: Hosted at https://pyjiit.codelif.in (GitHub Pages)

The project uses:

• Poetry for dependency management and packaging
• Sphinx with Furo theme for documentation generation
• GitHub Actions for automated testing, documentation builds, and PyPI publishing

For information about building and deploying documentation, see Documentation System. For information about the CI/CD pipeline, see Deployment and CI/CD.

Sources: pyproject.toml1-6 pyproject.toml14-16 README.rst6
