Documentation Deployment

Purpose and Scope

This page documents the automated deployment system that publishes the pyjiit documentation to GitHub Pages at pyjiit.codelif.in. It covers the GitHub Actions workflow that builds Sphinx documentation and conditionally deploys it to the live site.

For information about building documentation locally or understanding the Sphinx configuration, see Building Documentation. For guidelines on contributing to the documentation, see Contributing to Documentation.

Sources: .github/workflows/documentation.yml1-65

Deployment Architecture

The documentation deployment system uses a GitHub Actions workflow that automatically builds and publishes Sphinx documentation. The workflow is designed to validate documentation on every push and pull request, but only deploy to production when changes are merged to the main branch.

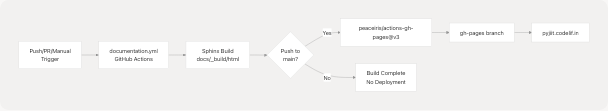

High-Level Deployment Flow

Sources: .github/workflows/documentation.yml1-65

Workflow Configuration

The deployment workflow is defined in .github/workflows/documentation.yml and named "Sphinx: build && deploy docs".

Trigger Conditions

The workflow executes under three conditions:

Sources: .github/workflows/documentation.yml3-8

Concurrency Control

The workflow implements concurrency control to prevent multiple simultaneous builds:

concurrency:
  group: docs-${{ github.ref }}
  cancel-in-progress: true

This configuration ensures that:

• Each branch/PR has its own concurrency group (docs-${{ github.ref }})
• New builds cancel in-progress builds for the same branch
• Resource usage is optimized by preventing redundant builds

Sources: .github/workflows/documentation.yml10-12

Permissions

The workflow requires contents: write permission to deploy to the gh-pages branch:

Sources: .github/workflows/documentation.yml14-15

Build Process

The build process consists of six sequential steps that prepare the environment, install dependencies, and generate HTML documentation.

Build Pipeline Diagram

Sources: .github/workflows/documentation.yml23-54

Step-by-Step Breakdown

1. Repository Checkout

Uses actions/checkout@v4 to clone the repository with full history:

Sources: .github/workflows/documentation.yml23-24

2. Python Environment Setup

Configures Python 3.12 with pip caching enabled:

- name: Set up Python
  uses: actions/setup-python@v5
  with:
    python-version: '3.12'
    cache: 'pip'

Sources: .github/workflows/documentation.yml26-30

3. Poetry and Dependency Caching

Implements a two-tier caching strategy for Poetry and pip:

- name: Cache Poetry and pip
  uses: actions/cache@v3
  with:
    path: |
      ~/.cache/pypoetry
      ~/.cache/pip
    key: ${{ runner.os }}-poetry-${{ hashFiles('**/poetry.lock','**/pyproject.toml') }}
    restore-keys: |
      ${{ runner.os }}-poetry-

Sources: .github/workflows/documentation.yml32-40

4. Poetry Installation

Installs Poetry using pip:

Sources: .github/workflows/documentation.yml42-43

5. Project Dependencies Installation

Installs the pyjiit package along with documentation dependencies:

poetry config virtualenvs.create true
poetry config virtualenvs.in-project false
poetry install --no-interaction --no-ansi --with docs

The --with docs flag includes the docs dependency group defined in pyproject.toml, which contains:

• sphinx
• furo (theme)
• Other Sphinx extensions

Sources: .github/workflows/documentation.yml45-49

6. Sphinx Build and CNAME Creation

Builds the HTML documentation and creates a CNAME file for custom domain configuration:

poetry run sphinx-build -b html docs docs/_build/html
echo "pyjiit.codelif.in" > docs/_build/html/CNAME

Sources: .github/workflows/documentation.yml51-54

Deployment to GitHub Pages

The deployment step uses the peaceiris/actions-gh-pages@v3 action to publish the built documentation to the gh-pages branch, but only when pushing to the main branch.

Conditional Deployment Logic

- name: Deploy to GitHub Pages
  uses: peaceiris/actions-gh-pages@v3
  if: ${{ github.event_name == 'push' && github.ref == 'refs/heads/main' }}

The conditional statement ensures deployment occurs only when:

1. The event is a push (not a PR or manual dispatch)
2. The target branch is main (refs/heads/main)

This means:

• ✅ Push to main → Builds and deploys
• ✅ Push to feature branch → Builds only (validation)
• ✅ Pull request → Builds only (validation)
• ✅ Manual dispatch → Builds only (unless on main)

Sources: .github/workflows/documentation.yml56-58

Deployment Configuration

The peaceiris/actions-gh-pages@v3 action is configured with the following parameters:

with:
  publish_branch: gh-pages
  github_token: ${{ secrets.GITHUB_TOKEN }}
  publish_dir: docs/_build/html
  force_orphan: true

Sources: .github/workflows/documentation.yml59-63

GitHub Pages Branch Structure

The gh-pages branch contains only the built HTML output:

gh-pages/
├── index.html
├── CNAME
├── _static/
├── _sources/
├── genindex.html
└── ... (other Sphinx-generated files)

The force_orphan: true setting ensures each deployment creates a clean commit with no history, preventing the branch from growing indefinitely.

Sources: .github/workflows/documentation.yml63

Custom Domain Configuration

The workflow creates a CNAME file in the build output to configure the custom domain pyjiit.codelif.in.

CNAME File Creation

During the build step, the CNAME file is created:

echo "pyjiit.codelif.in" > docs/_build/html/CNAME

This file is included in the deployment to the gh-pages branch, instructing GitHub Pages to serve the site at the custom domain instead of the default <username>.github.io/<repository> URL.

Sources: .github/workflows/documentation.yml54

DNS Configuration Requirements

For the custom domain to work, DNS records must be configured externally:

• CNAME record pointing pyjiit.codelif.in to <username>.github.io
• Or A records pointing to GitHub Pages IP addresses

The CNAME file in the repository only tells GitHub Pages what domain to expect; actual DNS configuration is handled separately.

Workflow Execution Summary

Complete Workflow Flow

Sources: .github/workflows/documentation.yml1-65

Build vs Deployment Matrix

Sources: .github/workflows/documentation.yml3-8 .github/workflows/documentation.yml56-58

Performance Optimizations

Caching Strategy

The workflow implements aggressive caching to minimize build times:

1. pip cache (via actions/setup-python@v5): Caches Python package wheels
2. Poetry cache (via actions/cache@v3): Caches Poetry's package downloads and virtualenv metadata

Cache invalidation is based on the combined hash of poetry.lock and pyproject.toml, ensuring:

• Cache hits when dependencies are unchanged
• Automatic cache invalidation when dependencies update

Sources: .github/workflows/documentation.yml30 .github/workflows/documentation.yml32-40

Concurrency Management

The concurrency control prevents resource waste:

concurrency:
  group: docs-${{ github.ref }}
  cancel-in-progress: true

Example behavior:

• Developer pushes commit A to branch feature-docs → Build starts
• Developer pushes commit B to same branch → Previous build cancels, new build starts
• No unnecessary builds for intermediate commits

Sources: .github/workflows/documentation.yml10-12

Key Files and Actions Reference

Sources: .github/workflows/documentation.yml1-65 docs/conf.py1-49
