Webportal Class

Purpose and Scope

The Webportal class is the primary API client for interacting with the JIIT Webportal system. It provides a Python interface to all webportal functionalities including authentication, attendance queries, exam schedules, registration information, marks retrieval, and account management.

This page documents the Webportal class structure, initialization, internal architecture, and all public methods. For session lifecycle and token management, see Session Management. For data structures returned by methods, see Data Models. For authentication workflow details, see Authentication Flow.

Sources: pyjiit/wrapper.py70-489

Class Overview

Class Definition and Initialization

The Webportal class is defined in pyjiit/wrapper.py70-77 and provides a stateful client for the JIIT Webportal API.

Webportal()

Initialization:

  • Creates a new Webportal instance with self.session = None
  • No parameters required for initialization
  • Session is established later via the student_login() method

Key Attributes:

Attribute Type Description
session WebportalSession or None Contains session cookies, tokens, and user information after successful login

Base API URL: All requests are made to https://webportal.jiit.ac.in:6011/StudentPortalAPI as defined in pyjiit/wrapper.py17

Sources: pyjiit/wrapper.py70-77 pyjiit/wrapper.py17

Architecture and Internal Components

Internal Request Handler

Architecture Diagram

Sources: pyjiit/wrapper.py82-108 pyjiit/wrapper.py19-36

The __hit Internal Method

The __hit method pyjiit/wrapper.py82-108 is the centralized HTTP request handler for all API calls.

Signature:

__hit(self, *args, **kwargs)

Special Keyword Arguments:

Parameter Type Description
exception Exception class Custom exception to raise on API failure (default: APIError)
authenticated bool If True, adds session authorization headers
headers dict Additional headers to merge with generated headers

Processing Steps:

  1. Exception Configuration pyjiit/wrapper.py83-87

    • Extracts custom exception type from kwargs
    • Defaults to APIError if not specified

  2. Header Generation pyjiit/wrapper.py89-98

    • If authenticated=True: Uses self.session.get_headers() for Bearer token
    • Otherwise: Generates only LocalName header
    • Merges with any provided headers

  3. Request Execution pyjiit/wrapper.py101

    • Forwards all positional and remaining keyword arguments to requests.request()
    • Parses JSON response

  4. Error Checking pyjiit/wrapper.py102-107

    • HTTP 401 status → raises SessionExpired
    • responseStatus != "Success" → raises specified exception

Sources: pyjiit/wrapper.py82-108

The @authenticated Decorator

The @authenticated decorator pyjiit/wrapper.py19-36 protects methods that require an active session.

Functionality:

  • Checks if self.session is None
  • Raises NotLoggedIn exception if no session exists
  • Preserves original method documentation via functools.wraps

Note: Session expiry timestamp checking is currently disabled pyjiit/wrapper.py29-32 due to a bug in the webportal API that returns incorrect expiry times.

Sources: pyjiit/wrapper.py19-36

Method Categories

Architecture Diagram

Sources: pyjiit/wrapper.py111-489

Authentication Methods

student_login()

Authenticates a student and establishes a session.

Signature:

student_login(username: str, password: str, captcha: Captcha) -> WebportalSession

Parameters:

Parameter Type Description
username str Student enrollment number or username
password str Student password
captcha Captcha Captcha object with solved answer

Returns: WebportalSession object containing session tokens and user information

Raises: LoginError for authentication failures

API Endpoints Used:

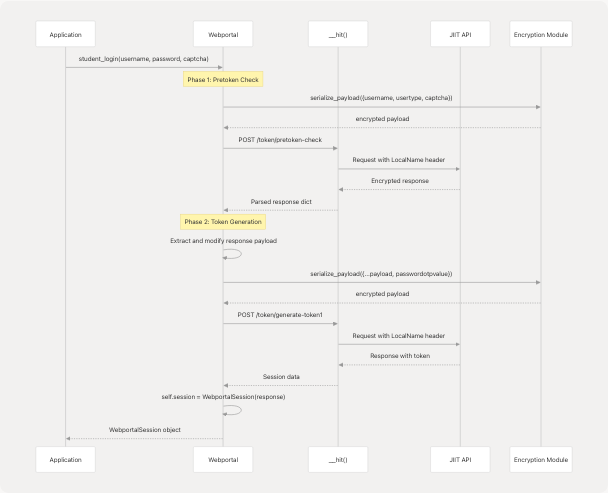

Two-Phase Authentication Flow:

Architecture Diagram

Implementation Details:

  1. Phase 1 - Pretoken Check pyjiit/wrapper.py123-130

    • Serializes username, usertype ("S" for student), and captcha payload
    • Sends encrypted payload to pretoken endpoint
    • Receives intermediate response data

  2. Phase 2 - Token Generation pyjiit/wrapper.py132-139

    • Removes rejectedData field from phase 1 response
    • Adds Modulename: "STUDENTMODULE" and passwordotpvalue (password)
    • Re-serializes and sends to token generation endpoint
    • Receives final session data

  3. Session Establishment pyjiit/wrapper.py141-143

    • Creates WebportalSession object from response
    • Assigns to self.session
    • Returns session object to caller

Sources: pyjiit/wrapper.py111-143

get_captcha()

Retrieves a new captcha challenge from the webportal.

Signature:

get_captcha() -> Captcha

Returns: Captcha object with empty answer field

Raises: APIError for generic API errors

API Endpoint: /token/getcaptcha pyjiit/wrapper.py150

Usage Pattern:

w = Webportal()
captcha = w.get_captcha()
# Solve captcha and set captcha.answer
# Then call student_login()

Sources: pyjiit/wrapper.py145-154

Account Management Methods

get_student_bank_info()

Retrieves student banking information.

Signature:

@authenticated
get_student_bank_info() -> dict

Returns: Dictionary with student bank account details

Raises: APIError for generic API errors, NotLoggedIn if not authenticated

API Endpoint: /studentbankdetails/getstudentbankinfo pyjiit/wrapper.py162

Payload Structure:

  • instituteid: From session
  • studentid: From session memberid

Sources: pyjiit/wrapper.py156-170

set_password()

Changes the student's password.

Signature:

@authenticated
set_password(old_pswd: str, new_pswd: str) -> None

Parameters:

Parameter Type Description
old_pswd str Current password
new_pswd str New password to set

Raises: AccountAPIError for password change failures, NotLoggedIn if not authenticated

API Endpoint: /clxuser/changepassword pyjiit/wrapper.py220

Payload Structure:

  • membertype: From session
  • oldpassword: Old password parameter
  • newpassword: New password parameter
  • confirmpassword: New password (duplicate)

Sources: pyjiit/wrapper.py213-230

Attendance Methods

get_attendance_meta()

Retrieves attendance metadata including available headers and semesters.

Signature:

@authenticated
get_attendance_meta() -> AttendanceMeta

Returns: AttendanceMeta object containing headers and semester list

Raises: APIError for generic API errors, NotLoggedIn if not authenticated

API Endpoint: /StudentClassAttendance/getstudentInforegistrationforattendence pyjiit/wrapper.py178

Payload Structure:

  • clientid: From session
  • instituteid: From session
  • membertype: From session

Usage Pattern:

meta = w.get_attendance_meta()
header = meta.headers[0]
semester = meta.semesters[0]
# Use header and semester for get_attendance()

Sources: pyjiit/wrapper.py172-188

get_attendance()

Retrieves detailed attendance records for a specific header and semester.

Signature:

@authenticated
get_attendance(header: AttendanceHeader, semester: Semester) -> dict

Parameters:

Parameter Type Description
header AttendanceHeader Attendance header from get_attendance_meta()
semester Semester Semester object from get_attendance_meta()

Returns: Dictionary with attendance records and statistics

Raises: APIError for generic API errors, NotLoggedIn if not authenticated

API Endpoint: /StudentClassAttendance/getstudentattendancedetail pyjiit/wrapper.py198

Payload Structure:

  • clientid: From session
  • instituteid: From session
  • registrationcode: From semester parameter
  • registrationid: From semester parameter
  • stynumber: From header parameter

Note: This endpoint encrypts the payload using serialize_payload() pyjiit/wrapper.py207

Performance Consideration: Attendance queries may take >10 seconds due to server-side processing.

Sources: pyjiit/wrapper.py190-211

Examination Methods

get_semesters_for_exam_events()

Retrieves list of semesters that have exam events.

Signature:

@authenticated
get_semesters_for_exam_events() -> list[Semester]

Returns: List of Semester objects with exam events

Raises: APIError for generic API errors, NotLoggedIn if not authenticated

API Endpoint: /studentcommonsontroller/getsemestercode-withstudentexamevents pyjiit/wrapper.py278

Payload Structure:

  • clientid: From session
  • instituteid: From session
  • memberid: From session

Sources: pyjiit/wrapper.py272-289

get_exam_events()

Retrieves exam events for a specific semester.

Signature:

@authenticated
get_exam_events(semester: Semester) -> list[ExamEvent]

Parameters:

Parameter Type Description
semester Semester Semester object from get_semesters_for_exam_events()

Returns: List of ExamEvent objects

Raises: APIError for generic API errors, NotLoggedIn if not authenticated

API Endpoint: /studentcommonsontroller/getstudentexamevents pyjiit/wrapper.py298

Payload Structure:

  • instituteid: From session
  • registationid: From semester parameter (note: API typo, not "registrationid")

Sources: pyjiit/wrapper.py291-308

get_exam_schedule()

Retrieves the detailed exam schedule for a specific exam event.

Signature:

@authenticated
get_exam_schedule(exam_event: ExamEvent) -> dict

Parameters:

Parameter Type Description
exam_event ExamEvent Exam event object from get_exam_events()

Returns: Dictionary with exam schedule details (dates, times, venues)

Raises: APIError for generic API errors, NotLoggedIn if not authenticated

API Endpoint: /studentsttattview/getstudent-examschedule pyjiit/wrapper.py317

Payload Structure:

  • instituteid: From session
  • registrationid: From exam event parameter
  • exameventid: From exam event parameter

Sources: pyjiit/wrapper.py310-328

Registration Methods

get_registered_semesters()

Retrieves list of all semesters the student is registered for.

Signature:

@authenticated
get_registered_semesters() -> list[Semester]

Returns: List of Semester objects

Raises: APIError for generic API errors, NotLoggedIn if not authenticated

API Endpoint: /reqsubfaculty/getregistrationList pyjiit/wrapper.py238

Payload Structure:

  • instituteid: From session
  • studentid: From session memberid

Sources: pyjiit/wrapper.py232-249

get_registered_subjects_and_faculties()

Retrieves all registered subjects and faculty details for a semester.

Signature:

@authenticated
get_registered_subjects_and_faculties(semester: Semester) -> Registrations

Parameters:

Parameter Type Description
semester Semester Semester object from get_registered_semesters()

Returns: Registrations object containing list of RegisteredSubject objects and total credits

Raises: APIError for generic API errors, NotLoggedIn if not authenticated

API Endpoint: /reqsubfaculty/getfaculties pyjiit/wrapper.py258

Payload Structure:

  • instituteid: From session
  • studentid: From session memberid
  • registrationid: From semester parameter

Sources: pyjiit/wrapper.py251-269

get_subject_choices()

Retrieves subject choice preferences for a semester.

Signature:

@authenticated
get_subject_choices(semester: Semester) -> dict

Parameters:

Parameter Type Description
semester Semester Semester object

Returns: Dictionary with subject preference data. If subjects are allocated, response["subjectpreferencegrid"] contains array of dicts with subjectrunning == "Y" attribute.

Raises: APIError for generic API errors, NotLoggedIn if not authenticated

API Endpoint: /studentchoiceprint/getsubjectpreference pyjiit/wrapper.py480

Payload Structure:

  • instituteid: From session
  • clientid: From session
  • registrationid: From semester parameter

Sources: pyjiit/wrapper.py472-488

Marks and Grades Methods

get_semesters_for_marks()

Retrieves list of semesters for which marks are available.

Signature:

@authenticated
get_semesters_for_marks() -> list[Semester]

Returns: List of Semester objects with available marks

Raises: APIError for generic API errors, NotLoggedIn if not authenticated

API Endpoint: /studentcommonsontroller/getsemestercode-exammarks pyjiit/wrapper.py336

Payload Structure:

  • instituteid: From session
  • memberid: From session

Sources: pyjiit/wrapper.py330-346

download_marks()

Downloads marks PDF for a specific semester.

Signature:

@authenticated
download_marks(semester: Semester) -> bytes

Parameters:

Parameter Type Description
semester Semester Semester object from get_semesters_for_marks()

Returns: Raw bytes of PDF file content

Raises: APIError for download failures, NotLoggedIn if not authenticated

API Endpoint: /studentsexamview/printstudent-exammarks/{instituteid}/{registration_id}/{registration_code} pyjiit/wrapper.py354-359

Implementation Notes:

  • Uses requests.get() directly (not via __hit()) pyjiit/wrapper.py363
  • Streams response for memory efficiency
  • Checks HTTP status code 200 explicitly
  • URL parameters are path components, not query string

Sources: pyjiit/wrapper.py348-367

get_semesters_for_grade_card()

Retrieves list of semesters for which grade cards are available.

Signature:

@authenticated
get_semesters_for_grade_card() -> list[Semester]

Returns: List of Semester objects with available grade cards

Raises: APIError for generic API errors, NotLoggedIn if not authenticated

API Endpoint: /studentgradecard/getregistrationList pyjiit/wrapper.py375

Payload Structure:

  • instituteid: From session

Sources: pyjiit/wrapper.py369-383

get_grade_card()

Retrieves the grade card for a specific semester.

Signature:

@authenticated
get_grade_card(semester: Semester) -> dict

Parameters:

Parameter Type Description
semester Semester Semester object from get_semesters_for_grade_card()

Returns: Dictionary with complete grade card data

Raises: APIError for generic API errors, NotLoggedIn if not authenticated

API Endpoint: /studentgradecard/showstudentgradecard pyjiit/wrapper.py412

Implementation Notes:

  • Calls internal helper __get_program_and_branch_id() pyjiit/wrapper.py409 to fetch required IDs
  • Requires branchid and programid in addition to session data

Payload Structure:

  • branchid: From internal helper method
  • instituteid: From session
  • programid: From internal helper method
  • registrationid: From semester parameter

Sources: pyjiit/wrapper.py402-421

__get_program_and_branch_id()

Internal helper method to fetch program and branch IDs for grade card operations.

Signature:

@authenticated
__get_program_and_branch_id() -> dict

Returns: Dictionary with keys programid and branchid

Raises: APIError for generic API errors

API Endpoint: /studentgradecard/getstudentinfo pyjiit/wrapper.py392

Note: This is a private method (indicated by __ prefix) used internally by get_grade_card().

Sources: pyjiit/wrapper.py386-400

get_sgpa_cgpa()

Retrieves SGPA and CGPA data for all or a specific semester.

Signature:

@authenticated
get_sgpa_cgpa(stynumber: int = 0) -> dict

Parameters:

Parameter Type Default Description
stynumber int 0 Semester number (0 for all semesters)

Returns: Dictionary containing SGPA and CGPA information

Raises: APIError for generic API errors, NotLoggedIn if not authenticated

API Endpoint: /studentsgpacgpa/getallsemesterdata pyjiit/wrapper.py430

Payload Structure:

  • instituteid: From session
  • studentid: From session memberid
  • stynumber: From parameter (0 retrieves all semesters)

Sources: pyjiit/wrapper.py423-438

Finance Methods

get_fines_msc_charges()

Fetches pending miscellaneous charges and fines.

Signature:

@authenticated
get_fines_msc_charges() -> dict

Returns: Dictionary with pending payment data. If no pending payments exist, API returns status "Failure" with error "NO APPROVED REQUEST FOUND".

Raises: APIError for generic API errors (including when no pending payments exist), NotLoggedIn if not authenticated

API Endpoint: /collectionpendingpayments/getpendingpaymentsdata pyjiit/wrapper.py449

Payload Structure:

  • instituteid: From session
  • studentid: From session memberid

Behavior Note: The API treats "no pending payments" as an error condition. Calling code should catch APIError and check for "NO APPROVED REQUEST FOUND" message.

Sources: pyjiit/wrapper.py440-456

get_fee_summary()

Fetches the complete fee summary for the student.

Signature:

@authenticated
get_fee_summary() -> dict

Returns: Dictionary with fee ledger and summary information

Raises: APIError for generic API errors, NotLoggedIn if not authenticated

API Endpoint: /studentfeeledger/loadfeesummary pyjiit/wrapper.py465

Payload Structure:

  • instituteid: From session

Note: Unlike get_fines_msc_charges(), this method does not encrypt the payload.

Sources: pyjiit/wrapper.py458-470

Method Usage Patterns

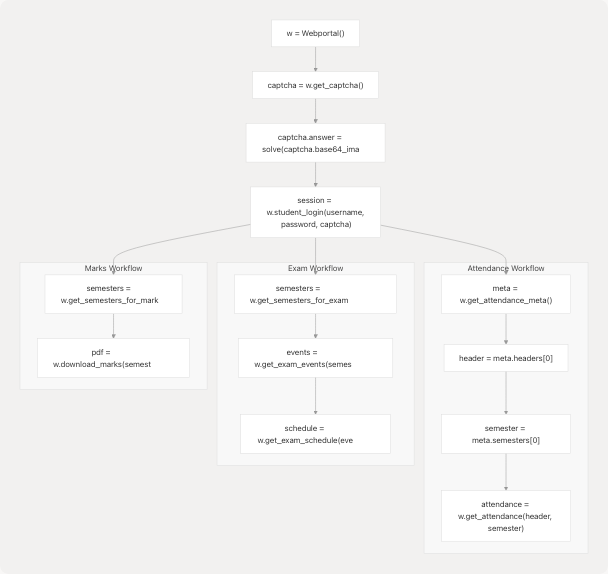

Typical Workflow Example

Architecture Diagram

Sources: pyjiit/wrapper.py70-489

Method Summary Table

Method Authentication Encryption Returns Primary Use Case
student_login() No Yes WebportalSession Initial authentication
get_captcha() No No Captcha Retrieve captcha challenge
get_student_bank_info() Required No dict Bank account details
set_password() Required No None Password management
get_attendance_meta() Required No AttendanceMeta Get attendance parameters
get_attendance() Required Yes dict Detailed attendance records
get_semesters_for_exam_events() Required Yes list[Semester] Available exam semesters
get_exam_events() Required Yes list[ExamEvent] Exam events for semester
get_exam_schedule() Required Yes dict Detailed exam schedule
get_registered_semesters() Required Yes list[Semester] Registration semesters
get_registered_subjects_and_faculties() Required Yes Registrations Subject and faculty info
get_subject_choices() Required Yes dict Subject preferences
get_semesters_for_marks() Required Yes list[Semester] Marks availability
download_marks() Required No bytes PDF marks download
get_semesters_for_grade_card() Required Yes list[Semester] Grade card availability
get_grade_card() Required Yes dict Complete grade card
get_sgpa_cgpa() Required Yes dict SGPA/CGPA data
get_fines_msc_charges() Required Yes dict Pending payments
get_fee_summary() Required No dict Fee ledger summary

Sources: pyjiit/wrapper.py70-489

Dependencies and Imports

Architecture Diagram

Import Statements: pyjiit/wrapper.py1-14

Sources: pyjiit/wrapper.py1-17

Previous Core Api Reference
Next Session Management
