key features

What Webportal actually exposes in 0.1.0a8. README.rst lists login, attendance, registration, exam events, and explicit exceptions. The wrapper also covers marks PDFs, grade cards, SGPA/CGPA, fees, subject choices, bank info, and password change.

student_login(username, password, captcha: Captcha) -> WebportalSession. You must pass a Captcha. The usage docs use from pyjiit.default import CAPTCHA because the portal does not bind the challenge tightly to the client.

flowchart LR
  C["Captcha or default.CAPTCHA"] --> L["student_login"]
  L --> S["WebportalSession"]
  S --> H["Bearer token plus LocalName"]

get_captcha() GETs /token/getcaptcha and returns Captcha.from_json with an empty answer field until you fill captcha.

@authenticated is the gate. There is no logout method. Drop the instance or set session = None.

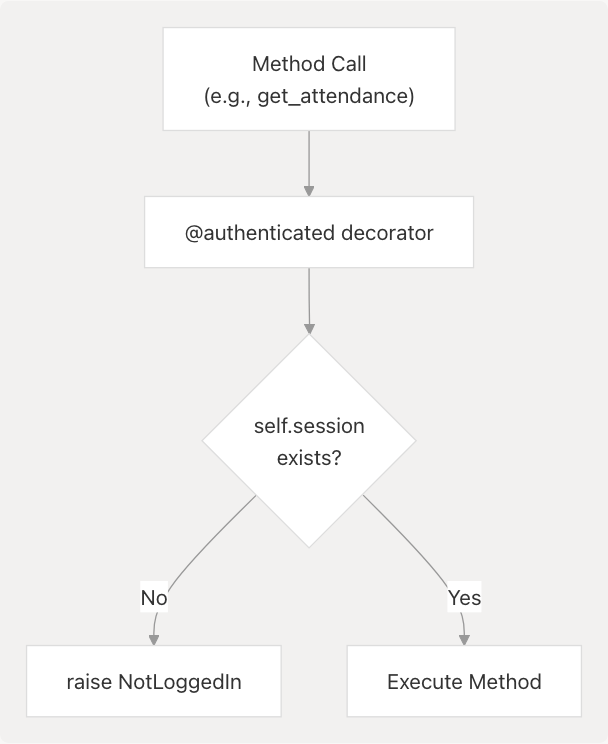

flowchart TD
  Call["authenticated method"] --> Check{"session is None?"}
  Check -->|yes| NL["NotLoggedIn"]
  Check -->|no| Body["run method"]

Attendance#

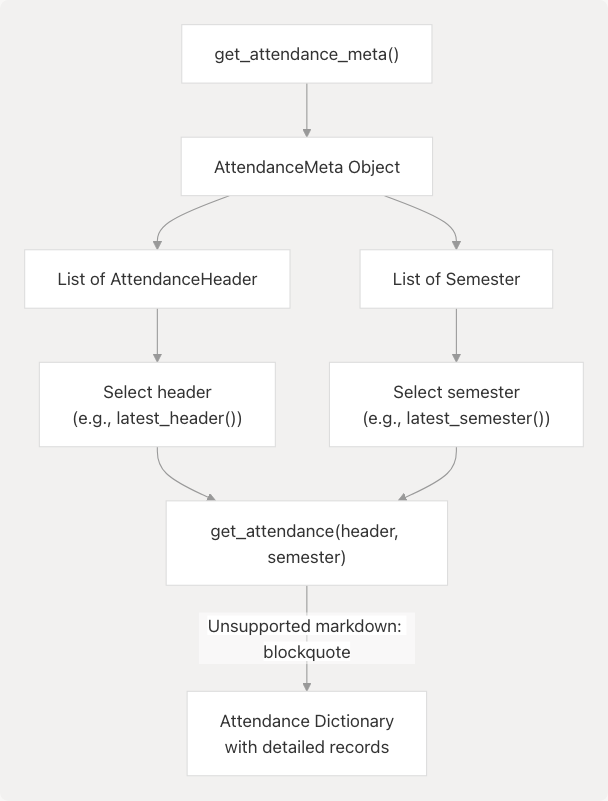

flowchart LR
  Meta["get_attendance_meta"] --> AM["AttendanceMeta"]
  AM --> H["latest_header"]
  AM --> S["latest_semester"]
  H --> G["get_attendance"]
  S --> G
  G --> D["attendance dict"]

get_attendance_meta POSTs /StudentClassAttendance/getstudentInforegistrationforattendence as plain JSON (clientid, instituteid, membertype). get_attendance(header, semester) encrypts registrationcode, registrationid, and stynumber and POSTs /StudentClassAttendance/getstudentattendancedetail. Sphinx usage notes that this call can sit for over 10 seconds on the server.

Registration#

flowchart LR
  Sems["get_registered_semesters"] --> Sem["Semester"]
  Sem --> Fac["get_registered_subjects_and_faculties"]
  Fac --> R["Registrations"]
  Sem --> Ch["get_subject_choices"]

get_registered_semesters hits /reqsubfaculty/getregistrationList. get_registered_subjects_and_faculties(semester) hits /reqsubfaculty/getfaculties and returns Registrations (total_credits, list of RegisteredSubject). get_subject_choices(semester) hits /studentchoiceprint/getsubjectpreference. Allocated rows in subjectpreferencegrid have subjectrunning == "Y".

Exams#

flowchart LR
  S["get_semesters_for_exam_events"] --> Sem["Semester"]
  Sem --> E["get_exam_events"]
  E --> Ev["ExamEvent"]
  Ev --> Sch["get_exam_schedule"]

The exam-events payload uses the portal typo registationid. get_exam_schedule sends instituteid, registrationid, exameventid.

Marks and grades#

flowchart TB
  SM["get_semesters_for_marks"] --> DM["download_marks PDF bytes"]
  SG["get_semesters_for_grade_card"] --> GC["get_grade_card"]
  GC --> P["__get_program_and_branch_id"]
  GPA["get_sgpa_cgpa(stynumber=0)"] --> Dict["SGPA/CGPA dict"]

download_marks GETs /studentsexamview/printstudent-exammarks/{instituteid}/{registration_id}/{registration_code} and returns response.content on HTTP 200. get_grade_card first calls private __get_program_and_branch_id (/studentgradecard/getstudentinfo) then /studentgradecard/showstudentgradecard.

Fees and account#

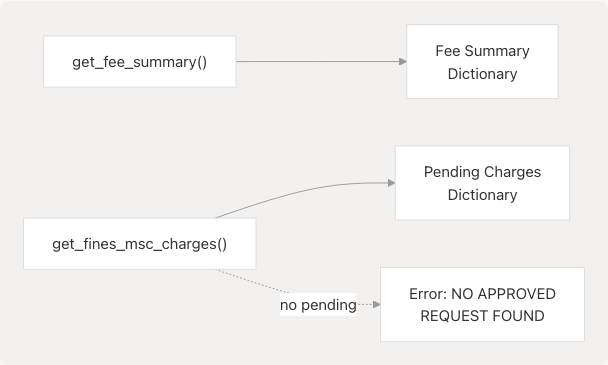

flowchart LR
  F["get_fines_msc_charges"] --> Pend["pending payments dict"]
  Fee["get_fee_summary"] --> Sum["fee summary dict"]
  Bank["get_student_bank_info"] --> B["bank dict"]
  Pw["set_password"] --> Acc["AccountAPIError on failure"]

get_fines_msc_charges documents that an empty queue comes back as Failure "NO APPROVED REQUEST FOUND", which __hit turns into APIError. get_fee_summary sends unencrypted JSON with only instituteid.

Encryption on the wire#

flowchart LR
  P["dict"] --> S["serialize_payload"]
  S --> AES["AES-CBC daily key"]
  AES --> Body["POST body"]
  LN["generate_local_name"] --> H["LocalName header"]

Exception map#

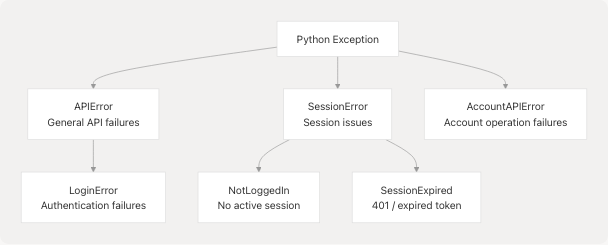

classDiagram
  Exception <|-- APIError
  APIError <|-- LoginError
  Exception <|-- SessionError
  SessionError <|-- SessionExpired
  SessionError <|-- NotLoggedIn
  Exception <|-- AccountAPIError

Feature	Raises
`student_login`	`LoginError`
Any `@authenticated` method with no session	`NotLoggedIn`
HTTP 401 from `__hit`	`SessionExpired`
`set_password`	`AccountAPIError`
Other failed `responseStatus`	`APIError`
`download_marks` non-200	`APIError`

Endpoint map#

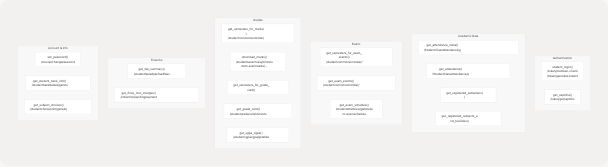

flowchart TB
  subgraph auth [Auth]
    A1["/token/getcaptcha"]
    A2["/token/pretoken-check"]
    A3["/token/generate-token1"]
  end
  subgraph data [Student data]
    D1["/StudentClassAttendance/..."]
    D2["/reqsubfaculty/..."]
    D3["/studentcommonsontroller/..."]
    D4["/studentsttattview/getstudent-examschedule"]
    D5["/studentsexamview/printstudent-exammarks"]
    D6["/studentgradecard/..."]
    D7["/studentsgpacgpa/getallsemesterdata"]
    D8["/collectionpendingpayments/getpendingpaymentsdata"]
    D9["/studentfeeledger/loadfeesummary"]
    D10["/studentbankdetails/getstudentbankinfo"]
    D11["/clxuser/changepassword"]
    D12["/studentchoiceprint/getsubjectpreference"]
  end
  Webportal --> auth
  Webportal --> data

Base URL is always https://webportal.jiit.ac.in:6011/StudentPortalAPI.
