Authentication Flow

Purpose and Scope

This document details the two-phase authentication mechanism used to establish a session with the JIIT Webportal API. It covers captcha acquisition, credential validation, token generation, and session initialization.

For information about managing active sessions and making authenticated API calls, see Session Management. For details on the encryption used during authentication, see Encryption System.

Overview

The JIIT Webportal API employs a two-phase authentication process that requires:

1. Phase 1 (Pretoken Check): Username and captcha validation via /token/pretoken-check
2. Phase 2 (Token Generation): Password validation and session token creation via /token/generate-token1

Both phases require encrypted payloads and the LocalName header. The process is implemented in the Webportal.student_login() method.

Sources: pyjiit/wrapper.py111-143

Captcha Acquisition

Before authentication can begin, a valid captcha must be obtained from the API.

Captcha Structure

The Captcha class encapsulates three fields:

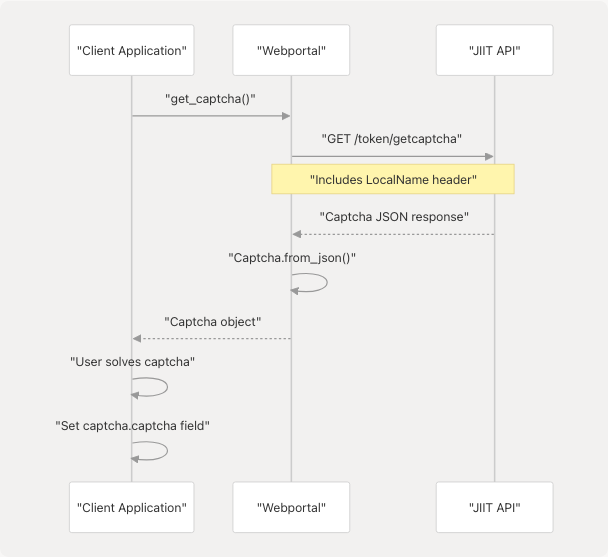

Obtaining a Captcha

The Webportal.get_captcha() method retrieves a captcha object with an empty captcha field. The application must present the base64 image to the user and populate the captcha field with the user's answer before proceeding to authentication.

Sources: pyjiit/wrapper.py145-154 pyjiit/tokens.py4-27

Phase 1: Pretoken Check

The first authentication phase validates the username, user type, and captcha.

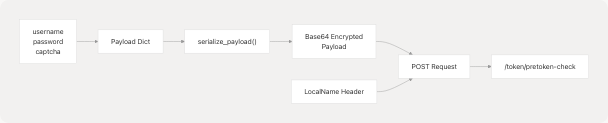

Request Construction

The payload dictionary contains:

{
    "username": <username>,
    "usertype": "S",  // S = Student
    "captcha": {
        "captcha": <answer>,
        "hidden": <id>
    }
}

This payload is encrypted using serialize_payload() from pyjiit/encryption.py39-44 which:

1. Converts the dictionary to JSON
2. Encrypts with AES-CBC using a daily-rotated key
3. Base64-encodes the result

Response Processing

The API returns an encrypted response containing registration data. The response structure includes:

• regdata: Registration information needed for Phase 2
• rejectedData: Unused field that must be removed before Phase 2

The Webportal.__hit() method handles the HTTP request and validates the response status. If the responseStatus is not "Success", a LoginError exception is raised.

Sources: pyjiit/wrapper.py111-130 pyjiit/encryption.py39-44 test_signin.py15-34

Phase 2: Token Generation

The second phase validates the password and generates the authentication token.

Request Construction

The Phase 2 payload is built from the Phase 1 response:

The modified payload contains:

• All fields from Phase 1's response object (except rejectedData)
• Modulename: Set to "STUDENTMODULE"
• passwordotpvalue: The user's password

This payload is encrypted and sent with a fresh LocalName header to /token/generate-token1.

Response Structure

On successful authentication, the response contains a response object with:

Sources: pyjiit/wrapper.py132-143 test_signin.py36-48

Session Creation

Upon successful Phase 2 completion, a WebportalSession object is instantiated and stored in Webportal.session.

WebportalSession Initialization

The WebportalSession constructor pyjiit/wrapper.py38-59 performs the following:

1. Stores raw response in raw_response
2. Extracts regdata from response
3. Parses institute information from institutelist[0]
4. Extracts identifiers: memberid, userid, clientid, membertype, name
5. Decodes JWT token to extract expiry timestamp:
   • Splits token by . to get payload segment
   • Base64 decodes the payload
   • Parses JSON to extract exp claim
   • Converts Unix timestamp to datetime object

Session Headers

The get_headers() method pyjiit/wrapper.py61-68 returns headers required for authenticated requests:

{
    "Authorization": "Bearer <token>",
    "LocalName": <encrypted_random_string>
}

The LocalName header is regenerated for each request using generate_local_name(), which creates a unique encrypted identifier based on random characters and the current date sequence.

Sources: pyjiit/wrapper.py38-68

Authentication Error Handling

The authentication process can fail at multiple points, each raising specific exceptions.

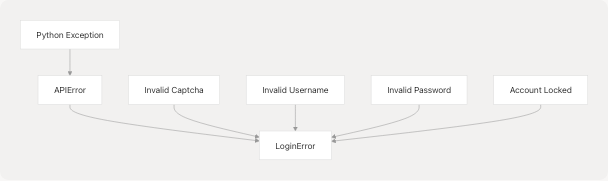

Exception Types

Error Scenarios

The Webportal.__hit() method pyjiit/wrapper.py82-108 centralizes error handling:

1. Checks if resp["status"] is an integer 401 → raises SessionExpired
2. Checks if resp["status"]["responseStatus"] != "Success" → raises the specified exception

For student_login(), the exception parameter is set to LoginError pyjiit/wrapper.py130-139 ensuring authentication failures are properly typed.

Sources: pyjiit/wrapper.py82-143 pyjiit/exceptions.py

Complete Authentication Flow

Sources: pyjiit/wrapper.py111-143 pyjiit/wrapper.py38-68 pyjiit/encryption.py13-44 test_signin.py1-52

Implementation Details

Method Signature

The student_login() method signature pyjiit/wrapper.py111-117:

def student_login(self, username: str, password: str, captcha: Captcha) -> WebportalSession

Parameters:

• username: Student username (typically enrollment number)
• password: Student password
• captcha: Completed Captcha object with solved answer

Returns: WebportalSession object containing authentication token and user information

Raises: LoginError for any authentication failure

Internal Request Handler

The __hit() method pyjiit/wrapper.py82-108 is a private method that:

1. Determines exception type from kwargs (defaults to APIError)
2. Manages headers:
   • If authenticated=True kwarg: uses session.get_headers()
   • Otherwise: generates standalone LocalName header
3. Makes HTTP request via requests.request()
4. Validates response:
   • HTTP 401 status → raises SessionExpired
   • responseStatus != "Success" → raises specified exception
5. Returns response dictionary if successful

For authentication, the method is called without authenticated=True, so it generates a new LocalName header for each phase.

API Endpoint Constants

The base API URL is defined as a module constant pyjiit/wrapper.py17:

API = "https://webportal.jiit.ac.in:6011/StudentPortalAPI"

Authentication endpoints:

• Captcha: GET /token/getcaptcha
• Phase 1: POST /token/pretoken-check
• Phase 2: POST /token/generate-token1

Sources: pyjiit/wrapper.py17-143

Usage Example

from pyjiit import Webportal

# Initialize webportal client
webportal = Webportal()

# Step 1: Get captcha
captcha = webportal.get_captcha()
# Display captcha.image to user and get answer
captcha.captcha = "cfmab"  # User's answer

# Step 2: Authenticate
try:
    session = webportal.student_login(
        username="21BCS1234",
        password="mypassword",
        captcha=captcha
    )
    print(f"Logged in as: {session.name}")
    print(f"Token expires: {session.expiry}")
except LoginError as e:
    print(f"Login failed: {e}")

Once student_login() succeeds, the Webportal instance's session attribute is set, enabling all @authenticated methods to be called (see Session Management).

Sources: pyjiit/wrapper.py111-143 pyjiit/wrapper.py19-36
