Quick Start Guide

Purpose and Scope

This guide provides a practical walkthrough for using pyjiit: instantiating the library, authenticating with the JIIT Webportal, and making your first API calls to retrieve student data.

For installation instructions, see Installation. For detailed authentication mechanics, see Authentication Flow. For comprehensive API documentation, see Core API Reference.

Basic Workflow Overview

The typical pyjiit workflow consists of three steps:

Instantiate the Webportal class
Authenticate using student_login() with credentials and captcha
Query data using authenticated methods

The following diagram illustrates this workflow with actual method names:

Your First API Call

Step 1: Import and Instantiate

Import the Webportal class and create an instance:

from pyjiit import Webportal

w = Webportal()

The Webportal class pyjiit/wrapper.py70-78 is the main entry point. Upon instantiation, the session attribute is initialized to None until authentication succeeds.

Step 2: Authenticate

Authentication requires username, password, and a Captcha object. For development, use the pre-filled CAPTCHA constant:

from pyjiit import Webportal
from pyjiit.default import CAPTCHA

w = Webportal()
session = w.student_login("your_username", "your_password", CAPTCHA)

# Session is stored in w.session
print(w.session.clientid)  # Output: "JAYPEE"
print(w.session.name)      # Output: Student's full name

The student_login() method pyjiit/wrapper.py111-143 performs two-phase authentication:

Pretoken check: Verifies credentials via /token/pretoken-check
Token generation: Obtains session token via /token/generate-token1
Session creation: Returns WebportalSession with authentication data

The CAPTCHA object from pyjiit/default.py4-8 bypasses the captcha requirement. This works because the JIIT webportal does not tie captcha validation to session state.

Step 3: Access Session Information

The WebportalSession object pyjiit/wrapper.py38-68 provides user and authentication data:

Attribute	Description	Example
`clientid`	Institution identifier	`"JAYPEE"`
`memberid`	Student ID	`"12345678"`
`token`	JWT authentication token	`"eyJhb..."`
`name`	Student full name	`"STUDENT NAME"`
`instituteid`	Institute identifier	`"JYPINST001"`
`expiry`	Token expiration datetime	`datetime(2024, ...)`

Fetching Student Data

Example: Retrieving Attendance

Attendance requires two API calls: metadata retrieval, then actual attendance data:

from pyjiit import Webportal
from pyjiit.default import CAPTCHA

# Authenticate
w = Webportal()
w.student_login("username", "password", CAPTCHA)

# Step 1: Get attendance metadata
meta = w.get_attendance_meta()

# Step 2: Select header and semester
header = meta.latest_header()
semester = meta.latest_semester()

# Step 3: Fetch attendance data (may take >10 seconds)
attendance = w.get_attendance(header, semester)

# Structure:
# {
#   'currentSem': '1',
#   'studentattendancelist': [
#     {
#       'LTpercantage': 83.3,
#       'Lpercentage': 92.9,
#       'subjectcode': 'SUBJECT123',
#       ...
#     },
#     ...
#   ]
# }

Method Details:

get_attendance_meta() pyjiit/wrapper.py172-188 returns AttendanceMeta containing:
- headers: List of AttendanceHeader objects (course identifiers)
- semesters: List of Semester objects
get_attendance() pyjiit/wrapper.py190-211 accepts AttendanceHeader and Semester, returns dictionary with attendance records

Performance Note: The get_attendance() call may take over 10 seconds due to server-side processing docs/usage.rst105-107

Example: Retrieving Registered Subjects

Fetch subjects and faculty information for a semester:

# Get list of registered semesters
semesters = w.get_registered_semesters()

# Select latest semester
latest_sem = semesters[0]

# Get registered subjects
registrations = w.get_registered_subjects_and_faculties(latest_sem)

# Access subject details
for subject in registrations.subjects:
    print(f"{subject.subject_code}: {subject.subject_desc}")
    print(f"  Faculty: {subject.employee_name}")
    print(f"  Credits: {subject.credits}")

# Get total credits
print(f"Total credits: {registrations.total_credits}")

Method Details:

get_registered_semesters() pyjiit/wrapper.py232-249 returns list of Semester objects
get_registered_subjects_and_faculties() pyjiit/wrapper.py251-269 returns Registrations object pyjiit/registration.py36-42 containing:
- subjects: List of RegisteredSubject objects with faculty/course details
- total_credits: Total credit points

Key Classes and Data Models

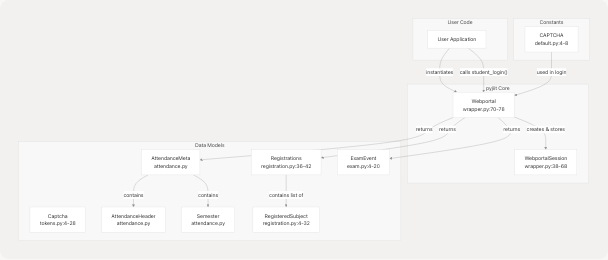

The following diagram maps the primary classes used in typical workflows:

Authentication Decorator

All methods requiring authentication use the @authenticated decorator pyjiit/wrapper.py19-36:

@authenticated
def get_attendance_meta(self):
    # Method implementation

This decorator enforces:

Session existence (raises NotLoggedIn if self.session is None)
Method called only after successful student_login()

Calling authenticated methods before login raises an exception:

from pyjiit import Webportal
from pyjiit.exceptions import NotLoggedIn

w = Webportal()
try:
    w.get_attendance_meta()  # Called before login
except NotLoggedIn:
    print("Must login first!")

Error Handling

Basic exception handling pattern:

from pyjiit import Webportal
from pyjiit.default import CAPTCHA
from pyjiit.exceptions import LoginError, NotLoggedIn, SessionExpired, APIError

w = Webportal()

try:
    w.student_login("username", "password", CAPTCHA)
except LoginError as e:
    print(f"Login failed: {e}")

try:
    attendance = w.get_attendance(header, semester)
except SessionExpired:
    print("Session expired, re-authenticating...")
    w.student_login("username", "password", CAPTCHA)
except NotLoggedIn:
    print("Must login before calling this method")
except APIError as e:
    print(f"API error: {e}")

Key exception types pyjiit/exceptions.py:

Exception	Trigger	Usage
`LoginError`	Invalid credentials during `student_login()`	Authentication failures
`NotLoggedIn`	Authenticated method called before login	Session validation
`SessionExpired`	Token expired or HTTP 401 received	Re-authentication required
`APIError`	Generic API failure	Catch-all for API errors

For complete exception documentation, see Exception Handling.

Common Method Reference

Frequently used Webportal methods:

Method	Auth Required	Returns	Purpose
`student_login()`	No	`WebportalSession`	Authenticate and create session
`get_attendance_meta()`	Yes	`AttendanceMeta`	Fetch attendance metadata
`get_attendance()`	Yes	`dict`	Fetch attendance records
`get_registered_semesters()`	Yes	`list[Semester]`	List semesters with registrations
`get_registered_subjects_and_faculties()`	Yes	`Registrations`	Get subjects and faculty
`get_semesters_for_exam_events()`	Yes	`list[Semester]`	List semesters with exams
`get_exam_events()`	Yes	`list[ExamEvent]`	Get exam events
`get_exam_schedule()`	Yes	`dict`	Get exam schedule
`set_password()`	Yes	`None`	Change password

For complete API reference, see Webportal Class.

Complete Working Example

Full workflow demonstration:

from pyjiit import Webportal
from pyjiit.default import CAPTCHA
from pyjiit.exceptions import LoginError, APIError

def main():
    w = Webportal()

    try:
        # Authenticate
        print("Logging in...")
        session = w.student_login("your_username", "your_password", CAPTCHA)
        print(f"Logged in as: {session.name}")
        print(f"Client ID: {session.clientid}")

        # Get attendance
        print("\nFetching attendance...")
        meta = w.get_attendance_meta()
        header = meta.latest_header()
        semester = meta.latest_semester()

        attendance_data = w.get_attendance(header, semester)
        print(f"Attendance records: {len(attendance_data['studentattendancelist'])}")

        # Get registered subjects
        print("\nFetching registered subjects...")
        semesters = w.get_registered_semesters()
        latest_sem = semesters[0]

        registrations = w.get_registered_subjects_and_faculties(latest_sem)
        print(f"Total subjects: {len(registrations.subjects)}")
        print(f"Total credits: {registrations.total_credits}")

        for subject in registrations.subjects[:3]:
            print(f"  - {subject.subject_code}: {subject.subject_desc}")

    except LoginError as e:
        print(f"Login failed: {e}")
    except APIError as e:
        print(f"API error: {e}")

if __name__ == "__main__":
    main()

Next Steps

After completing this guide:

Authentication details: See Authentication Flow for two-phase authentication and captcha mechanics
Complete API documentation: See Webportal Class for all methods
Data model reference: See Data Models for detailed return type information
Error handling strategies: See Exception Handling for all exception types
Security information: See Security and Encryption for encryption system details
