Publishing to PyPI

This document describes the automated process for building and publishing the pyjiit package to the Python Package Index (PyPI). It covers the GitHub Actions workflow, package metadata configuration, versioning strategy, and authentication setup.

For information about other CI/CD workflows including documentation deployment, see GitHub Actions Workflows. For details about the build system and Poetry configuration, see Build System and Dependencies.

Overview

The pyjiit package is automatically published to PyPI through a GitHub Actions workflow defined in .github/workflows/python-publish.yml1-29 This workflow uses Poetry as the build backend and package manager, ensuring reproducible builds and consistent dependency resolution.

The publishing process is triggered either by creating a GitHub release or through manual workflow dispatch, providing flexibility for both regular releases and emergency updates.

Sources: .github/workflows/python-publish.yml1-29 pyproject.toml1-28

Publication Triggers

The workflow can be initiated through two mechanisms:

The release-based trigger is the recommended approach for production releases, as it creates a permanent record in the repository's release history and allows attaching release notes.

Sources: .github/workflows/python-publish.yml3-8

Workflow Architecture

Workflow Execution Pipeline

This diagram shows the complete execution path from trigger to publication. The workflow runs on ubuntu-latest and executes six distinct steps in sequence.

Sources: .github/workflows/python-publish.yml1-29

Workflow Steps Breakdown

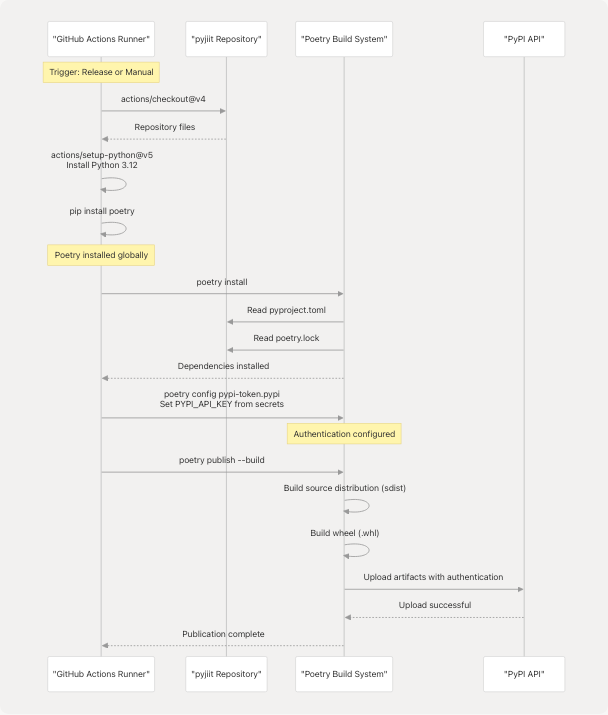

Workflow Execution Sequence

This sequence diagram illustrates the interaction between GitHub Actions, the repository, Poetry, and PyPI during the publication process.

Sources: .github/workflows/python-publish.yml15-28

Step Details

1. Repository Checkout

- uses: actions/checkout@v4

Clones the repository at the current commit or tag. For release triggers, this checks out the exact commit tagged for release.

2. Python Environment Setup

- uses: actions/setup-python@v5
  with:
    python-version: '3.12'

Installs Python 3.12, the version used for building the package. This ensures consistent build behavior regardless of the runner's default Python version.

3. Dependency Installation

pip install poetry
poetry install

Installs Poetry globally, then uses it to install project dependencies defined in pyproject.toml9-12 and pyproject.toml19-21 The poetry install command respects poetry.lock to ensure reproducible builds.

4. PyPI Authentication Configuration

poetry config pypi-token.pypi ${{ secrets.PYPI_API_KEY }}

Configures Poetry with the PyPI API token stored in GitHub repository secrets. This token authorizes the upload of packages to PyPI under the pyjiit package name.

5. Build and Publish

poetry publish --build

The --build flag instructs Poetry to build distribution artifacts before publishing:

• Source distribution (sdist): A .tar.gz archive containing source code
• Wheel (.whl): A binary distribution for faster installation

After building, Poetry uploads both artifacts to PyPI using the configured authentication token.

Sources: .github/workflows/python-publish.yml20-28

Package Metadata Configuration

The package metadata is defined in pyproject.toml1-17 following the PEP 621 standard for Python project metadata:

The project.urls section defines package homepage and issue tracker links that appear on the PyPI package page.

Sources: pyproject.toml1-17

Dependency Management

Runtime Dependencies

The package has two core runtime dependencies defined in pyproject.toml9-12:

dependencies = [
  "requests (>=2.32.3,<3.0.0)",
  "pycryptodome (>=3.22.0,<4.0.0)"
]

• requests: HTTP client library used by the Webportal class for API communication
• pycryptodome: Cryptographic library used by the encryption module for AES-CBC operations

Documentation Dependencies

Documentation dependencies are isolated in a Poetry dependency group pyproject.toml19-21:

[tool.poetry.group.docs.dependencies]
sphinx = ">=7.4.7"
furo = "^2024.8.6"

These dependencies are not installed during the publish workflow since they are not needed for building the package. They are only required for building documentation (see Building Documentation).

Sources: pyproject.toml9-12 pyproject.toml19-21

Build System Configuration

The build system is configured using PEP 517/518 standards in pyproject.toml23-25:

[build-system]
requires = ["poetry-core"]
build-backend = "poetry.core.masonry.api"

This configuration instructs build tools (including Poetry itself) to use poetry-core as the build backend. The poetry-core package is a lightweight build backend that implements PEP 517, allowing the package to be built with any PEP 517-compliant tool (not just Poetry).

Sources: pyproject.toml23-25

Version Management

The current version is 0.1.0a8 pyproject.toml3 indicating an alpha pre-release. The versioning scheme follows PEP 440:

• Major.Minor.Patch: 0.1.0
• Pre-release identifier: a8 (alpha release 8)

Version Update Workflow

To publish a new version:

1. Update version in pyproject.toml3
2. Commit the change to the main branch
3. Create a GitHub release with a tag matching the version (e.g., v0.1.0a9)
4. Workflow triggers automatically and publishes to PyPI

The version in pyproject.toml is the single source of truth. Poetry reads this value during poetry publish --build and embeds it in the distribution metadata.

Sources: pyproject.toml3

Authentication and Secrets

PyPI API Token

The workflow uses a PyPI API token for authentication, stored as a GitHub repository secret named PYPI_API_KEY. This token is referenced in .github/workflows/python-publish.yml27:

poetry config pypi-token.pypi ${{ secrets.PYPI_API_KEY }}

Token Setup Requirements

To configure the secret:

1. Generate an API token at https://pypi.org/manage/account/token/
2. Set the token scope to the pyjiit package (or use a global token for initial setup)
3. Add the token to repository secrets as PYPI_API_KEY

The token provides scoped access to upload packages, which is more secure than username/password authentication.

Sources: .github/workflows/python-publish.yml27

Permissions and Security

The workflow requires minimal permissions defined in .github/workflows/python-publish.yml9-10:

permissions:
  contents: write

The contents: write permission allows the workflow to access repository contents. While this permission is broader than necessary for just publishing to PyPI, it may be used for potential future enhancements like creating automated commit tags or updating changelog files.

Sources: .github/workflows/python-publish.yml9-10

Build Artifacts

The poetry publish --build command generates two distribution formats:

Source Distribution (sdist)

• Format: .tar.gz archive
• Contents: Complete source code, pyproject.toml, README.rst, LICENSE
• Use case: Installation from source, inspection of package contents
• Naming: pyjiit-<version>.tar.gz (e.g., pyjiit-0.1.0a8.tar.gz)

Wheel Distribution

• Format: .whl file (ZIP archive with .whl extension)
• Contents: Pre-built package files ready for installation
• Use case: Fast installation without build step
• Naming: pyjiit-<version>-py3-none-any.whl

The py3-none-any wheel tag indicates:

• py3: Compatible with Python 3
• none: No ABI-specific code
• any: Platform-independent (pure Python)

Both artifacts are uploaded to PyPI and users can install either via pip install pyjiit.

Sources: .github/workflows/python-publish.yml28

Verification and Testing

After publication completes, verify the upload:

1. Check PyPI package page: https://pypi.org/project/pyjiit/
2. Test installation: pip install pyjiit==<version>
3. Verify version: python -c "import pyjiit; print(pyjiit.__version__)"

The workflow does not include automated post-publication testing. For pre-release testing, use the manual dispatch trigger to publish to TestPyPI (requires workflow modification).

Sources: .github/workflows/python-publish.yml1-29

Integration with Release Process

Complete Release to User Installation Flow

This diagram shows how version updates flow from the repository through the automated pipeline to end users.

Sources: pyproject.toml3 .github/workflows/python-publish.yml1-29
