Build System and Dependencies

Purpose and Scope

This document explains the build system and dependency management for pyjiit. The project uses Poetry as its build tool, package manager, and dependency resolver. This page covers the structure of pyproject.toml1-28 the role of poetry.lock1-714 and how dependencies are organized and managed.

For information about the project directory structure, see Project Structure. For details on automated publishing to PyPI, see Publishing to PyPI.

Build System Overview

pyjiit uses Poetry for all build and dependency management operations. Poetry replaces traditional setup.py and requirements.txt files with a single pyproject.toml1-28 configuration file.

Poetry Build Backend

The build backend is configured in pyproject.toml23-25:

[build-system]
requires = ["poetry-core"]
build-backend = "poetry.core.masonry.api"

This declares that the project uses poetry-core as its build backend, making it a PEP 517-compliant Python package.

Sources: pyproject.toml23-25

pyproject.toml Structure

The pyproject.toml1-28 file defines all project metadata, dependencies, and build configuration. It follows the PEP 621 standard for project metadata.

Project Metadata

Sources: pyproject.toml1-17

Metadata Fields

Sources: pyproject.toml1-17

Dependency Management

Dependencies are declared in two categories: runtime dependencies (required for library functionality) and documentation dependencies (required only for building docs).

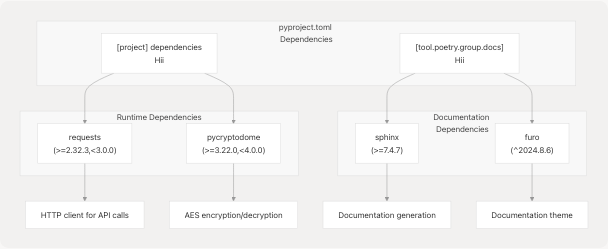

Dependency Declaration Structure

Sources: pyproject.toml9-12 pyproject.toml19-21

Runtime Dependencies

The library has exactly 2 runtime dependencies defined in pyproject.toml9-12:

These dependencies are installed automatically when users run pip install pyjiit.

Sources: pyproject.toml9-12

Documentation Dependencies

Documentation dependencies are in a separate docs group defined in pyproject.toml19-21:

These are not installed by default and must be explicitly requested with poetry install --with docs.

Sources: pyproject.toml19-21

poetry.lock and Reproducible Builds

The poetry.lock1-714 file ensures reproducible builds by pinning exact versions of all dependencies and their transitive dependencies.

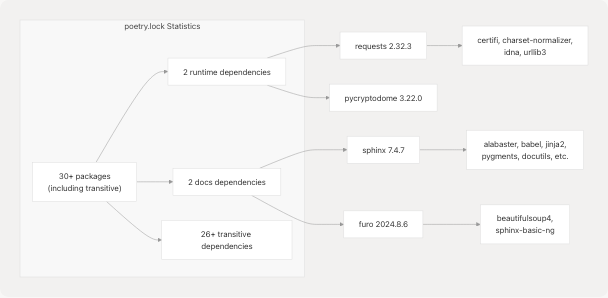

Lock File Statistics

Sources: poetry.lock1-714

Lock File Structure

Each package entry in poetry.lock1-714 contains:

• Exact version: e.g., requests = "2.32.3"
• Description: Package purpose
• Python version constraints: e.g., python-versions = ">=3.8"
• Dependency groups: main, docs
• File hashes: SHA256 hashes for all distribution files
• Transitive dependencies: Dependencies of dependencies

Example Lock Entry

[[package]]
name = "requests"
version = "2.32.3"
description = "Python HTTP for Humans."
optional = false
python-versions = ">=3.8"
groups = ["main", "docs"]

[package.dependencies]
certifi = ">=2017.4.17"
charset-normalizer = ">=2,<4"
idna = ">=2.5,<4"
urllib3 = ">=1.21.1,<3"

Sources: poetry.lock416-435

Lock File Metadata

The lock file metadata in poetry.lock710-714 records:

[metadata]
lock-version = "2.1"
python-versions = ">=3.9"
content-hash = "865fe5dd83e2564122da693bd872c7b97c467409a8dd895d6d9b995f30f6d870"

The content-hash ensures integrity - any change to pyproject.toml1-28 invalidates the lock file, requiring poetry lock --no-update or poetry update.

Sources: poetry.lock710-714

Dependency Groups

Poetry organizes dependencies into groups to control which dependencies are installed in different contexts.

Group Organization

Sources: pyproject.toml9-21 poetry.lock1-714

Group Characteristics

The docs group is optional and only needed for contributors building documentation locally. End users who install via PyPI never see these dependencies.

Sources: pyproject.toml9-12 pyproject.toml19-21

Poetry Workflow

Development Setup

Sources: pyproject.toml1-28 poetry.lock1-714

Common Poetry Commands

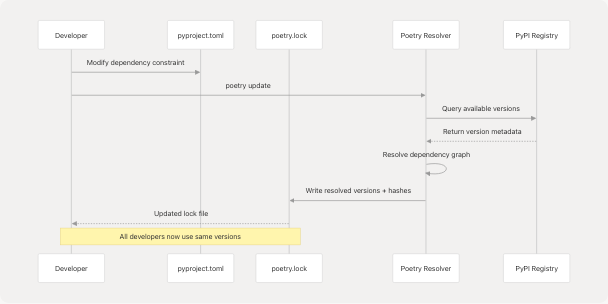

Dependency Update Workflow

Sources: pyproject.toml1-28 poetry.lock1-714

Build System Integration

How Poetry Builds Packages

Sources: pyproject.toml23-25

The poetry.core.masonry.api build backend:

1. Reads metadata from pyproject.toml1-17
2. Includes only main group dependencies in package metadata
3. Creates .whl (wheel) and .tar.gz (sdist) distributions
4. Packages Python files from pyjiit/ directory
5. Includes README.rst and LICENSE files

Sources: pyproject.toml1-28

Dependency Version Constraints

Constraint Syntax

pyjiit uses different version constraint syntaxes for different purposes:

Runtime Dependency Constraints

pyproject.toml9-12 uses range constraints for runtime dependencies:

dependencies = [
  "requests (>=2.32.3,<3.0.0)",
  "pycryptodome (>=3.22.0,<4.0.0)"
]

This allows:

• Minor and patch updates: e.g., requests 2.33.0, pycryptodome 3.23.1
• Excludes major version bumps: Prevents breaking changes from requests 3.x or pycryptodome 4.x

Documentation Dependency Constraints

pyproject.toml19-21 uses mixed constraints:

[tool.poetry.group.docs.dependencies]
sphinx = ">=7.4.7"
furo = "^2024.8.6"

• sphinx allows any version 7.4.7 or higher (including 8.x, 9.x)
• furo uses caret notation: allows 2024.8.7, 2024.9.0, but not 2025.x.x

Sources: pyproject.toml9-12 pyproject.toml19-21

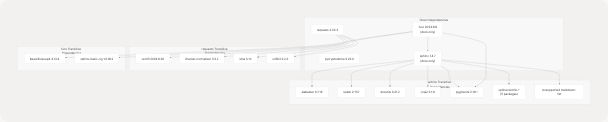

Transitive Dependency Tree

Complete Dependency Graph

Sources: poetry.lock1-714

Shared Dependencies

Several packages appear in both main and docs groups because they're transitive dependencies of both:

• certifi: Used by requests (main) and sphinx (docs)
• charset-normalizer: Used by requests (main) and sphinx (docs)
• idna: Used by requests (main) and sphinx (docs)
• urllib3: Used by requests (main) and sphinx (docs)

Poetry automatically deduplicates these when installing both groups.

Sources: poetry.lock54-63 poetry.lock66-71 poetry.lock209-218 poetry.lock672-681

Summary

The pyjiit build system is characterized by:

1. Minimal Runtime Dependencies: Only 2 direct dependencies (requests, pycryptodome)
2. Isolated Documentation Dependencies: Documentation tools separated via Poetry groups
3. Reproducible Builds: poetry.lock pins all 30+ packages with SHA256 hashes
4. PEP 517 Compliance: Uses poetry.core.masonry.api as build backend
5. Version Constraints: Careful constraint syntax prevents breaking changes
6. Python 3.9+ Requirement: Minimum Python version enforced in metadata

Sources: pyproject.toml1-28 poetry.lock1-714
