Security Considerations

This document discusses the security implications, limitations, and best practices related to the pyjiit library's encryption and authentication systems. It focuses on what developers and users need to understand about the security posture of this library when integrating it into applications or contributing to the codebase.

For technical implementation details of the encryption algorithms and methods, see Encryption System. For session management implementation, see Session Management.

Purpose and Scope

This page covers:

• Security implications of the encryption design choices
• Temporal validity windows and key rotation policy
• Credential handling and storage recommendations
• Session security and token management
• Transport layer security requirements
• Known limitations and threat model
• Developer responsibilities when using this library

Encryption Design and Fixed IV Considerations

The encryption system uses AES-256-CBC with a fixed initialization vector (IV), which is a non-standard security practice that requires careful consideration.

Fixed IV Analysis

The IV is hardcoded at pyjiit/encryption.py7:

IV = b"dcek9wb8frty1pnm"

This fixed value is used in all encryption and decryption operations pyjiit/encryption.py20-29 In standard cryptographic practice, IVs should be randomly generated for each encryption operation to prevent pattern analysis attacks.

Why This Design Exists

This encryption scheme was reverse-engineered from the JIIT Webportal API pyjiit/wrapper.py17 which implements this non-standard approach. The library must match the server's expectations exactly to communicate successfully. This is a constraint imposed by the upstream API, not a design choice of this library.

Sources: pyjiit/encryption.py7-29

Daily Key Rotation Policy

The encryption key rotates automatically at 00:00 hours IST every day, providing temporal isolation between encryption periods.

Key Generation Mechanism

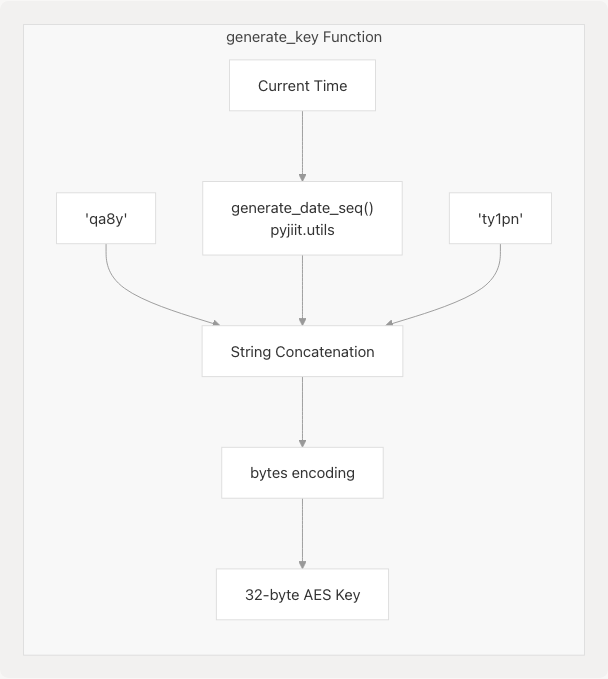

Diagram: AES Key Generation from Time-Based Components

The key generation at pyjiit/encryption.py9-11 combines:

• Static prefix: "qa8y"
• Date sequence: generate_date_seq() - converts current IST date to a specific format
• Static suffix: "ty1pn"

Temporal Validity Windows

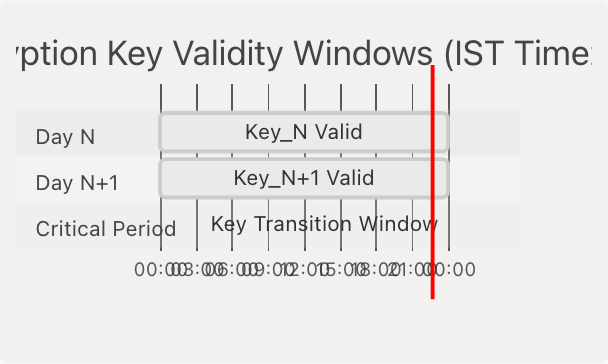

Diagram: 24-Hour Key Rotation Cycle

Data Exposure Window

If an attacker obtains the encryption key for a given day:

• They can decrypt all payloads encrypted that day
• They cannot decrypt payloads from other days
• The exposure window is limited to 24 hours maximum

This is significantly better than using a static key indefinitely, providing time-bounded security.

Sources: pyjiit/encryption.py9-11 pyjiit/utils.py

LocalName Header Security

Every HTTP request to the JIIT Webportal API requires a LocalName header pyjiit/wrapper.py67 pyjiit/wrapper.py93 This header provides request-level uniqueness beyond the daily key rotation.

LocalName Structure

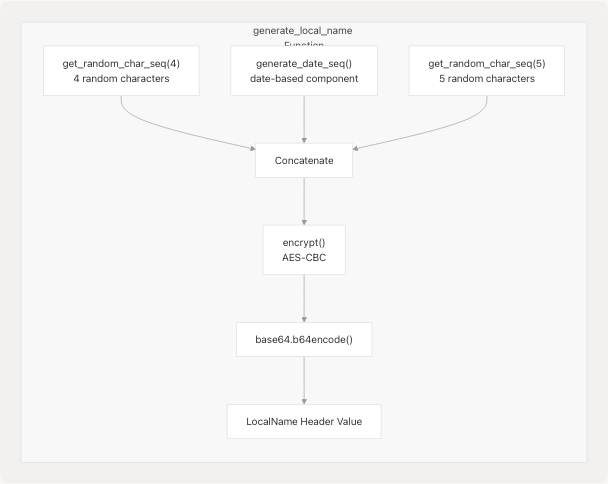

Diagram: LocalName Generation Process

The generate_local_name() function at pyjiit/encryption.py13-17 creates unique headers by:

1. Generating random characters (4 chars + 5 chars)
2. Including the date sequence (same as used in key generation)
3. Encrypting the combined string with daily key
4. Base64-encoding the result

This ensures that even if two requests have identical payloads, their LocalName headers differ due to random components, making replay attacks more difficult to execute.

Sources: pyjiit/encryption.py13-17 pyjiit/wrapper.py61-68 pyjiit/wrapper.py93

Credential Handling and Storage

The library handles sensitive credentials during authentication but does not store them persistently.

Authentication Flow Security

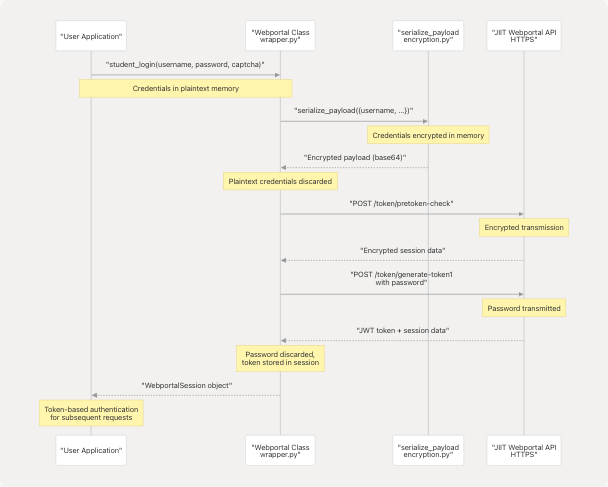

Diagram: Credential Flow in Authentication Process

Security Recommendations for Applications

What the Library Does NOT Do

The library intentionally does not:

• Store passwords after authentication completes
• Implement password hashing (this is the server's responsibility)
• Provide credential encryption for application-level storage
• Manage refresh tokens or automatic re-authentication

Applications using this library are responsible for credential management at the application level.

Sources: pyjiit/wrapper.py111-143 pyjiit/wrapper.py42-59

Session Token Security

The WebportalSession class manages JWT-based authentication tokens after successful login.

Session Token Structure

The token at pyjiit/wrapper.py53 is a standard JWT with three components:

• Header (algorithm and token type)
• Payload (claims including expiry timestamp)
• Signature (validation signature)

Diagram: Session Token Lifecycle and Usage

Token Security Properties

Session Expiry Handling (Currently Disabled)

The @authenticated decorator at pyjiit/wrapper.py19-36 includes logic to check session expiry, but it is currently commented out pyjiit/wrapper.py29-32:

# Commenting this because rn the webportal api is bugged,
# and returns wrong expiry time for perfectly valid cookies
# if self.session.expiry < datetime.now():
#     raise SessionExpired

This means:

• Applications cannot rely on client-side expiry checking
• Server will respond with HTTP 401 when token expires pyjiit/wrapper.py102-103
• Applications must catch SessionExpired exceptions to handle expired tokens

Sources: pyjiit/wrapper.py38-68 pyjiit/wrapper.py19-36

Transport Layer Security

The library communicates with the JIIT Webportal API exclusively over HTTPS.

HTTPS Enforcement

The base API URL is hardcoded at pyjiit/wrapper.py17:

API = "https://webportal.jiit.ac.in:6011/StudentPortalAPI"

Transport Security Model

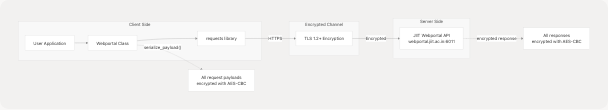

Diagram: Layered Security Model

Defense in Depth

The system implements two layers of encryption:

1. Application Layer (AES-CBC): Payloads encrypted with daily rotating keys
   • Protects data even if TLS is compromised
   • Required by JIIT API protocol
2. Transport Layer (TLS): HTTPS channel encryption
   • Protects against network eavesdropping
   • Validates server identity via certificates

This defense-in-depth approach means that an attacker would need to compromise both TLS and the daily encryption key to decrypt traffic.

Sources: pyjiit/wrapper.py17 pyjiit/wrapper.py82-108

Authentication Decorator and Access Control

The @authenticated decorator enforces session requirements before allowing access to protected API methods.

Decorator Security Flow

Diagram: Authenticated Decorator Security Checks

Protected Methods

All methods that require authentication are decorated with @authenticated pyjiit/wrapper.py19-36 Examples include:

Session State Validation

The decorator performs a simple but critical check at pyjiit/wrapper.py26-27:

if self.session is None:
    raise NotLoggedIn

This prevents:

• Calling protected methods without authentication
• Null pointer exceptions from missing session data
• Sending unauthenticated requests to the API

Sources: pyjiit/wrapper.py19-36 pyjiit/wrapper.py156-489

Exception-Based Security Signaling

The library uses specific exception types to signal different security-related failures.

Security Exception Hierarchy

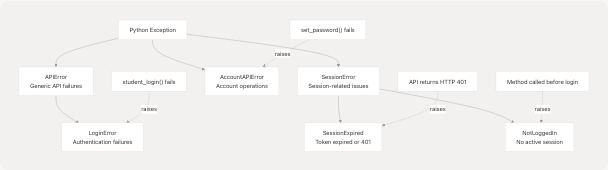

Diagram: Security Exception Types and Their Triggers

Security-Relevant Exceptions

Exception Handling Best Practices

Applications should handle these exceptions to provide appropriate security responses:

try:
    session = wp.student_login(username, password, captcha)
except LoginError:
    # Handle invalid credentials - limit retry attempts
    # Consider implementing rate limiting

try:
    data = wp.get_attendance(header, semester)
except NotLoggedIn:
    # Redirect to login flow
except SessionExpired:
    # Re-authenticate with stored credentials (if available)
    # Or prompt user to log in again

Sources: pyjiit/exceptions.py pyjiit/wrapper.py8 pyjiit/wrapper.py82-108

Known Limitations and Threat Model

Reverse-Engineered Protocol Constraints

The encryption and authentication schemes are reverse-engineered from the JIIT Webportal API. This imposes several constraints:

Threat Model

The library's security model assumes:

Trusted:

• The JIIT Webportal server (webportal.jiit.ac.in)
• The client application using this library
• The TLS certificate infrastructure

Protected Against:

• Network eavesdropping (via TLS + AES encryption)
• Unauthorized API access (via session tokens)
• Credential exposure in transit (via encrypted payloads)
• Replay attacks within same day (via random LocalName components)

NOT Protected Against:

• Compromise of the daily encryption key
• Man-in-the-middle attacks if TLS is compromised
• Malicious client applications that have valid credentials
• Server-side vulnerabilities in JIIT Webportal API
• Cross-day replay attacks (different days use different keys, so not applicable)

Security Boundaries

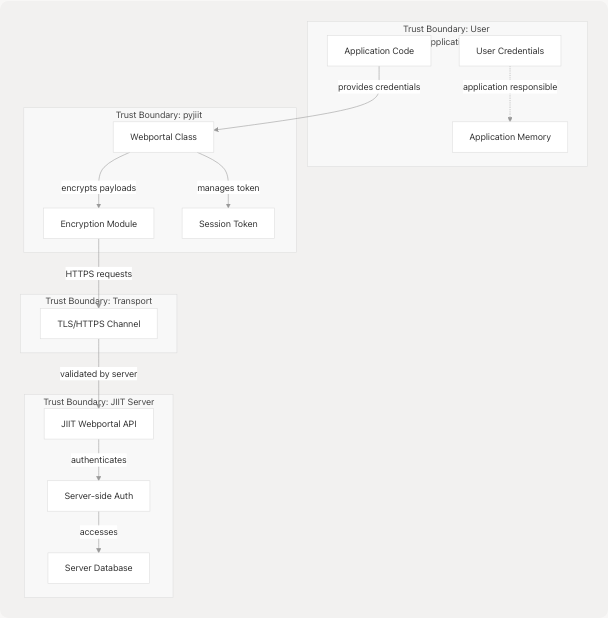

Diagram: Security Trust Boundaries

Sources: pyjiit/encryption.py7-45 pyjiit/wrapper.py17

Client Application Responsibilities

Applications using this library must implement their own security controls:

Required Security Measures

What the Library Does NOT Protect

The library cannot protect against:

• Compromised client applications
• Malware on the client system
• Social engineering attacks
• Credential theft through application vulnerabilities
• Session hijacking within the client application
• Database compromise at the JIIT server level

Security is a shared responsibility between this library, the application using it, and the JIIT Webportal server.

Sources: pyjiit/wrapper.py70-489

Cryptographic Dependencies

The library depends on the pycryptodome package for AES encryption functionality.

Dependency Security

The Crypto.Cipher.AES module is imported at pyjiit/encryption.py1 and used for:

• Creating AES cipher objects in CBC mode pyjiit/encryption.py20-21
• Encryption operations pyjiit/encryption.py27-29
• Decryption operations pyjiit/encryption.py23-25

Applications should monitor pycryptodome for security updates and update their dependencies accordingly.

Sources: pyjiit/encryption.py1-29

Summary: Security Posture

Strengths

✓ Layered encryption (TLS + AES-CBC) provides defense in depth
✓ Daily key rotation limits exposure windows to 24 hours
✓ Token-based authentication avoids repeated credential transmission
✓ Request-level uniqueness via LocalName header mitigates some replay attacks
✓ Clear exception signaling for security-relevant errors
✓ HTTPS-only communication with no fallback to insecure protocols

Weaknesses and Mitigations

⚠ Fixed IV usage - Mitigated by daily key rotation and required by upstream API
⚠ Reverse-engineered protocol - Constraints imposed by JIIT API, not library design
⚠ No perfect forward secrecy - 24-hour exposure window vs. indefinite with static key
⚠ Disabled expiry checking - Due to API bug; server still validates tokens
⚠ Public key algorithm - Mitigated by daily rotation and random LocalName components

Operational Recommendations

1. Use in secure environments - Deploy on trusted systems only
2. Rotate daily - Understand that encryption keys change daily at 00:00 IST
3. Monitor sessions - Catch and handle SessionExpired exceptions
4. Protect credentials - Never store passwords; use secure session token storage if needed
5. Update dependencies - Keep pycryptodome and other dependencies current
6. Validate inputs - Implement application-level validation and rate limiting
7. Audit logging - Log security events for monitoring and forensics

Sources: pyjiit/encryption.py1-50 pyjiit/wrapper.py1-489
