Encryption System

Purpose and Scope

This document details the encryption system used by pyjiit to secure all communication with the JIIT Webportal API. The encryption module implements AES-CBC encryption with daily key rotation, payload serialization/deserialization, and secure header generation. This system was reverse-engineered from the JIIT webportal and is critical for successful API authentication and data exchange.

For security implications and best practices related to this system, see Security Considerations. For how this encryption is used within API calls, see Webportal Class.

Sources: pyjiit/encryption.py1-50

Architecture Overview

The encryption system consists of three primary components:

Encryption Module Components

Sources: pyjiit/encryption.py1-50 pyjiit/utils.py1-24

Constants and Configuration

Fixed Initialization Vector

The encryption system uses a fixed 16-byte IV that never changes:

IV = b"dcek9wb8frty1pnm"

This constant is defined at pyjiit/encryption.py7 and is used for all AES-CBC operations. The IV is combined with the daily-rotating key to provide encryption.

Note: The use of a fixed IV is a design tradeoff specific to this reverse-engineered implementation. The security impact is mitigated by the daily key rotation mechanism. See Security Considerations for detailed discussion.

Sources: pyjiit/encryption.py7

Key Generation and Daily Rotation

Date Sequence Algorithm

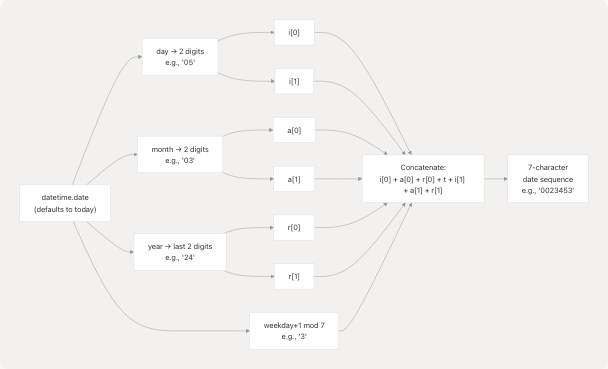

The key generation system relies on a date-based sequence generated by generate_date_seq():

The algorithm is implemented in pyjiit/utils.py5-13:

1. Extract day, month, year (last 2 digits), and weekday
2. Convert weekday to 0-6 range (Sunday=0)
3. Interleave digits: day[0] + month[0] + year[0] + weekday + day[1] + month[1] + year[1]

Example: For March 5, 2024 (Tuesday):

• Day: 05 → i[0]=0, i[1]=5
• Month: 03 → a[0]=0, a[1]=3
• Year: 24 → r[0]=2, r[1]=4
• Weekday: Tuesday = 1+1 mod 7 = 2
• Result: 0022524 (0 + 0 + 2 + 2 + 5 + 3 + 4)

Sources: pyjiit/utils.py5-13

AES Key Construction

The generate_key() function constructs a 32-byte AES-256 key:

'qa8y' + generate_date_seq(date) + 'ty1pn'

This formula is defined at pyjiit/encryption.py9-11 The key structure is:

• Prefix: qa8y (4 characters)
• Middle: Date sequence (7 characters)
• Suffix: ty1pn (5 characters)
• Total: 16 characters → 16 bytes when encoded

Example keys:

Rotation Mechanism

The key automatically rotates at 00:00 IST each day because:

1. generate_key() defaults to datetime.date.today() when date=None
2. datetime.date.today() returns the current date in the system's timezone (expected to be IST)
3. Different dates produce different date sequences, therefore different keys

This means:

• All API calls made on 2024-03-05 use key qa8y0022524ty1pn
• All API calls made on 2024-03-06 use key qa8y0323525ty1pn
• Encrypted data from one day cannot be decrypted using another day's key

Sources: pyjiit/encryption.py9-11 pyjiit/utils.py5-13

AES-CBC Encryption and Decryption

Cipher Initialization

The get_crypt() function at pyjiit/encryption.py20-21 creates an AES cipher in CBC mode:

AES.new(key, AES.MODE_CBC, iv)

This cipher is used for all encryption/decryption operations with:

• Key: 32-byte daily-rotating key from generate_key()
• Mode: CBC (Cipher Block Chaining)
• IV: Fixed 16-byte initialization vector

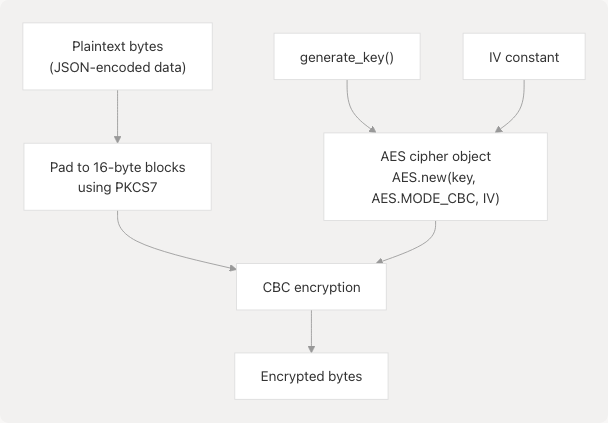

Encryption Flow

The encrypt() function at pyjiit/encryption.py27-29:

1. Generates the current day's AES key
2. Creates cipher with key and fixed IV
3. Pads input data to 16-byte boundary using PKCS7
4. Encrypts padded data in CBC mode
5. Returns raw encrypted bytes

Decryption Flow

The decrypt() function at pyjiit/encryption.py23-25:

1. Generates the current day's AES key
2. Creates cipher with key and fixed IV
3. Decrypts ciphertext in CBC mode
4. Removes PKCS7 padding from result
5. Returns original plaintext bytes

Sources: pyjiit/encryption.py20-29

Payload Serialization

Payload serialization transforms Python dictionaries into encrypted base64 strings suitable for HTTP transmission.

Serialization Process (Dict → Encrypted Base64)

The serialize_payload() function at pyjiit/encryption.py39-44 performs this transformation:

1. JSON encoding: json.dumps(payload, separators=(',', ':')) creates compact JSON without spaces
2. Byte encoding: Convert JSON string to bytes using default UTF-8 encoding
3. Encryption: Apply AES-CBC encryption with current day's key
4. Base64 encoding: Encode encrypted bytes to base64 for safe HTTP transmission
5. String conversion: Convert base64 bytes to string

Example:

payload = {"username": "19103999", "usertype": "S"}
# After JSON: b'{"username":"19103999","usertype":"S"}'
# After encryption: b'\x8a\x3f\x12...' (encrypted bytes)
# After base64: "ij8S..." (transmittable string)

Deserialization Process (Encrypted Base64 → Dict)

The deserialize_payload() function at pyjiit/encryption.py31-36 reverses the serialization:

1. Base64 decoding: Convert base64 string to encrypted bytes
2. Decryption: Apply AES-CBC decryption with current day's key
3. JSON parsing: Parse decrypted bytes as JSON to reconstruct dictionary

Sources: pyjiit/encryption.py31-44

LocalName Header Generation

The LocalName header is required for every HTTP request to the JIIT API. It provides per-request uniqueness while incorporating the date sequence.

Generation Algorithm

The generate_local_name() function at pyjiit/encryption.py13-17 creates the header:

1. Random prefix: Generate 4 random alphanumeric characters
2. Date sequence: Insert 7-character date sequence
3. Random suffix: Generate 5 random alphanumeric characters
4. Total: 16-character string (e.g., a3Xz0022524Kp9mN)
5. Encrypt: Apply AES-CBC encryption
6. Encode: Convert to base64 string

Characteristics:

• Length: Always 16 characters before encryption (same as AES block size)
• Uniqueness: Random prefix/suffix ensure each request has different header
• Date-bound: Contains date sequence for temporal validation
• Encrypted: Obscured using same AES key as payload encryption

Example LocalName values (for 2024-03-05):

Request 1: "kL3m0022524pQ8xZ" → encrypted → "YzR2eWg3..." (base64)
Request 2: "9Xt10022524aB5cD" → encrypted → "mN7pQ2x9..." (base64)

Sources: pyjiit/encryption.py13-17 pyjiit/utils.py16-19

Complete Encryption Lifecycle

This diagram shows how encryption components work together during a typical API request:

Sources: pyjiit/encryption.py1-50 test_signin.py1-52

Usage Example

The encryption system is transparent to end users but can be used directly for debugging. Here's how it's employed in the authentication flow:

# From test_signin.py showing direct usage

from pyjiit.encryption import serialize_payload, deserialize_payload, generate_local_name

# 1. Create login payload
payload = {
    "username": "19103999",
    "usertype": "S",
    "captcha": {
        "captcha": "cfmab",
        "hidden": "gMWqdbxEjE8="
    }
}

# 2. Encrypt payload for transmission
enc_payload = serialize_payload(payload)
# Result: base64 string like "Y3R2eWg3bW5waDh2MTJrbTRmNGg..."

# 3. Generate LocalName header
headers = {
    "LocalName": generate_local_name()
}
# Result: {"LocalName": "mN7pQ2x9cT5z..."}

# 4. Send to API
response = requests.post(API_URL, data=enc_payload, headers=headers)

# 5. Decrypt response
decrypted_data = deserialize_payload(response.text)
# Result: Python dict with API response

Command-line decryption utility:

The module includes a CLI tool at pyjiit/encryption.py47-49 for decrypting payloads:

python -m pyjiit.encryption "Y3R2eWg3bW5waDh2MTJrbTRmNGg..."
# Outputs decrypted JSON dictionary

Sources: test_signin.py1-52 pyjiit/encryption.py47-49

Function Reference

generate_key(date=None) -> bytes

Generates the AES-256 encryption key for the specified date.

Parameters:

• date (optional): datetime.date object. Defaults to datetime.date.today().

Returns: 16-byte AES key as bytes

Location: pyjiit/encryption.py9-11

generate_local_name(date=None) -> str

Generates the LocalName header value required for HTTP requests.

Parameters:

• date (optional): datetime.date object. Defaults to datetime.date.today().

Returns: Base64-encoded encrypted string

Location: pyjiit/encryption.py13-17

encrypt(data: bytes) -> bytes

Encrypts data using AES-CBC with the current day's key.

Parameters:

• data: Raw bytes to encrypt

Returns: Encrypted bytes (padded to 16-byte blocks)

Location: pyjiit/encryption.py27-29

decrypt(data: bytes) -> bytes

Decrypts AES-CBC encrypted data using the current day's key.

Parameters:

• data: Encrypted bytes

Returns: Decrypted plaintext bytes (padding removed)

Location: pyjiit/encryption.py23-25

serialize_payload(payload: dict) -> str

Converts a dictionary to an encrypted base64 string for HTTP transmission.

Parameters:

• payload: Python dictionary to encrypt

Returns: Base64-encoded encrypted string

Location: pyjiit/encryption.py39-44

deserialize_payload(payload: str) -> dict

Decrypts a base64-encoded encrypted string back to a dictionary.

Parameters:

• payload: Base64-encoded encrypted string from API

Returns: Decrypted Python dictionary

Location: pyjiit/encryption.py31-36

get_crypt(key: bytes, iv: bytes)

Internal function that creates an AES cipher object.

Parameters:

• key: AES key (16, 24, or 32 bytes)
• iv: Initialization vector (16 bytes)

Returns: Crypto.Cipher.AES cipher object in CBC mode

Location: pyjiit/encryption.py20-21

Dependencies

The encryption module depends on:

Sources: pyjiit/encryption.py1-5
