Testing and Development Workflow

Purpose and Scope

This document describes the testing and development workflow for pyjiit library contributors and maintainers. It covers manual testing procedures, development patterns for adding new features, local testing strategies, and debugging approaches.

For information about the project structure and module organization, see Project Structure. For details about Poetry and dependency management, see Build System and Dependencies.

Current Testing Approach

The pyjiit library currently employs manual testing rather than an automated test suite. The primary testing mechanism is a standalone test script that validates the core authentication flow against the live JIIT Webportal API.

Test Script Architecture

The main test script is located at test_signin.py1-52 This script demonstrates the two-phase authentication process by directly calling encryption and HTTP utilities:

Sources: test_signin.py1-52

Manual Testing Workflow

Diagram: Manual Testing Flow for Authentication

Sources: test_signin.py8-51

Running the Test Script

1. Set Credentials:

   export UID="your_enrollment_number" export PASS="your_password"

2. Execute Test:

   python test_signin.py

3. Expected Output: The script prints the complete session response including:

   • Session token (JWT format)
   • Member ID
   • Institute information
   • Registration data

Sources: test_signin.py8-12 test_signin.py49-51

Development Workflow for New Features

Adding New API Methods

When adding a new API endpoint to the Webportal class, follow the established patterns in pyjiit/wrapper.py1-489

Diagram: Standard Pattern for API Methods

Sources: pyjiit/wrapper.py173-188 pyjiit/wrapper.py191-211

Method Implementation Checklist

Sources: pyjiit/wrapper.py156-211

Example: Anatomy of an API Method

The get_attendance() method demonstrates all key patterns:

@authenticated
def get_attendance(self, header: AttendanceHeader, semester: Semester):
    ENDPOINT = "/StudentClassAttendance/getstudentattendancedetail"

    payload = {
        "clientid": self.session.clientid,
        "instituteid": self.session.instituteid,
        "registrationcode": semester.registration_code,
        "registrationid": semester.registration_id,
        "stynumber": header.stynumber
    }
    payload = serialize_payload(payload)

    resp = self.__hit("POST", API+ENDPOINT, json=payload, authenticated=True)

    return resp["response"]

Key Elements:

• Uses @authenticated decorator (pyjiit/wrapper.py19-36)
• Accesses session via self.session (pyjiit/wrapper.py202-203)
• Serializes payload for encryption (pyjiit/wrapper.py207)
• Passes authenticated=True to __hit() (pyjiit/wrapper.py209)

Sources: pyjiit/wrapper.py190-211

Local Development Setup

Setting Up Development Environment

1. Clone Repository:

   git clone https://github.com/codelif/pyjiit cd pyjiit

2. Install Poetry:

   pip install poetry

3. Install Dependencies:

   poetry install

4. Activate Virtual Environment:

   poetry shell

Sources: pyproject.toml23-25

Interactive Testing

For exploratory testing of new methods or debugging:

Diagram: Interactive Testing Session

Sources: pyjiit/__init__.py pyjiit/wrapper.py70-77

Testing Individual Methods

# Example interactive testing session
from pyjiit import Webportal

wp = Webportal()

# Get and solve captcha
captcha = wp.get_captcha()
# Manually solve the captcha image
captcha.answer = "cfmab"  # Your solved captcha

# Login
session = wp.student_login("enrollment_number", "password", captcha)

# Test a specific method
attendance_meta = wp.get_attendance_meta()
print(attendance_meta.headers)
print(attendance_meta.semesters)

# Test with parameters
header = attendance_meta.headers[0]
semester = attendance_meta.semesters[0]
attendance = wp.get_attendance(header, semester)

Sources: pyjiit/wrapper.py111-143 pyjiit/wrapper.py145-154 pyjiit/wrapper.py173-188

Understanding the __hit() Internal Method

The __hit() method (pyjiit/wrapper.py82-108) is the central HTTP request handler. Understanding its behavior is crucial for debugging:

Diagram: __hit() Method Error Handling Flow

Sources: pyjiit/wrapper.py82-108

Custom Exception Types

The __hit() method supports custom exceptions via the exception kwarg:

Sources: pyjiit/wrapper.py83-87 pyjiit/wrapper.py130 pyjiit/wrapper.py229

Debugging Common Issues

Session Expiration

The @authenticated decorator (pyjiit/wrapper.py19-36) checks for session validity:

@authenticated
def some_method(self):
    # This code only runs if self.session is not None

Note: Lines 29-32 show commented-out expiry time checking due to API bugs. Current implementation only checks for None.

Sources: pyjiit/wrapper.py19-36

Payload Serialization Errors

Not all endpoints require encrypted payloads. Compare these patterns:

Sources: pyjiit/wrapper.py157-170 pyjiit/wrapper.py190-211

LocalName Header Generation

Every request requires a LocalName header:

• Authenticated requests: Generated automatically by session.get_headers() (pyjiit/wrapper.py61-68)
• Unauthenticated requests: Generated directly by __hit() (pyjiit/wrapper.py93)

The header is regenerated for each request using generate_local_name() from the encryption module.

Sources: pyjiit/wrapper.py61-68 pyjiit/wrapper.py89-98

Testing New Encryption-Required Endpoints

Some endpoints require payload encryption. To test these:

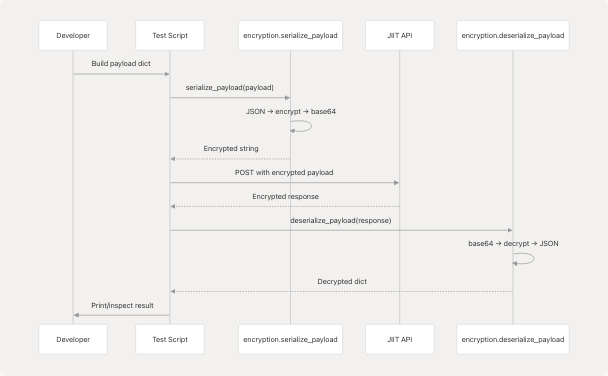

Diagram: Testing Encrypted Endpoint Flow

Sources: test_signin.py15-23 test_signin.py37-42

Example: Testing Encrypted Endpoint

Following the pattern from test_signin.py:

from pyjiit.encryption import serialize_payload, generate_local_name
import requests

# Build payload
payload = {
    "instituteid": "your_institute_id",
    "studentid": "your_student_id",
    # ... other fields
}

# Encrypt payload
enc_payload = serialize_payload(payload)

# Make request
headers = {"LocalName": generate_local_name()}
url = "https://webportal.jiit.ac.in:6011/StudentPortalAPI/your/endpoint"
resp = requests.post(url, json=enc_payload, headers=headers)

# Inspect response
print(resp.json())

Sources: test_signin.py15-30

Adding Data Models

When API responses have structured data, create data model classes in the appropriate module:

Data Model Pattern

All data models follow this pattern (pyjiit/exam.py4-20):

from dataclasses import dataclass

@dataclass
class ModelName:
    """Class containing model description"""
    field1: str
    field2: int
    # ... other fields

    @staticmethod
    def from_json(resp: dict):
        return ModelName(
            resp["field1key"],
            resp["field2key"],
            # ... map all fields
        )

Sources: pyjiit/exam.py1-20 pyjiit/registration.py1-32

Development Best Practices

Method Documentation

All public methods must include docstrings following this format:

def method_name(self, param1: Type, param2: Type):
    """
    :param param1: Description of parameter
    :param param2: Description of parameter
    :returns: Description of return value
    :raises ExceptionType: When this exception is raised
    """

Sources: pyjiit/wrapper.py111-117 pyjiit/wrapper.py173-177

Error Handling Strategy

Diagram: Exception Handling in API Methods

Sources: pyjiit/wrapper.py82-108

Session Attribute Usage

Common session attributes used in payload construction:

Sources: pyjiit/wrapper.py42-59

Workflow Summary

Diagram: Complete Development and Release Workflow

Sources: pyproject.toml1-28 test_signin.py1-52

Future Testing Enhancements

Currently, pyjiit does not have automated unit or integration tests. Potential improvements include:

1. Mock API Testing: Create mock responses for testing without live API access
2. pytest Integration: Add pytest framework with test fixtures for common scenarios
3. CI Test Stage: Add GitHub Actions workflow to run tests on pull requests
4. Coverage Reporting: Track test coverage for core functionality
5. Integration Tests: Test complete workflows (login → fetch data → logout)

These enhancements would require:

• Adding pytest to development dependencies in pyproject.toml19-21
• Creating a tests/ directory with test modules
• Mocking the JIIT API responses to avoid requiring real credentials

Sources: pyproject.toml19-21
