Security and Encryption

Purpose and Scope

This page provides an overview of the security and encryption mechanisms used in pyjiit to communicate securely with the JIIT Webportal API. It covers the encryption module architecture, how encryption is integrated into API requests, and the daily key rotation system.

For detailed information about the encryption implementation, see Encryption System. For security implications and considerations, see Security Considerations.

Security Model Overview

The pyjiit library implements a custom encryption scheme that was reverse-engineered from the JIIT Webportal. All communication with the API uses HTTPS transport security, with an additional application-layer encryption scheme for sensitive payloads.

The security model has two primary components:

Component	Purpose	Implementation
Payload Encryption	Encrypts request/response data containing credentials and sensitive information	AES-CBC with daily rotating keys
LocalName Header	Per-request authentication token sent in HTTP headers	Encrypted random sequence with date component

Both components rely on a shared secret encryption key that rotates daily at 00:00 IST. The encryption is asymmetric in nature: pyjiit encrypts outgoing payloads and decrypts incoming responses, but does not implement the server-side key generation logic.

Sources: pyjiit/encryption.py1-50 pyjiit/wrapper.py3 pyjiit/wrapper.py61-68

Encryption Module Architecture

The encryption functionality is centralized in the pyjiit.encryption module, which provides functions for encrypting, decrypting, and transforming payloads between JSON and encrypted base64 formats.

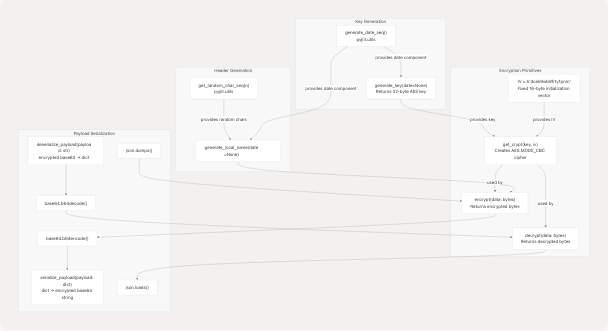

Encryption Module Components

Sources: pyjiit/encryption.py7-45 pyjiit/utils.py5-19

Function Reference

Function	Input	Output	Purpose
`generate_key(date=None)`	Optional date object	32-byte AES key	Generates time-based encryption key
`generate_local_name(date=None)`	Optional date object	Base64 string	Generates LocalName header value
`encrypt(data)`	Raw bytes	Encrypted bytes	AES-CBC encryption with padding
`decrypt(data)`	Encrypted bytes	Raw bytes	AES-CBC decryption with unpadding
`serialize_payload(payload)`	Dictionary	Base64 string	JSON → encrypted → base64
`deserialize_payload(payload)`	Base64 string	Dictionary	Base64 → decrypted → JSON

Sources: pyjiit/encryption.py9-44

Integration with API Client

The Webportal class in pyjiit.wrapper uses the encryption module at multiple points in the request lifecycle. Not all API requests require encrypted payloads, but all requests require the LocalName header.

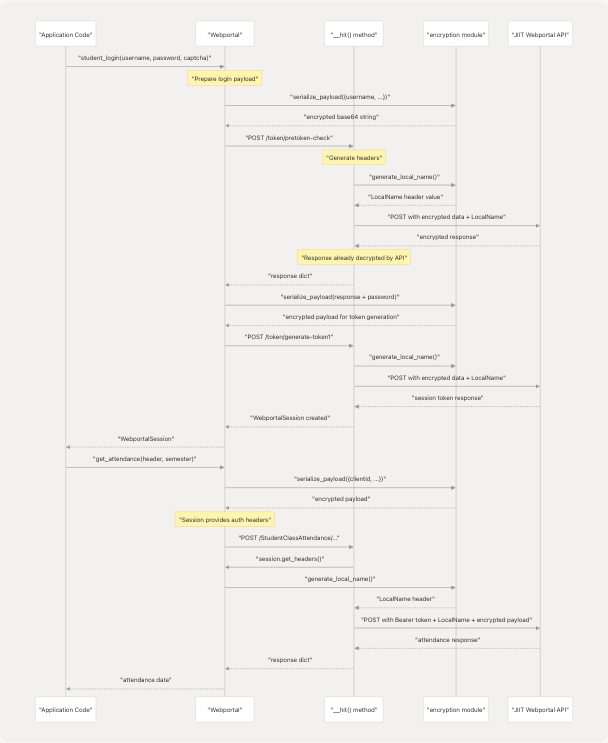

Encryption Usage in Webportal

Sources: pyjiit/wrapper.py111-143 pyjiit/wrapper.py82-108 pyjiit/wrapper.py61-68

Encrypted vs Unencrypted Payloads

The following table shows which API methods require payload encryption:

Method	Payload Encryption	LocalName Header	Notes
`student_login()`	Required	Required	Encrypts credentials in both phases
`get_captcha()`	Not used	Required	GET request, no payload
`get_attendance_meta()`	No	Required	Plain JSON payload
`get_attendance()`	Required	Required	Encrypts attendance query params
`get_registered_semesters()`	Required	Required	Encrypts semester query
`get_registered_subjects_and_faculties()`	Required	Required	Encrypts subject query
`get_exam_events()`	Required	Required	Encrypts exam query
`get_exam_schedule()`	Required	Required	Encrypts schedule query
`get_semesters_for_marks()`	Required	Required	Encrypts marks query
`get_semesters_for_grade_card()`	Required	Required	Encrypts grade card query
`get_grade_card()`	Required	Required	Encrypts grade card request
`get_sgpa_cgpa()`	Required	Required	Encrypts CGPA query
`set_password()`	No	Required	Plain JSON, but authenticated
`get_student_bank_info()`	No	Required	Plain JSON, authenticated

Sources: pyjiit/wrapper.py111-489

Daily Key Rotation Mechanism

The encryption key is derived from the current date in IST timezone and rotates automatically at midnight. This provides a time-based security boundary where encrypted payloads are only valid for the day they were created.

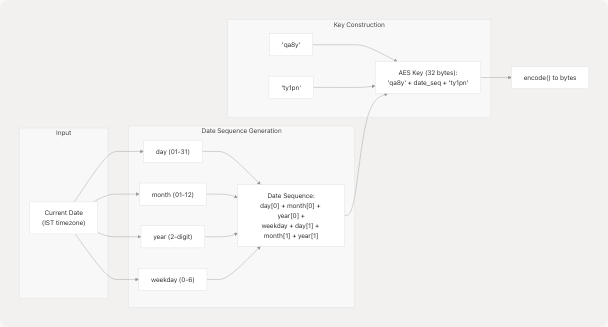

Key Generation Algorithm

Example: For December 15, 2024 (Sunday, weekday=0):

Date components: day=15, month=12, year=24, weekday=0
Date sequence: 1 + 1 + 2 + 0 + 5 + 2 + 4 = "1120524"
Final key: "qa8y1120524ty1pn" (32 characters = 32 bytes when encoded)

Sources: pyjiit/encryption.py9-11 pyjiit/utils.py5-13

Key Rotation Timeline

Security Implications:

Encrypted data from Day 1 cannot be decrypted using Day 2's key
Payloads encrypted on one day are invalid the next day
Key compromise on one day does not affect other days
The fixed prefix (qa8y) and suffix (ty1pn) are constant across all days

Sources: pyjiit/encryption.py9-11 pyjiit/utils.py5-13

LocalName Header Generation

Every API request to the JIIT Webportal requires a LocalName header, regardless of whether the payload is encrypted. This header contains an encrypted random sequence with a date component.

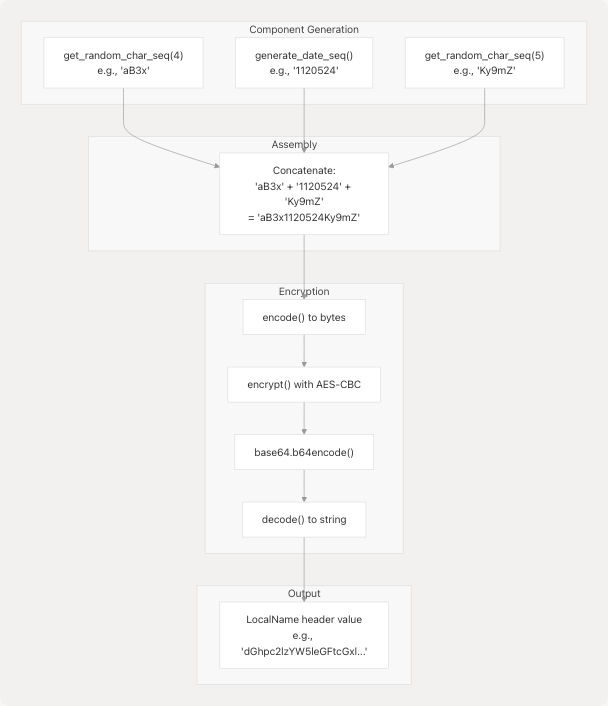

LocalName Construction

The generate_local_name() function creates the header value using:

Random prefix: 4 random alphanumeric characters
Date sequence: 7-character date-based string (same as key generation)
Random suffix: 5 random alphanumeric characters
Encryption: The combined string is encrypted and base64-encoded

Sources: pyjiit/encryption.py13-17 pyjiit/utils.py16-19

Usage in HTTP Requests

The LocalName header is injected into every request by the __hit() method:

Authenticated requests: pyjiit/wrapper.py89-91

header = self.session.get_headers()  # Returns both Authorization and LocalName

Unauthenticated requests: pyjiit/wrapper.py92-93

header = {"LocalName": generate_local_name()}

The WebportalSession.get_headers() method at pyjiit/wrapper.py61-68 generates a fresh LocalName for each authenticated request:

def get_headers(self):
    return {
        "Authorization": f"Bearer {self.token}",
        "LocalName": generate_local_name()
    }

Sources: pyjiit/wrapper.py61-68 pyjiit/wrapper.py82-99

Cryptographic Constants

The encryption module uses fixed cryptographic constants defined at the module level:

Constant	Value	Purpose	Location
`IV`	`b"dcek9wb8frty1pnm"`	AES initialization vector (16 bytes)	pyjiit/encryption.py7
Key prefix	`"qa8y"`	Static prefix for AES key	pyjiit/encryption.py11
Key suffix	`"ty1pn"`	Static suffix for AES key	pyjiit/encryption.py11

The fixed IV is used for all encryption operations. While this is generally considered a security weakness in AES-CBC mode, it is mitigated by:

Daily key rotation limiting exposure windows
The LocalName header providing per-request uniqueness
This being the scheme implemented by the JIIT Webportal itself

Sources: pyjiit/encryption.py7 pyjiit/encryption.py11

Encryption Dependencies

The encryption module depends on the pycryptodome library for AES implementation:

from Crypto.Cipher import AES
from Crypto.Util.Padding import pad, unpad

Key functions used:

AES.new(key, AES.MODE_CBC, iv) - Creates cipher instance pyjiit/encryption.py21
pad(data, 16) - PKCS7 padding to 16-byte blocks pyjiit/encryption.py29
unpad(data, 16) - Removes PKCS7 padding pyjiit/encryption.py25

Sources: pyjiit/encryption.py1-2 pyjiit/encryption.py20-29
