architecture overview

How JPortal is put together: stack, routing, portal instances, and the patterns that show up everywhere.

Subsystem docs:

Authentication and routing: Application Structure & Authentication
State: State Management Strategy
Data: Data Layer & API Integration
Theme: Theme System
Features: Feature Modules

Technology stack#

SPA in jportal/. Versions from package.json.

Category	Technologies	Purpose
UI	React 18.3.1	Components
Build	Vite 7.3.1	Dev server and bundle
Routing	React Router DOM 6.27.0	`HashRouter`
Primitives	Radix UI	Dialog, Select, Tabs, Sheet
CSS	Tailwind CSS 4.1.12, CVA	Utilities and variants
Feature state	`useState` / `useEffect`	Lifted onto `AuthenticatedApp`
Theme state	Zustand 5.0.8	`src/stores/theme-store.ts`
Forms	React Hook Form 7.53.1, Zod 3.23.8	Login
Charts	Recharts 2.15.4	GPA, attendance, stats
Server state	TanStack Query 5.90.2	Cloudflare hooks in `src/hooks/cloudflare.ts`
PWA	`vite-plugin-pwa` 1.2.0, Workbox	SW and manifest
Portal	jsjiit 0.0.27 CDN	`WebPortal`, `LoginError`
Python in browser	Pyodide 0.23.4	Marks PDF parse

TanStack Query is used on /stats. Attendance and Grades still fetch with useEffect and parent state.

Application entry point and bootstrap#

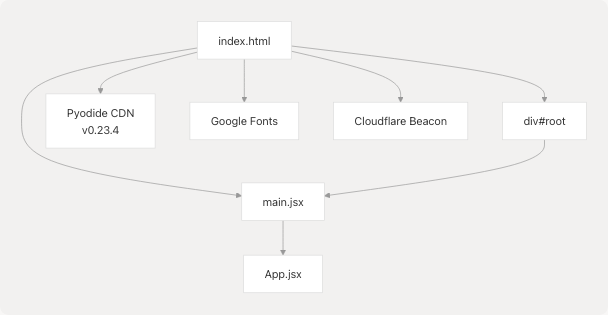

HTML and script loading#

flowchart TD
  indexHtml["index.html"] --> fonts["Google Fonts preconnect + stylesheet"]
  indexHtml --> beacon["Cloudflare beacon.min.js"]
  indexHtml --> pyodide["cdn.jsdelivr.net/pyodide/v0.23.4"]
  indexHtml --> main["script type=module src=/src/main.jsx"]

Main entry point#

flowchart TD
  main["src/main.jsx"] --> css["index.css"]
  main --> root["createRoot(#35;root)"]
  root --> App["App.jsx"]

main.jsx only mounts App. Theme and Query providers live in App.

Application architecture#

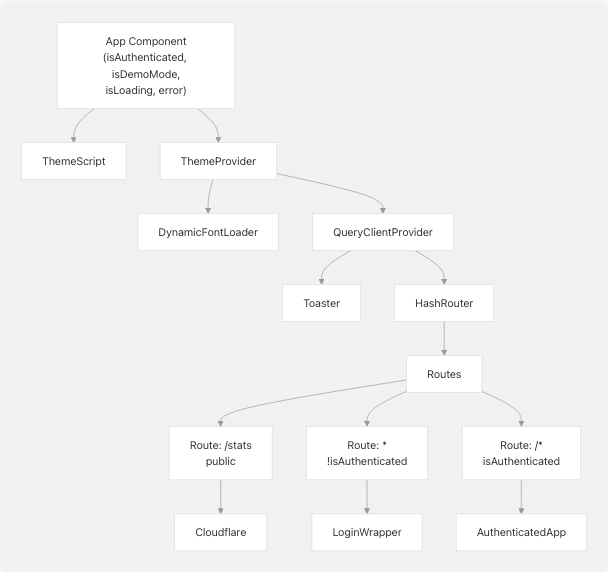

Top-level component structure#

flowchart TD
  App["App"] --> TS["ThemeScript"]
  App --> TP["ThemeProvider"]
  TP --> Font["DynamicFontLoader"]
  TP --> QC["QueryClientProvider"]
  QC --> Toast["Toaster sonner"]
  QC --> Router["HashRouter"]
  Router --> Stats["/stats Cloudflare"]
  Router --> Gate{"isAuthenticated"}
  Gate -->|no| Login["LoginWrapper"]
  Gate -->|yes| Auth["AuthenticatedApp"]

State on App:

isAuthenticated
isDemoMode
isLoading (auto-login)
error

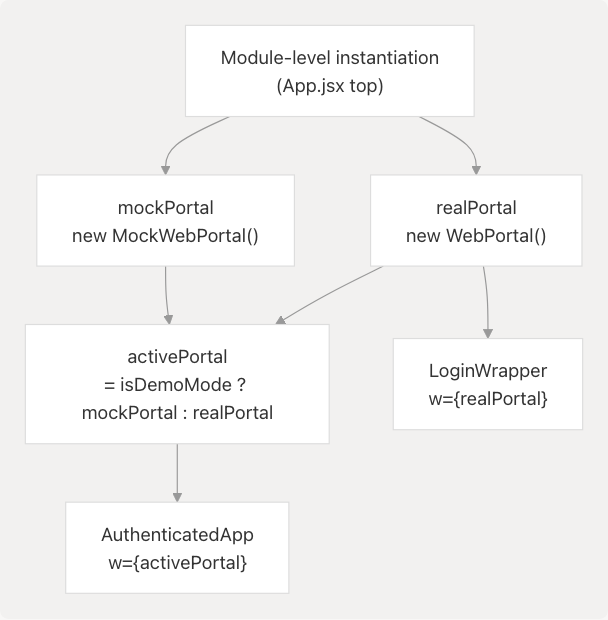

Portal instance management#

flowchart LR
  Mod["App.jsx module scope"] --> Real["realPortal WebPortal useProxy proxyUrl onrender"]
  Mod --> Mock["mockPortal MockWebPortal"]
  App["App"] --> Flag{"isDemoMode"}
  Flag -->|false| Real
  Flag -->|true| Mock
  Real --> W["w prop"]
  Mock --> W

Routing architecture#

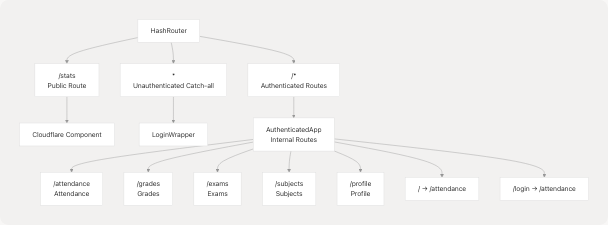

Route structure#

flowchart TD
  HR["HashRouter"] --> Stats["path /stats public"]
  HR --> Star{"isAuthenticated"}
  Star -->|false| Catch["path * LoginWrapper"]
  Star -->|true| Rest["path /* AuthenticatedApp"]

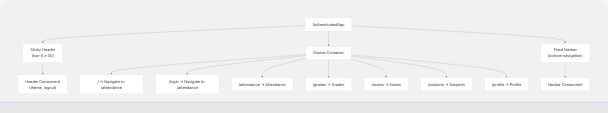

AuthenticatedApp internal routing#

flowchart TD
  AA["AuthenticatedApp"] --> Header["sticky Header"]
  AA --> R["Routes"]
  AA --> Nav["Navbar"]
  R --> Redir["/ and /login -> /attendance"]
  R --> Att["/attendance"]
  R --> Gr["/grades"]
  R --> Ex["/exams"]
  R --> Sub["/subjects"]
  R --> Pr["/profile"]

State management architecture#

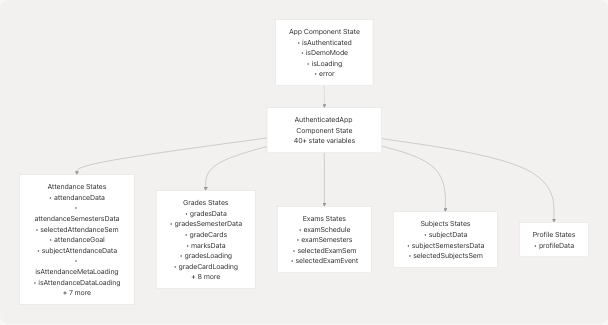

State hierarchy#

flowchart TD
  App["App auth + demo flag"] --> AA["AuthenticatedApp feature caches"]
  AA --> Feat["Attendance Grades Exams Subjects Profile"]
  Theme["useThemeStore"] --> Header
  Theme --> Cards["feature cards"]
  LS["localStorage"] --> App
  LS --> AA

Persisted:

attendanceGoal (default 75)
username / password for auto-login

State flow to feature components#

flowchart LR
  AA["AuthenticatedApp"] -->|"attendance* props"| Att["Attendance"]
  AA -->|"grades* marks* gradeCard*"| Gr["Grades"]
  AA -->|"exam*"| Ex["Exams"]
  AA -->|"subject* choices*"| Sub["Subjects"]
  AA -->|"profileData"| Pr["Profile"]

Data access layer: portal abstraction#

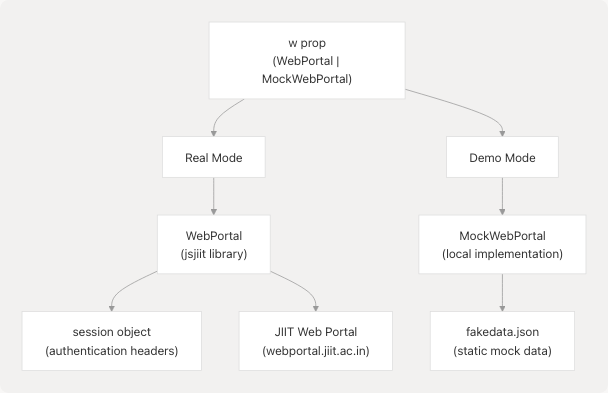

Portal `w` switch#

flowchart TD
  Comp["feature component"] --> Call["await w.method(...)"]
  Call --> Impl{"w constructor"}
  Impl -->|WebPortal| CDN["jsjiit 0.0.27"]
  Impl -->|MockWebPortal| JSON["fakedata.json"]

Portal methods in this app:

student_login(username, password)
get_attendance_meta(), get_attendance(header, semester), get_subject_daily_attendance(...)
get_registered_semesters(), get_registered_subjects_and_faculties(semester), get_subject_choices(semester)
get_semesters_for_exam_events(), get_exam_events(semester), get_exam_schedule(event)
get_sgpa_cgpa(), get_semesters_for_grade_card(), get_grade_card(semester)
get_semesters_for_marks(), download_marks(semester)
get_personal_info()

Do not invent get_grades() or get_header() as feature APIs. Attendance uses meta.latest_header().

sequenceDiagram
  participant User
  participant Login
  participant W as w.student_login
  participant LS as localStorage
  participant App

  User->>Login: submit enrollment + password
  Login->>W: student_login
  W-->>Login: session or LoginError
  Login->>LS: set username password
  Login->>App: onLoginSuccess
  App->>App: setIsAuthenticated true

Auto-login on mount uses stored credentials against realPortal only.

Theme infrastructure#

Theme state management with zustand#

flowchart LR
  Presets["theme-presets.ts defaultPresets"] --> Store["useThemeStore persist"]
  Store --> Provider["ThemeProvider"]
  Provider --> Root["documentElement CSS vars"]
  Selector["ThemeSelectorDialog"] --> Store

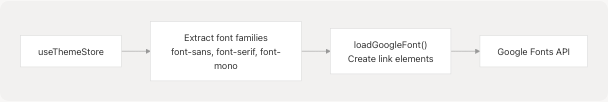

Dynamic font loading#

flowchart TD
  Preset["theme styles font-sans"] --> Extract["extractFontFamily"]
  Extract --> Skip{"system font?"}
  Skip -->|yes| Stop["skip"]
  Skip -->|no| URL["buildFontCssUrl family 400 500 600 700"]
  URL --> Link["loadGoogleFont append link"]

src/utils/fonts.ts owns extractFontFamily, buildFontCssUrl, loadGoogleFont. Default weights: ["400", "500", "600", "700"].

Component architecture patterns#

Feature module pattern#

Aspect	Implementation
Props	`w`, caches, setters from `AuthenticatedApp`
Fetch	`useEffect` calling `w.method()`
Cache	Objects keyed by `registration_id` or event id
Loading	Booleans such as `gradesLoading`, `isAttendanceMetaLoading`
Errors	try/catch plus `gradesError` or cached `{ error }`

Attendance is the heaviest prop list: w, attendanceData, semesters, goal, subject daily cache, tabs, calendar, tracker, cache status.

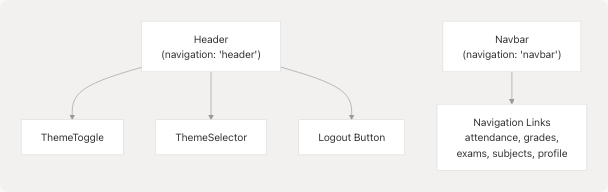

Global UI components#

flowchart TD
  AA["AuthenticatedApp"] --> Header["Header"]
  Header --> StatsLink["Link /stats"]
  Header --> ThemeBtn["ThemeSelectorDialog"]
  Header --> Logout["handleLogout"]
  AA --> Navbar["Navbar NavLink"]
  Navbar --> Five["attendance grades exams subjects profile"]

External service integration#

flowchart TD
  App --> jsjiit["[email protected] ESM CDN"]
  jsjiit --> Proxy["jportal-cors-proxy.onrender.com"]
  Proxy --> Portal["webportal.jiit.ac.in"]
  Grades --> Pyodide["Pyodide + PyMuPDF + jiit_marks"]
  Stats["Cloudflare.jsx"] --> Hooks["useFetchWebAnalytics*"]
  Hooks --> API["POST /api/analytics"]
  API --> CF["Cloudflare GraphQL"]
  indexHtml --> Beacon["beacon.min.js"]

jsjiit import:

python

import { WebPortal, LoginError } from
  "https://cdn.jsdelivr.net/npm/[email protected]/dist/jsjiit.esm.js";

Pyodide is loaded from CDN in index.html. Grades uses it to parse marks PDFs.

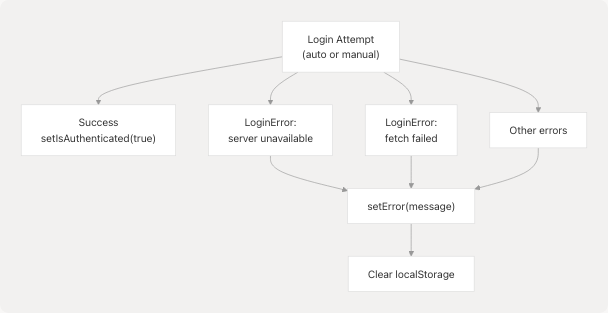

Error handling and loading states#

flowchart TD
  Auto["App performLogin"] --> Err{"LoginError?"}
  Err -->|unavailable| Msg1["JIIT Web Portal server is temporarily unavailable"]
  Err -->|Failed to fetch| Msg2["check internet / portal down"]
  Err -->|other| Msg3["Auto-login failed"]
  Err --> Clear["remove username password"]

Feature-level errors (example gradesError) stay on AuthenticatedApp. Toasts use sonner.

Summary#

App gates auth. /stats is public.
w is realPortal or mockPortal.
Feature state lives on AuthenticatedApp and is drilled down.
React hooks for academic data, Zustand for theme, TanStack Query for Cloudflare stats.
Hash routing for GitHub Pages.
PWA from vite-plugin-pwa, not a custom public/sw.js.
