Grades Module

Purpose and Scope

The Grades Module provides students with comprehensive academic performance tracking across three main views: semester-wise SGPA/CGPA trends, detailed grade cards, and examination marks. This module supports both real-time data fetching from the JIIT portal and demo mode using mock data. The module implements client-side PDF parsing for marks extraction using Pyodide and PyMuPDF.

For information about other feature modules, see Attendance Module, Exams Module, Subjects Module, and Profile Module.

Module Overview

The Grades Module is implemented as a tab-based interface with three distinct views:

The module maintains separate state caches for each data type to minimize redundant API calls and provides a consistent loading/error experience across all tabs.

Sources: src/components/Grades.jsx1-531

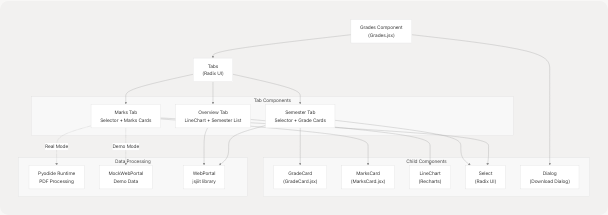

Component Architecture

Sources: src/components/Grades.jsx1-531 src/components/GradeCard.jsx1-42 src/components/MarksCard.jsx1-42

State Management

The Grades component receives 24 props from AuthenticatedApp, following the props drilling pattern used throughout JPortal. State is organized into functional groups:

Core Data State

State Caching Pattern

The module implements client-side caching to prevent redundant API calls:

• gradeCards: Object keyed by registration_id, stores fetched grade cards
• marksData: Object keyed by registration_id, stores parsed marks data

When a user switches semesters, the component checks the cache first before making an API request.

Sources: src/components/Grades.jsx13-47

Data Flow and API Integration

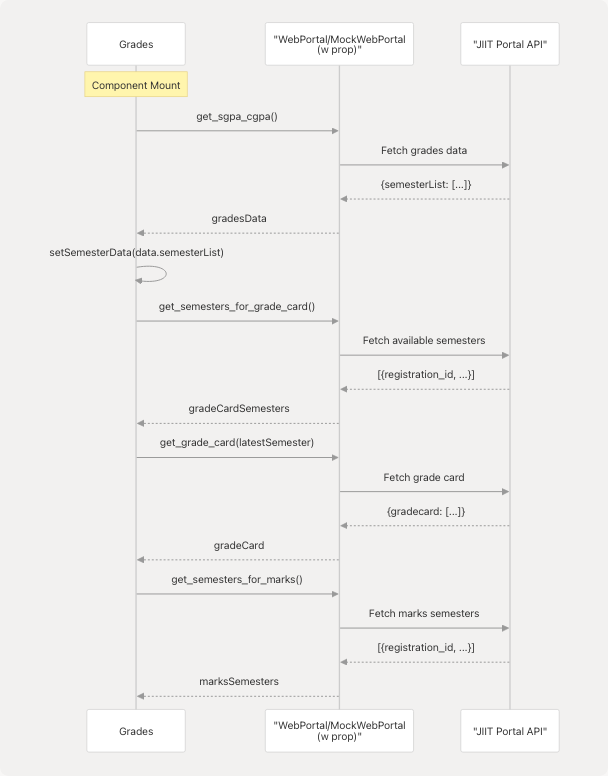

Initial Data Loading

Semester Selection Flow

The component implements optimistic UI updates with cache checking:

// Grade Card Semester Change
handleSemesterChange(value)
  -> setGradeCardLoading(true)
  -> setSelectedGradeCardSem(semester)
  -> if (gradeCards[value]) { use cached data }
  -> else { fetch w.get_grade_card(semester) }
  -> setGradeCards cache
  -> setGradeCardLoading(false)

Sources: src/components/Grades.jsx48-77 src/components/Grades.jsx79-105 src/components/Grades.jsx107-119 src/components/Grades.jsx211-233

Overview Tab

The Overview tab displays SGPA/CGPA trends using a Recharts LineChart component.

Data Visualization

Semester Data Structure

Each semester object contains:

Chart Theming

The chart uses CSS custom properties for theming:

• Grid lines: var(--border)
• Axis labels: var(--muted-foreground)
• SGPA line: var(--chart-1) (displayed with .text-chart-1 class)
• CGPA line: var(--chart-2) (displayed with .text-chart-2 class)
• Tooltip background: var(--card)

Sources: src/components/Grades.jsx304-405

Semester Tab

The Semester tab displays subject-wise grade information for a selected semester.

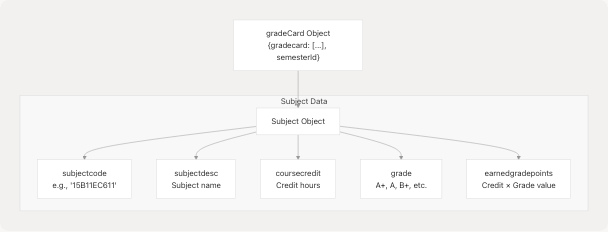

Grade Card Structure

Grade Color Mapping

The getGradeColor() function maps letter grades to theme colors:

GradeCard Component

The GradeCard component (src/components/GradeCard.jsx) displays individual subject grades with the following layout:

1. Header: Subject code and description
2. Grade Display: Large, color-coded letter grade
3. Metrics: Credits and earned grade points

Sources: src/components/Grades.jsx235-247 src/components/Grades.jsx408-446

Marks Tab

The Marks tab displays detailed examination marks parsed from PDF reports. This is the most complex tab due to PDF processing requirements.

Dual-Mode Operation

Pyodide PDF Processing Pipeline

When in real mode, the marks tab executes the following Python code in the browser:

# Executed in Pyodide environment
await pyodide_js.loadPackage("/jportal/artifact/PyMuPDF-1.24.12-...")
await pyodide_js.loadPackage("/jportal/artifact/jiit_marks-0.2.0-...")

import pymupdf
from jiit_marks import parse_report

r = await pyodide.http.pyfetch(API+ENDPOINT, **(fetchOptions.to_py()))
data = await r.bytes()

doc = pymupdf.Document(stream=data)
marks = parse_report(doc)

The endpoint is constructed as:

/studentsexamview/printstudent-exammarks/{instituteid}/{registration_id}/{registration_code}

Key Implementation Details:

1. Pyodide Loading: Uses global loadPyodide() function
2. Wheel Files: Precached by service worker (see vite.config.ts38-42)
3. Authentication: Uses w.session.get_headers() with generate_local_name()
4. Data Conversion: toJs({dict_converter: Object.fromEntries, create_pyproxies: false})

Sources: src/components/Grades.jsx121-209 vite.config.ts38-42

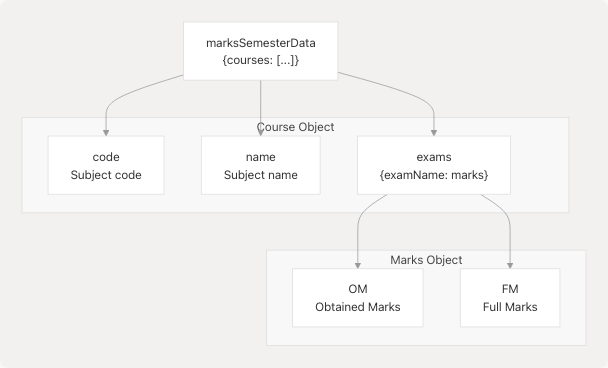

Marks Data Structure

The parsed marks data follows this structure:

Example structure:

{
  "courses": [
    {
      "code": "15B11EC611",
      "name": "TELECOMMUNICATION NETWORKS",
      "exams": {
        "Mid Term": { "OM": 18, "FM": 25 },
        "End Term": { "OM": 42, "FM": 50 }
      }
    }
  ]
}

MarksCard Component

The MarksCard component renders marks with visual progress indicators:

1. Progress Bar: Shows percentage (OM/FM × 100)
2. Color Coding: Based on performance
   • Outstanding (≥80%): bg-marks-outstanding
   • Good (≥60%): bg-marks-good
   • Average (≥40%): bg-marks-average
   • Poor (<40%): bg-marks-poor
3. Marks Display: Shows "OM/FM" format

Sources: src/components/MarksCard.jsx1-42 src/components/Grades.jsx460-506

Download Marks Dialog

The Download Marks button opens a dialog listing all available semesters. Clicking a semester triggers the download via:

handleDownloadMarks(semester)
  -> w.download_marks(semester)
  -> (Browser triggers download)

In real mode, this downloads the actual PDF from the JIIT portal. In demo mode, the MockWebPortal simulates the download without actual file creation.

The dialog is accessible from all three tabs and uses the marksSemesters list to populate options.

Sources: src/components/Grades.jsx249-256 src/components/Grades.jsx509-527

UI Components and Styling

Tab System

The module uses Radix UI's Tabs component with custom styling:

TabsList: grid-cols-3, bg-background
TabsTrigger:
  - Default: text-muted-foreground, bg-background
  - Active: data-[state=active]:bg-muted, data-[state=active]:text-foreground

Select Components

Both Semester and Marks tabs use Radix UI Select with consistent theming:

• Trigger: bg-background, text-foreground, border-foreground
• Hover: hover:bg-accent, hover:text-accent-foreground
• Content: Same background and border as trigger

Responsive Chart

The ResponsiveContainer wraps the LineChart with:

• Width: 100%
• Height: 250px
• Margins: {top: 0, right: 10, left: 0, bottom: 20}

Sources: src/components/Grades.jsx280-302 src/components/Grades.jsx314-368

Error Handling

The module implements three levels of error handling:

1. Overview Tab Errors

if (err.message.includes("Unexpected end of JSON input")) {
  setGradesError("Grade sheet is not available")
} else {
  setGradesError("Failed to fetch grade data")
}

Displays centered error message with helper text "Please check back later".

2. Empty State Handling

Each tab checks for empty data:

• Semester tab: gradeCardSemesters.length === 0
• Marks tab: marksSemesters.length === 0

Displays appropriate "not available yet" message.

3. PDF Processing Errors

PDF processing errors are caught and logged to console. The marksLoading state is always reset in the finally block to prevent UI lock.

Sources: src/components/Grades.jsx65-74 src/components/Grades.jsx193-199 src/components/Grades.jsx272-278

Integration with Mock Data System

The mock data system provides comprehensive fake data for all three tabs. The structure in fakedata.json:

{
  "grades": {
    "gradesData": {
      "semesterList": [...]
    },
    "gradeCardSemesters": [...],
    "gradeCards": {
      "2025EVESEM": {...},
      "2025ODDSEM": {...}
    },
    "marksSemesters": [...],
    "marksData": {
      "2025EVESEM": {
        "courses": [...]
      }
    }
  }
}

The MockWebPortal class provides matching methods:

• get_sgpa_cgpa() → returns fakeData.grades.gradesData
• get_semesters_for_grade_card() → returns fakeData.grades.gradeCardSemesters
• get_grade_card(semester) → returns fakeData.grades.gradeCards[semKey]
• get_semesters_for_marks() → returns fakeData.grades.marksSemesters
• download_marks(semester) → returns fakeData.grades.marksData[semKey]

Sources: src/components/MockWebPortal.js59-79 src/assets/fakedata.json

Performance Considerations

1. Caching Strategy

The module maintains separate cache objects (gradeCards, marksData) to minimize API calls. Cache keys use registration_id for uniqueness.

2. Lazy Loading

Data is fetched on-demand:

• Overview data loads immediately on mount
• Grade card data loads when tab is accessed
• Marks data loads only when a semester is selected

3. Pyodide Optimization

Pyodide wheels are precached by the service worker to avoid repeated downloads:

• pyodide.js (runtime)
• PyMuPDF-1.24.12-cp311-abi3-emscripten_3_1_32_wasm32.whl
• jiit_marks-0.2.0-py3-none-any.whl

Maximum cache file size is set to 30MB to accommodate these large files.

Sources: vite.config.ts23-42

Theme Integration

The Grades module integrates with JPortal's theme system (see Theme System) using CSS custom properties:

Chart Colors

• --chart-1: SGPA line (green tone)
• --chart-2: CGPA line (blue tone)
• --border: Chart grid lines
• --muted-foreground: Axis labels and secondary text

Grade Colors

• --grade-aa through --grade-f: Letter grade color scale

Marks Colors

• --marks-outstanding: ≥80% performance
• --marks-good: 60-79% performance
• --marks-average: 40-59% performance
• --marks-poor: <40% performance

All color variables respond to light/dark mode toggles managed by the theme system.

Sources: src/components/Grades.jsx324-366 src/components/MarksCard.jsx5-10
