state management strategy

React state on App and AuthenticatedApp, Zustand for theme, localStorage for credentials and the attendance goal. TanStack Query is wired for Cloudflare stats.

See Data Layer & API Integration. Theme store is Theme System.

Overview#

useState for auth and feature caches
Props from AuthenticatedApp into feature pages
Zustand persist for theme (src/stores/theme-store.ts)
localStorage for username, password, attendanceGoal
TanStack Query in src/hooks/cloudflare.ts (useFetchWebAnalyticsAggregate and siblings)

There is no Redux. Academic data is colocated on AuthenticatedApp so hash route changes keep caches.

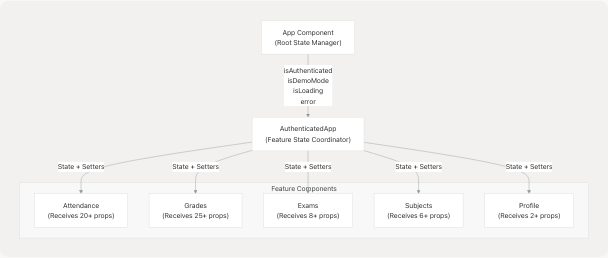

State hierarchy#

flowchart TD
  App["App isAuthenticated isDemoMode isLoading error"] --> AA["AuthenticatedApp feature slices"]
  AA --> Pages["Attendance Grades Exams Subjects Profile"]
  Store["useThemeStore"] --> ThemeUI["ThemeProvider Header"]
  QC["QueryClient"] --> CF["Cloudflare.jsx"]

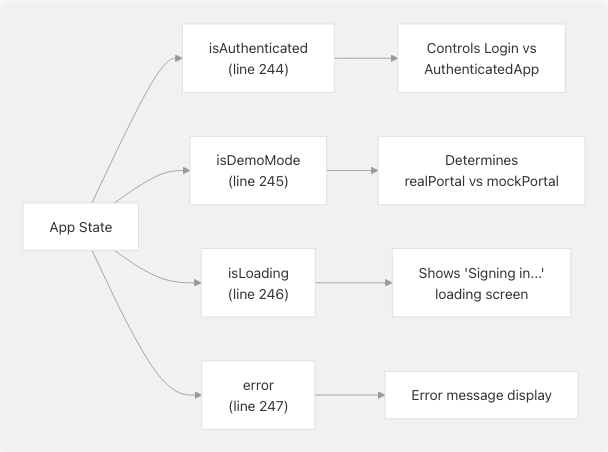

App-level state#

Variable	Type	Persistence
`isAuthenticated`	boolean	no
`isDemoMode`	boolean	no
`isLoading`	boolean	no
`error`	string or null	no

flowchart TD
  Mount["App mount"] --> Creds{"username and password?"}
  Creds -->|yes| Login["realPortal.student_login"]
  Login -->|session| Auth["isAuthenticated true isDemoMode false"]
  Login -->|fail| Clear["clear storage isAuthenticated false"]
  Creds -->|no| LoginUI["LoginWrapper"]

Portals at module scope: realPortal, mockPortal. activePortal = isDemoMode ? mockPortal : realPortal.

AuthenticatedApp state coordination#

Attendance state cluster#

flowchart TD
  Att["Attendance slice"] --> Data["attendanceData"]
  Att --> Sem["attendanceSemestersData selectedAttendanceSem"]
  Att --> Goal["attendanceGoal localStorage"]
  Att --> Daily["subjectAttendanceData selectedSubject"]
  Att --> UI["activeAttendanceTab dailyDate calendar tracker cacheStatus"]
  Att --> Load["isAttendanceMetaLoading isAttendanceDataLoading"]

Goal init:

text

const [attendanceGoal, setAttendanceGoal] = useState(() => {
  const savedGoal = localStorage.getItem("attendanceGoal");
  return savedGoal ? parseInt(savedGoal) : 75;
});

Grades state cluster#

flowchart TD
  Gr["Grades slice"] --> Overview["gradesData gradesSemesterData"]
  Gr --> Cards["gradeCardSemesters selectedGradeCardSem gradeCard gradeCards"]
  Gr --> Marks["marksSemesters selectedMarksSem marksSemesterData marksData"]
  Gr --> UI["activeGradesTab gradesLoading gradesError gradeCardLoading marksLoading download dialog"]

Other feature state clusters#

Subjects: subjectData, subjectSemestersData, subjectChoices, selectedSubjectsSem, activeSubjectsTab, loading flags.

Exams: examSchedule, examSemesters, selectedExamSem, selectedExamEvent. examEvents and loading stay local in Exams.jsx.

Profile: profileData.

Props drilling pattern#

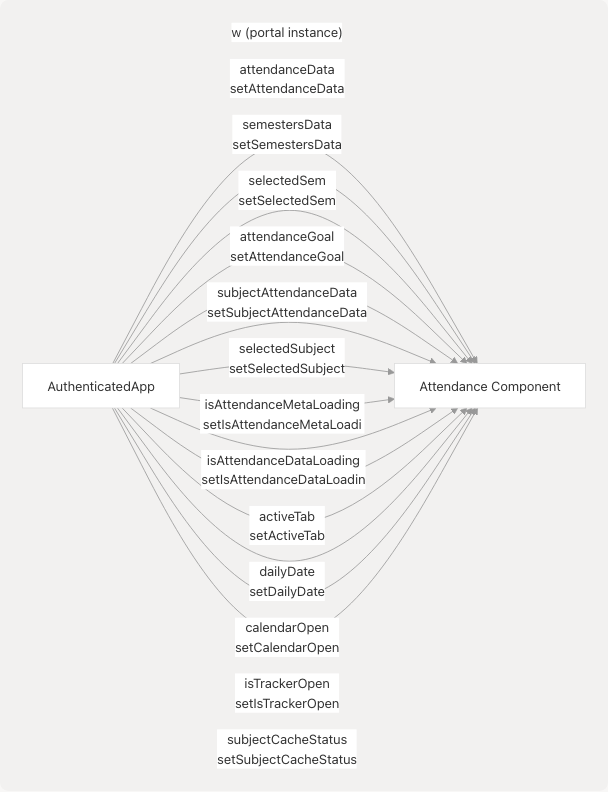

Attendance component props#

flowchart LR
  AA["AuthenticatedApp"] --> Att["Attendance"]
  Att --> Card["AttendanceCard"]
  AA -->|"20+ props"| Att

Grades component props#

Grades receives caches (gradesData, gradeCards, marksData), tab state, semester lists, and setters. Same hub pattern.

Data caching strategy#

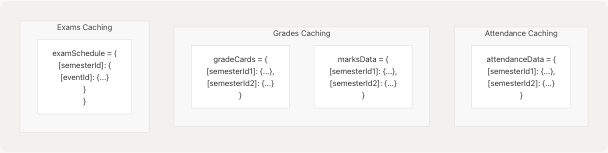

Cache-by-ID pattern#

flowchart TD
  Change["user picks semester"] --> Hit{"cache[registration_id]?"}
  Hit -->|yes| Use["render cached"]
  Hit -->|no| Fetch["w.get_attendance or get_grade_card"]
  Fetch --> Save["setState prev spread key"]

Attendance handleSemesterChange checks attendanceData[value] before w.get_attendance(header, semester).

Persistence mechanisms#

Key	Purpose
`username`	Auto-login
`password`	Auto-login
`attendanceGoal`	Target percent
Zustand persist	Theme preset and styles

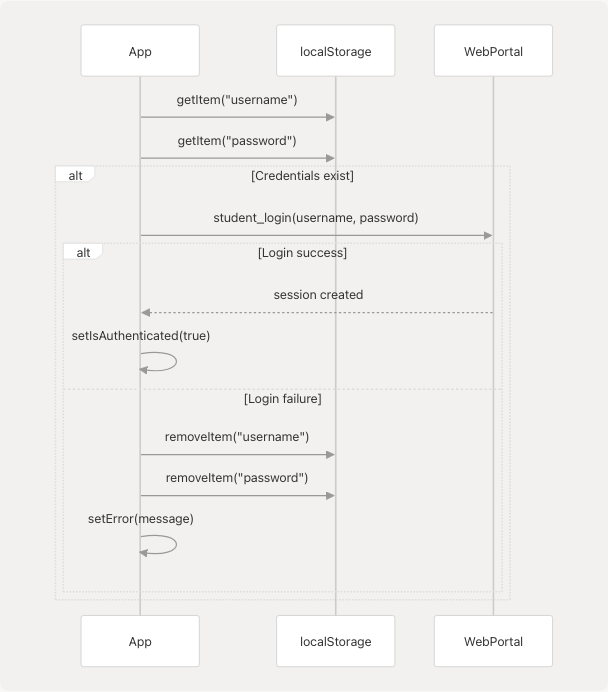

sequenceDiagram
  participant App
  participant LS as localStorage
  participant Portal as realPortal

  App->>LS: getItem username password
  App->>Portal: student_login
  Portal-->>App: session or throw

State initialization patterns#

Example: attendance initialization#

flowchart TD
  Mount["Attendance mount"] --> Meta{"semestersData?"}
  Meta -->|no| GetMeta["w.get_attendance_meta"]
  GetMeta --> Latest["meta.latest_semester"]
  Latest --> GetAtt["w.get_attendance header latestSem"]
  GetAtt -->|NO Attendance Found| Prev["previous semester"]

Caches on AuthenticatedApp mean returning to /attendance does not refetch.

State update patterns#

Immutable spreads:

text

setAttendanceData(prev => ({
  ...prev,
  [semesterId]: newData
}));

Loading flags wrap async work (setMarksLoading(true) / finally false).

TanStack query integration#

App creates new QueryClient() and wraps the tree in QueryClientProvider.

Attendance and Grades do not call useQuery. /stats does:

useFetchWebAnalyticsAggregate
useFetchWebAnalyticsBrowser
useFetchWebAnalyticsOS
useFetchWebAnalyticsSparkline

Those hooks live in src/hooks/cloudflare.ts and POST to /api/analytics.

Subject-specific caching: daily attendance#

flowchart TD
  Tab["activeTab daily"] --> All["Promise.all subjects"]
  All --> Status["subjectCacheStatus idle fetching cached"]
  Status --> Sheet["progress Sheet CircleProgress"]

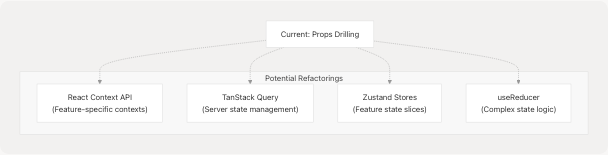

Refactoring opportunities#

Props lists are long. Cache-by-id is copied across modules. UI flags sit next to data.

flowchart LR
  Now["AuthenticatedApp useState"] -.-> Later["optional useQuery per feature"]
  Now --> Works["works at current size"]

Query is already in the tree for analytics. Academic modules have not migrated.

Summary#

App: auth and portal pick
AuthenticatedApp: feature caches
Features: fetch through w, write through setters
localStorage: credentials and goal
Zustand: theme
TanStack Query: Cloudflare dashboard
