Exams Module

Purpose and Scope

The Exams Module displays examination schedules for students, organized by semester and exam event. It allows users to select an academic semester, choose an exam event (such as Mid-Term, End-Term, or Supplementary exams), and view the complete schedule including exam dates, times, room assignments, and seat numbers.

For information about other academic data features, see Attendance Module, Grades Module, and Subjects Module. For details on the data abstraction layer used by this module, see Data Layer & API Integration.

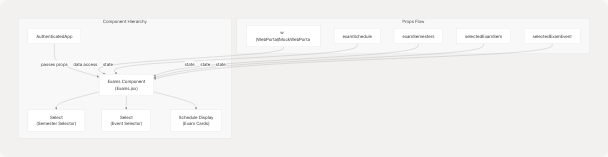

Component Architecture

The Exams Module is implemented as a single React component located at jportal/src/components/Exams.jsx1-165 The component follows the established pattern of receiving the w prop (WebPortal or MockWebPortal instance) for data access and several state management props from its parent AuthenticatedApp.

Sources: jportal/src/components/Exams.jsx10-20

State Management

The Exams component manages state through a combination of props passed from AuthenticatedApp and local component state. This follows the props drilling pattern used throughout JPortal.

The component uses a caching strategy where fetched exam schedules are stored in the examSchedule object keyed by event ID, preventing redundant API calls when users switch between previously viewed events.

Sources: jportal/src/components/Exams.jsx10-22 jportal/src/components/Exams.jsx57-63

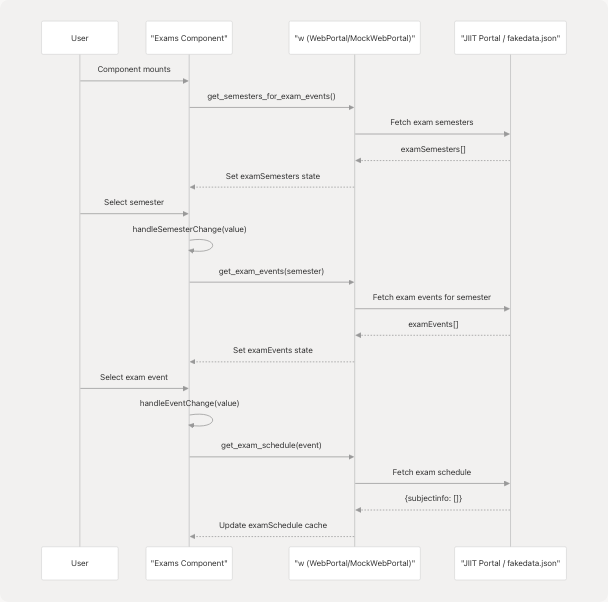

Data Flow and API Integration

The Exams module interacts with three API methods provided by the w prop:

API Methods

get_semesters_for_exam_events()

Called on component mount to fetch available semesters that have exam events.

Sources: jportal/src/components/Exams.jsx24-33 jportal/src/components/MockWebPortal.js97-99

get_exam_events(semester)

Fetches exam events (Mid-Term, End-Term, etc.) for the selected semester. Called when user changes semester selection.

Sources: jportal/src/components/Exams.jsx36-48 jportal/src/components/MockWebPortal.js101-104

get_exam_schedule(event)

Retrieves the detailed exam schedule for a specific event, including subject details, dates, times, room codes, and seat numbers.

Sources: jportal/src/components/Exams.jsx50-67 jportal/src/components/MockWebPortal.js106-109

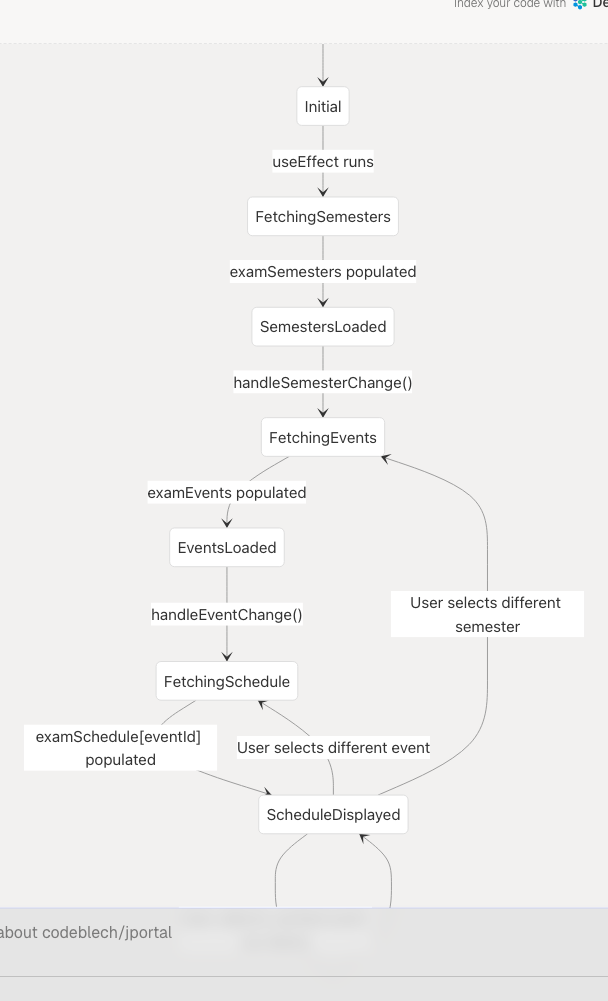

Component Lifecycle and Event Handlers

Initial Load

The useEffect hook at jportal/src/components/Exams.jsx24-33 runs on component mount and fetches exam semesters if not already loaded:

useEffect(() => {
  const fetchSemesters = async () => {
    if (examSemesters.length === 0) {
      const examSems = await w.get_semesters_for_exam_events()
      setExamSemesters(examSems)
    }
  }
  fetchSemesters()
}, [])

Semester Selection

The handleSemesterChange function at jportal/src/components/Exams.jsx36-48 manages semester changes:

1. Sets loading state
2. Updates selectedExamSem state
3. Fetches exam events for the semester
4. Resets selectedExamEvent and clears examSchedule

Event Selection

The handleEventChange function at jportal/src/components/Exams.jsx50-67 handles event selection with caching:

1. Sets loading state
2. Updates selectedExamEvent state
3. Checks if schedule is already cached in examSchedule[eventId]
4. Fetches schedule if not cached, otherwise uses cached data

Sources: jportal/src/components/Exams.jsx24-67

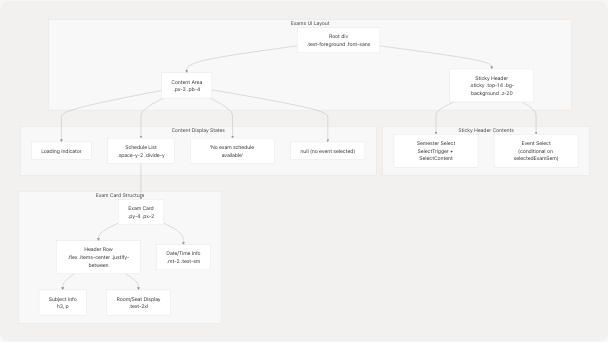

User Interface Structure

The Exams component renders a sticky header with selection controls and a scrollable schedule display area.

Select Components

Both semester and event selectors use the Radix UI-based Select component from jportal/src/components/ui/select:

• Semester selector: jportal/src/components/Exams.jsx86-99
• Event selector: jportal/src/components/Exams.jsx101-124 (conditionally rendered)

Schedule Display

The schedule is rendered as a list of exam cards at jportal/src/components/Exams.jsx128-162 Each exam entry displays:

• Subject Name: Extracted from exam.subjectdesc, truncated at first parenthesis
• Subject Code: exam.subjectcode
• Room and Seat: Combined as roomcode-seatno in large font
• Date: Formatted using the formatDate() helper
• Time: Displayed as exam.datetimeupto

Sources: jportal/src/components/Exams.jsx82-164

Date Formatting

The formatDate function at jportal/src/components/Exams.jsx72-80 converts date strings from DD/MM/YYYY format to a human-readable format:

const formatDate = (dateStr) => {
  const [day, month, year] = dateStr.split('/')
  return new Date(`${month}/${day}/${year}`).toLocaleDateString('en-US', {
    weekday: 'long',
    year: 'numeric',
    month: 'long',
    day: 'numeric'
  })
}

Example: "25/12/2024" becomes "Monday, December 25, 2024"

Sources: jportal/src/components/Exams.jsx72-80

Data Structures

Semester Object

{
  registration_id: "2025EVESEM",
  registration_code: "2025EVESEM"
}

Sources: jportal/src/assets/fakedata.json1405-1421

Exam Event Object

The event object structure differs slightly between real and mock implementations, so the code handles both field naming conventions:

{
  exameventid: "string" || exam_event_id: "string",
  exameventdesc: "string" || exam_event_desc: "string"
}

The component accesses these fields using event.exameventid || event.exam_event_id at jportal/src/components/Exams.jsx54 and jportal/src/components/Exams.jsx69

Sources: jportal/src/components/Exams.jsx54 jportal/src/components/Exams.jsx69 jportal/src/components/Exams.jsx105 jportal/src/components/Exams.jsx115

Exam Schedule Entry

Each exam in the schedule contains:

{
  subjectdesc: "Subject Name (Additional Info)",
  subjectcode: "SUBCODE123",
  datetime: "DD/MM/YYYY",
  datetimeupto: "HH:MM AM/PM - HH:MM AM/PM",
  roomcode: "ROOM-123",      // optional
  seatno: "45"                // optional
}

Sources: jportal/src/assets/fakedata.json1423-1695 jportal/src/components/Exams.jsx137-155

Mock Data Implementation

The MockWebPortal class at jportal/src/components/MockWebPortal.js provides demo mode support by reading from jportal/src/assets/fakedata.json The exam data structure in fakedata.json includes:

• exams.examSemesters: Array of semester objects
• exams.examEvents: Object mapping semester keys to arrays of exam events
• exams.examSchedule: Object mapping event IDs to arrays of exam schedule entries

The mock implementation matches the real API contract, enabling seamless switching between demo and production modes.

Sources: jportal/src/components/MockWebPortal.js97-109 jportal/src/assets/fakedata.json1397-1695

Conditional Rendering Logic

The component implements a three-tier conditional rendering strategy at jportal/src/components/Exams.jsx129-161:

1. Loading state: Displays "Loading..." when loading === true
2. Schedule available: Renders exam cards when currentSchedule?.length > 0
3. No schedule: Shows "No exam schedule available" when selectedExamEvent is set but schedule is empty
4. No event selected: Renders null when no event has been selected yet

Sources: jportal/src/components/Exams.jsx129-161

Styling and Responsiveness

The component uses Tailwind CSS utility classes for styling, consistent with the application's styling system (see Styling System). Key styling patterns include:

• Sticky header: .sticky .top-14 keeps selectors visible during scroll
• Z-index management: .z-20 ensures header stays above content
• Spacing: .space-y-2 between exam cards, .divide-y .divide-muted for visual separation
• Typography: Subject names use .font-medium, room/seat numbers use .text-2xl .font-medium
• Theme integration: Uses theme tokens like .bg-background, .text-foreground, .text-muted-foreground

Sources: jportal/src/components/Exams.jsx83-163
