PWA Configuration

This document details the Progressive Web App (PWA) implementation in JPortal, including the VitePWA plugin setup, service worker configuration, caching strategies, web app manifest, and platform-specific installation procedures. For information about the build pipeline and deployment process, see Build & Deployment. For development workflow and scripts, see Development Workflow.

Overview

JPortal is configured as a PWA using the vite-plugin-pwa package with Workbox for service worker generation. The PWA setup enables offline functionality, app-like installation on mobile and desktop platforms, and aggressive caching of critical resources including the Pyodide Python runtime and related dependencies.

Sources: jportal/vite.config.ts1-99

VitePWA Plugin Integration

The PWA functionality is configured through the VitePWA plugin in the Vite build configuration. The plugin orchestrates manifest generation, service worker creation, and asset precaching.

Sources: jportal/vite.config.ts4 jportal/vite.config.ts17-73

Registration Configuration

The service worker registration is configured at jportal/vite.config.ts18-22:

The autoUpdate registration type ensures users receive updates immediately without manual intervention. The service worker checks for updates on page load and navigation events.

Sources: jportal/vite.config.ts18-22

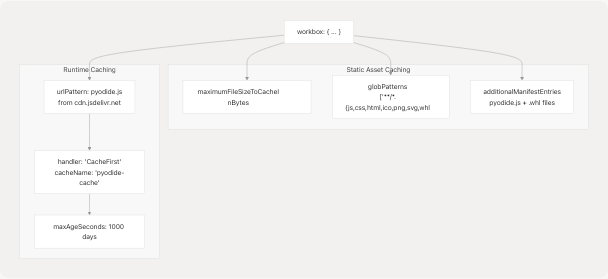

Workbox Caching Configuration

The Workbox configuration defines caching strategies for both static assets and runtime resources. This configuration is critical for offline functionality and performance optimization.

Sources: jportal/vite.config.ts23-43

Static Asset Precaching

The service worker precaches all assets matching the glob patterns at jportal/vite.config.ts25:

**/*.{js,css,html,ico,png,svg,whl}

This pattern ensures all JavaScript bundles, stylesheets, HTML files, icons, images, and Python wheel files (.whl) are cached on first load. The maximumFileSizeToCacheInBytes is set to 30MB at jportal/vite.config.ts24 to accommodate the Pyodide runtime and Python wheel files.

Sources: jportal/vite.config.ts24-25

Runtime Caching Strategy

External resources are cached using runtime caching rules. The Pyodide JavaScript runtime from cdn.jsdelivr.net uses a CacheFirst strategy at jportal/vite.config.ts26-36:

Sources: jportal/vite.config.ts26-36

Additional Manifest Entries

Critical external resources are explicitly precached via additionalManifestEntries at jportal/vite.config.ts38-42:

additionalManifestEntries: [
  { url: "https://cdn.jsdelivr.net/pyodide/v0.23.4/full/pyodide.js", revision: null },
  { url: "/jportal/artifact/jiit_marks-0.2.0-py3-none-any.whl", revision: null },
  { url: "/jportal/artifact/PyMuPDF-1.24.12-cp311-abi3-emscripten_3_1_32_wasm32.whl", revision: null },
]

These entries ensure the Pyodide runtime and Python packages for PDF parsing (see Grades Module) are available offline. The revision: null indicates these are external resources that don't participate in Workbox's revision-based cache invalidation.

Sources: jportal/vite.config.ts38-42

Web App Manifest

The web app manifest defines how JPortal appears when installed as a PWA. The manifest is configured at jportal/vite.config.ts44-72

Sources: jportal/vite.config.ts44-72

Manifest Properties

Sources: jportal/vite.config.ts45-52

Icon Configuration

The manifest defines icons for various device sizes and purposes at jportal/vite.config.ts53-71:

icons: [
  {
    src: "pwa-icons/circle.ico",
    sizes: "48x48",
  },
  {
    src: "pwa-icons/j-yuvraj.svg",
    sizes: "72x72 96x96",
    purpose: "maskable",
  },
  {
    src: "pwa-icons/j-yuvraj.svg",
    sizes: "128x128 256x256",
  },
  {
    src: "pwa-icons/j-yuvraj.svg",
    sizes: "512x512",
  },
]

• 48x48: Favicon-sized icon using .ico format for browser tabs
• 72x72, 96x96: Maskable icons for adaptive icons on Android (can be cropped to circle/rounded square)
• 128x128, 256x256: Medium-sized icons for app launchers
• 512x512: High-resolution icon for splash screens and app stores

The j-yuvraj.svg icon at jportal/public/pwa-icons/j-yuvraj.svg1-231 is an SVG graphic that scales to all required sizes. The purpose: "maskable" property indicates the icon can be safely cropped by the OS.

Sources: jportal/vite.config.ts53-71 jportal/public/pwa-icons/j-yuvraj.svg1-231

Offline Capabilities

The caching configuration enables comprehensive offline functionality through a multi-layer strategy.

Sources: jportal/vite.config.ts23-42

Cached Resource Categories

1. Core Application Assets (from globPatterns):

   • HTML entry point: index.html
   • JavaScript bundles: All .js files
   • Stylesheets: All .css files

2. Static Media Assets:

   • Icons: All .ico, .svg, .png files
   • Google Fonts: Loaded dynamically via DynamicFontLoader component

3. Python Runtime Components (from additionalManifestEntries):

   • Pyodide JavaScript runtime: pyodide.js v0.23.4
   • Marks parsing library: jiit_marks-0.2.0-py3-none-any.whl
   • PDF library: PyMuPDF-1.24.12-cp311-abi3-emscripten_3_1_32_wasm32.whl

4. Demo Mode Data:

   • Mock portal data: fakedata.json (matched by glob patterns as .json)

Note: Real authentication data and portal API responses are not cached for security reasons. Offline functionality is limited to demo mode or previously cached authenticated sessions.

Sources: jportal/vite.config.ts23-42 jportal/src/components/DynamicFontLoader.tsx1-34

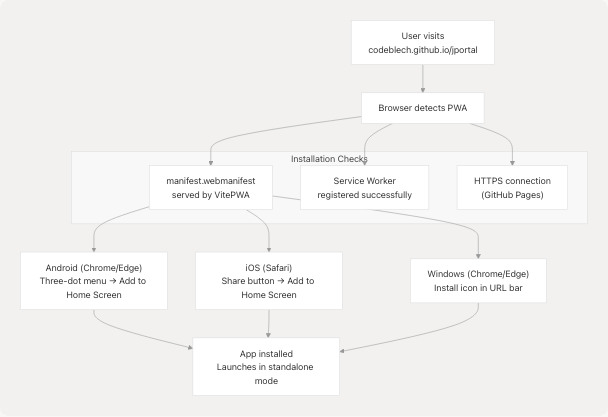

Installation Flow

JPortal can be installed on multiple platforms through browser-native installation prompts. The installation instructions are documented in the README.

Sources: jportal/README.md39-44

Platform-Specific Instructions

Android (Chromium-based browsers) jportal/README.md42:

1. Press the three-dot menu icon
2. Tap "Add to Home Screen"
3. Press "Install" in the popup

iOS (Safari) jportal/README.md43:

1. Press the Share button
2. Select "Add to Home Screen" from the popup
3. Tap "Add"

Windows (Chrome/Edge) jportal/README.md44:

1. Click the install icon on the right side of the URL bar
2. Click "Install"

Sources: jportal/README.md39-44

Development Mode PWA

The PWA is enabled in development mode via devOptions.enabled: true at jportal/vite.config.ts20-22 This allows testing installation flows, service worker behavior, and offline capabilities during development without requiring a production build.

When running npm run dev, the VitePWA plugin generates a development-specific service worker that:

• Hot-reloads on code changes
• Provides verbose console logging
• Does not require HTTPS (uses localhost exception)
• Updates immediately without waiting for service worker lifecycle events

Sources: jportal/vite.config.ts20-22

Base URL Configuration

The base property in vite.config.ts is set to "/jportal/" at jportal/vite.config.ts13 to match the GitHub Pages deployment path. This base URL is used throughout the PWA configuration:

• Manifest start_url: "/jportal/" jportal/vite.config.ts48
• Precached resources: All paths are relative to /jportal/
• Service worker scope: Defaults to /jportal/

This ensures the PWA works correctly when deployed to https://codeblech.github.io/jportal/ instead of a root domain.

Sources: jportal/vite.config.ts13 jportal/vite.config.ts48

Related Configuration

The PWA setup integrates with other parts of the application:

• Google Fonts: Preconnected in index.html at jportal/index.html8-12 for performance, dynamically loaded by DynamicFontLoader
• Cloudflare Analytics: Script included in index.html at jportal/index.html14-16 cached by service worker
• Pyodide: Script tag in index.html at jportal/index.html17 loads runtime, with service worker providing offline caching

Sources: jportal/index.html1-24 jportal/src/components/DynamicFontLoader.tsx1-34
