subjects module | Jportal Docs

Registered courses and a choices tab. Groups L/T/P rows that share a subject code.

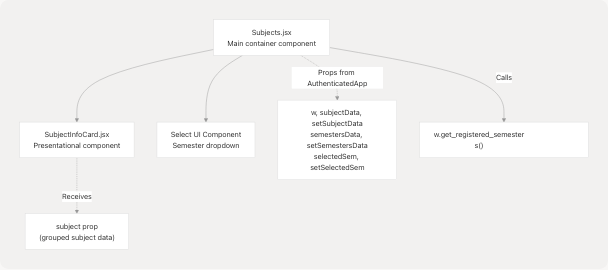

Component architecture#

flowchart TD
  Sub["Subjects.jsx"] --> Card["SubjectInfoCard.jsx"]
  Sub --> Tabs["registered | choices"]
  Sub --> Select["semester Select"]

Props include w, subjectData, semestersData, selectedSem, subjectChoices, activeTab, and the loading flags lifted in App.jsx.

Component: Subjects.jsx#

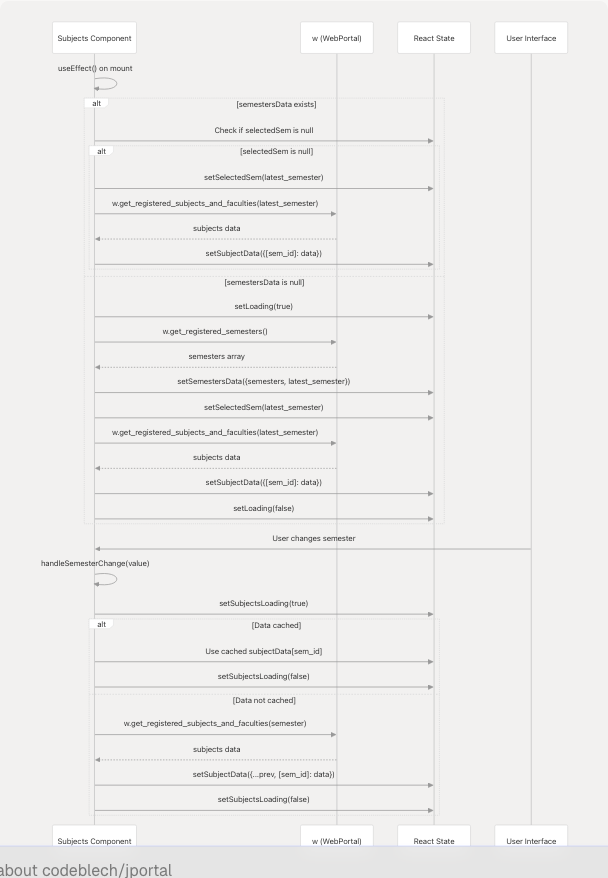

Data fetching flow#

flowchart TD
  Tab{"activeTab"} -->|registered| Reg["w.get_registered_semesters"]
  Tab -->|choices| Ch["w.get_semesters_for_grade_card"]
  Reg --> Fac["w.get_registered_subjects_and_faculties"]
  Ch --> Pref["w.get_subject_choices"]

Cache keys are semester.registration_id. Choices land in subjectChoices. Registered subjects land in subjectData.

Subject grouping logic#

flowchart TD
  Raw["subjects array L T P rows"] --> Reduce["reduce by subject_code"]
  Reduce --> Group["name code credits isAudit components"]

Each component: { type: subject_component_code, teacher: employee_name }. Audit when audtsubject === "Y".

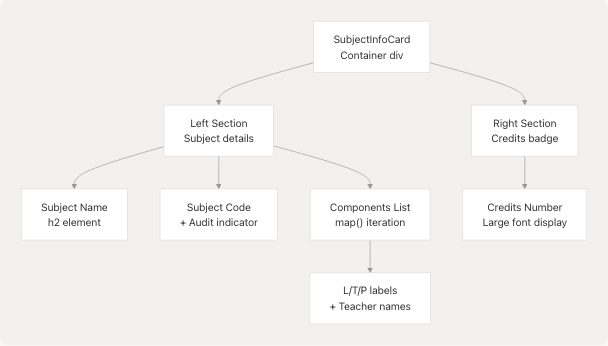

Component: SubjectInfoCard.jsx#

flowchart LR
  Left["name code L/T/P teachers"] --> Right["credits"]

L Lecture, T Tutorial, P Practical.

Data layer integration#

get_registered_semesters() → semester list.

get_registered_subjects_and_faculties(semester) → { subjects, registered_subject_faculty }.

get_subject_choices(semester) → object with subjectpreferencegrid in mock data.

Mock keys: fakeData.subjects.semestersData, subjectData[semKey], choiceSubjects.

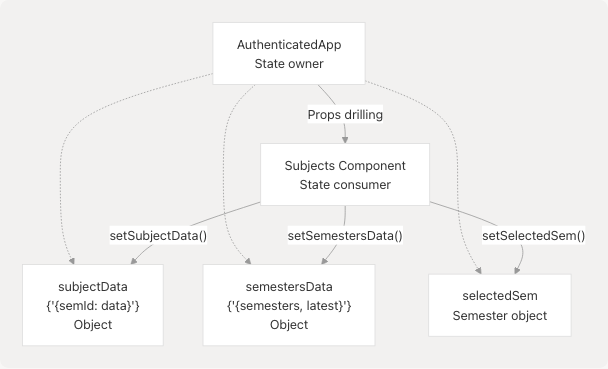

State management pattern#

flowchart TD
  AA["AuthenticatedApp"] --> Sub["Subjects"]
  Sub --> Card["SubjectInfoCard"]

Local loading booleans are actually lifted (loading, subjectsLoading, choicesLoading).

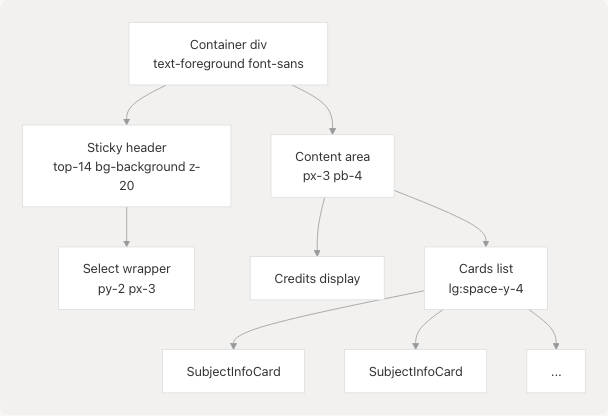

UI components#

flowchart TD
  Sticky["sticky top-14"] --> Select
  Body --> Credits["Total Credits"]
  Body --> Cards["SubjectInfoCard list"]

Styling and layout#

flowchart TD
  Card["border-b flex"] --> Info["flex-1 name code components"]
  Card --> Badge["credits text-3xl"]

max-[390px] shrinks type.

Data flow summary#

flowchart TD
  Tab --> SemList["displayedSemesters"]
  SemList --> Fetch["cache miss -> w"]
  Fetch --> Group["group by code"]
  Group --> UI["cards"]
