Mock Data System

The Mock Data System provides a complete simulated backend for JPortal, enabling development, testing, and demonstration without requiring actual JIIT portal credentials or network connectivity. This system consists of the MockWebPortal class and a comprehensive fakedata.json file containing realistic sample data for all application features.

For information about the real backend integration using the jsjiit library, see Data Layer & API Integration.

Purpose and Scope

The Mock Data System serves three primary functions:

1. Development Mode: Allows developers to work on the application without valid JIIT credentials
2. Demo Mode: Enables users to explore JPortal's features before logging in with real credentials
3. Testing Environment: Provides consistent, reproducible data for testing UI components and application logic

The system implements the same interface as the WebPortal class from the jsjiit library, allowing seamless switching between mock and real modes without component code changes.

Sources: src/components/MockWebPortal.js1-114 src/App.jsx20-29

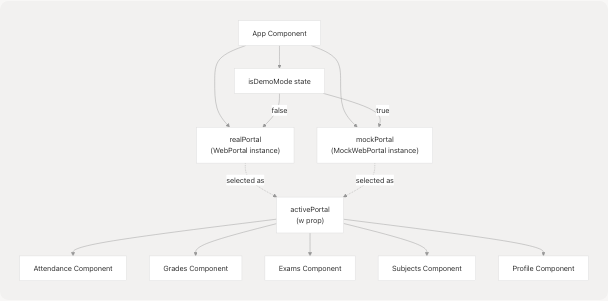

Architecture Overview

Portal Abstraction Pattern

The application creates both portal instances at the top level and selects one based on the authentication mode:

Sources: src/App.jsx27-29 src/App.jsx250 src/App.jsx360

Interface Compatibility

The MockWebPortal class implements all methods expected by feature components:

Sources: src/components/MockWebPortal.js3-114

Data Organization (fakedata.json)

Domain Structure

The fakedata.json file is organized into five top-level domains corresponding to JPortal's feature modules:

Sources: src/assets/fakedata.json1-4077

Attendance Domain

The attendance domain contains data for two semesters with comprehensive attendance records:

Structure:

• semestersData: Contains semester metadata and the latest semester reference
  • semesters: Array of semester objects with registration_id and registration_code
  • latest_header: Header identifier string
  • latest_semester: Reference to the current semester
• attendanceData: Keyed by semester code (e.g., "2025EVESEM")
  • studentattendancelist: Array of subject attendance records containing:
    • Subject identification: subjectcode, subjectdesc, individualsubjectcode, subjectid
    • Attendance counts: Ltotalclass, Ltotalpres, Lpercentage (Lecture)
    • Tutorial counts: Ttotalclass, Ttotalpres, Tpercentage
    • Practical counts: Ptotalclass, Ptotalpres, Ppercentage
    • Overall percentage: LTpercantage
• subjectAttendanceData: Keyed by individualsubjectcode (e.g., "15B11EC611")
  • Contains detailed daily attendance records with:
    • datetime: Class date and time
    • classtype: "Lecture", "Tutorial", or "Practical"
    • present: "Present" or "Absent"
    • attendanceby: Faculty name

Example semester codes: "2025EVESEM", "2025ODDSEM"

Sources: src/assets/fakedata.json1-2283

Grades Domain

Contains SGPA/CGPA trends, grade cards, and detailed marks data:

Structure:

• gradesData: Array of semester-wise grade records with:
  • semester_id, registration_id, semester_alias
  • sgpa: Semester GPA value
  • cgpa: Cumulative GPA value
  • semester_credits_earned, semester_credits_registered
  • total_credits_earned
• gradeCardSemesters: Array of semesters for which grade cards are available
• gradeCards: Keyed by semester code
  • gradecard: Array of course grade entries with:
    • Course info: subjectcode, subjectdesc, credits
    • Component grades: ca, mid, tf, pr, lw, att, jc
    • Final result: total, grade
• marksSemesters: Array of semesters with marks PDFs
• marksData: Keyed by semester code
  • courses: Array of courses with:
    • Course details: subjectCode, subjectName
    • Assessment components: sessionalMarks, midTermMarks, endTermMarks, practicalMarks, totalMarks
    • Grade: grade

Sources: src/assets/fakedata.json2284-3281

Exams Domain

Provides exam event metadata and detailed schedules:

Structure:

• examSemesters: Array of semester objects with exam events
• examEvents: Keyed by semester code
  • Array of exam event objects with:
    • exameventid, examtypecode, examtypedescription
    • Date range: fromdate, todate
    • Status: schedulepublished
• examSchedule: Keyed by exam event ID
  • Array of subject exam details with:
    • Subject: subjectcode, subjectdesc
    • Scheduling: examdate, examtime, examtiming
    • Location: room

Sources: src/assets/fakedata.json3282-3719

Subjects Domain

Contains registered subjects, faculty assignments, and credits information:

Structure:

• semestersData: Semester metadata
  • semesters: Array of available semesters
  • latest_semester: Current semester reference
• subjectData: Keyed by semester code
  • subjects: Array of subject objects with:
    • Identification: subjectcode, subjectdesc, individualsubjectcode
    • Credit info: l_credit, t_credit, p_credit, total_credits
    • Faculty: employeename, employeecode
    • Scheduling: ltpclassnumber, subjectcomponentids

Sources: src/assets/fakedata.json3720-4050

Profile Domain

Contains comprehensive student information organized into sections:

Structure:

• personal_info: Basic details (name, DOB, gender, nationality, etc.)
• contact_info: Email, phone, addresses
• family_info: Parent/guardian details
• address_info: Permanent and correspondence addresses
• academic_info: Enrollment, program, branch, admission details

Sources: src/assets/fakedata.json4051-4077

MockWebPortal Implementation

Class Structure

Sources: src/components/MockWebPortal.js3-114

Key Implementation Details

Session Simulation

The constructor creates a minimal session object to match the expected interface:

constructor() {
  this.session = { get_headers: async () => ({}) };
}

This prevents errors in components that check for w.session existence.

Sources: src/components/MockWebPortal.js4-6

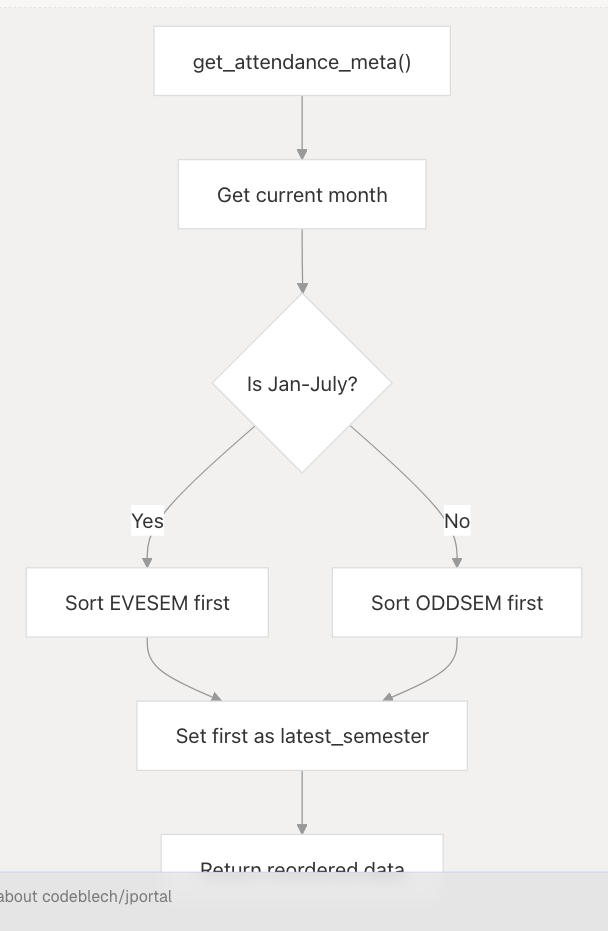

Intelligent Semester Ordering

The get_attendance_meta() method implements date-aware semester ordering to improve demo UX:

This ensures the "current" semester matches the real academic calendar:

• January-July: Even semester (EVESEM) appears as latest
• August-December: Odd semester (ODDSEM) appears as latest

Sources: src/components/MockWebPortal.js12-46

Data Retrieval Pattern

All data methods follow a consistent pattern:

1. Extract semester/event key from the parameter object
2. Look up data in fakeData using the key
3. Return data with appropriate structure or empty fallback

Example from get_attendance():

async get_attendance(header, semester) {
  const semKey = semester.registration_code || semester;
  return fakeData.attendance.attendanceData[semKey] || { studentattendancelist: [] };
}

This pattern handles both object parameters and string keys, providing robust fallback behavior.

Sources: src/components/MockWebPortal.js48-51 src/components/MockWebPortal.js67-70 src/components/MockWebPortal.js81-91

Method-to-Domain Mapping

Sources: src/components/MockWebPortal.js12-114

Integration Points

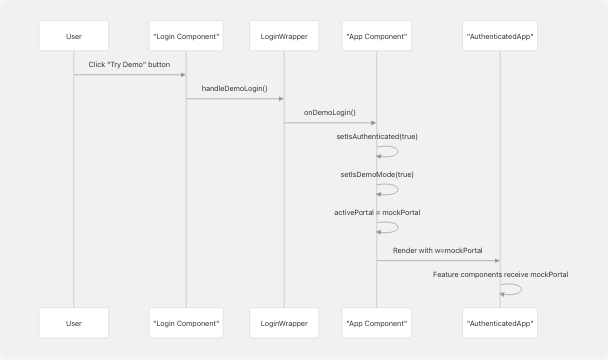

Demo Mode Activation

The demo mode flow involves user interaction in the Login component and state management in App:

Sources: src/components/Login.jsx41-43 src/App.jsx295-298 src/App.jsx250

Portal Selection Logic

The active portal is determined at render time based on the isDemoMode state:

In App.jsx:

const activePortal = isDemoMode ? mockPortal : realPortal;

This selection happens before rendering AuthenticatedApp, and the chosen portal is passed down as the w prop to all feature components.

Sources: src/App.jsx250 src/App.jsx360

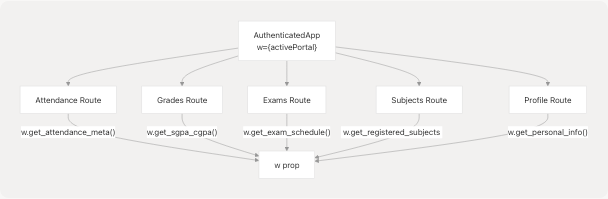

Component Usage Pattern

Feature components receive the portal instance via the w prop and use it identically regardless of whether it's the real or mock portal:

Components never need to check which portal they're using—the interface contract ensures compatibility.

Sources: src/App.jsx110-214

Logout and Mode Switching

The Header component provides logout functionality that clears demo mode:

setIsDemoMode(false);

This triggers a re-render with the realPortal selected, and the user is presented with the Login screen again.

Sources: src/App.jsx105

Mock Data Characteristics

Data Volume

The fakedata.json file contains realistic data volumes:

Sources: src/assets/fakedata.json1-4077

Data Realism

The mock data includes:

• Realistic attendance patterns: Mix of Present/Absent with varying percentages (66-92%)
• Multiple class types: Lectures, Tutorials, Practicals with different attendance counts
• Faculty names: Indian names matching JIIT faculty patterns (e.g., "HARLEEN KAUR", "RUBY BENIWAL")
• Academic terminology: Actual JIIT subject codes and descriptions
• Date patterns: Dates distributed throughout semester months
• Grade distributions: Realistic SGPA/CGPA values and grade patterns
• Subject diversity: Mix of core subjects, electives, and lab courses

Sources: src/assets/fakedata.json287-503 src/assets/fakedata.json2284-2400

Extensibility

To add new mock data:

1. Identify the domain (attendance, grades, exams, subjects, profile)
2. Follow the existing structure within that domain
3. Add semester-keyed entries for semester-specific data
4. Update MockWebPortal methods if new API endpoints are needed
5. Ensure key consistency (use registration_code or similar as keys)

The system's pattern-based design makes it straightforward to extend with additional semesters, subjects, or data types.

Sources: src/components/MockWebPortal.js1-114
