Build & Deployment

This document covers the build pipeline, production optimization, Progressive Web App (PWA) configuration, and deployment process for JPortal. It explains how source code is transformed into production-ready assets and deployed to GitHub Pages.

For detailed information about PWA-specific features like service workers, offline caching, and installation capabilities, see PWA Configuration. For development commands, local testing, and contribution workflows, see Development Workflow.

Build System Architecture

JPortal uses Vite as its build tool, providing fast development server startup, Hot Module Replacement (HMR), and optimized production builds. The build system is configured via vite.config.ts and integrates with TypeScript, React, and PWA tooling.

Sources: jportal/vite.config.ts1-100 jportal/package.json1-67

Build Tool Stack

Sources: jportal/package.json45-65 jportal/vite.config.ts14-74

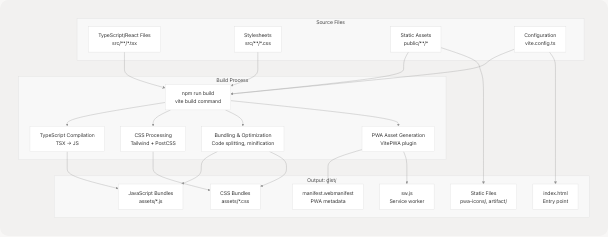

Build Pipeline Flow

Sources: jportal/vite.config.ts9-99 jportal/package.json8-13

NPM Scripts

The build and deployment process is orchestrated through npm scripts defined in package.json:

Sources: jportal/package.json7-13

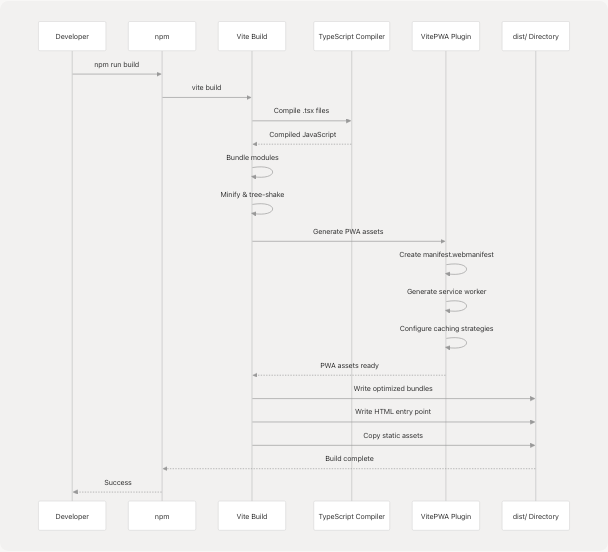

Build Command Execution

Sources: jportal/package.json9 jportal/vite.config.ts1-99

Vite Configuration

The core build configuration is defined in vite.config.ts. Key settings include:

Base Configuration

// Base path for deployed application
base: "/jportal/"

This sets the base URL for the deployed application on GitHub Pages. All asset paths are prefixed with /jportal/.

Sources: jportal/vite.config.ts13 jportal/package.json6

Plugins

Sources: jportal/vite.config.ts14-74

Path Aliases

resolve: {
  alias: {
    "@": path.resolve(__dirname, "./src")
  }
}

This allows imports like import { Button } from "@/components/ui/button" instead of relative paths.

Sources: jportal/vite.config.ts75-79

Development Server Proxy

The dev server includes a proxy configuration for Cloudflare Analytics API:

server: {
  proxy: {
    "/api/cloudflare": {
      target: "https://api.cloudflare.com",
      changeOrigin: true,
      rewrite: (path) => path.replace(/^\/api\/cloudflare/, ""),
      configure: (proxy, options) => {
        proxy.on("proxyReq", (proxyReq, req, res) => {
          const token = env.VITE_CLOUDFLARE_API_TOKEN;
          if (token) {
            proxyReq.setHeader("Authorization", `Bearer ${token}`);
          }
        });
      }
    }
  }
}

This proxies requests from /api/cloudflare/* to https://api.cloudflare.com/* with authentication headers injected from environment variables.

Sources: jportal/vite.config.ts80-97

PWA Build Configuration

The VitePWA plugin generates Progressive Web App assets during the build process. High-level configuration:

Service Worker Strategy

Sources: jportal/vite.config.ts18-22

Workbox Caching Configuration

workbox: {
  maximumFileSizeToCacheInBytes: 30 * 1024 ** 2, // 30MB
  globPatterns: ["**/*.{js,css,html,ico,png,svg,whl}"]
}

This configuration allows caching large files like Python wheel files (.whl) required for the PDF parsing functionality via Pyodide.

Sources: jportal/vite.config.ts23-25

Critical Pre-cached Assets

The following assets are explicitly pre-cached for offline functionality:

Sources: jportal/vite.config.ts38-42 jportal/index.html17

For detailed PWA configuration including manifest structure and caching strategies, see PWA Configuration.

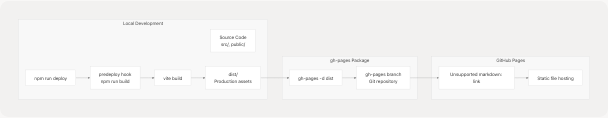

Deployment Process

JPortal is deployed to GitHub Pages using the gh-pages npm package. The deployment is automated through npm scripts.

Sources: jportal/package.json6-13

Deployment Steps

1. Developer triggers deployment:

   npm run deploy

2. Pre-deploy hook executes:

   • The predeploy script automatically runs before deploy
   • Executes npm run build to create fresh production build
   • Ensures dist/ folder contains latest code

3. gh-pages publishes:

   • gh-pages -d dist command runs
   • Creates/updates gh-pages branch in Git repository
   • Commits entire dist/ folder contents to this branch
   • Pushes to GitHub remote

4. GitHub Pages serves:

   • GitHub detects changes to gh-pages branch
   • Deploys static files to https://codeblech.github.io/jportal
   • Application accessible at this URL

Sources: jportal/package.json12-13

Deployment Configuration

Sources: jportal/package.json6 jportal/vite.config.ts13

Build Artifacts Structure

After running npm run build, the dist/ directory contains:

dist/
├── index.html                    # Main HTML entry point
├── assets/
│   ├── index-[hash].js          # Main application bundle
│   ├── index-[hash].css         # Compiled stylesheets
│   └── [component]-[hash].js    # Code-split chunks
├── manifest.webmanifest          # PWA manifest
├── sw.js                         # Service worker
├── workbox-[hash].js            # Workbox runtime
├── pwa-icons/
│   ├── circle.ico               # Favicon
│   └── j-yuvraj.svg             # PWA icon
└── artifact/
    ├── jiit_marks-*.whl         # Python wheel for marks parsing
    └── PyMuPDF-*.whl            # Python wheel for PDF parsing

Sources: jportal/vite.config.ts23-73 jportal/index.html5-71

HTML Entry Point

The production index.html is generated from the source template with:

• Base path injection: <base href="/jportal/">
• Asset path rewriting: All URLs prefixed with /jportal/
• Minification: Whitespace removed, comments stripped
• Module script injection: Bundled JavaScript files linked

Sources: jportal/index.html1-25

JavaScript Bundles

Vite creates optimized JavaScript bundles with:

• Code splitting: Dynamic imports create separate chunks
• Tree shaking: Unused exports removed
• Minification: UglifyJS/Terser compression
• Hash-based naming: Cache busting via content hashes
• Source maps: Generated for production debugging (optional)

Sources: jportal/vite.config.ts9

CSS Bundles

CSS processing includes:

• Tailwind CSS compilation: Utility classes extracted
• PostCSS transformations: Vendor prefixes, polyfills
• Minification: Whitespace and comment removal
• CSS custom properties: Theme variables preserved
• Hash-based naming: Cache invalidation

Sources: jportal/package.json47-60

External Asset Loading

JPortal loads several external assets that are critical for functionality:

Google Fonts

Fonts are loaded dynamically based on the active theme using the DynamicFontLoader component:

// Extracts font family from CSS value
extractFontFamily(fontValue: string): string | null

// Builds Google Fonts CSS URL
buildFontCssUrl(family: string, weights: string[]): string

// Injects <link> tag into document head
loadGoogleFont(family: string, weights: string[]): void

Default font weights loaded: 400, 500, 600, 700

Sources: jportal/src/utils/fonts.ts1-35 jportal/src/components/DynamicFontLoader.tsx1-34

Pyodide Runtime

The Pyodide JavaScript runtime is loaded from CDN in the HTML:

<script src="https://cdn.jsdelivr.net/pyodide/v0.23.4/full/pyodide.js"></script>

This enables running Python code in the browser for PDF parsing functionality in the Grades module.

Sources: jportal/index.html17

Cloudflare Web Analytics

Analytics tracking is injected via Cloudflare's beacon script:

<script defer src='https://static.cloudflareinsights.com/beacon.min.js'
        data-cf-beacon='{"token": "bd095dd9dc8b402280735bc9a67d868b"}'>
</script>

Sources: jportal/index.html14-16

Build Optimization Techniques

Code Splitting Strategy

JPortal uses React Router's lazy loading for route-based code splitting:

This reduces initial bundle size and improves Time to Interactive (TTI).

Sources: jportal/vite.config.ts9

Asset Optimization

Sources: jportal/vite.config.ts14-25

Caching Strategy

Three-tier caching approach:

1. Browser cache: Hash-based asset names enable long-term caching
2. Service worker cache: Offline-first caching via Workbox
3. CDN cache: External assets cached by providers

Sources: jportal/vite.config.ts23-37

Environment Variables

The build process supports environment variables through Vite's loadEnv:

const env = loadEnv(mode, process.cwd(), '');

Currently used variables:

Environment variables prefixed with VITE_ are exposed to client-side code.

Sources: jportal/vite.config.ts10-89 .gitignore36

Ignored Files

The .gitignore file excludes build artifacts and temporary files:

Sources: .gitignore1-36

Performance Metrics

Typical build output characteristics:

Sources: jportal/vite.config.ts24

Build Configuration Files

Key configuration files in the repository:

Sources: jportal/vite.config.ts1-100 jportal/package.json1-67
