FastAPI Application

Purpose and Scope

This document details the main FastAPI application structure defined in api/main.py It covers the application initialization, the modular router architecture, and how the 9 service-specific routers are mounted to create the API surface. For details on individual router implementations and the services they expose, see Service Integration Routers. For information about project dependencies and the LargeLanguageModel abstraction, see Project Structure and Dependencies.

Sources: api/main.py1-43

Application Initialization

The FastAPI application is instantiated in api/main.py13 with basic metadata:

app = FastAPI(title="Agentic Browser API", version="0.1.0")

The application uses a logger configured through the core.config module (api/main.py3-10). This logger instance is used throughout the application for consistent logging behavior.

Sources: api/main.py1-13

Router Architecture

Modular Router Design

The application follows a modular router pattern where each service integration is implemented as a separate APIRouter instance in the routers/ package. This design provides:

• Separation of concerns: Each router handles a distinct service domain
• Independent development: Routers can be developed and tested in isolation
• Clean namespace organization: URL prefixes clearly indicate service boundaries
• Easy extensibility: New services can be added by creating a new router module

The routers are imported from the routers package (api/main.py16-26) and mounted onto the main application using the include_router method with distinct URL prefixes.

Sources: api/main.py16-36

Mounted Routers Overview

The application mounts 9 routers, each serving a specific integration or functionality:

Sources: api/main.py16-36 routers/__init__.py1-25

Router Mounting Structure

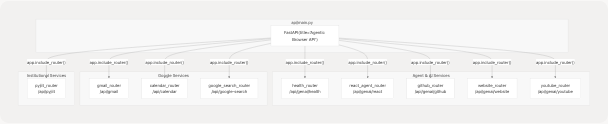

Diagram: FastAPI Router Mounting Architecture

Each router is mounted using the pattern:

app.include_router(router_instance, prefix="/api/path")

This creates a hierarchical URL structure where all endpoints defined in the router are automatically prefixed with the specified path.

Sources: api/main.py28-36

URL Prefix Convention

The application uses two primary URL prefix patterns:

/api/genai/* Prefix

Routes under this prefix are AI/agent-centric services that typically involve LLM processing or intelligent automation:

• /api/genai/health - Application health monitoring
• /api/genai/react - React agent execution
• /api/genai/github - GitHub repository analysis
• /api/genai/website - Intelligent website content extraction
• /api/genai/youtube - YouTube content analysis

/api/<service> Prefix

Routes under this pattern are direct service integrations without AI mediation:

• /api/gmail - Gmail API operations
• /api/calendar - Google Calendar operations
• /api/google-search - Web search functionality
• /api/pyjiit - JIIT portal operations

Sources: api/main.py28-36

Router Module Organization

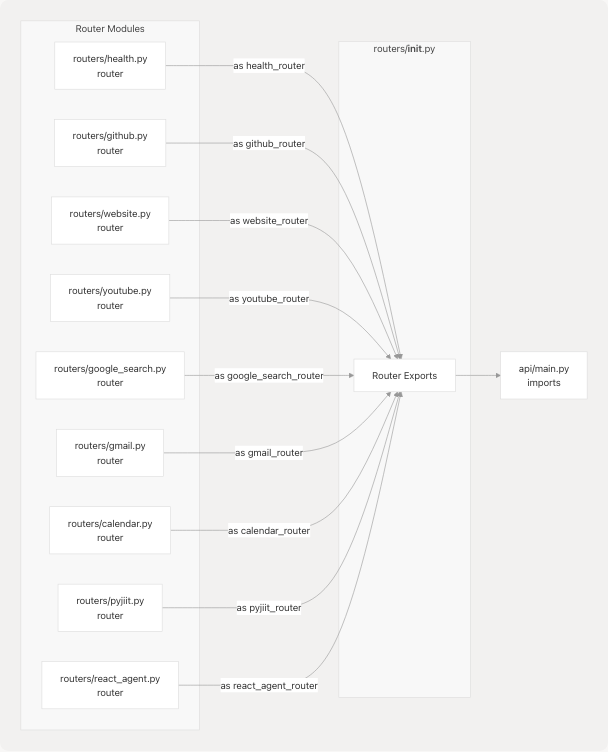

Diagram: Router Package Structure

The routers/__init__.py module (routers/__init__.py1-25) serves as a central export point that:

1. Imports the router instance from each router module
2. Aliases each router with a descriptive suffix (e.g., router as github_router)
3. Exports all routers through the __all__ list for clean imports

This pattern allows the main application to import all routers in a single statement:

from routers import (
    github_router,
    health_router,
    # ... other routers
)

Sources: routers/__init__.py1-25 api/main.py16-26

Root Endpoint

The application provides a simple root endpoint at / (api/main.py40-42):

@app.get("/")
def root():
    return {"name": app.title, "version": app.version}

This endpoint returns basic application metadata and can be used for quick connectivity checks.

Sources: api/main.py40-42

Request Flow Architecture

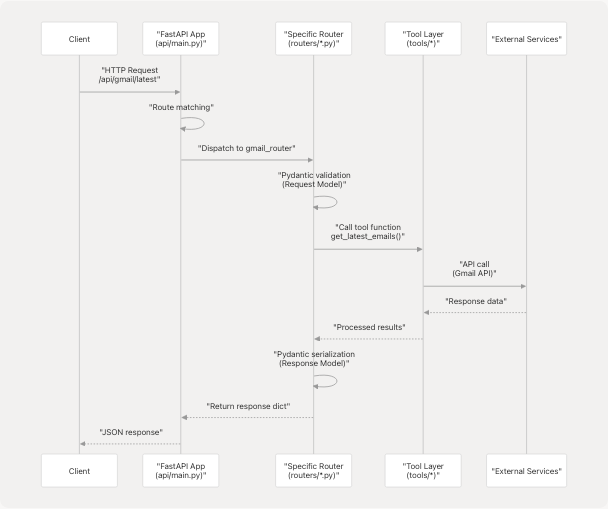

Diagram: HTTP Request Processing Flow

The request processing follows this pattern:

1. Route Matching: FastAPI matches the incoming URL to a router prefix
2. Router Dispatch: The request is handed to the appropriate router
3. Request Validation: Pydantic models validate incoming request bodies
4. Tool Invocation: Router calls the appropriate tool/service function
5. External Integration: Tool functions interact with external services
6. Response Serialization: Results are formatted using response models
7. JSON Response: FastAPI serializes and returns the response

Sources: api/main.py28-36 routers/gmail.py37-60

Router Implementation Pattern

Each router module follows a consistent structure. Example from the Gmail router (routers/gmail.py1-60):

Request Models: Define input schemas using Pydantic

class UnreadRequest(TokenRequest):
    access_token: str
    max_results: Optional[int] = 10

Endpoint Definition: Use FastAPI decorators and dependency injection

@router.post("/unread", response_model=dict)
async def list_unread_messages(request: UnreadRequest):
    # Implementation

Error Handling: Catch exceptions and return appropriate HTTP errors

except Exception as e:
    logger.exception("Error listing unread messages: %s", e)
    raise HTTPException(status_code=500, detail=str(e))

Tool Integration: Delegate to service-specific tool functions

results = list_unread(request.access_token, max_results=request.max_results)

This pattern ensures consistency across all routers while allowing flexibility in implementation details.

Sources: routers/gmail.py1-60 routers/pyjiit.py1-54

Service Integration Categories

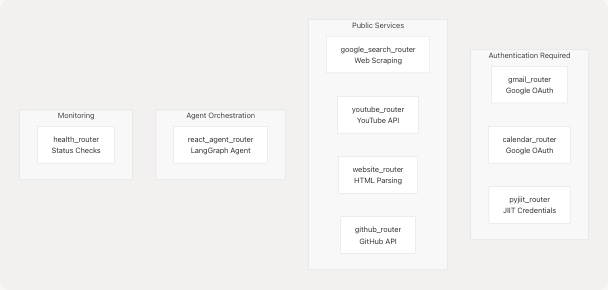

Diagram: Router Service Categories

The routers are organized into functional categories:

Authentication-Required Services: Require user credentials or OAuth tokens

• gmail_router: Requires Google OAuth access token in request body
• calendar_router: Requires Google OAuth access token in request body
• pyjiit_router: Requires JIIT webportal credentials

Public Services: Can be called without user authentication

• google_search_router: Web search and scraping
• youtube_router: Public video metadata and transcripts
• website_router: HTML to Markdown conversion
• github_router: Public repository analysis

Agent Orchestration: Coordinates LLM-based intelligent task execution

• react_agent_router: Executes React agent pattern with dynamic tool selection

Monitoring: Application health and status

• health_router: Health check endpoints

Sources: api/main.py28-36 routers/gmail.py15-34 routers/pyjiit.py17-38

Extension Points

The modular router architecture provides clear extension points:

Adding New Routers:

1. Create a new router module in routers/ (e.g., routers/new_service.py)
2. Define an APIRouter instance named router
3. Implement endpoints with appropriate request/response models
4. Export the router in routers/__init__.py with a descriptive alias
5. Mount the router in api/main.py using app.include_router()

Extending Existing Routers:

• Add new endpoint functions to the router module
• Define additional Pydantic models for new request/response schemas
• Implement corresponding tool functions in the tools/ package

This architecture keeps the main application file minimal and maintainable while allowing unlimited service expansion.

Sources: api/main.py16-36 routers/__init__.py1-25
