Extension Architecture Overview

Purpose and Scope

This document provides an architectural overview of the browser extension component of the Agentic Browser system. The extension operates as a standalone subsystem that provides frontend browser automation capabilities through a TypeScript-based browser extension (built with WXT framework) paired with a Python Flask backend service.

The extension enables users to perform AI-assisted browser automation directly from the browser UI, independent of the main API server. For detailed information about specific components:

• Background script message handling: see 5.2
• Browser automation tool implementations: see 5.3
• Flask backend service details: see 5.4

This page focuses on the overall architecture, component relationships, and how the extension integrates with the broader Agentic Browser ecosystem.

High-Level Component Architecture

The browser extension follows a three-tier architecture: a TypeScript frontend running in the browser, a message-passing system for inter-component communication, and a Python Flask backend providing AI and authentication services.

Sources: High-level system diagrams (Diagram 4: Browser Extension System)

Frontend Architecture (TypeScript/WXT)

The extension frontend is built using the WXT framework, which provides a modern development experience for cross-browser extensions. The architecture consists of three primary components:

Background Script

The background script (extension/background.ts) serves as the central message router and orchestrator for the extension. It runs persistently in the browser's background context and handles:

• Message Dispatching: Routes incoming messages from the UI to appropriate handlers
• Browser API Coordination: Manages interactions with browser.tabs, browser.scripting, and browser.storage APIs
• Agent Tool Execution: Dispatches execution requests to specialized tool handlers
• State Management: Maintains extension-wide state using browser storage APIs

The background script processes six primary message types:

• EXECUTE_AGENT_TOOL: Execute specific browser automation tools
• ACTIVATE_AI_FRAME: Enable AI assistant UI overlay
• GET_ACTIVE_TAB: Retrieve current tab information
• EXECUTE_ACTION: Execute DOM manipulation actions
• GEMINI_REQUEST: Forward requests to Flask backend
• RUN_GENERATED_AGENT: Execute generated automation scripts

Content Scripts

Content scripts (extension/content/) are injected into web pages and provide the bridge between the background script and the DOM. They:

• DOM Access: Execute JavaScript in the context of web pages
• Element Manipulation: Perform clicks, form fills, and other DOM operations
• Page Information Extraction: Retrieve page content, URLs, and structural information
• Security Boundary: Operate with restricted permissions for safe execution

Content scripts are injected dynamically using browser.scripting.executeScript to maintain security and avoid persistent injection overhead.

UI Layer

The extension UI (extension/entrypoints/) is built with React and provides:

• User Interface: Extension popup and side panels
• User Input Collection: Forms for goals, constraints, and configuration
• Result Display: Visualization of automation results and agent responses
• Settings Management: Configuration for API keys and preferences

Sources: High-level system diagrams (Diagram 4), extension/.gitignore1-27

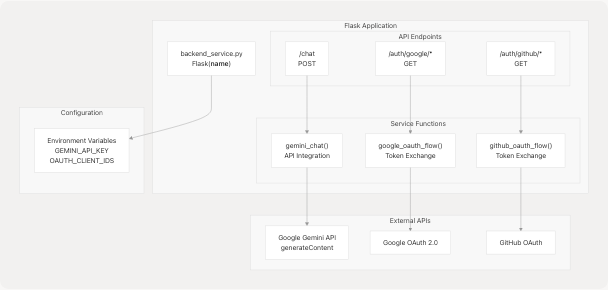

Backend Service Architecture (Python/Flask)

The Python Flask backend (extension/backend_service.py) operates independently from the main API server and provides specialized services for the extension:

Key Responsibilities

The backend runs as a separate process from the main API server, typically on a different port (e.g., http://localhost:5000). This separation provides:

• Independent Deployment: Extension backend can run without the main API server
• Simplified Authentication: Direct API key management without complex token systems
• Resource Isolation: Extension operations don't impact main server performance
• Security Boundary: Separate security context for browser-specific operations

Sources: High-level system diagrams (Diagram 4), extension/backend_service.py (inferred)

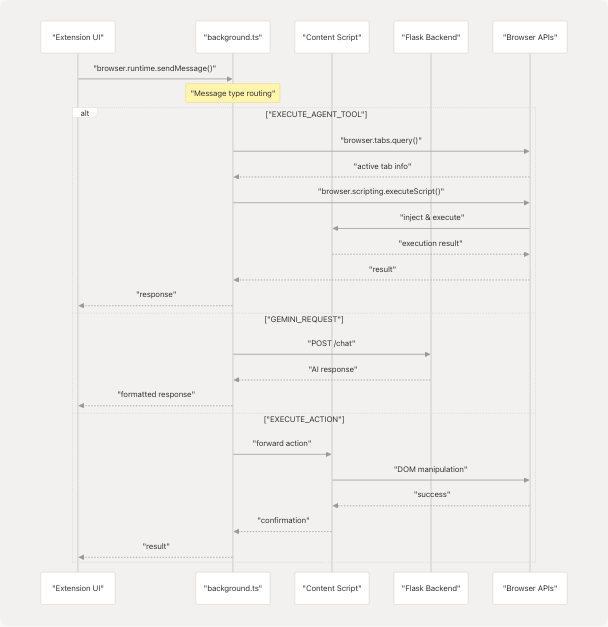

Message Passing System

The extension uses Chrome's message passing API (browser.runtime.sendMessage) to enable communication between components. The message flow follows a request-response pattern:

Message Type Taxonomy

Sources: High-level system diagrams (Diagram 4: Browser Extension System)

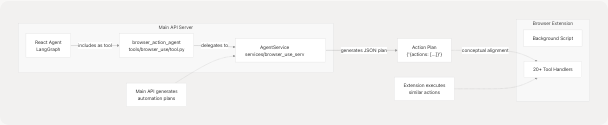

Integration with Main System

While the extension operates independently, it shares conceptual alignment with the main Agentic Browser system through the browser_action_agent tool:

The browser_action_agent tool (tools/browser_use/tool.py43-48) in the main API system generates structured action plans that conceptually align with the tool handlers implemented in the extension:

• Main API: Generates JSON action plans using LLM reasoning
• Extension: Executes actions directly in the browser
• Shared Vocabulary: Both use similar action types (click, type, navigate, fill_form, etc.)

However, these systems operate independently:

• The extension does not consume action plans from the main API
• The extension has its own Flask backend for AI operations
• Tool handlers in the extension are independently implemented

Sources: tools/browser_use/tool.py1-49 tools/browser_use/__init__.py1-4

Technology Stack

Frontend Stack

Backend Stack

Build and Development

The extension uses modern JavaScript tooling:

• Package Manager: npm/pnpm
• Build Output: .output directory (extension/.gitignore11)
• Development Server: WXT dev server with hot reload
• Build Artifacts: .wxt directory (extension/.gitignore14)
• Configuration: web-ext.config.ts (extension/.gitignore15)

Sources: extension/.gitignore1-27

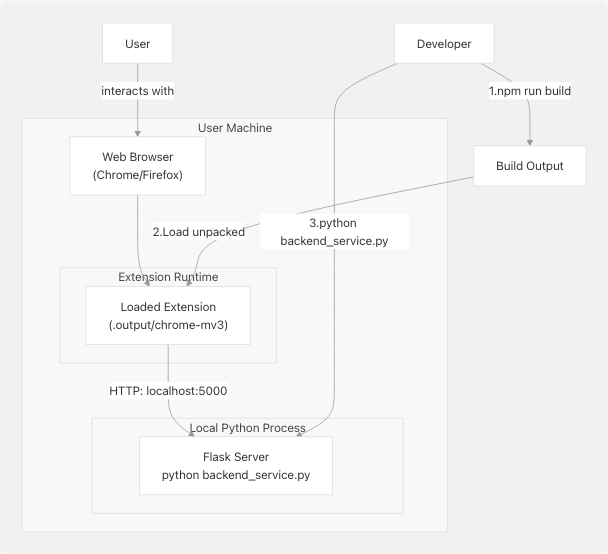

Deployment Model

The extension follows a two-process deployment model:

Installation Steps:

1. Build Extension: Run npm run build to compile TypeScript and bundle extension
2. Load Extension: Load unpacked extension from .output/chrome-mv3 in browser
3. Start Backend: Run python extension/backend_service.py to start Flask server
4. Configure: Set API keys in extension settings or environment variables

This deployment model allows:

• Development Mode: Hot reload with npm run dev
• Production Mode: Optimized build with minification
• Cross-Browser Support: Separate builds for Chrome and Firefox
• Backend Flexibility: Flask backend can run on any port/host

Sources: extension/.gitignore11-15

Security Considerations

The extension implements several security boundaries:

The separation between frontend (browser context) and backend (local server) provides defense in depth: even if the extension is compromised, API keys in the Flask backend remain protected by operating system security boundaries.

Sources: High-level system diagrams (Diagram 4)
