Agent Tool System

Purpose and Scope

This document describes the agent tool system that provides the React Agent with capabilities to interact with external services and data sources. The system is implemented in agents/react_tools.py and includes 11+ specialized tools for web search, GitHub analysis, email management, calendar operations, and browser automation. Each tool is defined as a LangChain StructuredTool with a Pydantic input schema and an async implementation function.

For information about how these tools are integrated into the React Agent workflow, see React Agent Architecture. For details on how tools are dynamically assembled based on authentication context, see Dynamic Tool Construction and Context Management.

Tool Architecture Overview

The agent tool system follows a three-layer pattern: Input Schema → Implementation Function → StructuredTool Registration. Each tool is defined by a Pydantic model that validates inputs, an async function that executes the tool's logic, and a StructuredTool object that binds them together for LangChain integration.

Diagram: Tool Architecture Layers

Sources: agents/react_tools.py1-720

Tool Categories and Catalog

The system provides 11+ tools organized into five functional categories:

Diagram: Tool Taxonomy by Function

Sources: agents/react_tools.py524-720

Tool Catalog Table

Sources: agents/react_tools.py524-720

Tool Input Schemas

Each tool defines its input parameters using Pydantic BaseModel classes. These schemas provide type validation, default values, and descriptive field metadata that LLMs use to understand tool usage.

Diagram: Input Schema Hierarchy

Sources: agents/react_tools.py61-210 tools/browser_use/tool.py12-25

Key Schema Patterns

1. URL Tools (GitHubToolInput, WebsiteToolInput, YouTubeToolInput): Accept HttpUrl for validation, question string, and optional chat_history list.
2. Gmail Tools: All include optional access_token field. If omitted, the tool attempts to use a pre-configured token provided during tool construction via functools.partial.
3. Calendar Tools: Similar to Gmail, include optional access_token and use bounded max_results parameters.
4. PyJIIT Tool: Accepts optional registration_code (semester identifier) and session_payload (encrypted login session).
5. Browser Tool: Accepts freeform goal string, optional target_url, and structured dom_structure/constraints dictionaries.

Sources: agents/react_tools.py61-210 tools/browser_use/tool.py12-25

Tool Implementation Pattern

All tool implementations follow a consistent async pattern with error handling and context management.

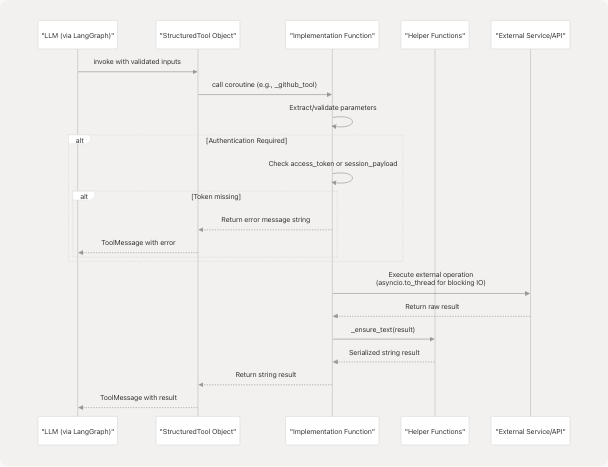

Diagram: Tool Execution Flow

Sources: agents/react_tools.py217-522

Implementation Function Structure

Each implementation function follows this pattern:

async def _<tool_name>_tool(
    # Required parameters
    param1: Type,
    # Optional parameters with defaults
    param2: Type = default,
    # Context parameters (injected via partial)
    *,
    _default_token: Optional[str] = None,
) -> str:
    # 1. Resolve authentication/context
    token = param_token or _default_token
    if not token:
        return "Error: authentication required..."

    # 2. Validate/bound numeric parameters
    bounded = max(min_val, min(max_val, param2))

    # 3. Execute blocking IO in thread pool
    try:
        result = await asyncio.to_thread(external_function, ...)
        return _ensure_text(result)
    except Exception as exc:
        return f"Failed to ...: {exc}"

Key Implementation Details:

1. Authentication Resolution agents/react_tools.py285-290: Tools check access_token or session_payload parameter first, falling back to _default_token or _default_payload injected via functools.partial.
2. Error Handling agents/react_tools.py294-300: All exceptions are caught and returned as descriptive error strings rather than raised. This allows the LLM to understand failures and potentially retry or ask for clarification.
3. Blocking IO Management agents/react_tools.py229: Blocking operations (LLM chain invocations, API calls) are wrapped in asyncio.to_thread() to avoid blocking the event loop.
4. Result Serialization agents/react_tools.py35-44: The _ensure_text() helper converts any result type (strings, dicts, objects) into JSON or string representation for LLM consumption.
5. Chat History Formatting agents/react_tools.py47-58: The _format_chat_history() helper normalizes conversation history from various formats into a consistent string representation.

Sources: agents/react_tools.py35-58 agents/react_tools.py217-522

Tool-Specific Implementation Details

Web Content Tools

GitHub Agent agents/react_tools.py217-230:

• Calls convert_github_repo_to_markdown() to fetch and process repository
• Passes repository content, tree structure, and summary to github_chain LLM
• Formats chat history and invokes chain in thread pool

Web Search Agent agents/react_tools.py233-247:

• Executes web_search_pipeline() with bounded max_results (1-10)
• Formats results as URL + snippet pairs
• Returns concatenated summaries (max 320 chars per snippet)

Website Agent agents/react_tools.py250-262:

• Fetches webpage via markdown_fetcher() (HTML to Markdown)
• Invokes website_chain with question and markdown content
• Supports chat history for contextual Q&A

YouTube Agent agents/react_tools.py265-276:

• Delegates to get_youtube_answer() with URL and question
• Uses youtube_chain to analyze video transcripts
• Formats chat history for context

Gmail Tools

Gmail Fetch agents/react_tools.py279-300:

• Retrieves recent emails via get_latest_emails()
• Bounds max_results to 1-25
• Returns JSON structure with message list

Gmail Send agents/react_tools.py303-331:

• Validates recipient email via EmailStr type
• Calls gmail_send_email() with token, recipient, subject, body
• Returns message ID on success

Gmail List Unread agents/react_tools.py334-355:

• Calls list_unread() with bounded max_results (1-50)
• Returns empty message if no unread emails found

Gmail Mark Read agents/react_tools.py358-375:

• Takes message_id parameter
• Calls mark_read() API function
• Returns confirmation message

Calendar Tools

Calendar Get Events agents/react_tools.py378-399:

• Fetches upcoming events via get_calendar_events()
• Bounds max_results to 1-25
• Returns JSON structure with event list

Calendar Create Event agents/react_tools.py402-435:

• Validates ISO 8601 datetime strings via Pydantic schema
• Calls create_calendar_event() with summary, times, description
• Returns event htmlLink on success

PyJIIT Tool

PyJIIT Attendance agents/react_tools.py438-521:

• Extracts raw_response from nested session payload structure
• Creates WebportalSession and Webportal instances
• Uses hardcoded semester mapping dictionary (2026EVESEM → JIRUM25100000001, etc.)
• Defaults to 2025ODDSEM if no registration code specified
• Fetches attendance meta, constructs Semester object, retrieves attendance data
• Processes studentattendancelist to extract subject codes and percentages
• Strips bracketed codes from subject names using regex

Browser Action Tool

Browser Action Agent tools/browser_use/tool.py27-40:

• Instantiates AgentService from services.browser_use_service
• Calls generate_script() with goal, URL, DOM structure, constraints
• Returns structured JSON action plan for browser automation
• See Browser Use Agent and Script Generation for details

Sources: agents/react_tools.py217-521 tools/browser_use/tool.py1-49

StructuredTool Registration

Each tool is registered as a LangChain StructuredTool object that binds the input schema to the implementation coroutine.

Tool Registration Pattern:

# Example: github_agent registration
github_agent = StructuredTool(
    name="github_agent",
    description="Answer questions about a GitHub repository using repository contents.",
    coroutine=_github_tool,
    args_schema=GitHubToolInput,
)

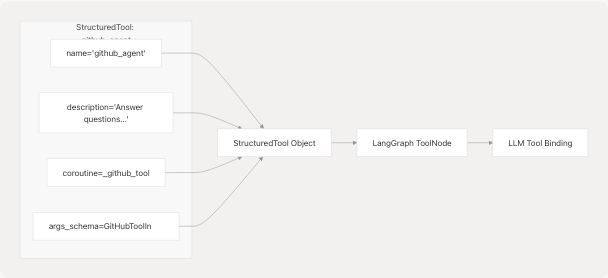

Diagram: StructuredTool Components

Tool Definitions:

Sources: agents/react_tools.py524-606 tools/browser_use/tool.py43-48

Dynamic Tool Assembly with build_agent_tools()

The build_agent_tools() function dynamically constructs the tool list based on available authentication context. Tools requiring credentials are only included when those credentials are provided.

Function Signature:

def build_agent_tools(context: Optional[Dict[str, Any]] = None) -> list[StructuredTool]

Diagram: Dynamic Tool Construction Logic

Implementation Details:

1. Context Extraction agents/react_tools.py610-614:

   • Extracts google_access_token (with typo fallback google_acces_token)
   • Extracts pyjiit_login_response (with typo fallback pyjiit_login_responce)

2. Base Tools agents/react_tools.py616-622:

   • Always includes: github_agent, websearch_agent, website_agent, youtube_agent, browser_action_agent
   • These tools require no authentication

3. Conditional Gmail Tools agents/react_tools.py624-665:

   • If google_token present, creates new StructuredTool instances wrapping original tools
   • Uses functools.partial to inject _default_token=google_token into implementation coroutines
   • Preserves original name, description, and args_schema

4. Conditional Calendar Tools agents/react_tools.py666-684:

   • Same pattern as Gmail tools
   • Requires same google_token for Google Calendar API access

5. Conditional PyJIIT Tool agents/react_tools.py686-697:

   • If pyjiit_payload present, wraps pyjiit_agent with _default_payload=pyjiit_payload

6. Default Tool List agents/react_tools.py702:

   • AGENT_TOOLS = build_agent_tools() creates default list with no authentication

Example Usage:

# No authentication - only base tools
tools = build_agent_tools()  # 5 tools

# With Google OAuth token - adds Gmail + Calendar
tools = build_agent_tools({
    "google_access_token": "ya29.a0..."
})  # 11 tools

# With PyJIIT session - adds PyJIIT
tools = build_agent_tools({
    "pyjiit_login_response": {"session_payload": {...}}
})  # 6 tools

# With both - full tool set
tools = build_agent_tools({
    "google_access_token": "ya29.a0...",
    "pyjiit_login_response": {"session_payload": {...}}
})  # 12 tools

Sources: agents/react_tools.py609-699

Module Exports and Integration

The module exports all tools and the builder function via __all__ agents/react_tools.py704-720:

__all__ = [
    "AGENT_TOOLS",           # Default tool list
    "build_agent_tools",     # Dynamic builder function
    "github_agent",          # Individual tool exports...
    "websearch_agent",
    "website_agent",
    "youtube_agent",
    "gmail_agent",
    "gmail_send_agent",
    "gmail_list_unread_agent",
    "gmail_mark_read_agent",
    "calendar_agent",
    "calendar_create_event_agent",
    "pyjiit_agent",
    "browser_action_agent",
]

Integration Points:

1. GraphBuilder agents/react_agent.py138-151:

   • Calls build_agent_tools(context) when context dictionary provided
   • Falls back to AGENT_TOOLS constant if no context
   • Passes tool list to _create_agent_node() for LLM binding

2. ReactAgentService routers/react_agent.py30-35:

   • Constructs context dictionary with google_access_token and pyjiit_login_response
   • Passes context to GraphBuilder for dynamic tool construction
   • See React Agent Architecture for details

Sources: agents/react_tools.py704-720 agents/react_agent.py138-151 routers/react_agent.py18-36
