Service Layer Architecture

Purpose and Scope

This document explains the Service Layer pattern used throughout the Agentic Browser backend. Services encapsulate business logic, coordinate between API routers and tool modules, and provide consistent error handling and logging. This layer sits between the FastAPI routers (documented in 3.3) and the reusable tool modules (documented in 3.5).

For information about agent-specific service orchestration, see the React Agent Architecture (4.1).

Service Layer Role

The service layer implements a three-tier architecture pattern:

Sources: services/github_service.py1-40 services/website_service.py1-53 services/youtube_service.py1-35 services/google_search_service.py1-31 services/gmail_service.py1-56 services/calendar_service.py1-38 services/pyjiit_service.py1-125 services/react_agent_service.py1-92

Separation of Concerns

Layer	Responsibility	Example Code Entity
Router	HTTP request/response handling, input validation, authentication checks	`@router.post("/answer")`
Service	Business logic orchestration, error handling, logging, data transformation	`GitHubService.generate_answer()`
Tool	Reusable operations, external API calls, data processing	`convert_github_repo_to_markdown()`

This separation enables:

Testability: Services can be unit tested independently of FastAPI infrastructure
Reusability: Tools can be shared across services and agent tools
Maintainability: Changes to business logic don't affect HTTP handling
Composability: Services coordinate multiple tools for complex workflows

Service Class Structure

Common Service Pattern

All services follow a consistent structure:

Sources: services/github_service.py10-40 services/website_service.py8-53 services/youtube_service.py7-35 services/google_search_service.py7-31 services/gmail_service.py10-56 services/calendar_service.py8-38 services/pyjiit_service.py13-125 services/react_agent_service.py14-92

Service Categories

Services can be categorized by their interaction patterns:

Category	Services	Tool Integration	LLM Integration
LLM-Driven Q&A	`GitHubService`, `WebsiteService`, `YouTubeService`	Content extraction tools	Prompt chains with `get_chain()` or similar
Direct API Wrapper	`GmailService`, `CalendarService`, `GoogleSearchService`	Tool functions that wrap external APIs	None (agent tools use LLM separately)
Session Management	`PyjiitService`	Custom API client with encryption	None
Agent Orchestration	`ReactAgentService`	Agent tools via `GraphBuilder`	LLM called by LangGraph

Error Handling and Logging

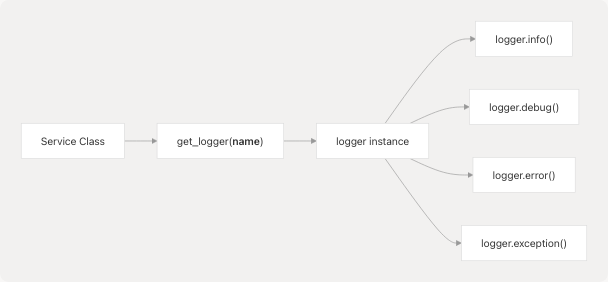

Structured Logging Pattern

All services obtain a logger using the get_logger(__name__) pattern from the core module:

Example: GitHubService logging

services/github_service.py3 imports get_logger
services/github_service.py7 creates logger: logger = get_logger(__name__)
services/github_service.py38 logs errors: logger.error(f"Error generating answer with LLM: {e}")

Example: ReactAgentService logging

services/react_agent_service.py8 imports get_logger
services/react_agent_service.py11 creates logger
services/react_agent_service.py63-73 logs detailed message history with structured info
services/react_agent_service.py82 logs response content
services/react_agent_service.py86 logs exceptions

Sources: services/github_service.py3-38 services/website_service.py1-51 services/youtube_service.py1-33 services/google_search_service.py1-29 services/gmail_service.py1-54 services/calendar_service.py1-36 services/pyjiit_service.py4-123 services/react_agent_service.py8-86

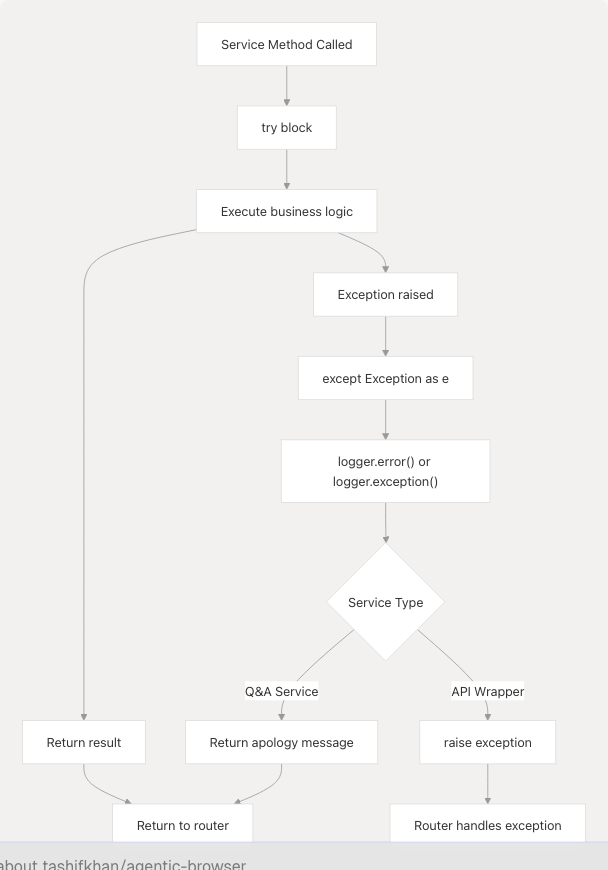

Exception Handling Pattern

Services implement a consistent try/except pattern:

Q&A Services (GitHub, Website, YouTube) return graceful error messages:

services/github_service.py37-39: Returns "I apologize, but I encountered an error processing your question about the GitHub repository. Please try again."
services/website_service.py50-52: Returns "I apologize, but I encountered an error processing your question. Please try again."
services/youtube_service.py32-34: Returns "I apologize, but I encountered an error processing your question about the video. Please try again."
services/react_agent_service.py85-91: Returns "I apologize, but I encountered an error processing your question. Please try again."

API Wrapper Services (Gmail, Calendar, GoogleSearch, PyJIIT) propagate exceptions to routers:

services/gmail_service.py17-20: logger.exception() then raise
services/calendar_service.py15-17: logger.exception() then raise
services/google_search_service.py28-30: logger.exception() then raise
services/pyjiit_service.py20-22: logger.exception() then raise

Sources: services/github_service.py37-39 services/website_service.py50-52 services/youtube_service.py32-34 services/react_agent_service.py85-91 services/gmail_service.py17-20 services/calendar_service.py15-17 services/google_search_service.py28-30 services/pyjiit_service.py20-22

Integration with Tool Layer

Services delegate specific operations to tool modules, maintaining a clear dependency hierarchy:

Sources: services/github_service.py5-19 services/website_service.py3-22 services/youtube_service.py2-17 services/google_search_service.py2-15 services/gmail_service.py2-50 services/calendar_service.py2-34 services/pyjiit_service.py8-60

Service-to-Tool Call Patterns

Service	Tool Import	Tool Function Call	Line Reference
`GitHubService`	`from tools.github_crawler import convert_github_repo_to_markdown`	`await convert_github_repo_to_markdown(url)`	services/github_service.py5-19
`WebsiteService`	`from tools.website_context import markdown_fetcher`	`markdown_fetcher(url)`	services/website_service.py3-22
`YouTubeService`	`from prompts.youtube import youtube_chain`	`youtube_chain.invoke({...})`	services/youtube_service.py2-17
`GoogleSearchService`	`from tools.google_search.seach_agent import web_search_pipeline`	`web_search_pipeline(query, max_results=max_results)`	services/google_search_service.py2-15
`GmailService`	`from tools.gmail.list_unread_emails import list_unread`	`list_unread(access_token, max_results=max_results)`	services/gmail_service.py3-13
`CalendarService`	`from tools.calendar.get_calender_events import get_calendar_events`	`get_calendar_events(access_token, max_results=max_results)`	services/calendar_service.py3-11
`PyjiitService`	`from tools.pyjiit.wrapper import Webportal, WebportalSession`	`Webportal().student_login(...)`	services/pyjiit_service.py8-16

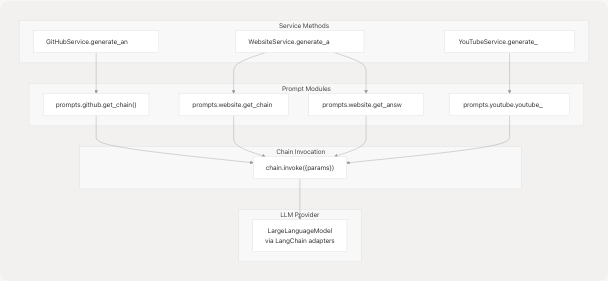

Integration with Prompt and LLM Layer

Q&A-oriented services integrate with prompt chains to generate responses:

Sources: services/github_service.py4-30 services/website_service.py2-43 services/youtube_service.py2-23

Chain Construction and Initialization

GitHubService: Obtains chain on-demand per request

services/github_service.py21: chain = get_chain() called within generate_answer()
services/github_service.py22-30: Invokes chain with summary, tree, text, question, chat_history parameters

WebsiteService: Constructs chain during initialization

services/website_service.py9-10: __init__() creates self.chain = get_chain()
services/website_service.py38-43: Uses get_answer(self.chain, question, markdown_page_info, chat_history_str) helper function

YouTubeService: Uses pre-built chain module

services/youtube_service.py2: Imports youtube_chain directly
services/youtube_service.py17-23: Invokes with url, question, chat_history parameters

Response Handling Pattern

All LLM-driven services handle responses consistently:

# Pattern: Check if response is string or has .content attribute
if isinstance(response, str):
    return response
return response.content

services/github_service.py32-35: Implements this pattern
services/website_service.py45-48: Implements this pattern
services/youtube_service.py27-30: Implements this pattern

Sources: services/github_service.py32-35 services/website_service.py45-48 services/youtube_service.py27-30

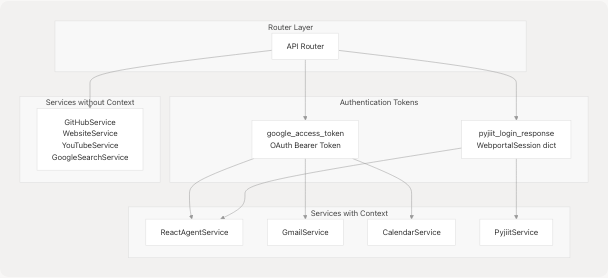

Context Management and Authentication

Services handle authentication context differently based on their requirements:

Sources: services/react_agent_service.py18-34 services/gmail_service.py11-47 services/calendar_service.py9-27 services/pyjiit_service.py14-124

ReactAgentService Context Building

ReactAgentService builds a context dictionary for conditional tool availability:

Implementation:

services/react_agent_service.py23: Initialize empty context dict
services/react_agent_service.py25-26: Add google_access_token if provided
services/react_agent_service.py28-34: Add pyjiit_login_response, handling both Pydantic models and dicts
services/react_agent_service.py36: Pass context to GraphBuilder

The GraphBuilder uses this context to determine which tools to make available in the agent's tool list. For example, Gmail and Calendar tools are only available when google_access_token is present.

Sources: services/react_agent_service.py23-36

API Wrapper Services Authentication

Services that wrap external APIs accept authentication tokens as method parameters:

GmailService:

services/gmail_service.py11: list_unread_messages(access_token, ...)
services/gmail_service.py22: fetch_latest_messages(access_token, ...)
services/gmail_service.py33: mark_message_read(access_token, ...)
services/gmail_service.py44: send_message(access_token, ...)

CalendarService:

services/calendar_service.py9: list_events(access_token, ...)
services/calendar_service.py19: create_event(access_token, ...)

PyjiitService Session Management:

services/pyjiit_service.py14: login() returns session.model_dump() as dict
services/pyjiit_service.py24-44: get_semesters() accepts session_payload dict and reconstructs WebportalSession
services/pyjiit_service.py46-124: get_attendance() handles nested dict structures with "session_payload" and "raw_response" keys

Sources: services/gmail_service.py11-44 services/calendar_service.py9-19 services/pyjiit_service.py14-60

Common Service Patterns

Asynchronous vs Synchronous Methods

Services use async methods when calling async tools:

Service	Method Type	Reason
`GitHubService.generate_answer()`	`async`	Calls `await convert_github_repo_to_markdown()`
`WebsiteService.generate_answer()`	`async`	Chain invocation may be async
`YouTubeService.generate_answer()`	`async`	Chain invocation may be async
`ReactAgentService.generate_answer()`	`async`	Calls `await graph.ainvoke()`
`GmailService.*`	Synchronous	Wraps synchronous tool functions
`CalendarService.*`	Synchronous	Wraps synchronous tool functions
`GoogleSearchService.search()`	Synchronous	Wraps synchronous tool functions
`PyjiitService.*`	Synchronous	Wraps synchronous tool functions

Sources: services/github_service.py11-16 services/website_service.py12-17 services/youtube_service.py8-13 services/react_agent_service.py15-21 services/gmail_service.py11-44 services/calendar_service.py9-19 services/google_search_service.py8 services/pyjiit_service.py14-46

Parameter Consistency

Services maintain consistent parameter naming:

Common Parameters:

url: String or HttpUrl for web resources
question: User query string
chat_history: List of previous messages (format varies by service)
access_token: OAuth token for Google services
max_results: Result count limit (default varies)

Chat History Formats:

GitHubService: list[dict] with default [] (services/github_service.py15)
WebsiteService: list of any format (services/website_service.py16)
YouTubeService: str with default "" (services/youtube_service.py12)
ReactAgentService: list[dict[str, Any]] | None (services/react_agent_service.py18)

Data Transformation Patterns

Chat History Conversion in ReactAgentService:

services/react_agent_service.py38-56 converts dict-based chat history to LangChain message objects:

messages_list: list = []
if chat_history:
    for entry in chat_history:
        if isinstance(entry, dict):
            role = (entry.get("role") or "").lower()
            content = entry.get("content", "")

            if role == "user":
                messages_list.append(HumanMessage(content=content))
            elif role in {"assistant", "bot", "ai"}:
                messages_list.append(AIMessage(content=content))

Chat History String Building in WebsiteService:

services/website_service.py28-36 concatenates chat history into a string:

chat_history_str = ""
if chat_history:
    for entry in chat_history:
        if isinstance(entry, dict):
            role = entry.get("role", "")
            content = entry.get("content", "")
            chat_history_str += f"{role}: {content}\n"

PyjiitService Data Processing:

services/pyjiit_service.py104-118 extracts and cleans attendance data using regex:

for item in raw_list:
    subj = item.get("subjectcode", "") or ""
    # Extract code in parentheses
    m = re.search(r"\(([^)]+)\)\s*$", subj)
    code = m.group(1) if m else ""
    # Strip trailing bracketed code
    subject_no_bracket = re.sub(r"\s*\([^)]*\)\s*$", "", subj).strip()

Sources: services/react_agent_service.py38-56 services/website_service.py28-36 services/pyjiit_service.py104-118

Return Value Patterns

Services return different data structures based on their purpose:

Service	Return Type	Example Value
Q&A Services	`str`	Answer text or error message
`GoogleSearchService`	List of search results	`[{...}]` from Tavily
`GmailService.list_unread_messages()`	List of email dicts	`[{"id": ..., "subject": ...}]`
`CalendarService.list_events()`	List of event dicts	`[{"summary": ..., "start": ...}]`
`PyjiitService.login()`	`Dict[str, Any]`	Serialized `WebportalSession`
`PyjiitService.get_attendance()`	`List[Dict[str, Any]]`	Attendance records

Service Instantiation and Dependency Injection

Services are instantiated by routers, typically as singletons or per-request instances:

Most services are stateless and can be instantiated without parameters:

service = GitHubService()
service = YouTubeService()
service = GoogleSearchService()
# etc.

Exception: WebsiteService

services/website_service.py9-10 initializes a chain during construction:

def __init__(self):
    self.chain = get_chain()

This allows reusing the same chain instance across multiple requests, improving performance.

Sources: All service files show parameter-free constructors except services/website_service.py9-10
