Data Models and API Contracts

Purpose and Scope

This document catalogs the Pydantic models that define the API contracts for all endpoints in the Agentic Browser backend. These models provide runtime validation, serialization, and type safety for requests and responses flowing between the browser extension and the Python backend services.

For information about how these models are consumed by API endpoints, see Service Integration Routers. For details on the agent execution flow that uses these models, see React Agent Architecture.

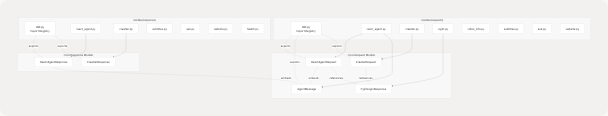

Model Architecture Overview

The data models are organized into two primary categories: request models that validate incoming payloads, and response models that structure outgoing data. All models inherit from Pydantic's BaseModel and leverage field validation, alias resolution, and serialization configuration.

Sources: models/requests/__init__.py1-21 models/response/__init__.py1-20

Request Models

AgentMessage

The AgentMessage model represents a single message in a conversation thread. It supports all standard message roles defined by the OpenAI chat completions format, with extensions for tool calling.

Field Specifications:

Configuration: The model uses populate_by_name=True to accept both snake_case and camelCase field names, and str_strip_whitespace=True to clean input strings.

Sources: models/requests/react_agent.py10-25

ReactAgentRequest

The ReactAgentRequest model defines the contract for the primary agent endpoint at /api/genai/react. It carries conversation history and optional authentication context for Google services and PyJIIT.

Field Specifications:

Alias Resilience: The model uses AliasChoices to handle common typos (google_acces_token, pyjiit_login_responce) while enforcing canonical serialization names. This prevents client-side typos from breaking API calls.

Usage Context: This model is consumed by the React agent router at api/genai/react.py which passes the credentials to build_agent_tools() for conditional tool loading.

Sources: models/requests/react_agent.py27-44

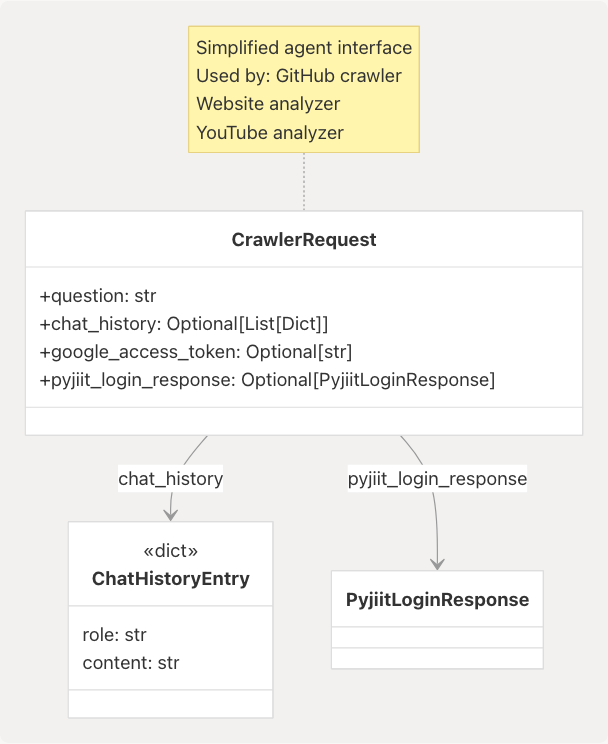

CrawlerRequest

The CrawlerRequest model serves specialized crawling endpoints (GitHub, website analysis) that require a single question rather than full conversation context.

Field Specifications:

Design Rationale: The simplified question field (vs. full messages list) is optimized for single-turn interactions where the agent performs a specific analysis task rather than multi-turn conversation.

Sources: models/requests/crawller.py1-27

PyJIIT Authentication Models

The PyJIIT integration requires a complex nested authentication payload returned by the JIIT student portal login API. These models deserialize and validate the portal's response structure.

PyjiitLoginResponse

The top-level response container that normalizes the portal's authentication data:

PyjiitRegData

Nested registration metadata containing session credentials:

PyjiitInstituteEntry

Represents a single institute in the user's available institute list:

class PyjiitInstituteEntry(BaseModel):
    label: str  # Display name
    value: str  # Institution identifier

Sources: models/requests/pyjiit.py1-91

Additional Request Models

The system defines several other request models for specific services:

Sources: models/requests/__init__.py5-16

Response Models

ReactAgentResponse

The ReactAgentResponse model packages the agent's final conversation state after tool execution and LLM response generation.

Field Specifications:

Message Flow: The messages array contains the full execution trace:

1. Original user message(s) from the request
2. Assistant's tool invocation message (if tools were called)
3. Tool result messages with role="tool"
4. Final assistant response synthesizing the results

The output field duplicates the content of the last assistant message for convenience, allowing clients to display just the response without parsing the message array.

Sources: models/response/react_agent.py1-15

Additional Response Models

Other response models follow similar patterns, wrapping service-specific outputs:

Sources: models/response/__init__.py5-18

API Contract Patterns

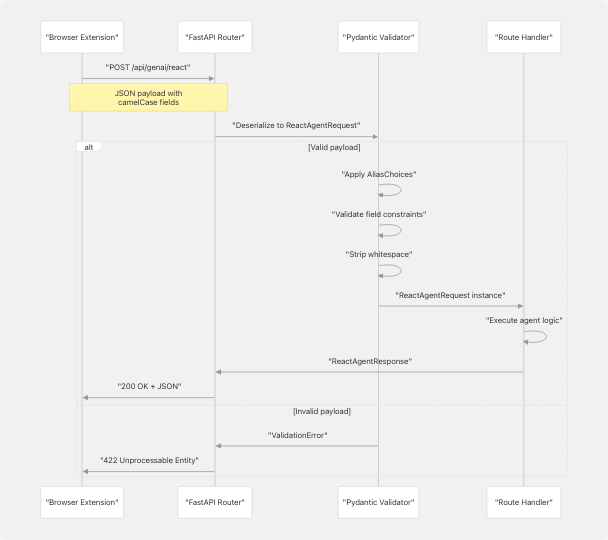

Request Validation Flow

Validation Stages:

1. Alias Resolution: AliasChoices maps multiple input names to canonical field names
2. Type Checking: Pydantic enforces declared types and converts where possible
3. Constraint Validation: Field validators check min_length, Literal values, etc.
4. Nested Model Validation: Recursively validates embedded models like PyjiitLoginResponse
5. String Normalization: str_strip_whitespace cleans input strings

Sources: models/requests/react_agent.py27-44 models/requests/crawller.py8-27

Credential Context Propagation

Both ReactAgentRequest and CrawlerRequest accept optional credential payloads that enable conditional tool availability:

Credential Handling:

• Google OAuth Token: Passed directly to Gmail and Calendar API clients
• PyJIIT Session: Deserialized into WebportalSession for JIIT portal requests
• Absence Behavior: If credentials are missing, related tools are excluded from the agent's tool set

Sources: models/requests/react_agent.py29-40 models/requests/crawller.py13-24

Model Configuration

Pydantic Settings

All models leverage Pydantic v2 configuration via model_config dictionaries:

# Common configuration pattern
model_config = {
    "populate_by_name": True,  # Accept both field names and aliases
    "str_strip_whitespace": True,  # Clean string inputs
}

Configuration Options in Use:

Sources: models/requests/react_agent.py21-24 models/requests/react_agent.py42-44

Alias Resolution Strategy

The system uses three levels of alias handling:

1. Simple Aliases: Direct mapping using Field(alias="...")

   tool_call_id: Optional[str] = Field(default=None, alias="toolCallId")

2. Multiple Alias Choices: Fallback chain for common typos

   google_access_token: Optional[str] = Field( validation_alias=AliasChoices("google_access_token", "google_acces_token"), serialization_alias="google_access_token" )

3. Bidirectional Naming: Accept both forms, serialize to one

   Model accepts: google_access_token OR google_acces_token

   Model outputs: google_access_token (canonical)

Design Rationale: The alias system provides backward compatibility and typo resilience without sacrificing output consistency. This is particularly important for the extension-to-backend contract where JavaScript camelCase conventions meet Python snake_case.

Sources: models/requests/react_agent.py14 models/requests/react_agent.py29-34 models/requests/crawller.py13-17

Field Validation Rules

String Constraints

# Minimum length enforcement
content: str = Field(..., min_length=1)

# Description metadata
google_access_token: Optional[str] = Field(
    default=None,
    description="OAuth access token with Gmail/Calendar scope."
)

List Constraints

# Minimum element count
messages: List[AgentMessage] = Field(..., min_length=1)

# Default factory for optional lists
chat_history: Optional[list[dict[str, Any]]] = Field(
    default_factory=list,
    description="Optional chat transcript for context."
)

Literal Types

# Enum-like constraint
role: Literal["system", "user", "assistant", "tool"]

Sources: models/requests/react_agent.py12 models/requests/react_agent.py28 models/requests/crawller.py10-12

Type Safety and IDE Support

All models use explicit type hints compatible with Python 3.10+ type checkers:

from typing import Any, List, Literal, Optional
from pydantic import BaseModel, Field

class AgentMessage(BaseModel):
    role: Literal["system", "user", "assistant", "tool"]  # Exhaustive options
    content: str = Field(..., min_length=1)  # Required, non-empty
    tool_calls: Optional[List[Dict[str, Any]]] = None  # Nullable

IDE Benefits:

• Autocomplete for role values
• Type errors when passing wrong types to fields
• Null-safety checks via Optional markers
• Inline documentation from Field(description="...")

Sources: models/requests/react_agent.py10-19
