Support Agents

Purpose and Scope

This document describes the Support Agents subsystem within the TalentSync backend, which provides external data-gathering capabilities for core AI services. These agents act as specialized utilities that fetch, parse, and extract information from external sources including GitHub repositories, web search results, and web page content.

For information about how these agents are used by specific AI services, see:

• ATS Evaluation Service (3.2)
• Cold Mail Generator Service (3.3)
• Tailored Resume Service (3.5)
• LinkedIn Services (3.6)

For information about the LLM integration that processes agent outputs, see 3.8.

Overview

The support agents provide three specialized capabilities:

All agents are designed to be fault-tolerant, returning empty results or gracefully degrading when external services are unavailable.

Sources: backend/app/agents/github_agent.py backend/app/agents/websearch_agent.py backend/app/agents/web_content_agent.py

Agent Architecture

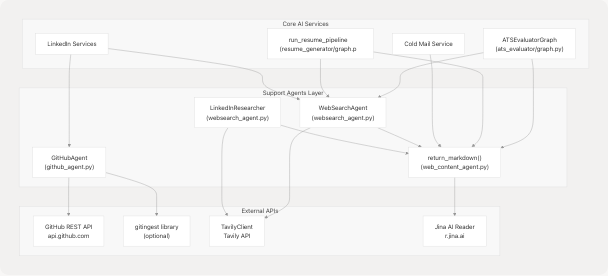

The following diagram shows the technical structure of the support agents and their integration points:

Sources: backend/app/agents/github_agent.py backend/app/agents/websearch_agent.py backend/app/agents/web_content_agent.py backend/app/services/ats_evaluator/graph.py backend/app/services/resume_generator/graph.py

GitHub Agent

The GitHub Agent provides comprehensive repository analysis capabilities, fetching metadata from the GitHub API and optionally ingesting entire codebases for deep analysis.

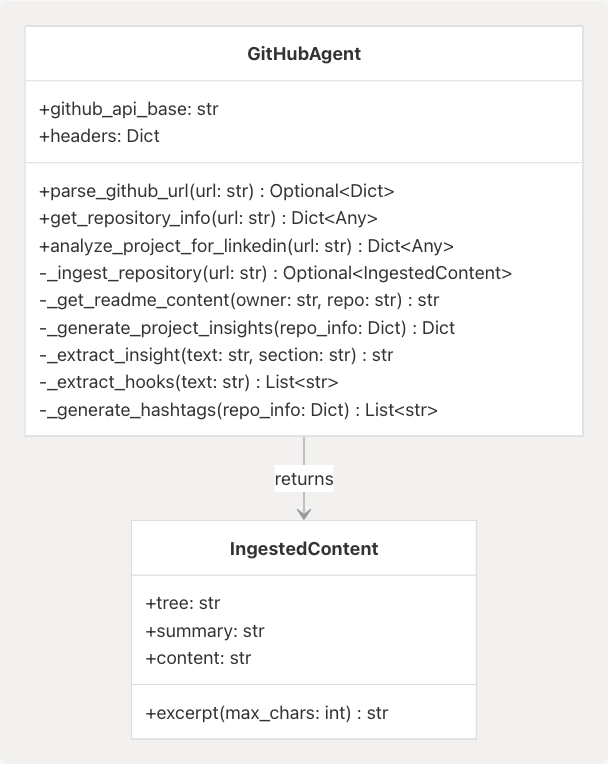

Core Classes and Models

Key Functionality

1. URL Parsing and Repository Metadata

The agent parses various GitHub URL formats and extracts owner/repository information:

# Supported URL patterns
github.com/owner/repo
github.com/owner/repo.git
github.com/owner/repo/tree/branch

Implementation: backend/app/agents/github_agent.py59-89

The get_repository_info method fetches comprehensive metadata including:

• Repository name, description, stars, forks
• Primary language and language breakdown
• Topics/tags
• License information
• README content (first 1000 characters)
• Recent commit activity

Implementation: backend/app/agents/github_agent.py90-160

2. Repository Ingestion (Optional)

When the gitingest library is available, the agent can ingest entire repository contents:

The ingestion runs asynchronously with a 60-second timeout and handles both sync and async versions of the gitingest library:

Implementation: backend/app/agents/github_agent.py161-194

3. LinkedIn Insights Generation

The analyze_project_for_linkedin method combines repository metadata with optional ingested content to generate LinkedIn-friendly insights:

The generated insights include:

• Key Achievement: Notable aspects of the project
• Technical Highlights: Technologies and innovations
• Impact Statement: Problem solved or value provided
• LinkedIn Hooks: 3 engaging presentation angles
• Suggested Hashtags: Based on language, topics, and generic tech tags
• Project Stats: Stars, language, activity status

Implementation: backend/app/agents/github_agent.py224-333

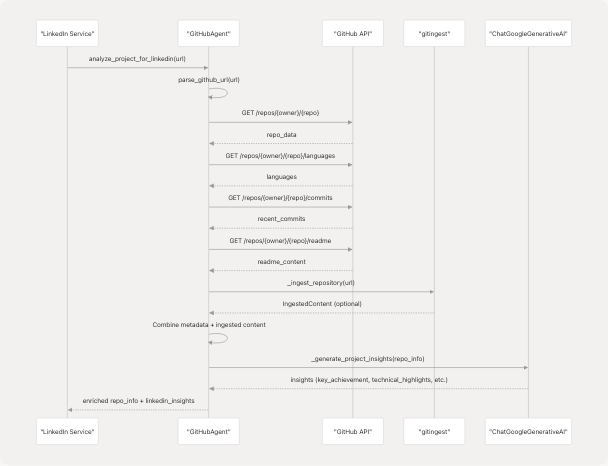

Integration Pattern

The GitHub Agent is primarily used by the LinkedIn service when users provide a GitHub repository URL:

Example Usage: backend/app/agents/github_agent.py412-417

Sources: backend/app/agents/github_agent.py1-418

Web Search Agent

The Web Search Agent provides web search capabilities using the Tavily API and includes specialized research functionality for content generation.

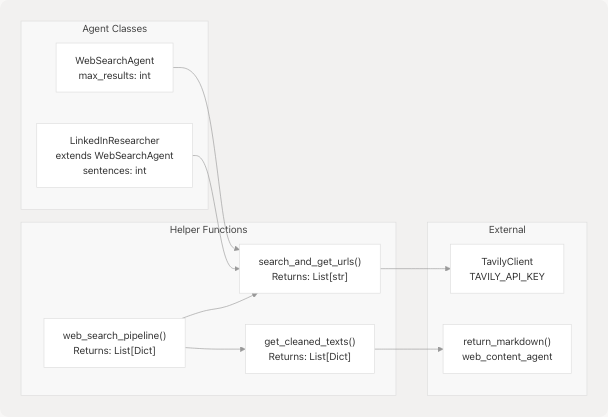

Core Components

Search and URL Extraction

The search_and_get_urls function queries Tavily API with configurable parameters:

Implementation: backend/app/agents/websearch_agent.py69-97

The search returns a list of URLs which can then be processed by get_cleaned_texts to extract markdown content:

Implementation: backend/app/agents/websearch_agent.py99-111

WebSearchAgent Class

The WebSearchAgent class provides an object-oriented interface with research capabilities:

Methods

1. search_web(query, max_results): Basic search returning structured results

   • Returns: List[Dict[str, str]] with title, url, snippet fields
   • Implementation: backend/app/agents/websearch_agent.py133-145

2. extract_page_content(url): Fetch markdown from URL

   • Delegates to return_markdown from web_content_agent
   • Implementation: backend/app/agents/websearch_agent.py147-149

3. research_topic(topic, context): Comprehensive research flow

   • Searches web, extracts content from top 2 URLs
   • Generates LLM-powered summary
   • Returns structured research data
   • Implementation: backend/app/agents/websearch_agent.py150-169

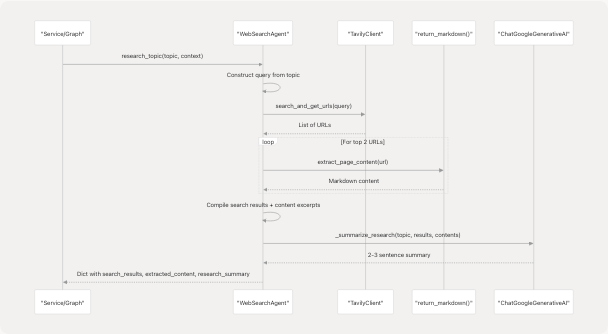

The research_topic method uses the following workflow:

Implementation: backend/app/agents/websearch_agent.py171-202

LinkedInResearcher Class

LinkedInResearcher extends WebSearchAgent with specialized LinkedIn post generation:

• Inherits research capabilities
• Adds sentences parameter to control post length (default: 3)
• generate_post(topic) method combines research and LLM generation

Post Generation Flow:

1. Research topic using parent class method
2. Extract research summary
3. Generate LinkedIn-optimized post with hook + key points
4. Limit hashtags to 2 max
5. Return research data + generated post

Implementation: backend/app/agents/websearch_agent.py205-236

Retry and Rate Limiting

The agent implements robust error handling:

REQUEST_TIMEOUT = 15  # seconds
MAX_RETRIES = 2
BACKOFF_BASE = 0.7  # exponential backoff multiplier

The _get helper function handles transient HTTP errors (429, 500, 502, 503, 504) with exponential backoff:

Implementation: backend/app/agents/websearch_agent.py38-60

Configuration

Tavily API key is loaded from environment:

Implementation: backend/app/agents/websearch_agent.py63-66

If TAVILY_API_KEY is not set, search functions return empty lists gracefully.

Sources: backend/app/agents/websearch_agent.py1-271

Web Content Agent

The Web Content Agent is the simplest of the three agents, providing a single-purpose utility for extracting clean markdown content from URLs.

Implementation

The entire agent consists of one function return_markdown:

def return_markdown(url: str, timeout: int = 5000) -> str

Implementation: backend/app/agents/web_content_agent.py4-23

Jina AI Integration

The function uses Jina AI's Reader service by prefixing URLs with https://r.jina.ai/:

Original URL: https://example.com/page
Jina AI URL:  https://r.jina.ai/https://example.com/page

Jina AI provides:

• CORS bypass for client-side requests
• Automatic content extraction and cleaning
• Markdown conversion
• Ad/navigation removal

Error Handling

The function is designed for fault tolerance:

• Empty URLs return empty string immediately
• Any exception during request returns empty string
• Non-200 status codes return empty string
• Empty response bodies return empty string

This allows calling code to handle missing content gracefully without try/catch blocks.

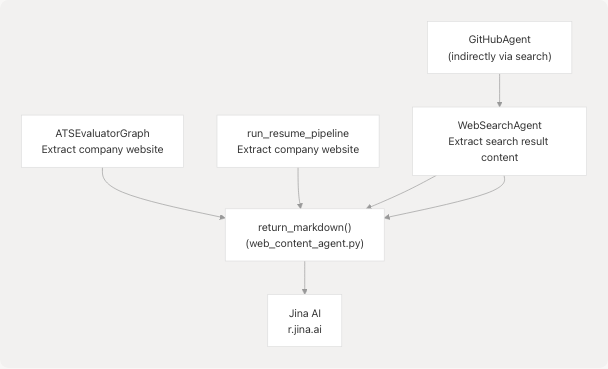

Usage Pattern

The agent is used extensively throughout the codebase:

Direct Usage Examples:

• backend/app/services/ats_evaluator/graph.py82 - ATS evaluator fetches company website
• backend/app/services/resume_generator/graph.py116-118 - Resume pipeline fetches company website
• backend/app/agents/websearch_agent.py102 - Web search agent extracts URL content
• backend/app/agents/websearch_agent.py148 - WebSearchAgent delegates to this function

Sources: backend/app/agents/web_content_agent.py1-23

Service Integration Patterns

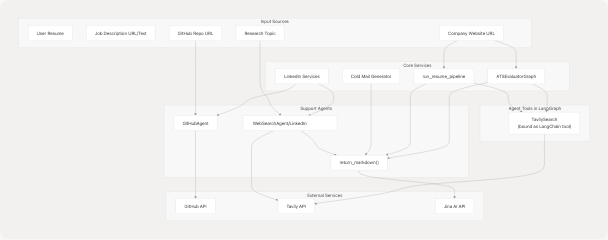

The following diagram shows how support agents integrate with core AI services and the data flow:

Integration Examples

1. ATS Evaluator with Web Search

The ATS evaluator uses Tavily as a LangChain tool within the LangGraph state machine:

Implementation: backend/app/services/ats_evaluator/graph.py27-40 backend/app/services/ats_evaluator/graph.py73-80

Company website content is fetched directly:

Implementation: backend/app/services/ats_evaluator/graph.py82

2. Tailored Resume with Multi-Agent Support

The resume pipeline uses both web content agent and Tavily search:

Web content extraction: backend/app/services/resume_generator/graph.py116-118

Tavily tool binding: backend/app/services/resume_generator/graph.py152

Usage in graph: backend/app/services/resume_generator/graph.py153

3. LinkedIn Services with GitHub Agent

The LinkedIn service analyzes GitHub repositories for post generation:

# Typical flow (not shown directly in provided files, but pattern is clear)
github_agent = GitHubAgent()
repo_analysis = await github_agent.analyze_project_for_linkedin(github_url)
linkedin_insights = repo_analysis['linkedin_insights']

The agent provides pre-formatted content including hooks, hashtags, and technical highlights.

Sources: backend/app/services/ats_evaluator/graph.py backend/app/services/resume_generator/graph.py backend/app/agents/github_agent.py

External Service Dependencies

Dependency Summary

Environment Variables

The following environment variables control agent behavior:

# Required for web search functionality
TAVILY_API_KEY=tvly-xxxxxxxxxxxxx

# Optional: GitHub API token for higher rate limits
# (Not currently configured in the codebase)
GITHUB_TOKEN=ghp_xxxxxxxxxxxxx

Configuration Loading: backend/app/agents/websearch_agent.py16 backend/pyproject.toml25-27

Rate Limits and Quotas

Error Handling Strategy

All agents implement graceful degradation:

1. Missing API Keys: Return empty/minimal results without raising exceptions
2. Timeout/Network Errors: Log warning and return fallback data
3. Rate Limiting: Implement exponential backoff (WebSearchAgent)
4. Malformed Responses: Parse defensively, return partial data if possible

This design ensures that core services can continue functioning even when support agents encounter issues.

Sources: backend/app/agents/github_agent.py169-193 backend/app/agents/websearch_agent.py38-60 backend/app/agents/websearch_agent.py69-97 backend/app/agents/web_content_agent.py1-23

Dependencies and Installation

Python Package Requirements

# From pyproject.toml
gitingest>=0.3.1        # Optional for deep repo analysis
tavily-python>=0.7.12   # Required for web search
langchain-tavily>=0.2.11 # LangChain integration for Tavily
bs4>=0.0.2              # HTML parsing (transitive dependency)

Source: backend/pyproject.toml25-27

The gitingest library is optional - when unavailable, the GitHub agent falls back to metadata-only analysis:

Optional Import Pattern: backend/app/agents/github_agent.py12-27

Service Availability Checks

All agents check for service availability at import time or first use:

• Tavily: Checks for TAVILY_API_KEY environment variable backend/app/agents/websearch_agent.py63-66
• gitingest: Try/except import with fallback backend/app/agents/github_agent.py12-27
• LLM: Checks for availability before summarization backend/app/agents/websearch_agent.py174

This lazy initialization pattern ensures the application can start even if some external services are unavailable.

Sources: backend/pyproject.toml backend/app/agents/github_agent.py12-27 backend/app/agents/websearch_agent.py63-66
