Account Management

This document describes the Account Management page, a frontend component that allows users to view and manage their account settings, profile information, security settings, and account deletion. This page provides different functionality based on the user's authentication method (email/password vs OAuth providers like Google or GitHub).

For authentication flows and session management, see Authentication System. For role-based access control, see Role Selection & Management.

Purpose and Scope

The Account Management page serves as the central hub for user account operations. It provides:

  • Profile Information Display: Shows user name, email, role, and profile picture
  • Avatar Management: Upload/change profile pictures (email users only; OAuth users' avatars are managed by their provider)
  • Security Settings: Password reset functionality for email-authenticated users
  • Account Deletion: Complete account removal with cascading deletion of all associated data
  • Authentication Method Display: Shows the active authentication method
  • Quick Actions: Navigation shortcuts and sign-out functionality

Sources: frontend/app/account/page.tsx1-792

Page Structure and Components

The Account Management page is implemented as a Next.js client component located at /account. It uses NextAuth for session management and displays different UI elements based on the user's authentication provider.

Component Architecture Diagram

Architecture Diagram

Sources: frontend/app/account/page.tsx44-792 frontend/components/avatar-upload.tsx1-179 frontend/components/ui/avatar.tsx1-121

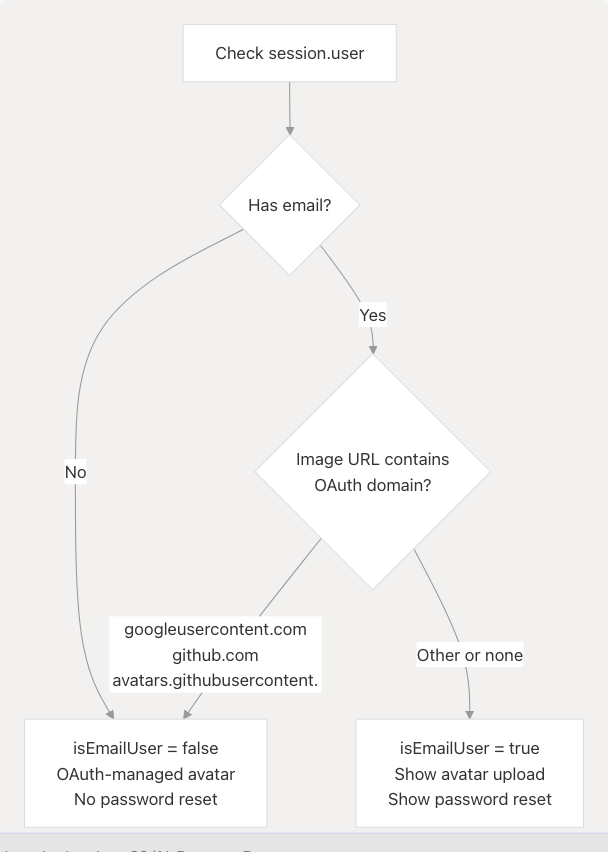

Authentication Method Detection

The page differentiates between email-authenticated users and OAuth users by examining the user's profile image URL:

Architecture Diagram

Sources: frontend/app/account/page.tsx58-63

Profile Information Management

Profile Display

The Profile Information Card displays the user's basic account details including name, email, role, and profile picture. The role is displayed as "Recruiter" if the user's role is "Admin", otherwise it shows the actual role value.

Field Icon Data Source Display Logic
Profile Picture Avatar session.user.image or avatarUrl state Different UI for email vs OAuth users
Name User session.user.name Displayed as-is or "Not provided"
Email Mail session.user.email Displayed as-is or "Not provided"
Role Shield (session.user as any).role "Recruiter" if "Admin", else actual role or "Not assigned"

Sources: frontend/app/account/page.tsx226-295

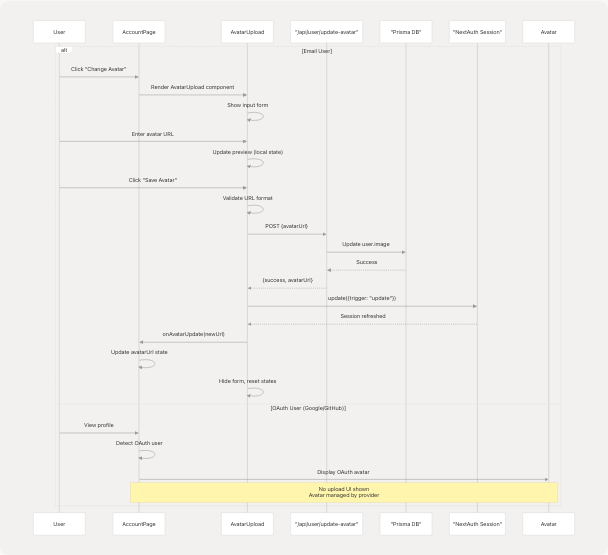

Avatar Management Flow

The avatar management system behaves differently based on authentication method:

Architecture Diagram

Sources: frontend/app/account/page.tsx238-265 frontend/components/avatar-upload.tsx22-178

Avatar Component with Proxy Support

The Avatar component implements retry logic and CORS workaround for OAuth provider images:

Architecture Diagram

Sources: frontend/components/ui/avatar.tsx12-120 frontend/app/api/proxy-image/route.ts1-91

Account Security

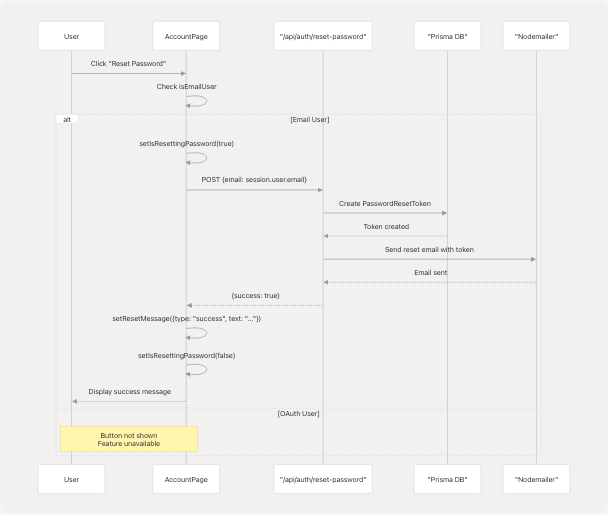

Password Reset Flow

Password reset is only available to email-authenticated users. OAuth users' passwords are managed by their respective providers.

Architecture Diagram

Sources: frontend/app/account/page.tsx82-121 frontend/app/account/page.tsx346-379

Authentication Method Display

The Account Security Card displays the active authentication method with appropriate labels:

Authentication Type Detection Logic Display Label Additional Features
Google OAuth session.user.image contains "googleusercontent" "Google OAuth" No password reset
GitHub OAuth session.user.image contains "github" "GitHub OAuth" No password reset
Email Sign-in All other cases "Email Sign-in" Password reset available

Sources: frontend/app/account/page.tsx329-343

Account Deletion

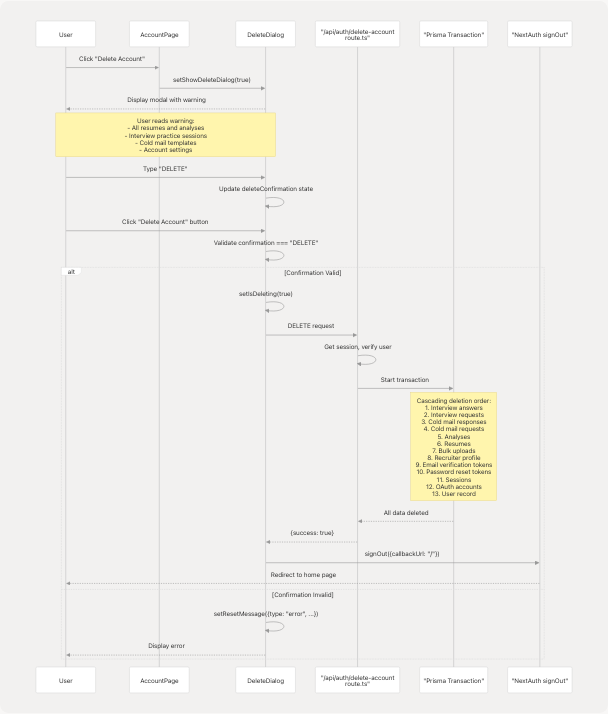

Deletion Confirmation Flow

Account deletion requires explicit user confirmation by typing "DELETE" to prevent accidental data loss:

Architecture Diagram

Sources: frontend/app/account/page.tsx123-157 frontend/app/account/page.tsx636-789 frontend/app/api/auth/delete-account/route.ts1-151

Cascading Deletion Logic

The account deletion API implements a transactional cascading delete to maintain referential integrity:

Architecture Diagram

Sources: frontend/app/api/auth/delete-account/route.ts42-134

Page Loading and Navigation

Loading States

The page implements multiple loading states for better user experience:

State Variable Purpose Duration UI Effect
status === "loading" NextAuth session loading Until session resolved Full-page "Loading..." message
isPageLoading Initial page render 100ms Full-page loader with animation
isResettingPassword Password reset in progress API call duration Disabled button with spinner
isDeleting Account deletion in progress API call + transaction Disabled button with spinner

Sources: frontend/app/account/page.tsx47-76 frontend/app/account/page.tsx159-187

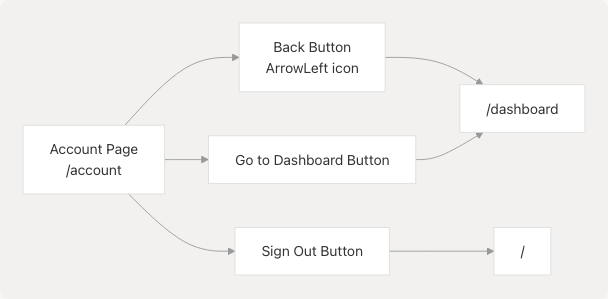

Navigation and Quick Actions

The page provides navigation elements and quick actions:

Architecture Diagram

Sources: frontend/app/account/page.tsx196-206 frontend/app/account/page.tsx419-433 frontend/app/account/page.tsx78-80

Future Features (Coming Soon)

BYOAW & Model Selector Card

The page includes a preview of an upcoming feature for "Bring Your Own AI Weights" (BYOAW) and model selection. This card is currently disabled with a "Coming Soon" overlay.

Planned features include:

  • AI Model Provider Selection: OpenAI, Claude (Anthropic), Gemini (Google)
  • API Configuration: Custom API keys and endpoints
  • Model Settings: Temperature and max tokens configuration
  • Connection Testing: Validate API credentials before saving

The UI structure is already implemented but overlaid with a disabled state:

Sources: frontend/app/account/page.tsx438-629

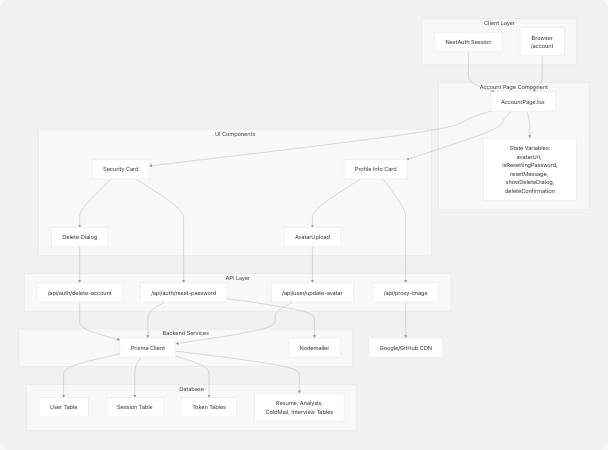

Data Flow Summary

Complete Account Management Data Flow

Architecture Diagram

Sources: frontend/app/account/page.tsx1-792 frontend/components/avatar-upload.tsx1-179 frontend/app/api/auth/delete-account/route.ts1-151 frontend/app/api/proxy-image/route.ts1-91

Key Code Entities

Main Component

State Management

  • isPageLoading: Initial page load animation state
  • avatarUrl: Stores updated avatar URL after upload
  • isResettingPassword: Password reset operation in progress
  • resetMessage: Success/error messages for operations
  • showDeleteDialog: Controls delete confirmation modal visibility
  • deleteConfirmation: User input for deletion confirmation
  • isDeleting: Account deletion operation in progress

Helper Functions

API Routes

Sub-Components

Sources: frontend/app/account/page.tsx1-792 frontend/components/avatar-upload.tsx1-179 frontend/components/ui/avatar.tsx1-121 frontend/app/api/auth/delete-account/route.ts1-151 frontend/app/api/proxy-image/route.ts1-91
