Deployment & Infrastructure

This document describes the deployment strategy, containerization setup, CI/CD pipeline, Progressive Web App (PWA) implementation, and infrastructure configuration for the TalentSync platform. It covers how the application is packaged, deployed, and served in production environments.

For information about the database schema and migrations, see Database & Data Models. For frontend and backend architecture details, see System Architecture.

Overview

The TalentSync platform uses a containerized deployment strategy with Docker Compose orchestrating three primary services: a PostgreSQL database, a Python FastAPI backend, and a Next.js frontend. The deployment is automated via GitHub Actions, which triggers on pushes to the main branch and deploys to a VPS. The frontend implements PWA features for offline capabilities and app-like experiences.

Key Technologies:

• Containerization: Docker with multi-stage builds
• Orchestration: Docker Compose with internal networking
• CI/CD: GitHub Actions with SSH deployment
• Reverse Proxy: Nginx Proxy Manager for SSL termination and domain routing
• PWA: Workbox-powered service worker with caching strategies
• Analytics: PostHog for user behavior tracking
• Package Managers: uv for Python, bun for Node.js

Deployment Architecture

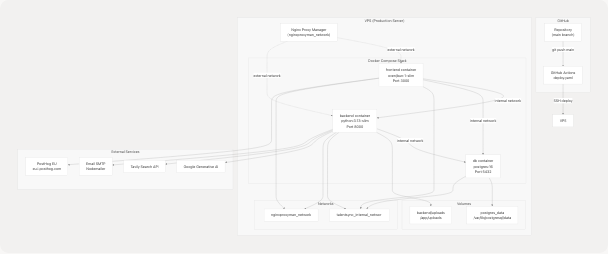

Production Infrastructure

Deployment Flow:

1. Developer pushes code to main branch on GitHub
2. GitHub Actions workflow triggers automatically
3. SSH connection established to VPS using stored secrets
4. Latest code pulled from repository on VPS
5. Docker images rebuilt using docker compose build
6. Services recreated with docker compose up -d --force-recreate
7. Nginx Proxy Manager routes traffic to frontend container

Sources: .github/workflows/deploy.yaml1-42 docker-compose.prod.yaml1-66

Docker Compose Configuration

Service Definitions

The application uses two Docker Compose files:

• docker-compose.yaml - Development environment with exposed ports
• docker-compose.prod.yaml - Production environment with network isolation

Sources: docker-compose.prod.yaml1-66

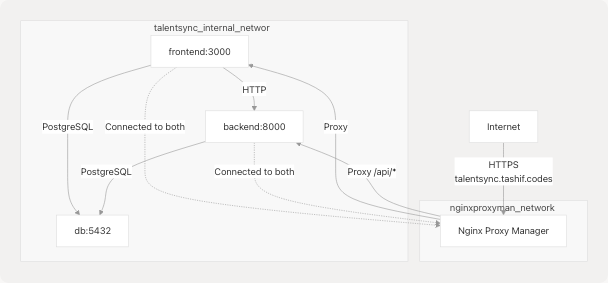

Network Architecture

Network Strategy:

• Internal Network: talentsync_internal_network (bridge driver) for inter-service communication
• External Network: nginxproxyman_network connects frontend and backend to Nginx Proxy Manager
• Isolation: Database is NOT connected to external network, only accessible internally

Sources: docker-compose.prod.yaml54-66

Environment Variables Flow

Key Environment Overrides in Production:

• NEXTAUTH_URL: Set to https://talentsync.tashif.codes for production domain
• DATABASE_URL: Uses internal service name db:5432 for database connection
• BACKEND_URL: Uses internal service name http://backend:8000 for API calls
• NODE_ENV: Set to production for optimization

Sources: docker-compose.prod.yaml38-48

Docker Image Builds

Frontend Image (Next.js)

Multi-Stage Build Benefits:

1. Smaller Image: Development dependencies excluded from final image
2. Build Caching: Dependencies cached separately from source code
3. Security: Source files and build tools not present in production image
4. Performance: Only production-ready artifacts included

Key Dependencies Installed:

• openssl - Required for Prisma
• texlive-latex-* - LaTeX packages for PDF resume generation
• Bun runtime for Next.js execution

Build Arguments:

• NEXT_PUBLIC_POSTHOG_KEY - PostHog project key (embedded at build time)
• NEXT_PUBLIC_POSTHOG_UI_HOST - PostHog UI host
• NEXT_PUBLIC_POSTHOG_HOST - PostHog API host

These NEXT_PUBLIC_* variables are baked into the client bundle during build and cannot be changed at runtime.

Sources: frontend/Dockerfile1-125 docker-compose.prod.yaml34-40

Backend Image (FastAPI)

Single-Stage Build Rationale:

• Backend has fewer dependencies than frontend
• ML models (best_model.pkl, tfidf.pkl) are pre-trained and copied as-is
• NLTK data downloaded at runtime if needed
• Simpler maintenance with single stage

Package Manager: uv

• Modern, fast Python package installer
• --system flag installs to global environment (no virtual env)
• --no-cache reduces image size
• [dev] group includes uvicorn for serving

Sources: backend/Dockerfile1-33

CI/CD Pipeline

GitHub Actions Workflow

Workflow Configuration:

SSH Action Secrets:

• VPS_HOST - Server IP or domain
• VPS_USER - SSH username
• VPS_PROJECT_PATH - Project directory path on server
• SSH_PRIVATE_KEY - Private key for authentication

Deployment Commands:

cd $VPS_PROJECT_PATH
git pull origin main
docker compose -f docker-compose.prod.yaml build
docker compose -f docker-compose.prod.yaml up -d --force-recreate

--force-recreate Flag:

• Forces recreation of containers even if configuration hasn't changed
• Ensures new code is deployed
• Provides zero-downtime by overlapping old/new containers briefly

Sources: .github/workflows/deploy.yaml1-42

Startup Sequence

When containers start, the frontend executes a startup command:

sh -c "bunx prisma migrate deploy && bun prisma/seed.ts && bun run start"

Startup Tasks:

1. prisma migrate deploy: Apply pending database migrations
2. bun prisma/seed.ts: Seed initial data (idempotent)
3. bun run start: Start Next.js production server

Sources: docker-compose.prod.yaml49

Progressive Web App (PWA)

Service Worker Architecture

Service Worker Lifecycle:

1. Installation: Precaches critical assets on first visit
2. Activation: Cleans up outdated caches
3. Fetch Interception: Routes requests through cache strategies

Sources: frontend/public/sw.js1 frontend/public/workbox-1bb06f5e.js1

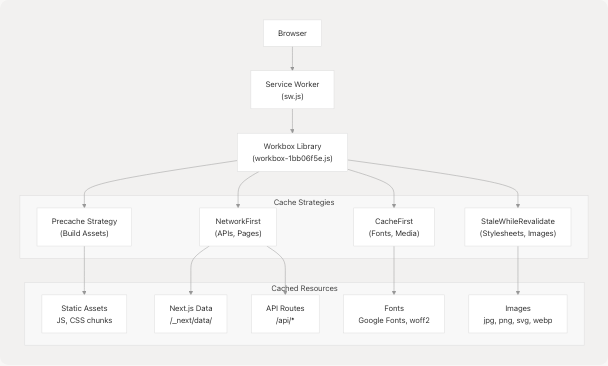

Caching Strategies

Strategy Descriptions:

• NetworkFirst: Try network first, fall back to cache if offline
• CacheFirst: Serve from cache, fetch from network only if not cached
• StaleWhileRevalidate: Serve from cache immediately, update cache in background

Precached Assets:

• All Next.js build chunks (/_next/static/chunks/)
• App routes and pages
• Static images and icons
• PWA manifest and service worker itself

Sources: frontend/public/sw.js1

PWA Manifest

The PWA manifest is located at /manifest.json and defines the app metadata:

• Icons: 192x192 and 512x512 PNG icons
• Display: Standalone (app-like experience)
• Start URL: /
• Theme Color: Matches brand colors

Sources: frontend/public/sw.js1

Environment Configuration

Variable Categories

Security Considerations

Public Variables (NEXT_PUBLIC_*):

• Embedded in client bundle at build time
• Visible to all users in browser
• Safe for public keys (PostHog, public API endpoints)

Private Variables:

• Never include in NEXT_PUBLIC_* prefix
• Loaded at runtime from .env file
• Not accessible to client-side code
• Examples: API secrets, database credentials, OAuth secrets

Docker Secrets Management:

• .env file NOT copied into Docker images
• Variables passed at runtime via env_file in docker-compose
• Sensitive files excluded via .dockerignore

Sources: frontend/Dockerfile9-18 docker-compose.prod.yaml42-48 frontend/.dockerignore7-11

Environment Variable Mapping

Sources: docker-compose.prod.yaml6-48

Monitoring & Analytics

PostHog Integration

PostHog Configuration:

The PostHog client is initialized on the client side:

// frontend/instrumentation-client.ts
posthog.init(key, {
  api_host: '/ph',      // Proxy to avoid CORS
  ui_host: 'https://eu.posthog.com'
})

Proxy Strategy:

• Client sends events to /ph (same origin)
• Next.js API route proxies to eu.i.posthog.com
• Avoids CORS issues and ad blockers

Environment Variables:

• NEXT_PUBLIC_POSTHOG_KEY - Project key (public)
• NEXT_PUBLIC_POSTHOG_UI_HOST - Dashboard URL (default: https://eu.posthog.com)
• NEXT_PUBLIC_POSTHOG_HOST - API host (default: https://eu.i.posthog.com)

Sources: frontend/instrumentation-client.ts1-12 docker-compose.prod.yaml38-40

Tracked Events

PostHog automatically tracks:

• Page views
• User sessions
• Feature usage
• User properties

Custom events can be tracked using:

posthog.capture('event_name', { property: 'value' })

Sources: frontend/instrumentation-client.ts1-12

Volume Persistence

Persistent Storage Strategy

Data Persistence:

• Volumes survive container recreation
• Data persists across deployments
• Named volumes managed by Docker

Backup Recommendations:

• Database: Regular PostgreSQL dumps (pg_dump)
• Uploads: File system backup or S3 sync

Sources: docker-compose.prod.yaml12-59

Health Checks & Monitoring

Container Health

Docker Compose does not define explicit health checks in the current configuration. However, Docker's restart policy ensures service availability:

restart: always

This policy:

• Restarts containers on failure
• Restarts after host reboot
• Maintains service uptime

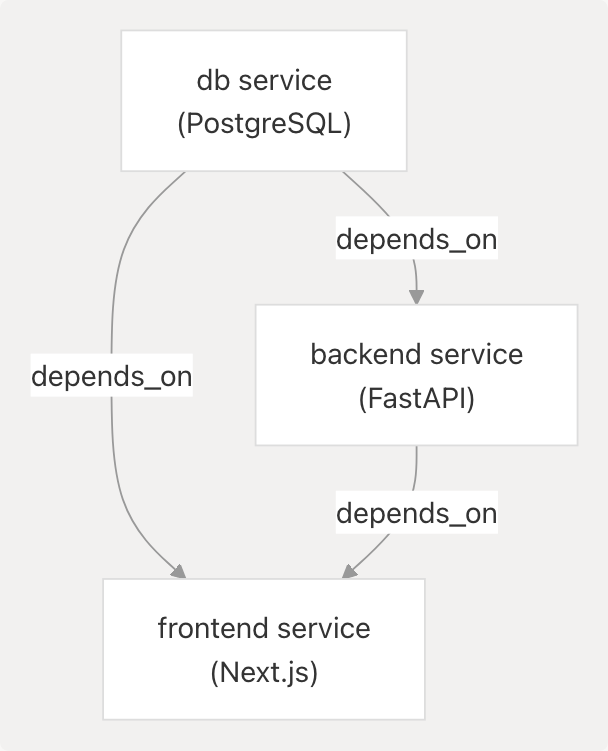

Service Dependencies

Startup Order:

1. Database starts first
2. Backend starts after database
3. Frontend starts after both (runs migrations)

Note: depends_on only ensures start order, not readiness. Frontend startup command includes retry logic for database connections.

Sources: docker-compose.prod.yaml27-52

Production Hardening

Security Measures

1. Network Isolation: Database not exposed to external network
2. Environment Separation: Production variables in separate .env file
3. Image Optimization: Multi-stage builds reduce attack surface
4. Non-Root User: Frontend runs as bun user, not root
5. SSL/TLS: Nginx Proxy Manager handles certificate management
6. Secret Management: Credentials stored in GitHub Secrets, not in code

Performance Optimizations

1. Docker Layer Caching: Dependencies cached separately from source code
2. Frozen Lockfiles: --frozen-lockfile ensures reproducible builds
3. Production Dependencies Only: Dev dependencies excluded from final images
4. Bun Runtime: Faster JavaScript execution compared to Node.js
5. Service Worker Caching: Reduces network requests for repeat visitors

Sources: frontend/Dockerfile43-84 backend/Dockerfile20

Troubleshooting

Common Deployment Issues

Viewing Logs

# All services
docker compose -f docker-compose.prod.yaml logs -f

# Specific service
docker compose -f docker-compose.prod.yaml logs -f frontend
docker compose -f docker-compose.prod.yaml logs -f backend
docker compose -f docker-compose.prod.yaml logs -f db

Rebuilding Specific Service

# Rebuild and restart specific service
docker compose -f docker-compose.prod.yaml up -d --build --force-recreate frontend

Sources: .github/workflows/deploy.yaml35-39

Summary

The TalentSync deployment infrastructure provides a production-ready, containerized platform with:

• Automated Deployments: GitHub Actions triggers on every push to main
• Network Isolation: Internal network for service communication, external for public access
• Data Persistence: Volumes for database and file uploads
• PWA Capabilities: Service worker with advanced caching strategies
• Scalability: Docker Compose can be migrated to Kubernetes for horizontal scaling
• Observability: PostHog analytics for user behavior tracking

The architecture balances simplicity (Docker Compose) with production requirements (SSL, analytics, PWA), making it suitable for small to medium-scale deployments while providing a path to more robust orchestration platforms as needed.
